Product Description
This coilover kit provides an adjustable, lowered ride height and a sportier stance.
Suitable for:
- BMW 3 E46 Sedan (02/1998-04/2005): 316i, 318i, 320i, 323i, 325i, 328i, 330i, 318d, 320d, 330d
- BMW 3 E46 Convertible (04/2000-12/2007): 318Ci, 320Ci, 323Ci, 325Ci, 330Ci, 320Cd, 330Cd
- BMW 3 E46 Coupe (02/1999-12/2006): 316Ci, 318Ci, 320Ci, 323Ci, 325Ci, 328Ci, 330Ci, 320Cd, 330Cd
- BMW 3 E46 Touring (10/1999-05/2005): 316i, 318i, 320i, 323i, 325i, 328i, 330i, 330d, 318d, 320d
Note: not suitable for Xi/xd all-wheel drive versions; a shorter swaybar end link is required.
Specifications

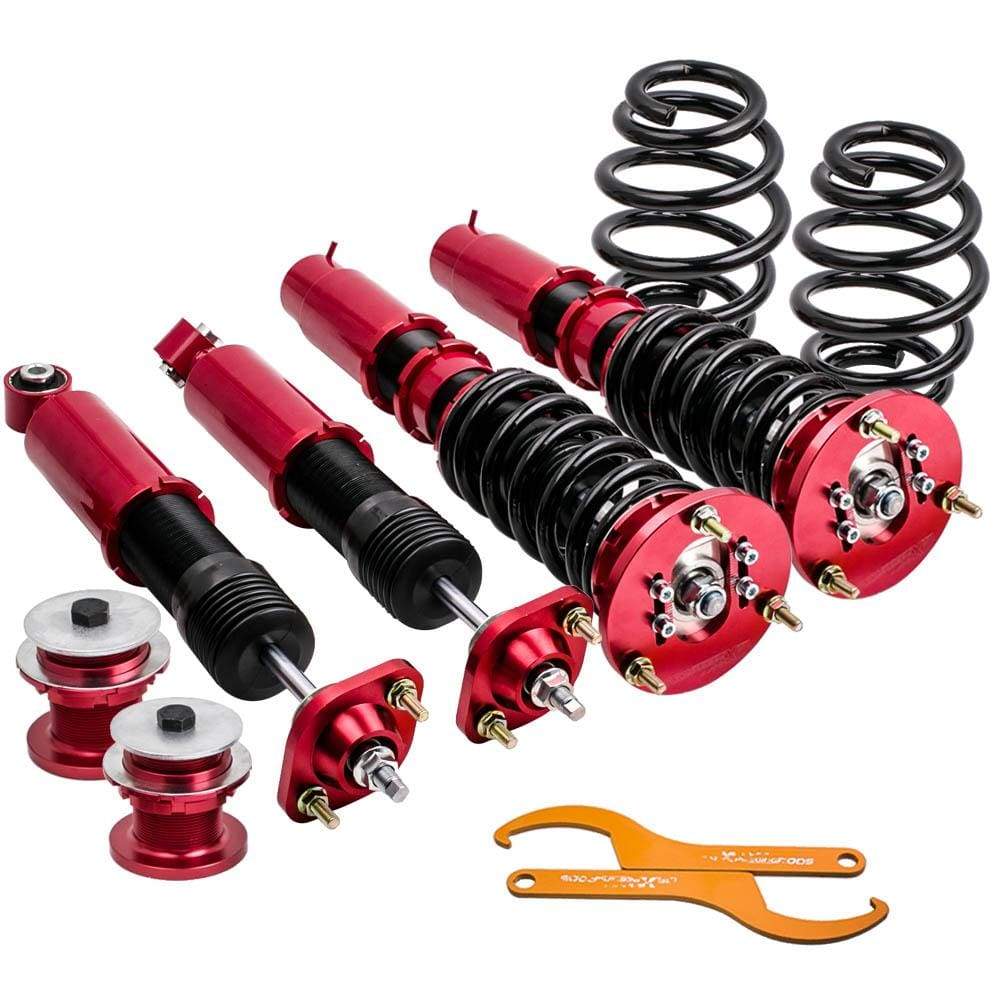

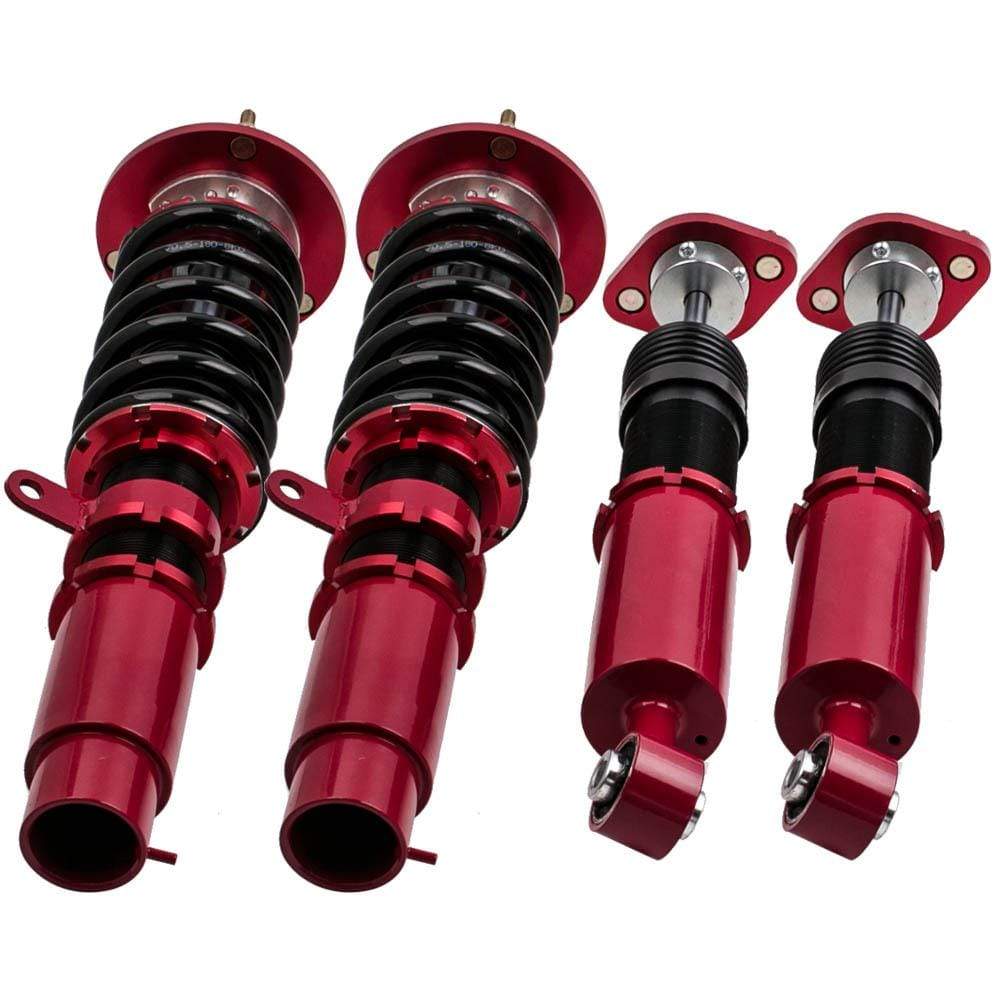

- Quantity: 2 front + 2 rear
- Height adjustable: yes, lowering of 25-75 mm depending on the model
- Damping: not adjustable

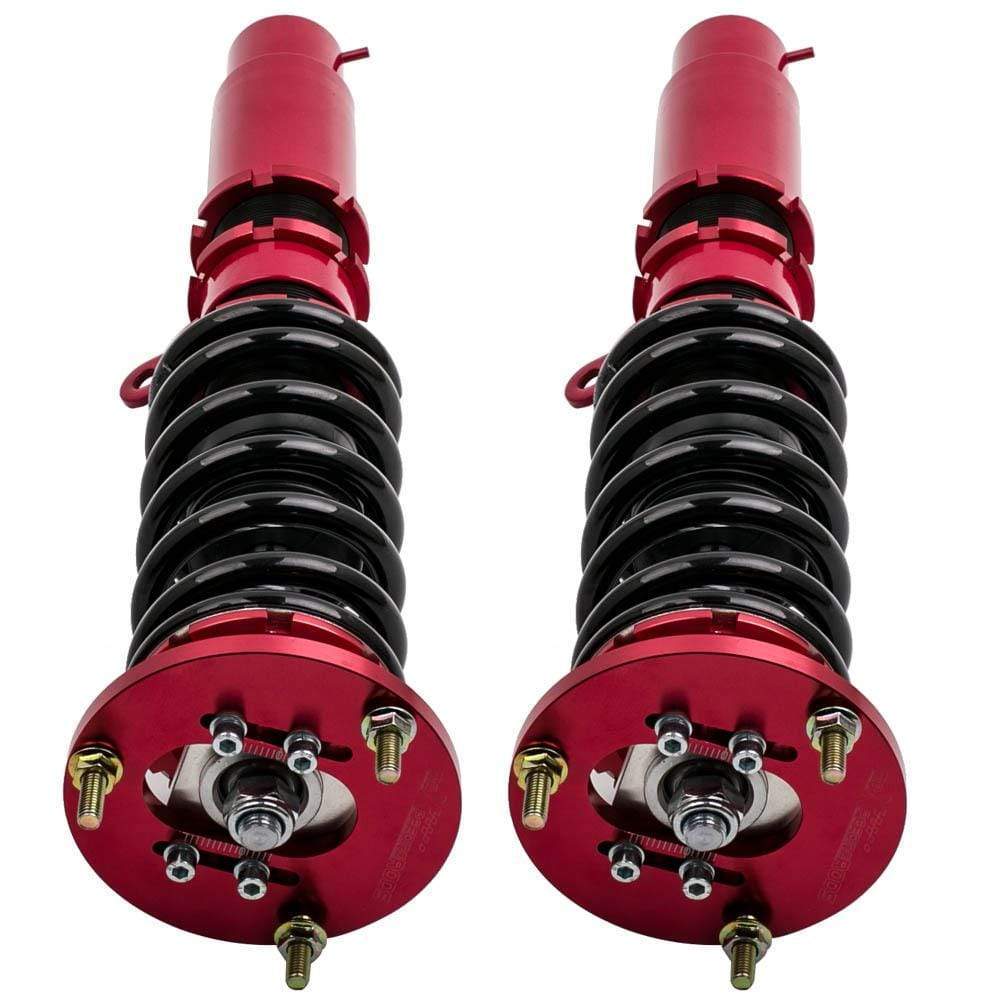

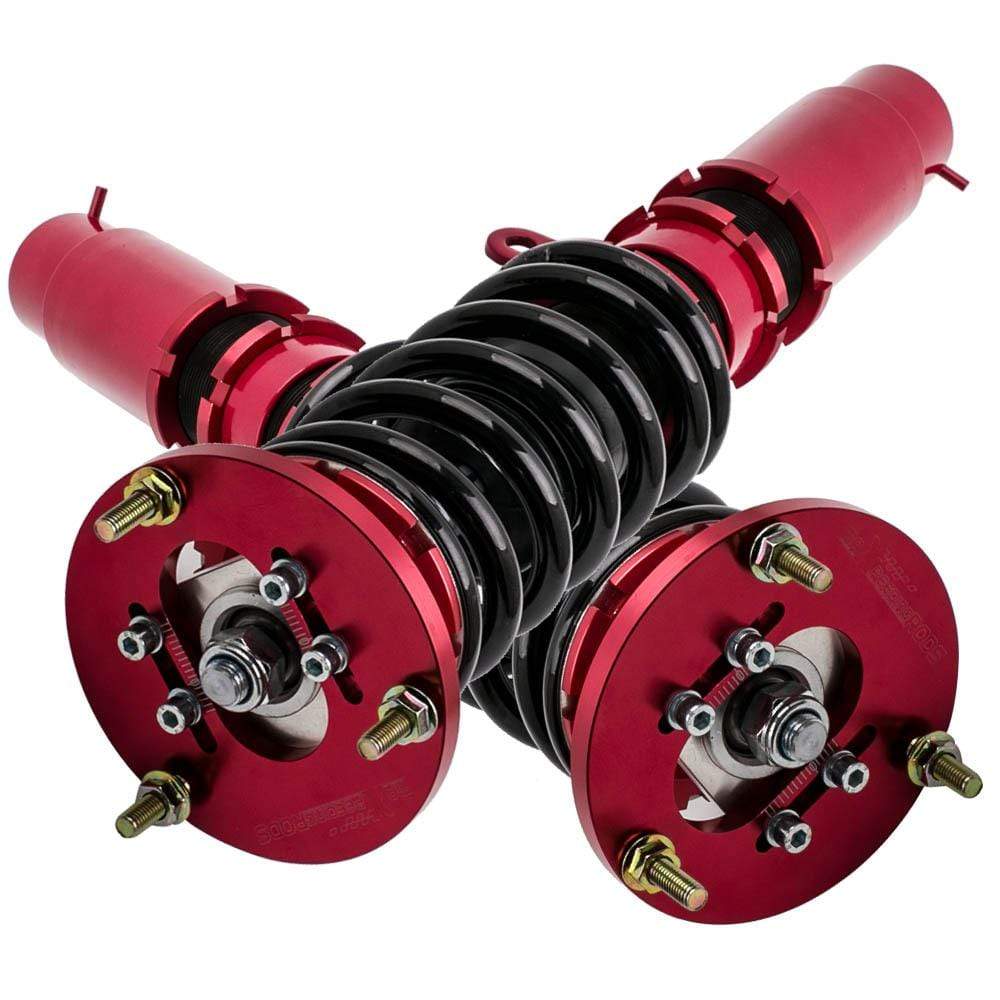

- Upper front mount: camber plate with spherical bearings
- Upper rear mount: spherical bearing
- Camber adjustable: available
- Front spring rate: 8 kg/mm (448 lbs/in)
- Rear spring rate: 7 kg/mm (392 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63-69 mm
- Front spring length: 180 mm
- Rear spring length: 180 mm
- Recommended preload: 7-10 mm
Features
- Adjustable lowering from 25 to 75 mm (depending on model) for a lower center of gravity and a more aggressive stance
- Adjustable spring preload to reduce vibrations
- Adjustable camber plate and spherical bearing upper mount for more precise steering (on certain models)
- CNC machined upper mounts and blocks in aluminum: excellent strength and weight savings
- Heavy-duty steel lower mounts: highly durable and reliable
- High-quality spring: tested 600,000 times for high tensile strength
- All inserts are fitted with long rubber boots for better damper protection and longer lifespan
- Twin-tube construction for excellent control characteristics in most driving conditions
- Anti-corrosion finish: anodized aluminum and powder-coated carbon steel
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
