4 Pieces Connecting Rods suitable for Honda K20A3 Con Rod H Beam ARP 2000 Bolts
4 Pieces Connecting Rods suitable for Honda K20A3 Con Rod H Beam ARP 2000 Bolts
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

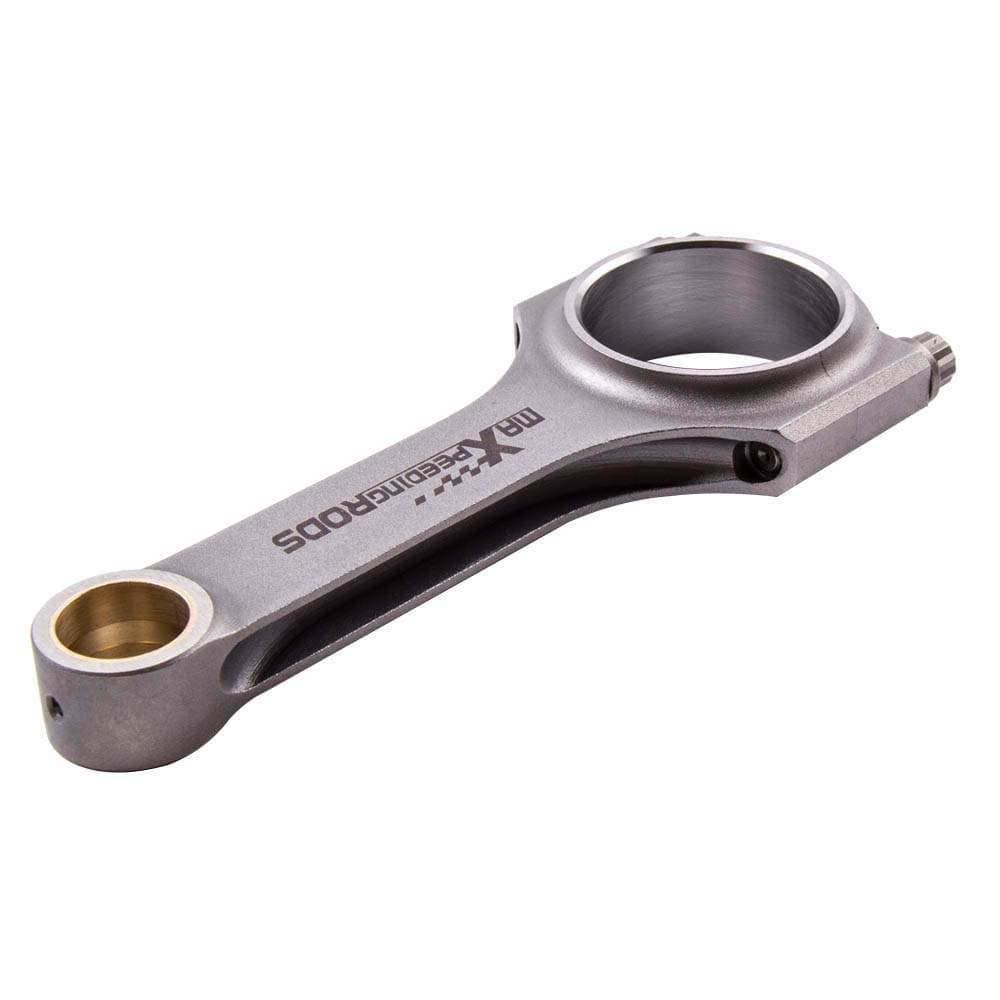

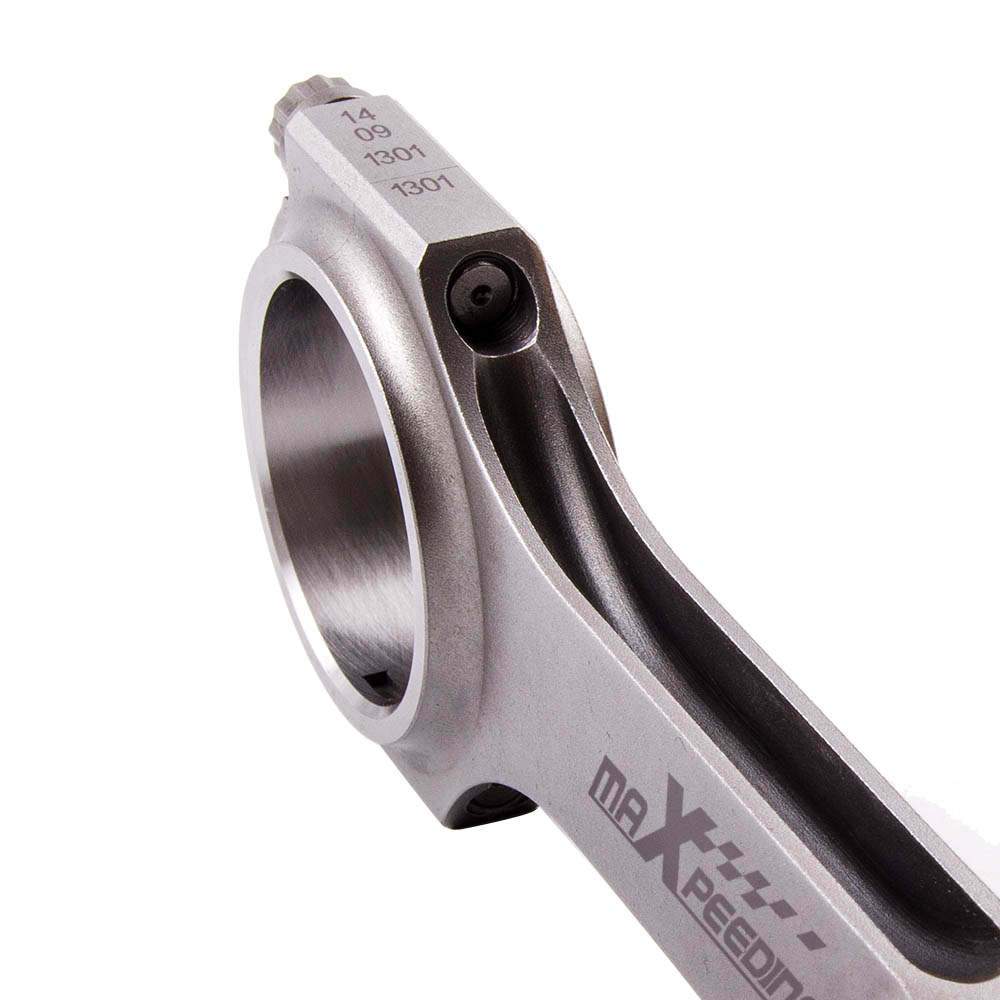

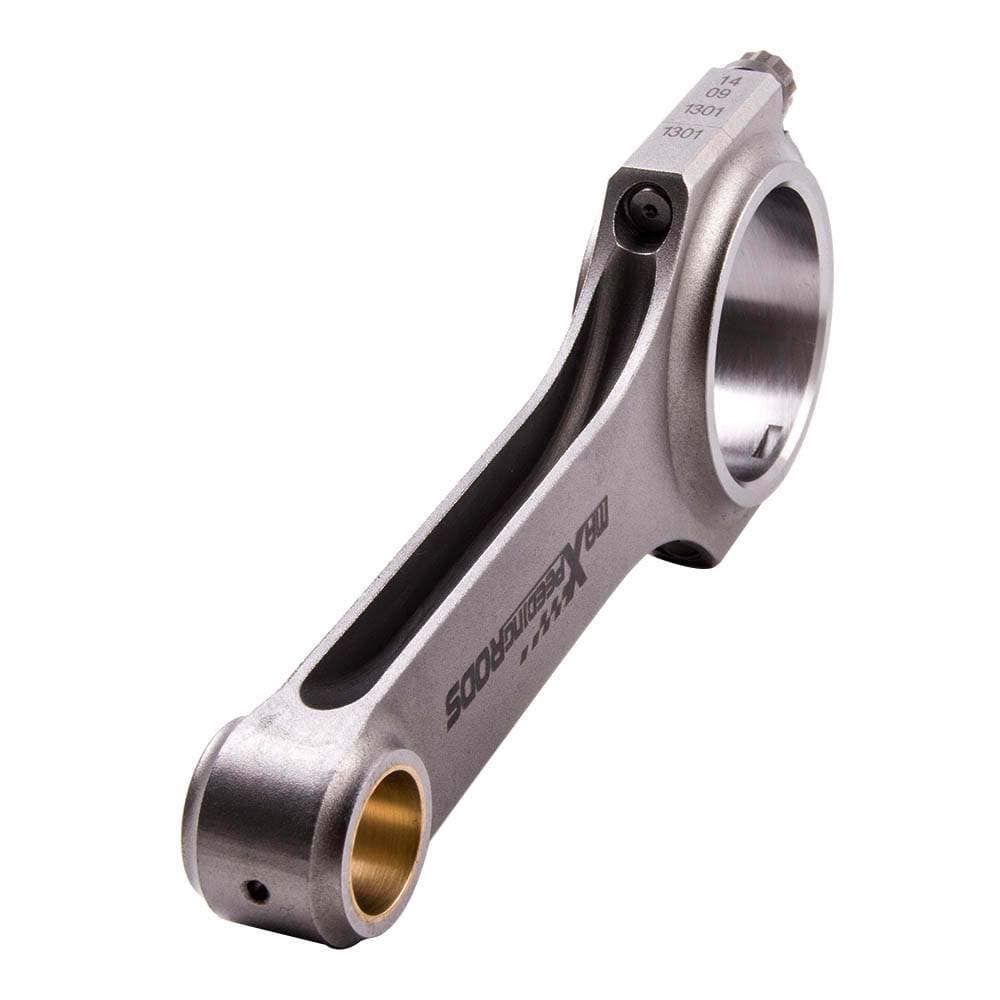

Set of 4 connecting rods (H-Beam) with ARP 2000 bolts.
Suitable for:
- Honda K20A3
Specifications

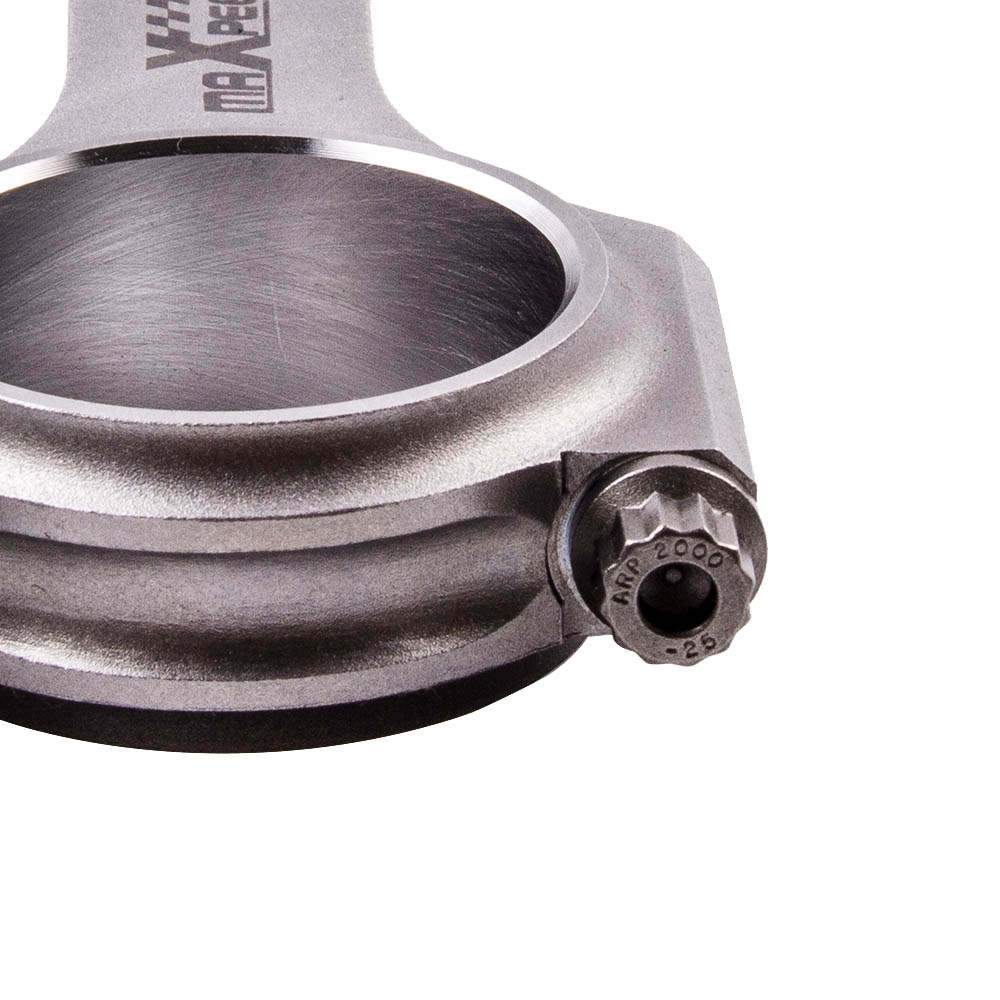

- Bolts: Original ARP 2000 3/8" bolts included (surcharge for upgrade to ARP L19 bolts)
- Material: Forged 4340 steel, chrome-molybdenum racing steel
- Weight tolerance: Balanced to +/-1 gram per set
- Piston pin diameter: +-4/1000 mm
- Power: 600-800 hp per set
- Clamping force: 220,000/230,000 psi
- Torque: 48 ft ≈ 65 Nm
- Max. RPM: 9000 rpm
- Center-to-center length: 138.5 mm
- Big end bore diameter: 48 mm
- Small end bore diameter: 22 mm
- Big end width: 19.8 mm
- Small end width: 22.86 mm
- With/without groove: Yes
- With/without chamfer/taper: None
- With/without oil hole: Yes, single oil hole at the small end
Scope of delivery

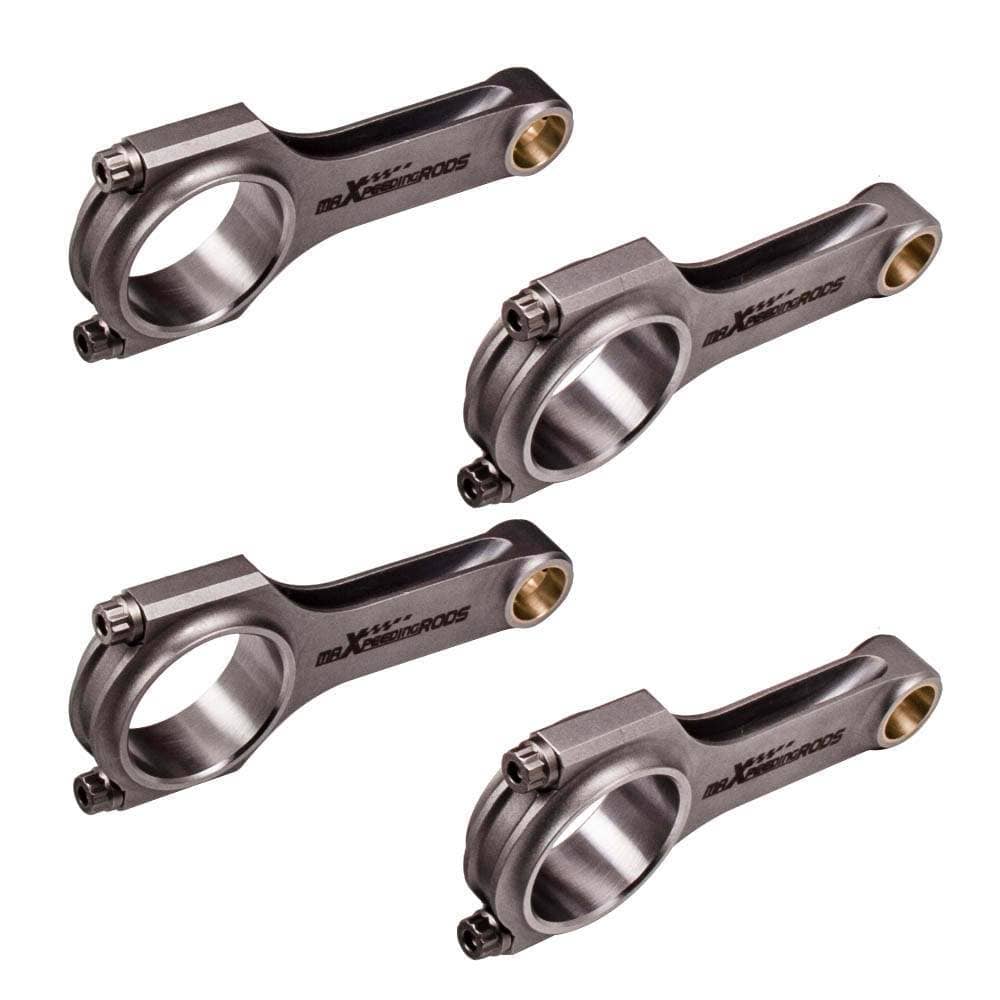

4x connecting rod (H-shape) in steel, 1x set of ARP 2000 5/16 bolts
Features
- Plug and play
- Safety and long lifespan
- Original quality product
- 100% tested and balanced
- Multiple heat treatments
- With bronze bushings for floating piston pins
- 100% inspected via X-ray, ultrasound, and Magnaflux
- Designed and manufactured using CNC machines
- Big and small connecting rod eyes machined with SUNNEN honing machine
- Precise alignment of the bearing bore
Please note
Upgrade to ARP L19 bolts possible up to 220,000/230,000 or 260,000/270,000 psi (from 800 hp, surcharge of 20 EUR/piece for the upgrade). Professional installation strongly recommended, no manual included.
Warranty
1 year warranty on manufacturing defects.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as differences may exist depending on the version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
