Connecting Rods for Honda Civic Wagon CRX D15B2 SOHC Con Rod Connecting Rods H Beam ARP
Connecting Rods for Honda Civic Wagon CRX D15B2 SOHC Con Rod Connecting Rods H Beam ARP
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

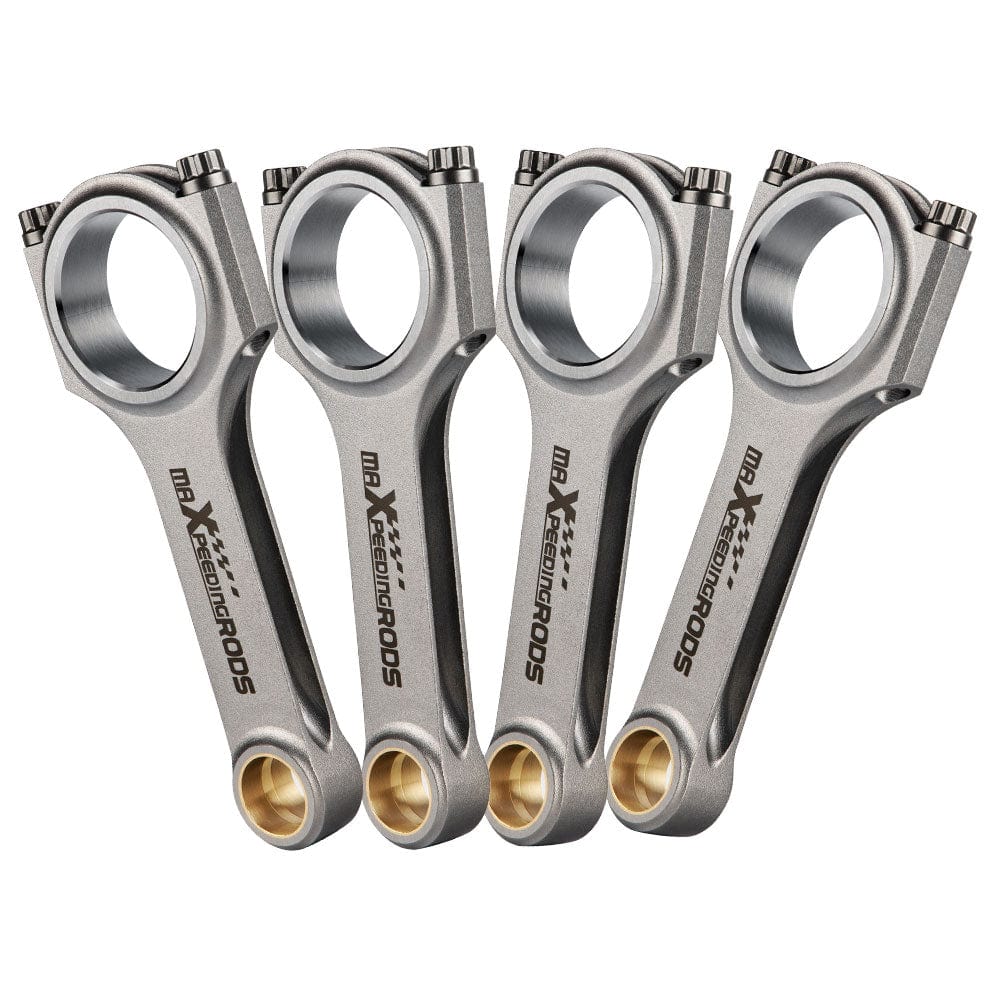

Connecting rod set (H-Beam, ARP bolts) for Honda Civic Wagon, CRX and Concerto with D15B2 SOHC engine.
Suitable for:
- Honda Civic GL DX LX, engine D15B2 SOHC
- Honda Civic Wagon, engine D15B2 SOHC
- Honda CRX, engine D15B2 SOHC
- Honda Concerto, engine D15B2 SOHC
Specifications

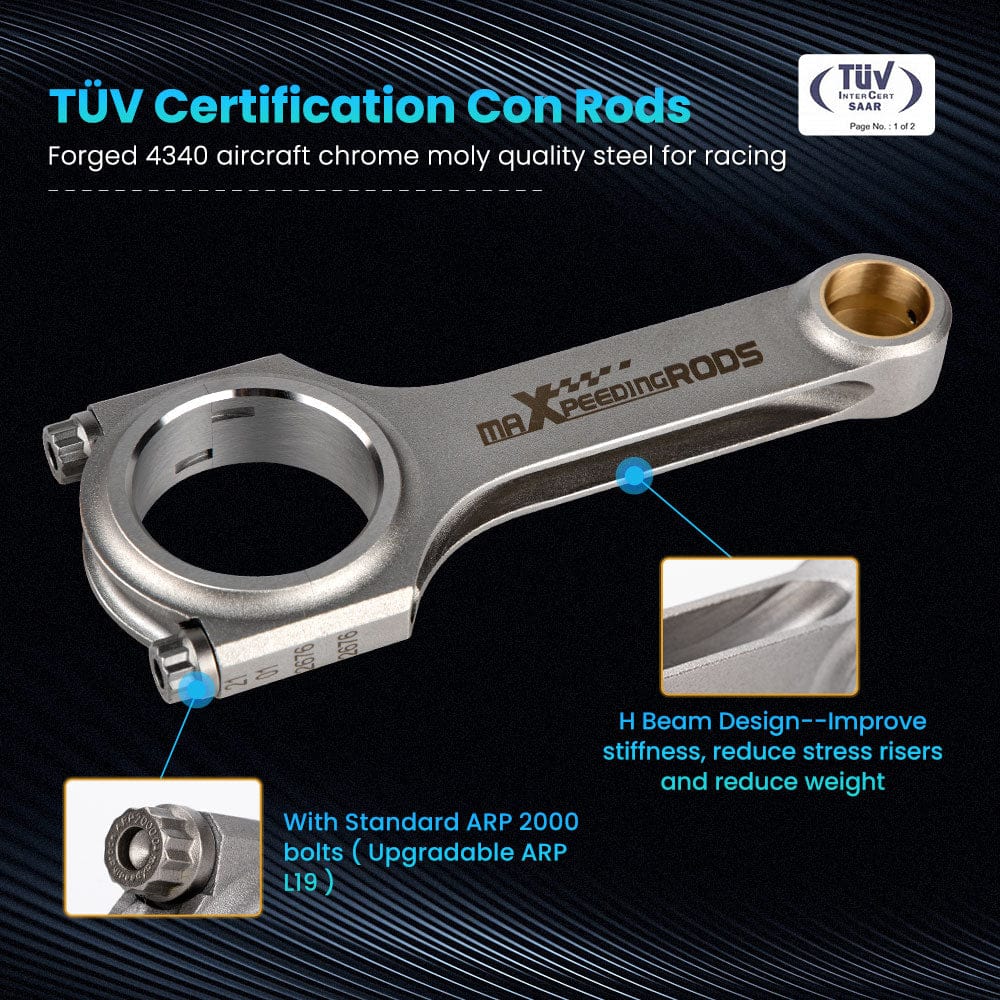

- Material: Forged 4340 steel, chrome-molybdenum steel for racing use

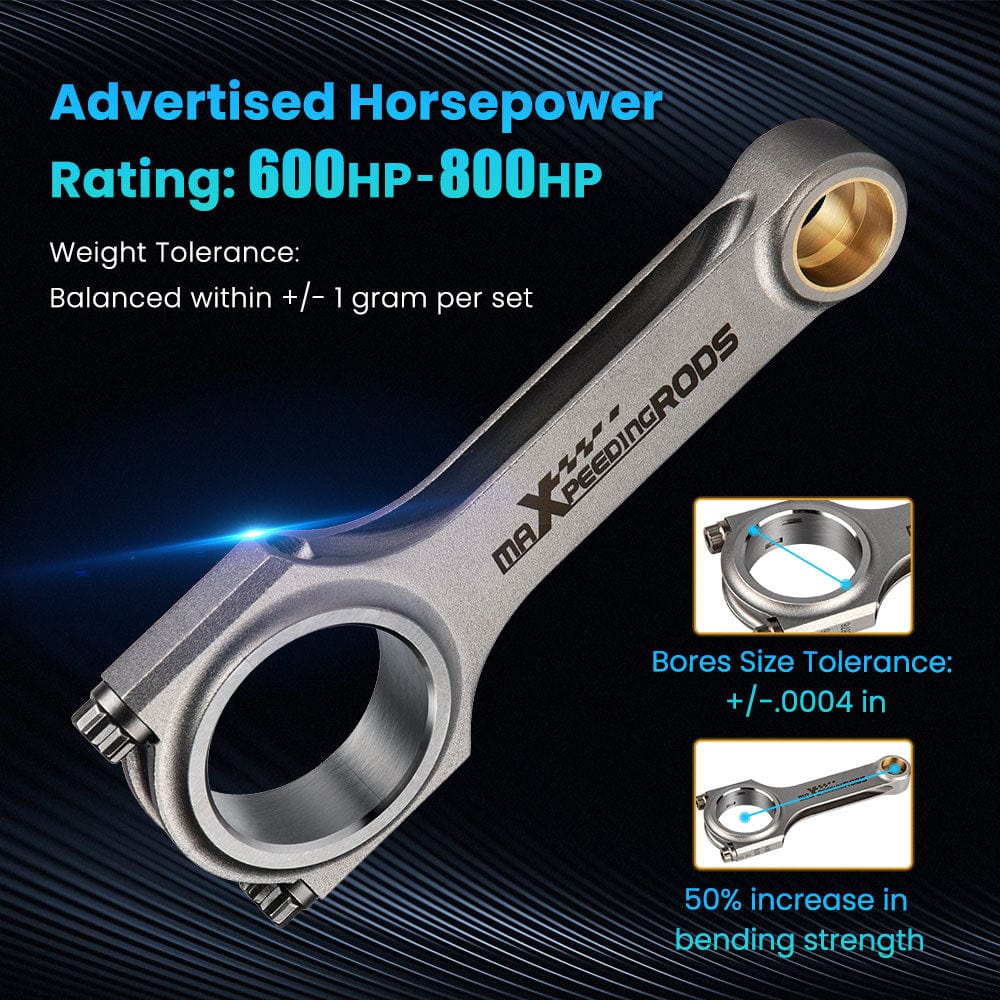

- Weight tolerance: Balanced to +/- 1 gram per set
- Piston pin diameter: +/-4/1000 mm
- Power: 600-800 hp per set
- Clamping force (PSI): 220,000/230,000 psi
- Tightening torque: 48 ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
- Center-to-center length: 134.5 mm
- Big end bore diameter: 45 mm
- Small end bore diameter: 19 mm
- Big end width: 22.8 mm
- Small end width: 18 mm
Scope of delivery
4x H-Beam connecting rod, 1x ARP 2000 5/16 bolt set.
Features
- Plug and play
- Safety and long service life, original quality
- 100% tested and balanced, multiple heat treatments

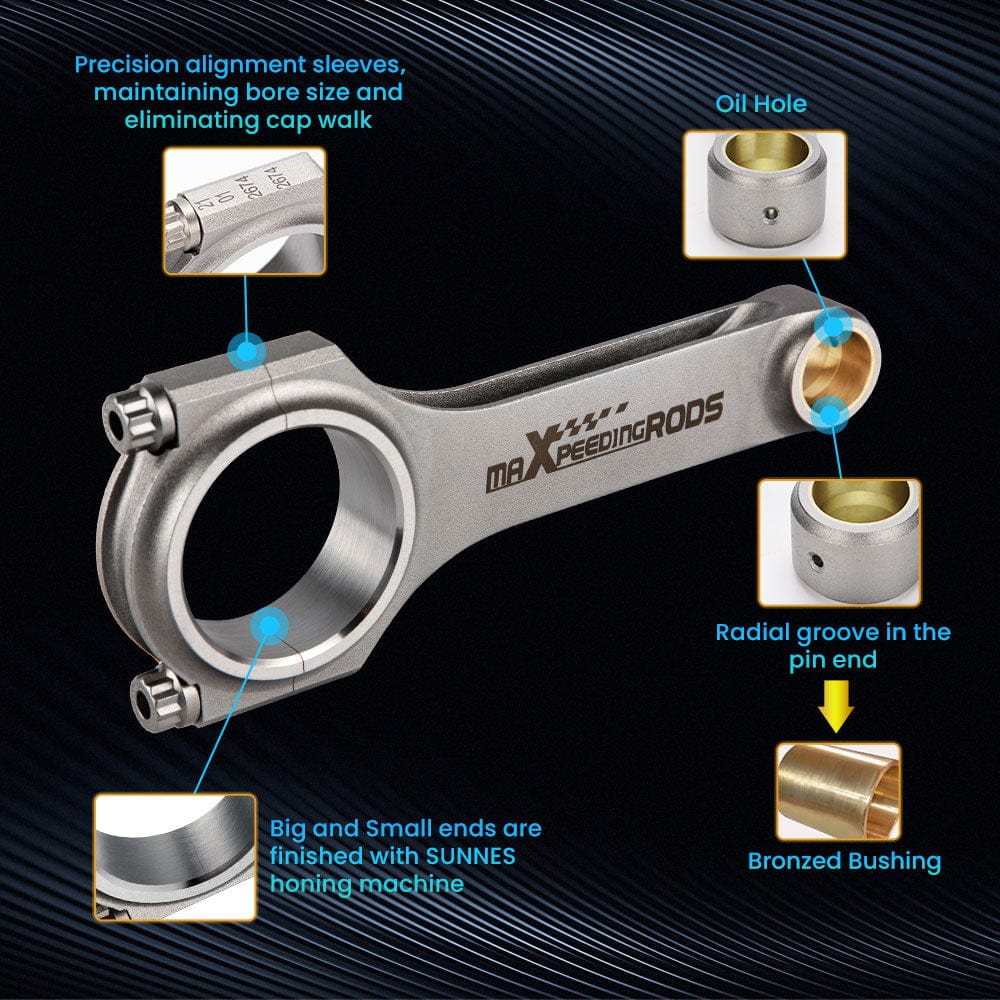

- Equipped with bronze bushings for floating piston pins
- 100% inspected with X-ray, ultrasonic and Magnaflux
- Designed and manufactured with CNC machines
- Big and small end connecting rod bores machined on SUNNEN grinder
- Precise alignment of the blind bearing bore to prevent displacement
Please note
Upgrade possible to ARP L19 bolts up to 220,000/230,000 or 260,000/270,000 PSI (from 800 hp, additional charge of 20 EUR/piece for the ARP L19 upgrade). Professional installation highly recommended, no manual included.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as differences may exist per version. Unsure if this part fits your vehicle? Feel free to contact us before purchasing.
