Product Description

This universal 19-row oil cooler kit with AN10 connections and thermostat is suitable for most cars; additional accessories may be needed to meet the needs of a specific application. Ensure sufficient mounting space.

Specifications

• Oil Cooler Type: 19-row oil cooler kit
• Oil Cooler and Air Guide Material: Aluminum
• Oil Cooler Style: English style
• Oil Cooler Inlet/Outlet Size: AN10
• Corner Reinforcement Material and Thickness: Stainless steel, 3 mm
• Hose Size: AN10
• Hose Length: 1 piece of 1 m and 1 piece of 1.2 m
• Hose Clamp Size: AN10
• Oil Filter Sandwich Adapter Type: Banjo fittings and thermostatic adapter
• Oil Filter Sandwich Adapter Connection Size: AN10
• Oil Filter Sandwich Adapter Central Adapter: 3/4-16 and M20*1.5
• Oil Filter Sandwich Adapter Port Size: 1/8 NPT ports
• Thermostat Operating Temperature: 73°C to 83°C

Package Contents

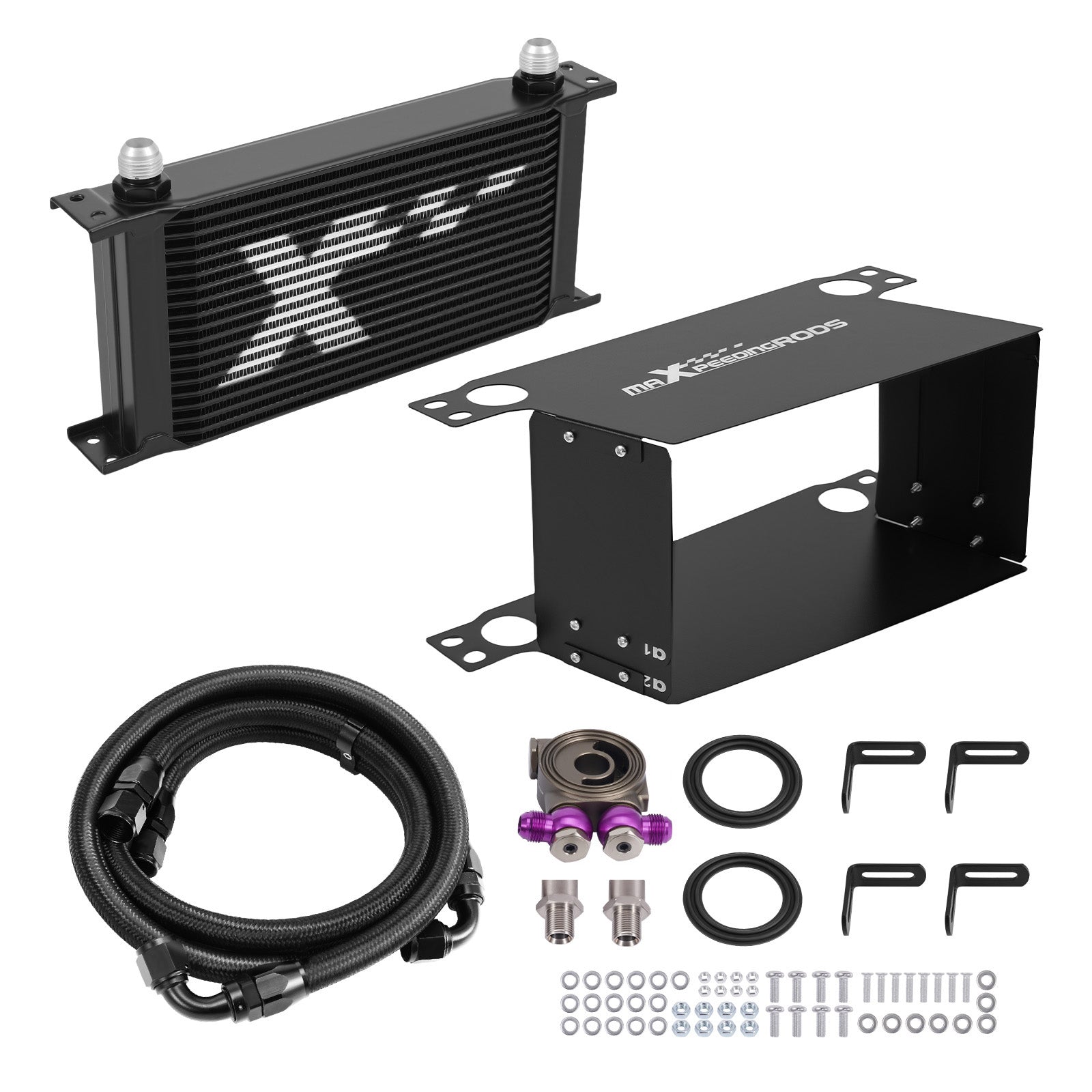

1x 19-row oil cooler, 1x air guide kit, 1x oil filter sandwich adapter with banjo fittings, 1x braided oil cooler hose 10AN (1 m), 1x braided oil cooler hose 10AN (1.2 m), 1x corner reinforcement kit, 1x central adapter 3/4-16, 1x central adapter M20*1.5, 1x hose clamp (as pictured).

Features

• The oil cooler is made of high-quality aluminum and is thermally coated and oxidized, which protects the product and makes it more durable.
• Effectively cools oil temperature and maintains oil at a suitable operating temperature for better engine performance; can extend the lifespan of oil and internal engine parts.
• The included air guide kit increases the contact area between air and the oil cooler, reducing oil temperature more efficiently. Top cover and bottom plate are interchangeable for a left or right-facing air intake, depending on the installation position.
• The angled oil filter sandwich adapter has a thermostat that automatically controls how much oil flows into the oil cooler based on the oil temperature; top and bottom connections are interchangeable for flat or angled installation.
• Also includes 4 corner brackets and other accessories for a sturdier mounting.

Please Note

Preparation before installation: fill the oil cooler with oil, fill completely until all air is expelled, attach the AN oil cooler hoses and fill them with oil. This is a universal oil cooler kit; measure available space before purchase to ensure fitment and choose the correct size based on desired cooling efficiency. The mounting thread of the sandwich adapter is M20x1.5 and 3/4-16UNF; check compatibility before installation. Professional installation is highly recommended. Dimensions are manually measured; a deviation of 1-2 inches is possible.

Check Fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and trim of your vehicle, as differences may exist per trim level. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
