Universal 25 Row AN10 Aluminum Transmission Oil Cooler Kit Thermostat
Universal 25 Row AN10 Aluminum Transmission Oil Cooler Kit Thermostat
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Universal transmission oil cooler kit (25 rows) with AN10 connections, thermostat, and aluminum construction. Suitable for most cars; additional accessories may be required for specific applications. Ensure sufficient mounting space.
Specifications
- Type: 25-row oil cooler
- Cooler and air duct material: Aluminum
- Design: English style
- Cooler inlets/outlets: AN10
- Corner reinforcements: 3mm stainless steel
- Hose size: AN10, lengths 1m and 1.2m
- Oil filter sandwich adapter: banjo fittings and thermostat adapter, AN10
- Central adapter: 3/4-16 and M20×1.5
- Sandwich adapter port size: 1/8 NPT
- Thermostat operating temperature: 73 °C to 83 °C

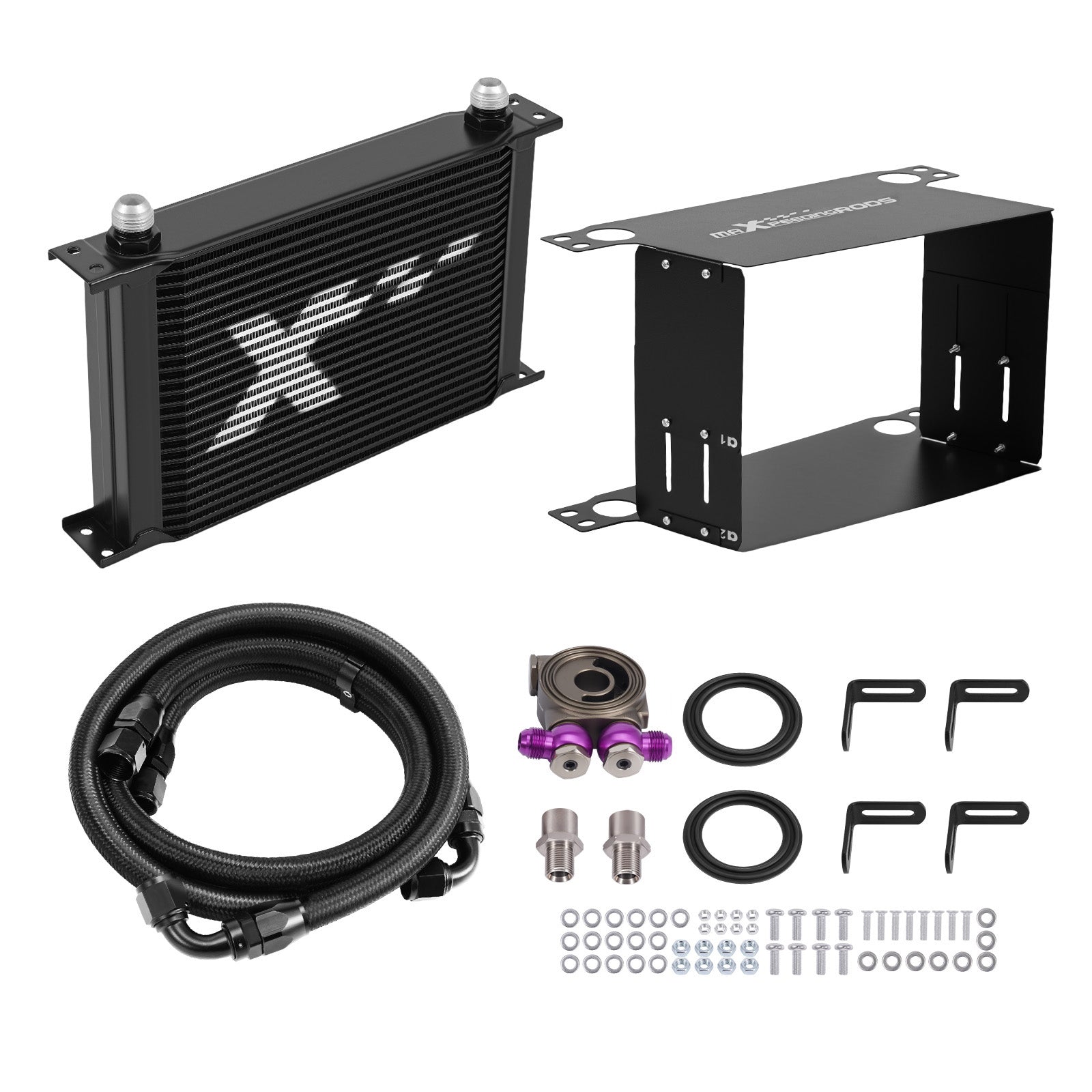

Scope of delivery
- 1x 25-row oil cooler
- 1x air duct set
- 1x oil filter sandwich adapter with banjo fittings
- 1x braided cooler hose 10AN (1m)
- 1x braided cooler hose 10AN (1.2m)
- 1x corner reinforcement set
- 1x central adapter 3/4-16
- 1x central adapter M20×1.5
- 1x hose clamp
Features
- High-quality aluminum, powder-coated and oxidized for protection
- Efficiently cools oil temperature and improves engine performance
- Air duct increases contact area; top and bottom interchangeable for left or right-hand air intake
- Thermostat automatically regulates oil flow to the cooler
- Includes 4 corner brackets and accessories for secure mounting
Please note
Completely fill the oil cooler and AN hoses with oil and bleed them before installation. Measure available space before purchase. The mounting threads of the sandwich adapter are M20×1.5 and 3/4-16UNF; check compatibility. Professional installation is highly recommended. Please allow for 1-2 inch measurement deviation.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and version of your vehicle before ordering, as there may be differences between versions. If you are unsure whether this part fits your vehicle, please contact us before purchase.
