16 Row Universal AN10 Aluminum Thermostat Transmission Oil Cooler Kit
16 Row Universal AN10 Aluminum Thermostat Transmission Oil Cooler Kit
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

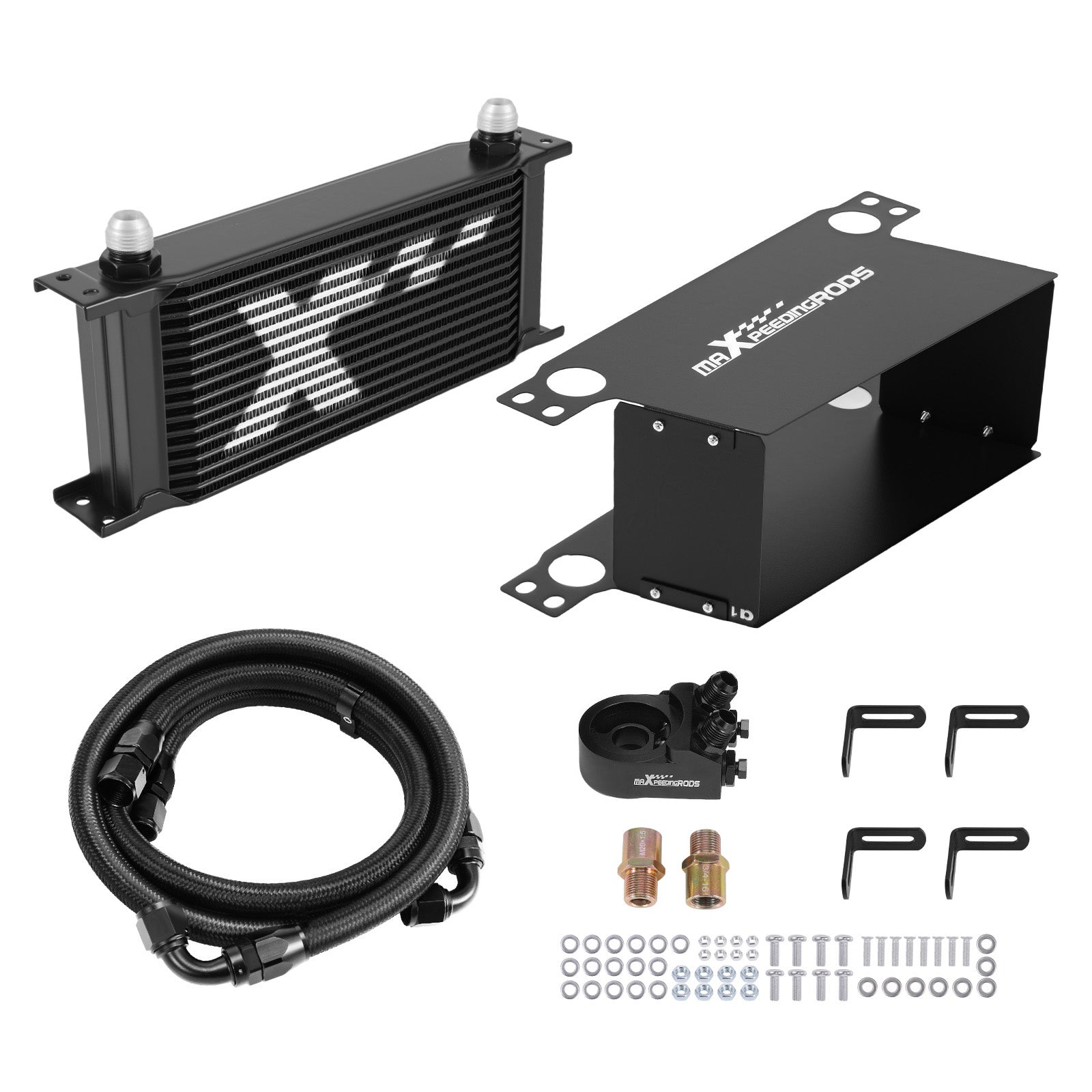

Universal 16-row transmission oil cooler kit, aluminum, including thermostatic sandwich adapter and air guide kit.
Universally applicable to most vehicles; additional accessories may be required and sufficient installation space must be available.
Specifications
- Oil Cooler Type: 16-row oil cooler kit
- Cooler and Air Guide Material: aluminum
- Style: English style
- Inlet/Outlet Connection Size: AN10
- Corner Reinforcement Material/Thickness: stainless steel, 3 mm
- Hose Size: AN10
- Hose Length: 1 piece of 1 m and 1 piece of 1.2 m
- Hose Clamp Size: AN10
- Oil Filter Sandwich Adapter Type: bent fittings and thermostatic adapter
- Sandwich Adapter Connection Size: AN10
- Sandwich Adapter Centre Adapter: 3/4-16 and M20 x 1.5
- Sandwich Adapter Port Size: 1/8 NPT
- Thermostat Closing Temperature: 65 ± 3°C
- Thermostat Fully Open Temperature: 75 ± 3°C
Scope of Delivery
1x 16-row oil cooler, 1x air guide kit, 1x sandwich adapter with bent fittings, 1x braided 10AN hose (1 m), 1x braided 10AN hose (1.2 m), 1x corner reinforcement kit, 1x centre adapter 3/4-16, 1x centre adapter M20 x 1.5, 1x hose clamp.
Features
- Manufactured from high-quality aluminum, powder-coated and anodized for protection and durability
- Effectively cools the oil and keeps it at a suitable operating temperature, improving engine performance and extending the lifespan of oil and engine parts
- Air guide kit increases the contact surface between air and cooler; top cover and base plate interchangeable for left- or right-directed air intake
- Thermostatic sandwich adapter automatically regulates oil supply based on oil temperature; top/bottom connections interchangeable for flat or bent mounting
- Includes 4 corner brackets for extra sturdy installation
Check Fitment
Always check the original OEM part number, year of manufacture, engine code, and trim level of your vehicle before ordering, as differences may exist per trim level. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchase.
