Universal 30-Row AN10 Aluminum Transmission Oil Cooler Kit with Thermostat
Universal 30-Row AN10 Aluminum Transmission Oil Cooler Kit with Thermostat
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
This universal oil cooler kit (30 rows, AN10, aluminum, with thermostat) fits most cars, provided there is sufficient space for installation.
Specifications
- Oil cooler type: 30-row oil cooler kit
- Oil cooler and air guide material: Aluminum
- Style: English style
- Oil cooler connection size: AN10
- Corner reinforcement material and thickness: Stainless steel, 3 mm
- Hose size: AN10
- Hose length: 1x 1 m and 1x 1.2 m
- Hose clamp size: AN10
- Oil filter sandwich adapter type: Curved fittings and thermostat adapter
- Sandwich adapter connection size: AN10
- Sandwich adapter central adapter: 3/4-16 and M20x1.5
- Sandwich adapter port size: 1/8 NPT
- Thermostat closing temperature: 65 ± 3°C
- Thermostat fully open temperature: 75 ± 3°C
Scope of delivery

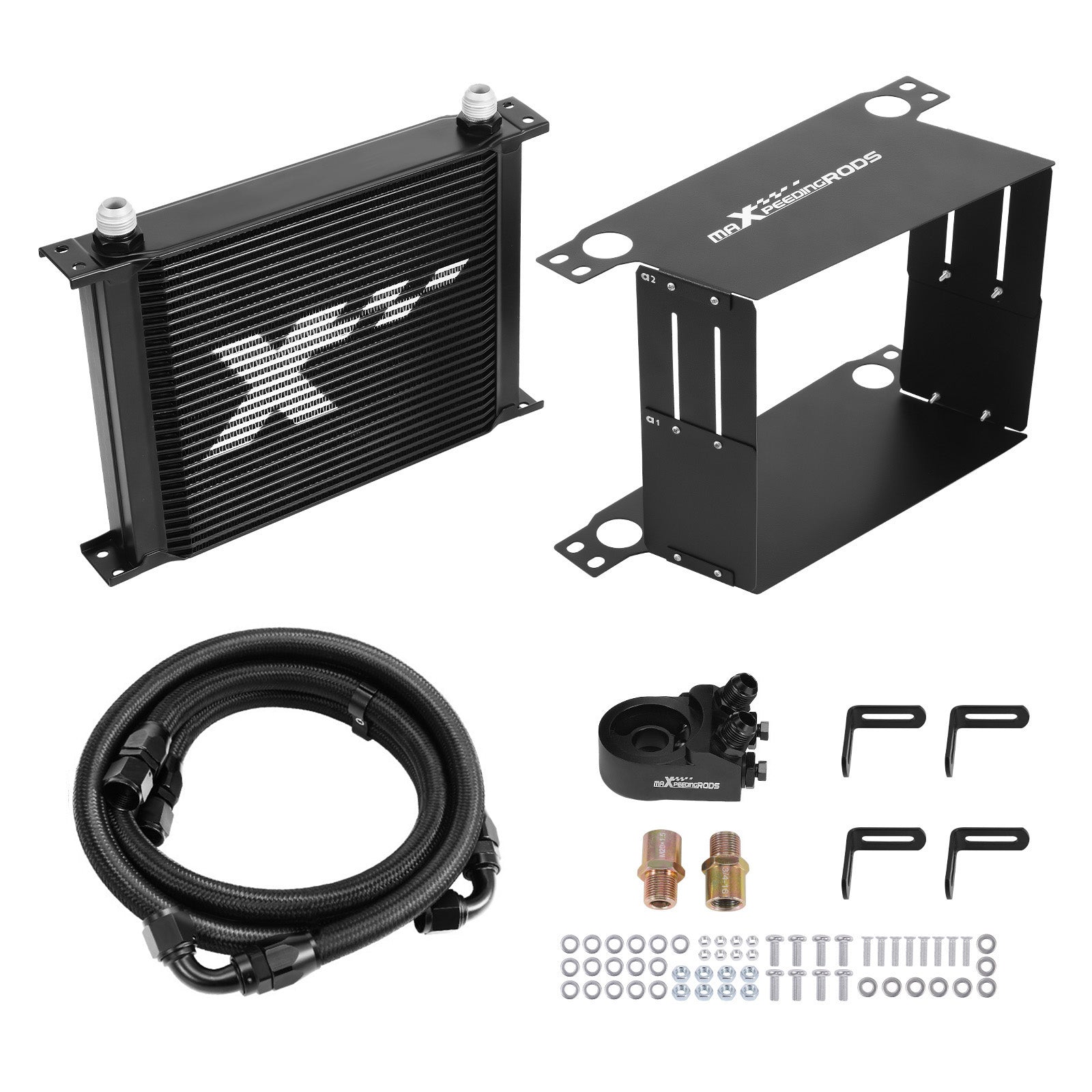

1x 30-row oil cooler, 1x air guide kit, 1x oil filter sandwich adapter with curved fittings, 1x braided hose for oil cooler 10AN (1 m), 1x braided hose for oil cooler 10AN (1.2 m), 1x corner reinforcement kit, 1x central adapter 3/4-16, 1x central adapter M20x1.5, 1x hose clamp
Features
- Manufactured from high-quality aluminum, thermally coated and oxidized for extra protection and durability
- Effectively cools oil temperature and maintains the oil at the correct operating temperature for better engine performance and longer oil and internal component lifespan
- Includes an air guide kit for a larger contact area between air and oil cooler; top cover and bottom plate are interchangeable for a left or right air intake
- The sandwich adapter with curved fittings has a built-in thermostat that automatically regulates the oil supply to the cooler based on oil temperature; top and bottom fittings are interchangeable for a flat or curved installation
- Includes 4 corner brackets and other accessories for a sturdy installation
Fitment check
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
