19-Row AN10 Universal Aluminum Transmission Oil Cooler Kit with Thermostat
19-Row AN10 Universal Aluminum Transmission Oil Cooler Kit with Thermostat
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Universal 19-row transmission oil cooler kit with AN10 connections, aluminum construction, and thermostat. Suitable for most vehicles; please check available installation space beforehand.
Specifications
- Oil Cooler Type: 19-row oil cooler kit
- Oil Cooler and Air Guide Material: Aluminum
- Oil Cooler Style: English style
- Oil Cooler Inlet/Outlet Connection Size: AN10
- Corner Reinforcement Material and Thickness: Stainless steel, 3 mm
- Hose Size: AN10
- Hose Length: 1x 1m and 1x 1.2m
- Hose Clamp Size: AN10
- Oil Filter Sandwich Adapter Type: Angled fittings with thermostatic adapter
- Sandwich Adapter Connection Size: AN10
- Sandwich Adapter Center Adapter: 3/4-16 and M20*1.5
- Sandwich Adapter Port Size: 1/8 NPT ports
- Thermostat Closing Temperature: 65 ± 3 °C
- Thermostat Fully Open Temperature: 75 ± 3 °C
Scope of Delivery

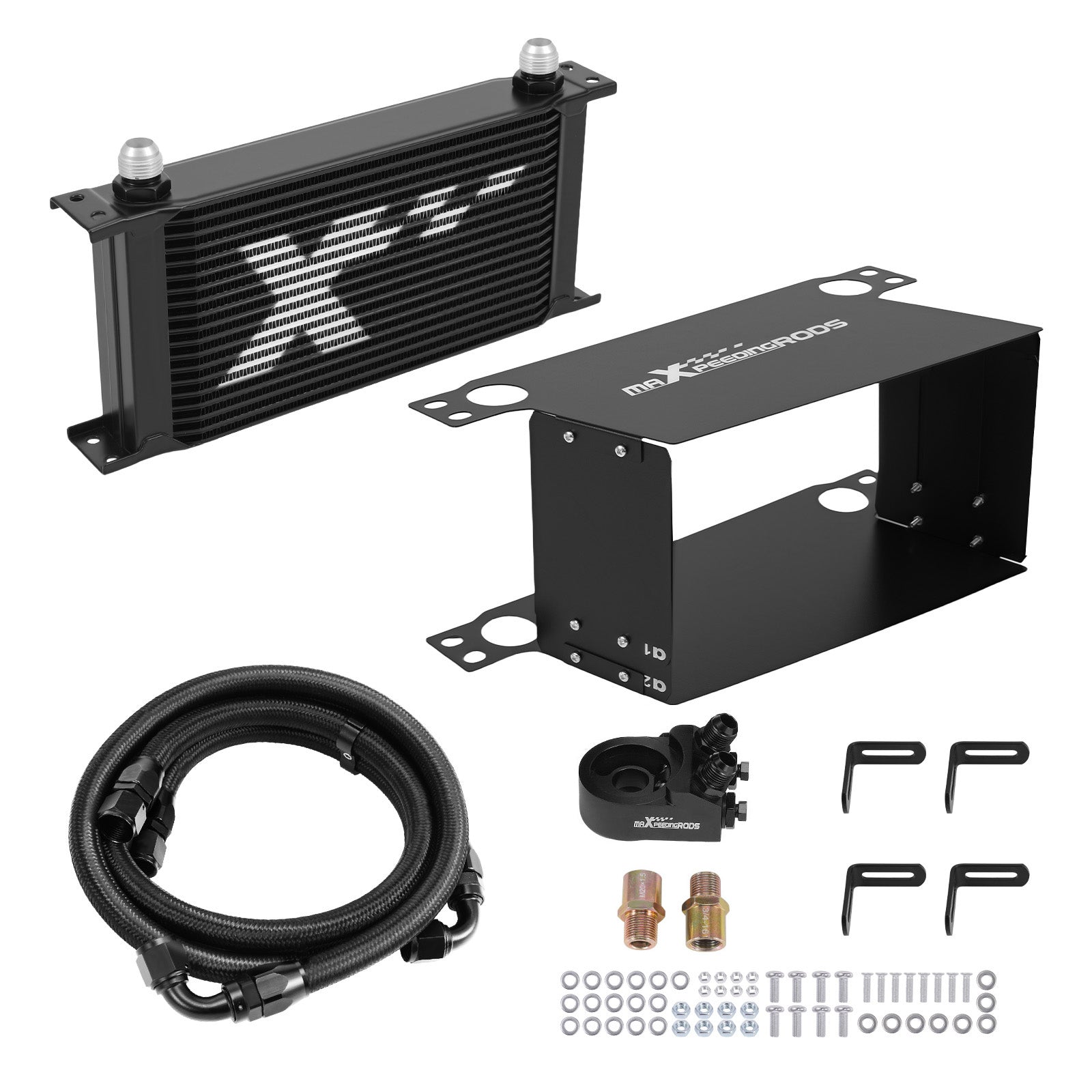

1x 19-row oil cooler, 1x air guide kit, 1x oil filter sandwich adapter with angled fittings, 1x braided hose 10AN (1m), 1x braided hose 10AN (1.2m), 1x corner reinforcement kit, 1x center adapter 3/4-16, 1x center adapter M20 x 1.5, and 1x hose clamp (as pictured).
Features
- Manufactured from high-quality aluminum, thermally coated and oxidized for extra protection and durability
- Effectively cools oil temperature and keeps oil at a suitable operating temperature for better engine performance
- Includes air guide kit that increases the contact area between air and oil cooler; top and bottom plates interchangeable for left- or right-hand air intake
- Sandwich adapter with angled fittings and thermostat automatically controls oil flow based on oil temperature
- Includes 4 corner brackets and other accessories for a sturdier mounting
Fitment Check
Before ordering, always check the original OEM part number, year of manufacture, engine code, and vehicle trim, as there may be differences between trims. Unsure if this part fits your vehicle? Feel free to contact us before purchase.
