25 Row AN10 Universal Oil Cooler Kit with Thermostat Aluminum
25 Row AN10 Universal Oil Cooler Kit with Thermostat Aluminum
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
Universal oil cooler kit with 25 rows, AN10 connections and thermostat.
Suitable for:
- Universal - fits most cars, additional accessories may be required. Ensure sufficient installation space before installing.
Specifications
- Oil cooler type: 25-row oil cooler kit
- Oil cooler and air guide material: aluminum
- Oil cooler style: English style
- Oil cooler in/out port size: AN10
- Corner reinforcement material and thickness: Stainless steel 3 mm
- Hose size: AN10
- Hose length: 1 piece of 1 m and 1 piece of 1.2 m
- Hose clamp size: AN10
- Oil filter sandwich adapter type: angled fittings and thermostat adapter
- Sandwich adapter connection size: AN10
- Sandwich adapter central adapter: 3/4-16 and M20*1.5
- Sandwich adapter port size: 1/8 NPT
- Thermostat closing temperature: 65±3°C
- Thermostat fully open temperature: 75±3°C
Scope of delivery

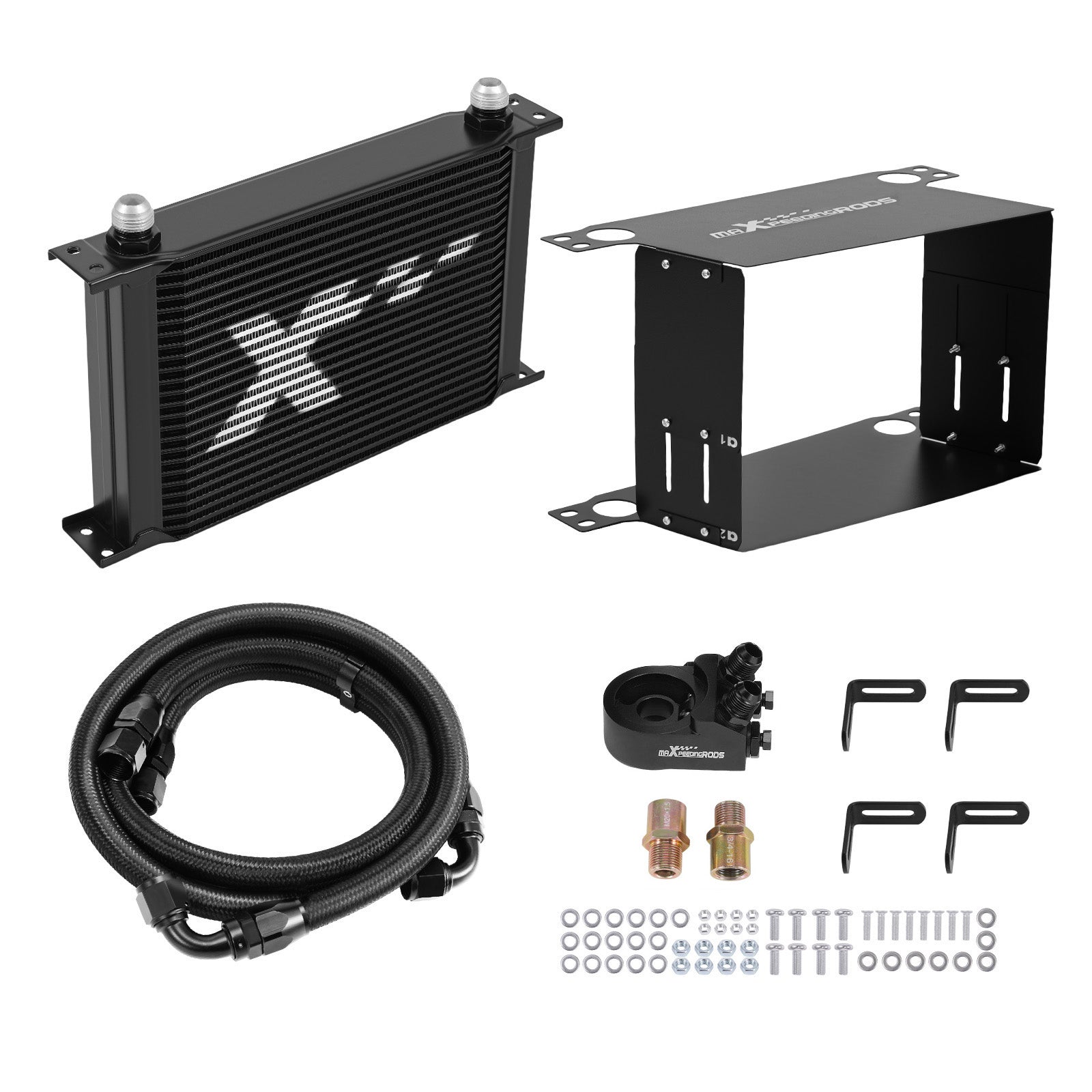

1x oil cooler 25 rows, 1x air guide set, 1x oil filter sandwich adapter with angled fittings, 1x braided hose 10AN (1 m), 1x braided hose 10AN (1.2 m), 1x corner reinforcement set, 1x central adapter 3/4-16, 1x central adapter M20x1.5, 1x hose clamp.
Features
- Manufactured from high-quality aluminum, thermo-lacquered and oxidized for extra protection and durability
- Keeps oil at the correct operating temperature for better engine performance and longer oil and internal component life
- Includes air guide set for a larger contact surface between air and oil cooler; top cover and bottom plate are interchangeable for left or right-oriented air intake
- Sandwich adapter with thermostat automatically controls oil supply to the cooler based on oil temperature; top and bottom connections are interchangeable (can be mounted flat or at an angle)
- Includes 4 corner brackets and other mounting accessories for a sturdy installation
Note
Fill the oil cooler with oil and bleed completely before installation. Measure available space in advance. The mounting thread of the sandwich adapter is M20x1.5 and 3/4-16UNF; check compatibility before installation. Professional installation highly recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
