16 Row AN10 Universal Transmission Oil Cooler Kit with Thermostat Aluminum
16 Row AN10 Universal Transmission Oil Cooler Kit with Thermostat Aluminum
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
Universal 16-row aluminum oil cooler kit (transmission oil), including thermostat. Suitable for most cars; additional accessories may be required for specific applications. Ensure sufficient installation space.
Specifications
- Oil cooler type: 16-row oil cooler kit
- Oil cooler and air guide material: Aluminum
- Oil cooler style: English style
- Oil cooler in/out size: AN10
- Corner reinforcement material/thickness: Stainless steel, 3 mm
- Hose size: AN10
- Hose length: 1 piece of 1 m and 1 piece of 1.2 m
- Hose clamp size: AN10
- Oil filter sandwich adapter type: Ring fittings and thermostatic adapter
- Sandwich adapter connection size: AN10
- Sandwich adapter central adapter: 3/4-16 and M20x1.5
- Sandwich adapter port size: 1/8 NPT
- Thermostat operating temperature: 73°C to 83°C
Scope of delivery

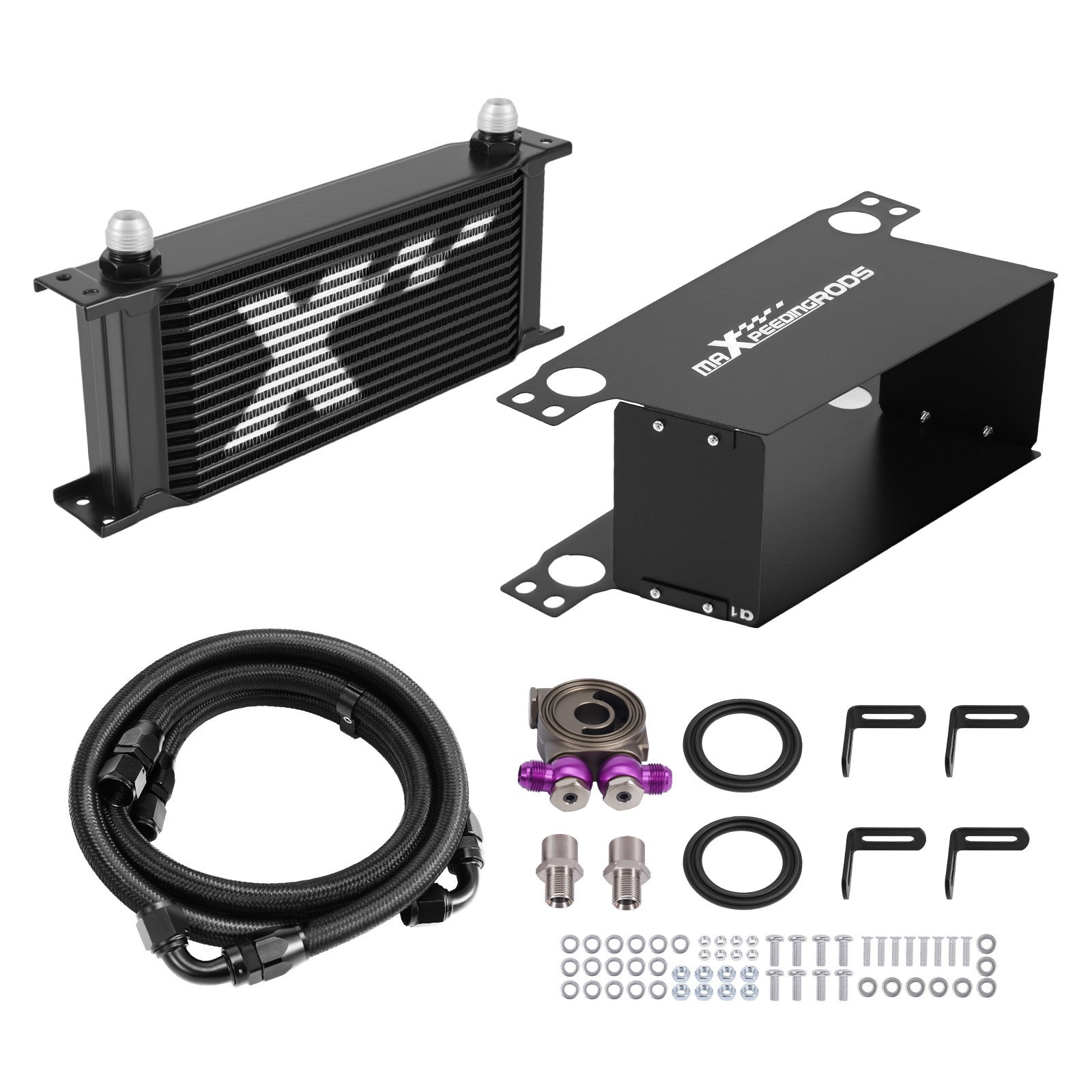

1x 16-row oil cooler, 1x air guide set, 1x sandwich adapter with ring fittings, 1x braided oil cooler hose 10AN (1 m), 1x braided oil cooler hose 10AN (1.2 m), 1x corner reinforcement set, 1x central adapter 3/4-16, 1x central adapter M20x1.5, 1x hose clamp (as shown in the picture).
Features
- High-quality aluminum oil cooler, powder-coated and anodized for extra durability.
- Effectively cools oil temperature and keeps oil at an optimal operating temperature for improved engine performance and extended oil and internal component life.
- Includes air guide set for increased contact area between air and oil cooler; top cover and bottom plate are interchangeable for left or right air intake.
- Sandwich adapter with thermostat automatically regulates oil flow to the cooler based on oil temperature; connections are interchangeable for flat or curved mounting.
- Includes 4 corner brackets and other mounting hardware for secure installation.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and version of your vehicle before ordering, as differences may exist per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
