7-Row Universal AN10 Aluminum Transmission Oil Cooler Kit Thermostat
7-Row Universal AN10 Aluminum Transmission Oil Cooler Kit Thermostat
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
Universal 7-row aluminium transmission oil cooler kit including thermostat.
Suitable for:
- Universally applicable to most cars; additional accessories may be required for specific applications. Ensure sufficient installation space before installation.
Specifications
- Type: 7-row oil cooler kit
- Material: aluminium
- Style: English style
- Oil cooler inlet/outlet connection size: AN10
- Angle bracket thickness: 3 mm
- Hose size: AN10
- Hose length: 1x 1 m and 1x 1.2 m
- Hose clamp size: AN10
- Oil filter sandwich adapter type: bent fittings and thermostatic adapter
- Sandwich adapter connection size: AN10
- Sandwich adapter central connection: 3/4-16 and M20x1.5
- Sandwich adapter port size: 1/8 NPT
- Thermostat closing temperature: 65 ± 3°C
- Thermostat full opening temperature: 75 ± 3°C
Scope of delivery

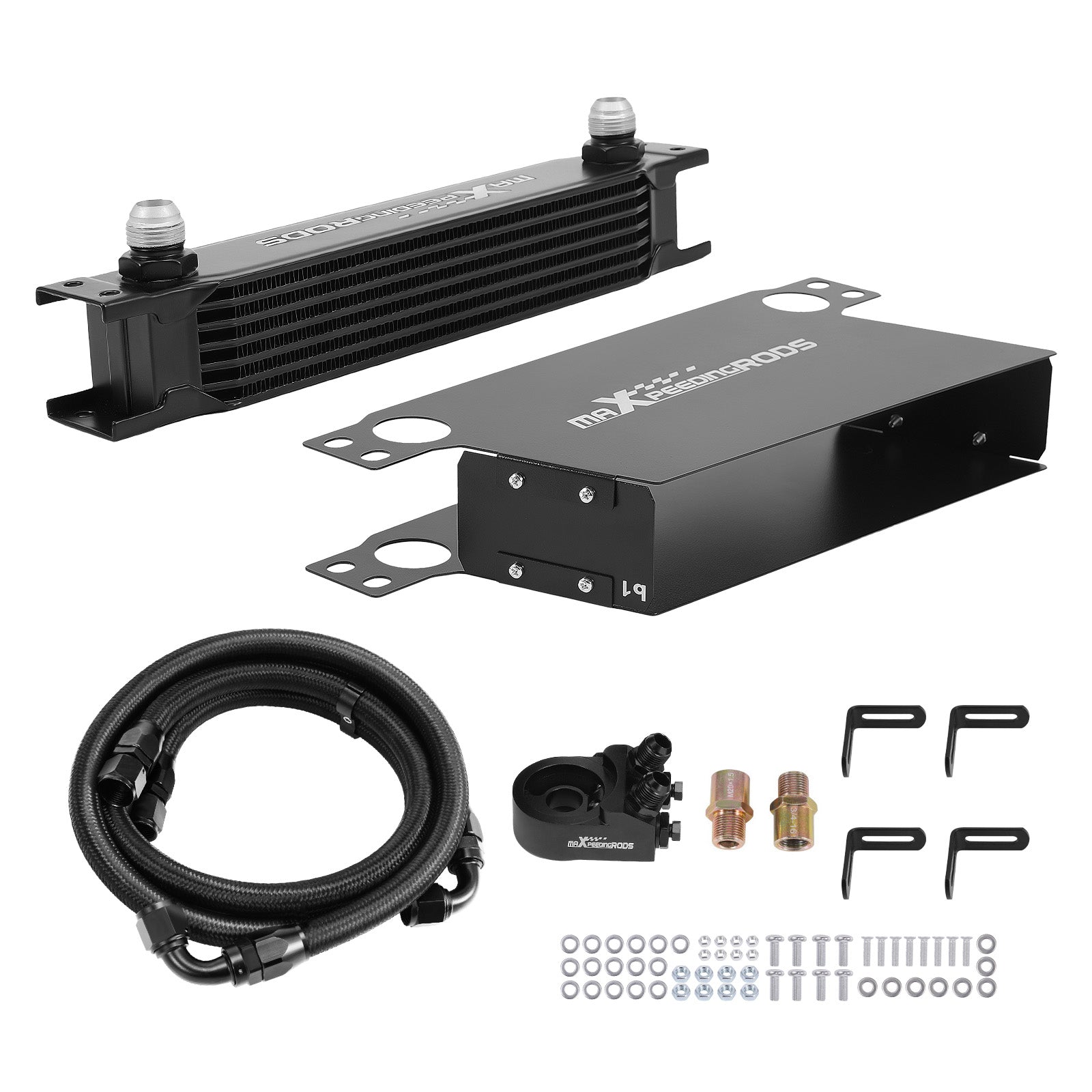

1x 7-row oil cooler, 1x air ducting kit, 1x sandwich adapter with bent fittings, 1x braided oil cooler hose 10AN (1 m), 1x braided oil cooler hose 10AN (1.2 m), 1x angle bracket kit, 1x central adapter 3/4-16, 1x central adapter M20x1.5, 1x hose clamp (as shown).
Features
- Manufactured from high-quality aluminium, thermally coated and anodized for extra durability
- Keeps the oil at the correct operating temperature for better engine performance and extended life of oil and engine components
- Includes air ducting kit that increases the contact surface with air; top cover and bottom plate are reversible for air intake to the left or right
- Sandwich adapter with thermostat automatically regulates oil flow to the cooler based on oil temperature; top and bottom connections are interchangeable for flat or curved mounting
- Includes 4 angle brackets and other mounting hardware for secure installation
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
