Rear Air Suspension + 12V Compressor Controller Kit for Toyota Hilux 4WD 2005-2015
Rear Air Suspension + 12V Compressor Controller Kit for Toyota Hilux 4WD 2005-2015
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description
Air suspension kit for the rear axle with 12V compressor and control kit, suitable for the Toyota Hilux 4WD.
Suitable for:
- Toyota Hilux 4WD 2005-2015 (not for the latest models from 2015)
- Nissan Navara D40 & STX550 4WD 2004-
- Also suitable for vehicles with a 2-inch lift kit
Specifications
- Condition: new
- Installation position: rear left and right Recommended working range: 5 psi - 160 psi
- Max. load: 5000 LB / 2268 KG
- Design height air spring: 152 mm
- Stroke: 110 mm (max. extended 175 mm, min. compressed 65 mm)
- Material: hardened natural rubber
- Max. air pressure compressor: 100 psi
- Recommended working pressure: 5-70 PSI
- Packaging dimensions control kit: 32 × 20 × 20 cm (2.2 kg)

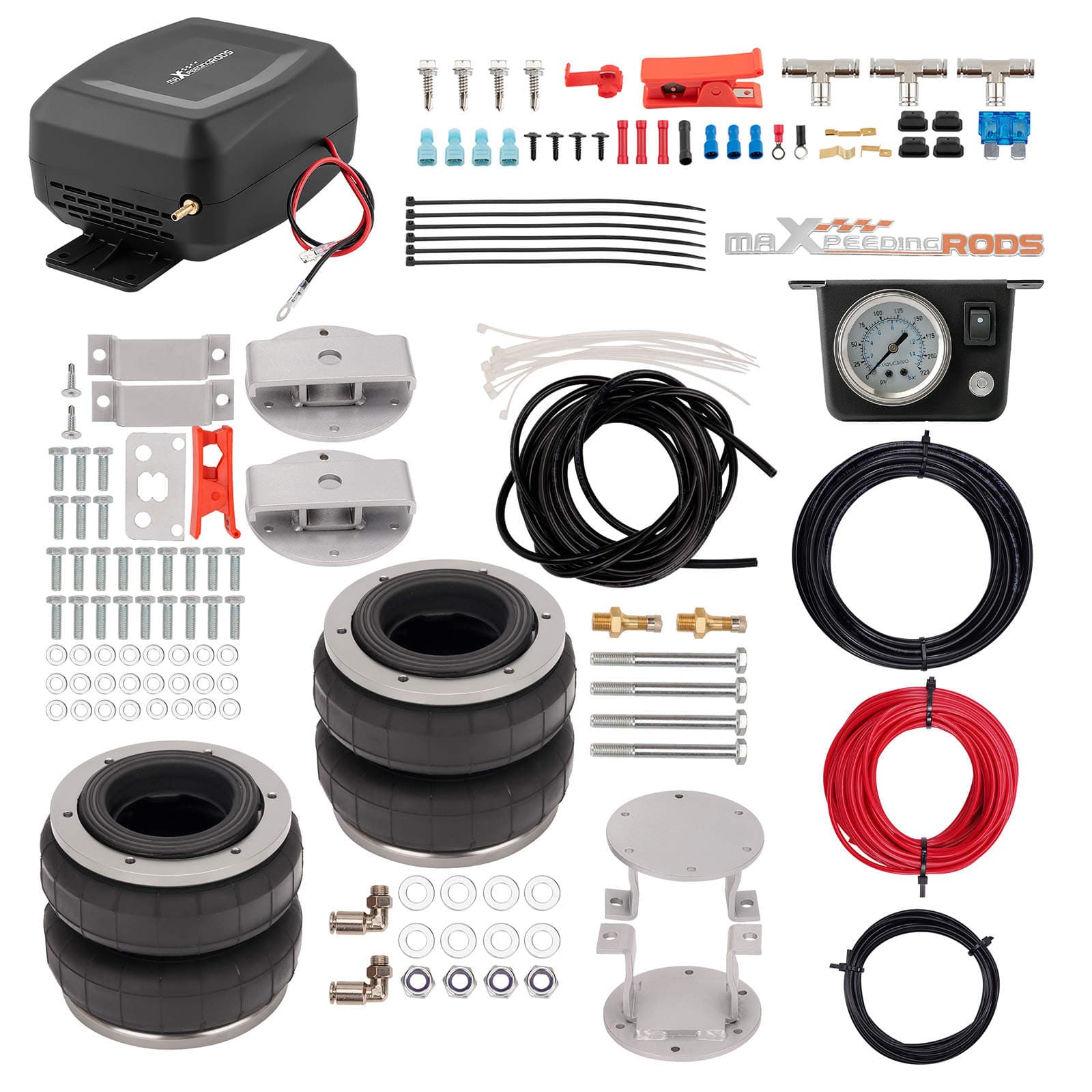

Scope of delivery

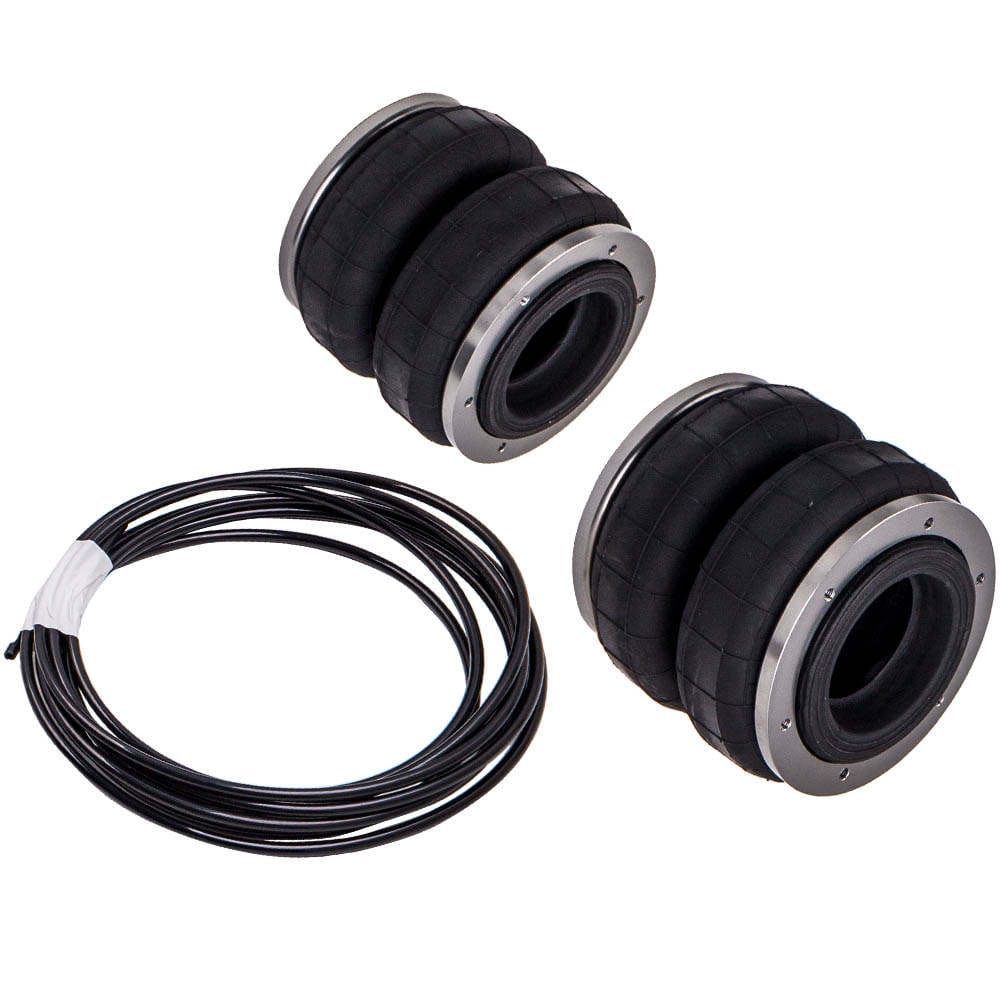

- 2x heavy-duty double air bellows

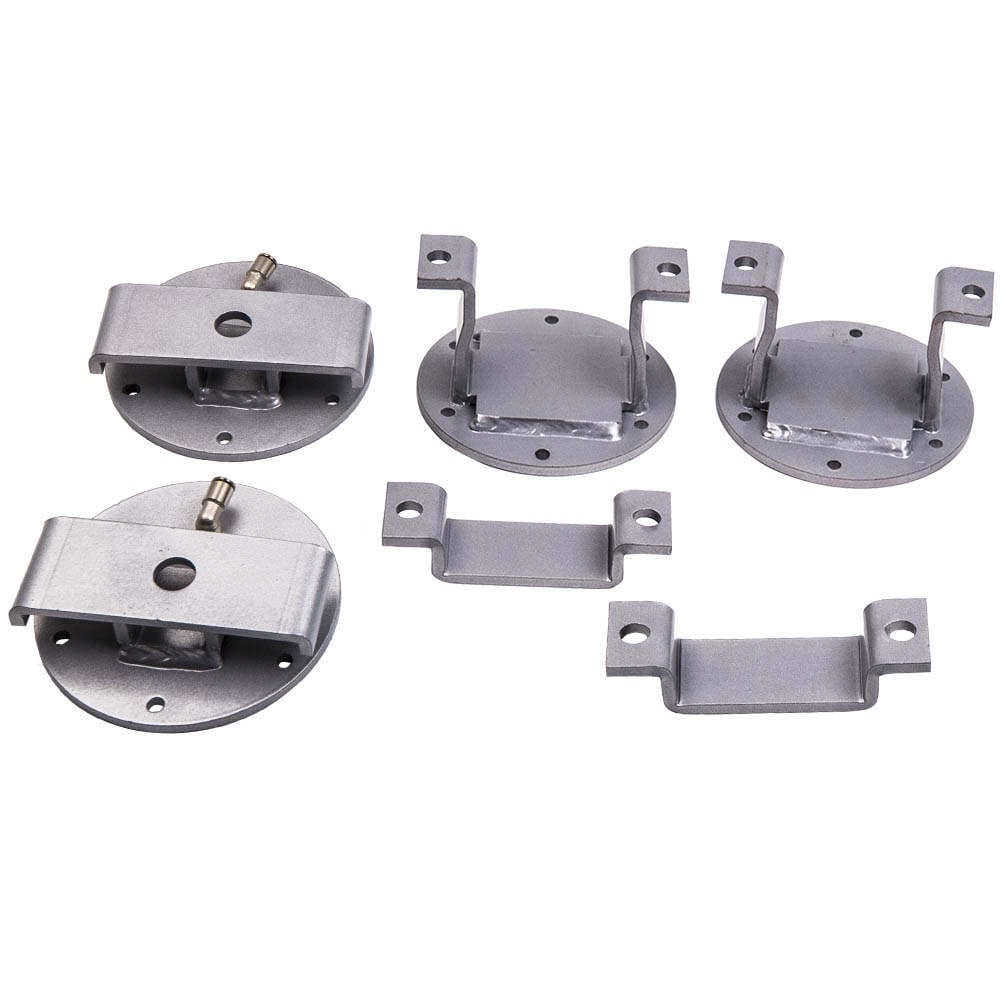

- 4x upper and lower mounting brackets
- 1x air line 5 m

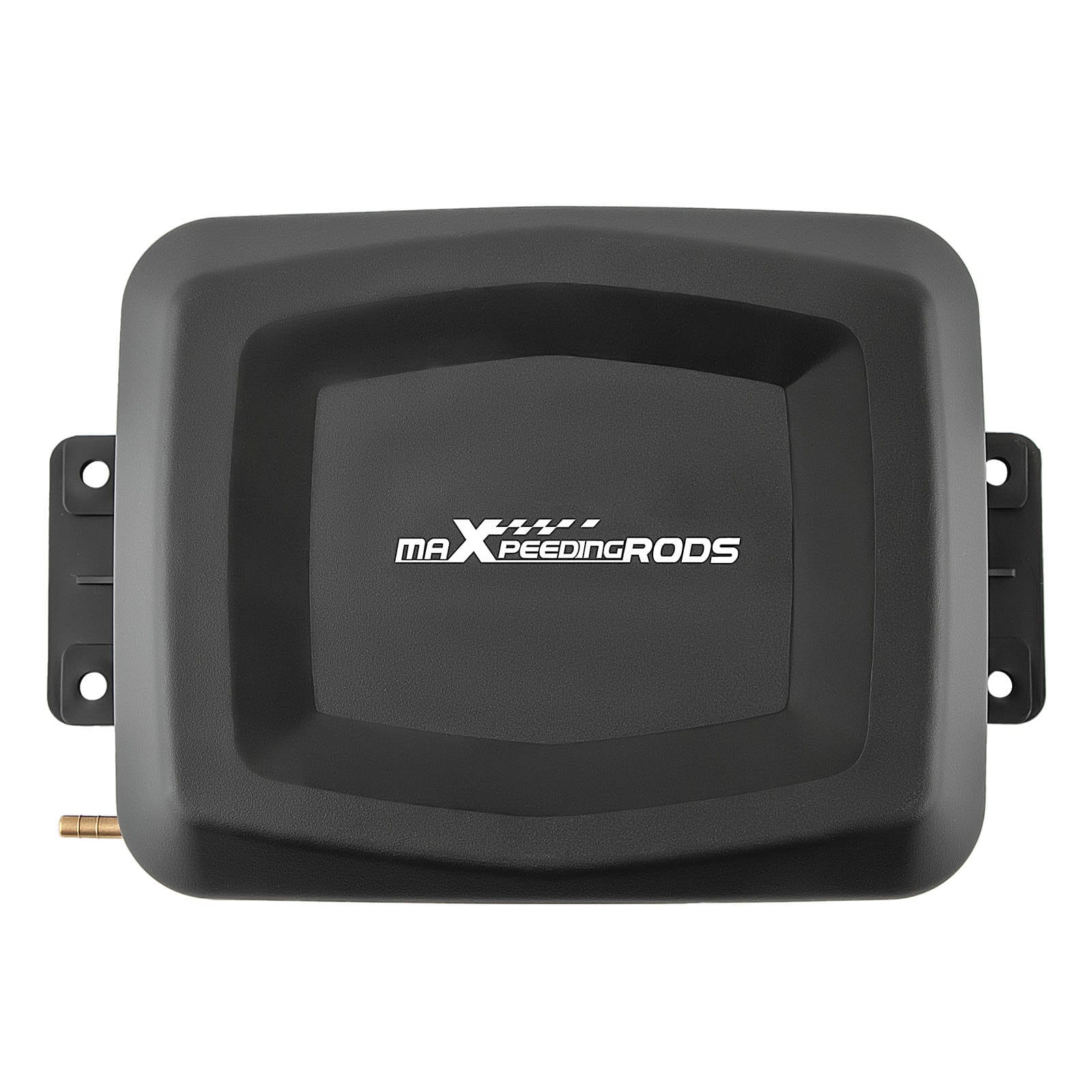

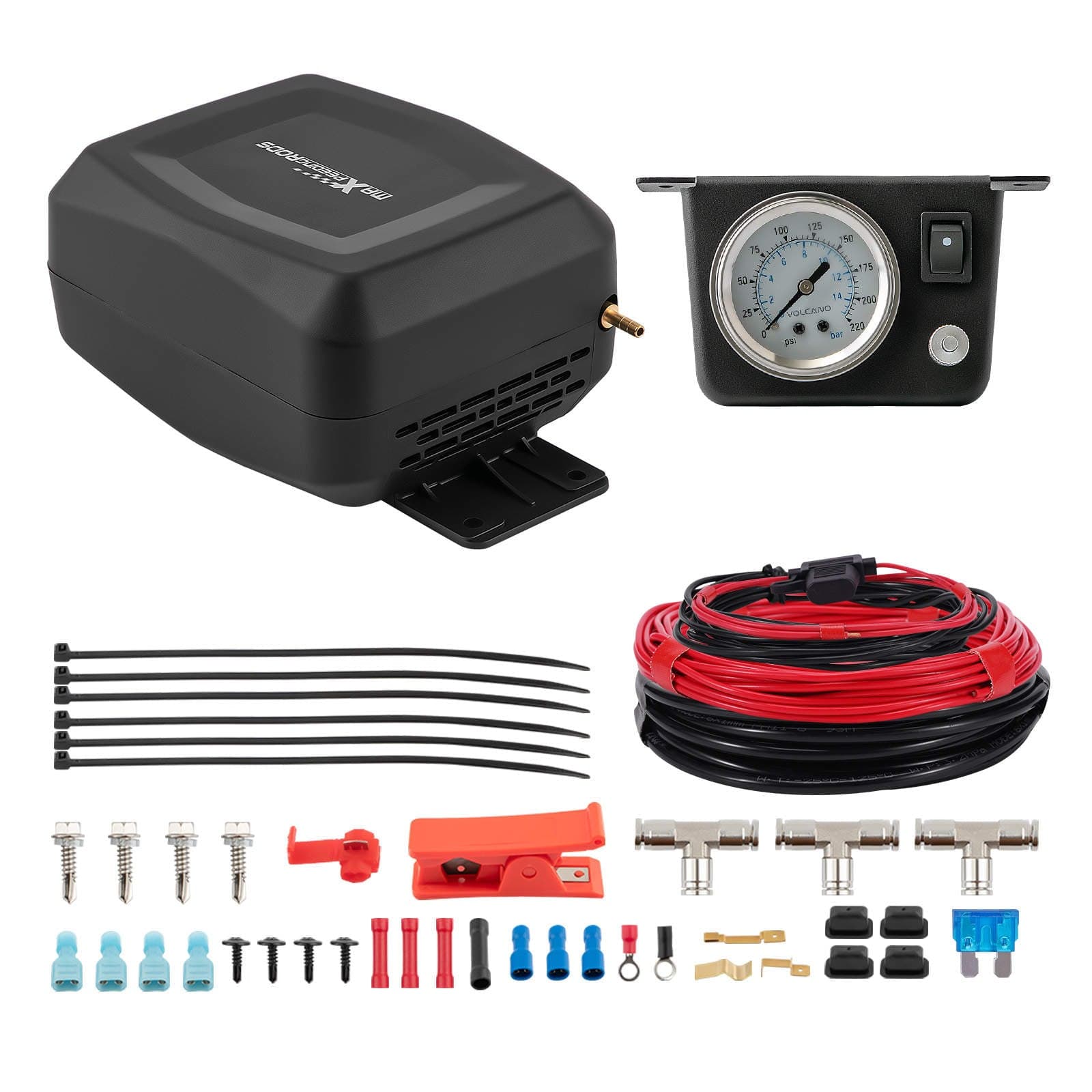

- 1x 12V MaXpeedingRods air compressor (black)
- 1x pressure gauge panel (up/down push buttons)
- 1x air line φ6*1 (6 m)
- 1x wiring harness (2.5 m) black and 1x wiring harness (8.5 m) red
- 1x relay harness (1 m), 3x T-connector and other mounting material
Features
- Heavy-duty double-bellow design with a load capacity of up to 2500 lbs
- Relieves leaf springs under heavy load
- Air pressure can be monitored and adjusted from the driver's seat
- Waterproof housing of the air compressor; flame-retardant wiring harness
Please note
Drilling required; installation manual included. Compare OE numbers and product photos before purchase. Professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
