Rear Air Suspension + Wireless Compressor Controller Kit suitable for Toyota Hilux 4WD 2015-
Rear Air Suspension + Wireless Compressor Controller Kit suitable for Toyota Hilux 4WD 2015-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

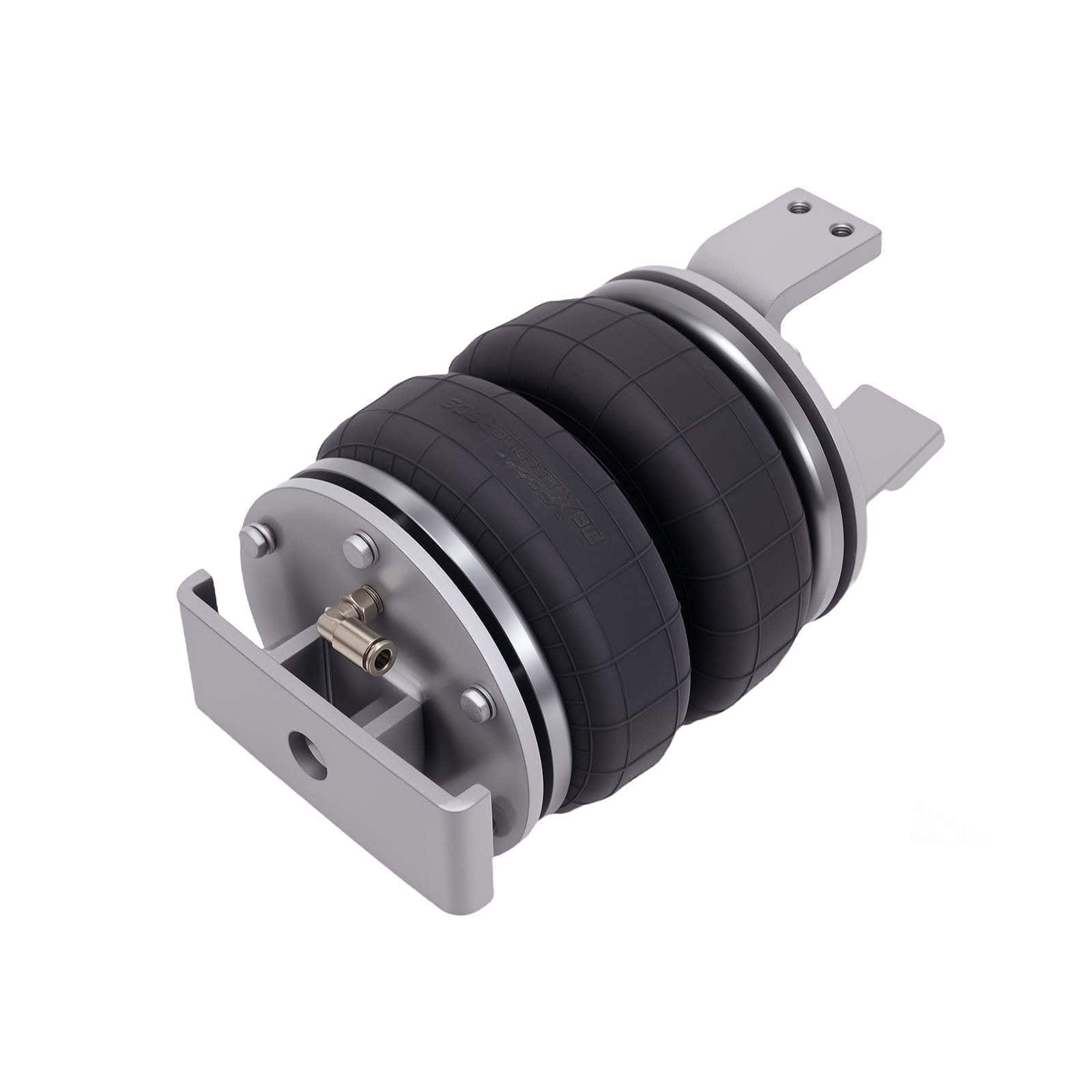

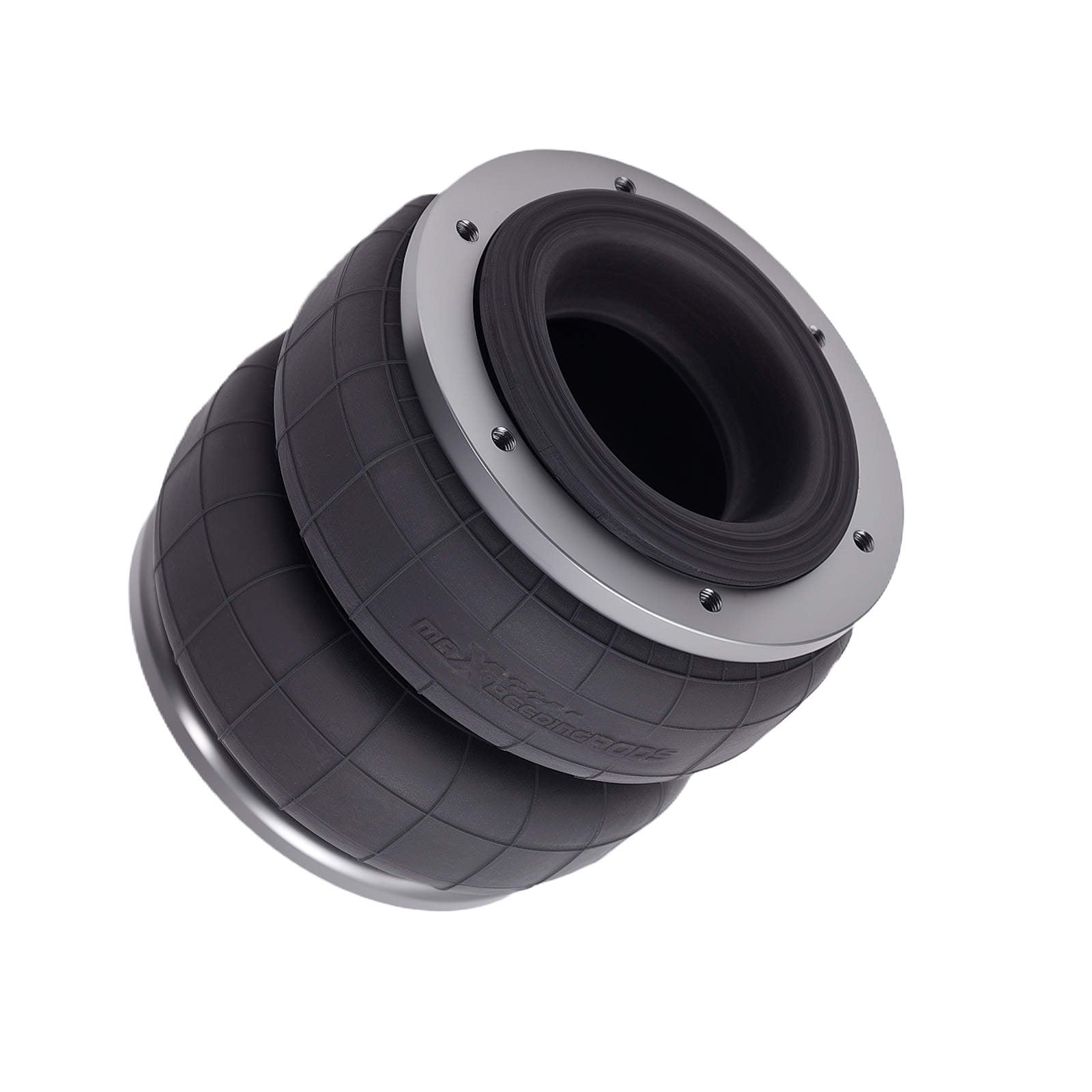

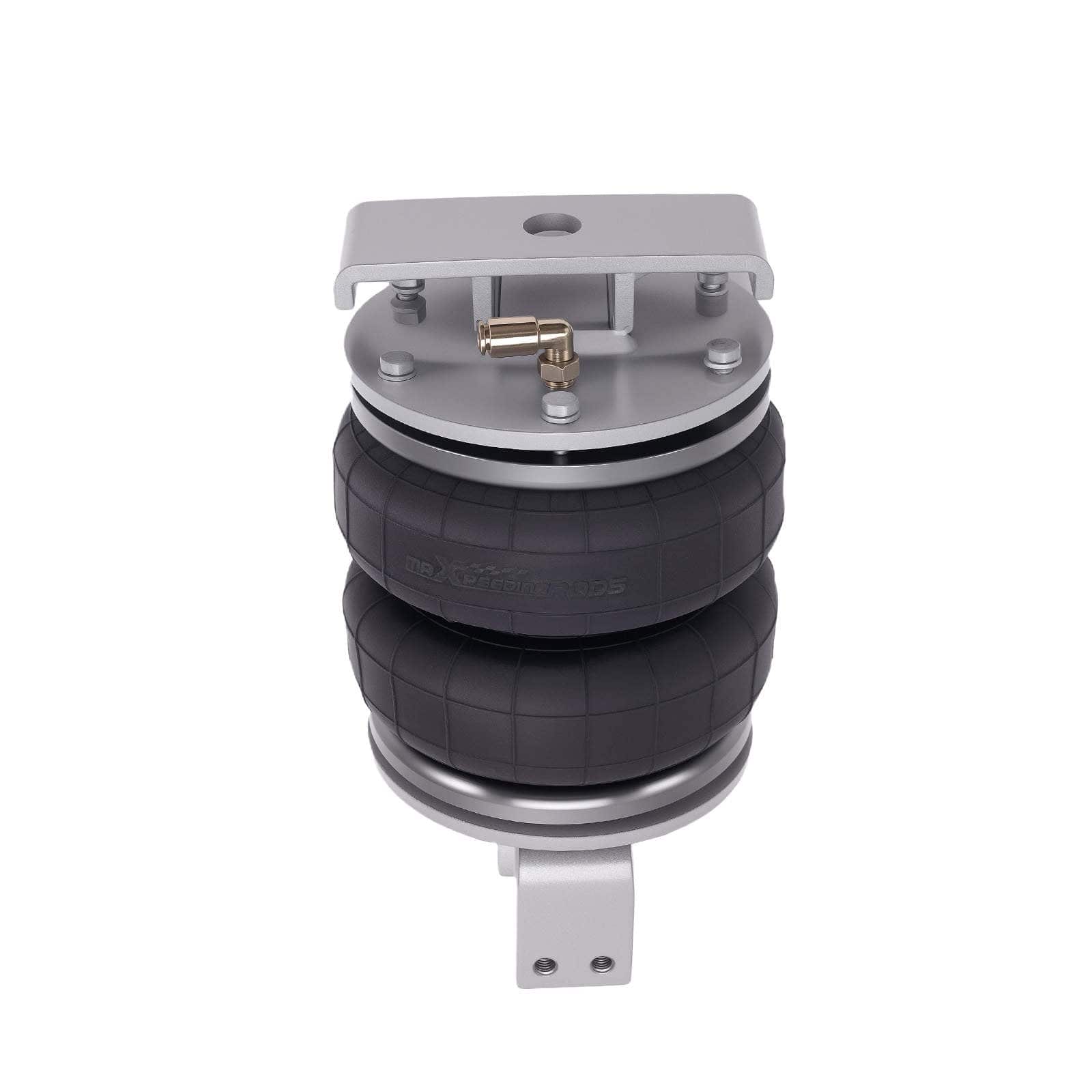

Rear Air Suspension (Air Spring Bags) with Wireless Compressor Controller Kit.
Suitable for:
- Toyota Hilux 4WD 2015- (GGN125, GUN126), new models from 2015 only
Specifications
- Condition: New
- Installation position: Rear left and right
- Load capacity air spring bag: 5000 LB / 2268 KG
- Material: Cured natural rubber
- Design height: 152 mm
- Stroke: 110 mm
- Max. extended: 175 mm
- Min. compressed: 65 mm
- Min. height full kit: 206 mm
- Max. height full kit: 316 mm
- Max. air pressure compressor: 120 psi
- Recommended working pressure: 50-70 psi
Scope of delivery

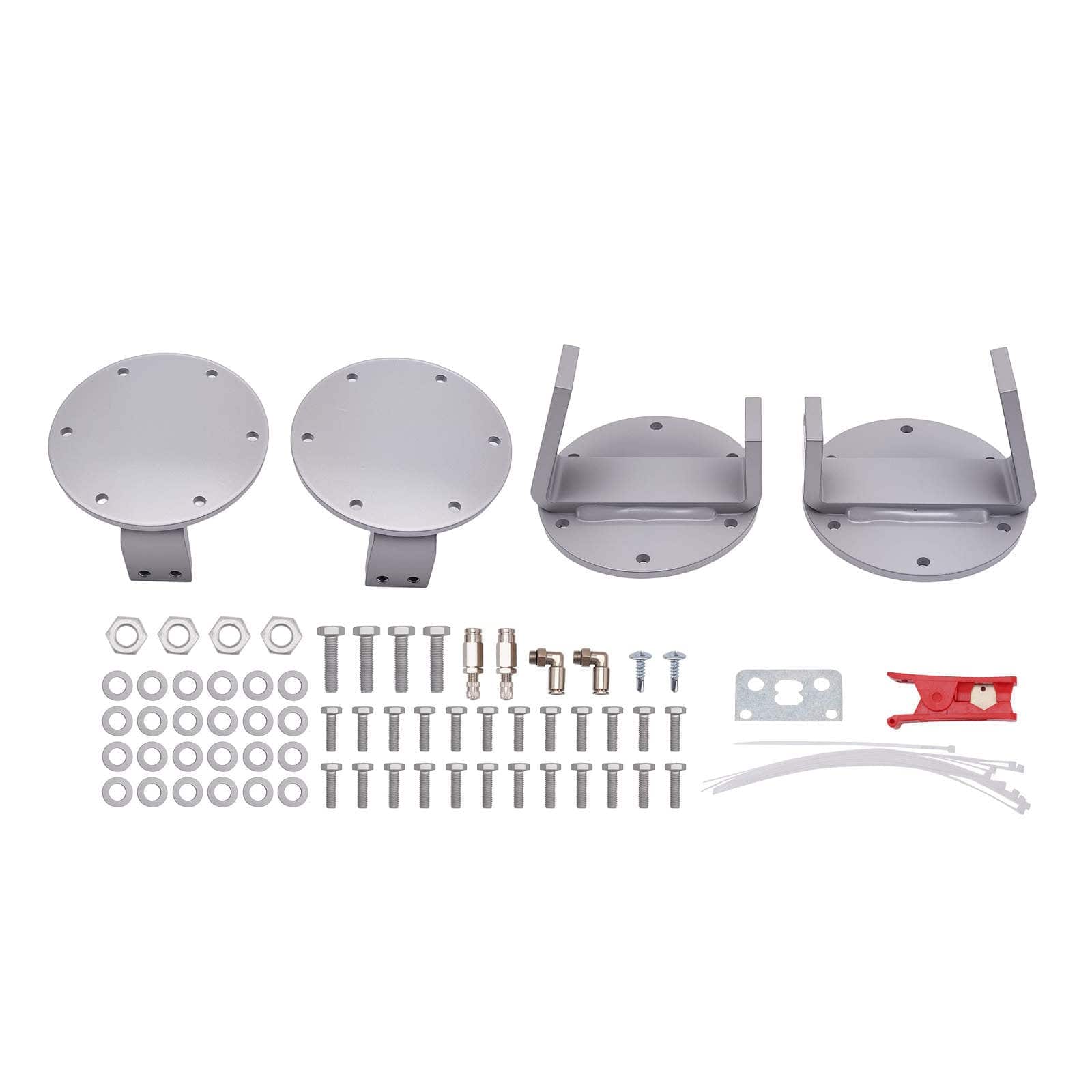

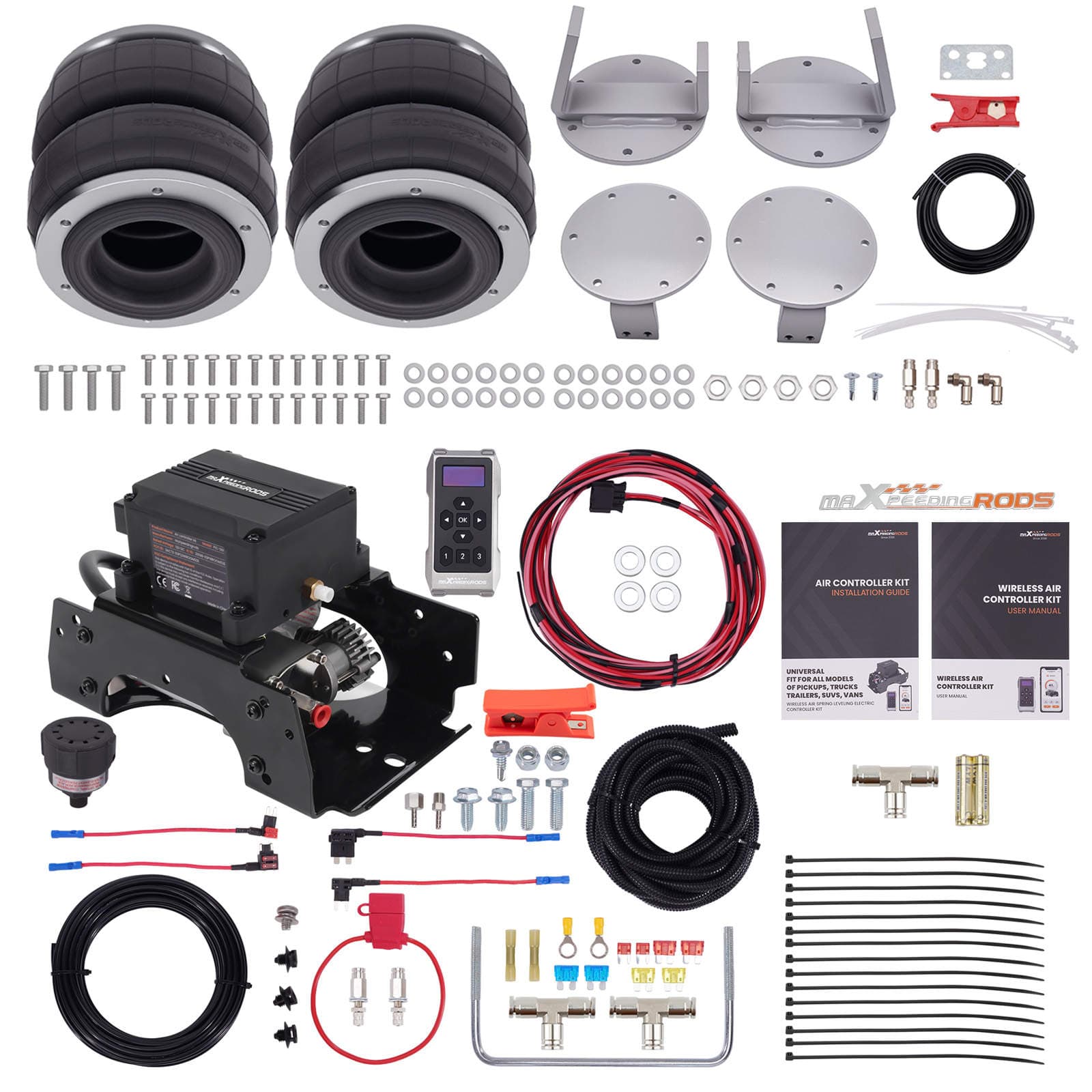

Air suspension kit: 2x heavy-duty double convoluted air spring bags, 4x upper and lower mounting brackets, 1x air line 5m, mounting hardware.
Wireless compressor controller kit: 1x compressor control system, 1x wireless remote control, 1x air line φ6x1 (12m), 1x air filter, 1x wiring harness (6m), 1x relay wiring harness (1m), 3x T-connectors, and other accessories.
Features
- Heavy-duty double convoluted design for safe and comfortable load carrying capacity up to 2500 lbs
- Relieves the stress that normally occurs on the vehicle's leaf springs under heavy load
- Supplied as a kit and easy to assemble
- Improves vehicle handling and ride quality
- Robust and durable, manufactured under strict quality control
- No air lines or wiring harnesses required in the cabin
- Wireless control can activate the compressor from inside or outside the cabin
- Free app turns your smartphone into a full-featured controller, with three adjustable presets
- 100% factory tested for leak tightness; has passed the salt spray test
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
