Product Description

This 12V air suspension compressor controller kit with low pressure sensor is designed to inflate and deflate your vehicle's air springs at the push of a button, without leaving the cabin. It is a universal kit, suitable for most light and medium-duty pick-up trucks and vans (e.g., Ford, Iveco, Mercedes-Benz, Opel, Vauxhall, Toyota, etc.).

Specifications

• Condition: brand new
• Drilling required: yes
• Installation manual: included
• Package dimensions (L*W*H): 37x37x19 cm
• Package weight: 2.85 kg
• Maximum air pressure: 100 psi
• Recommended working pressure: 5-70 psi

Package Contents

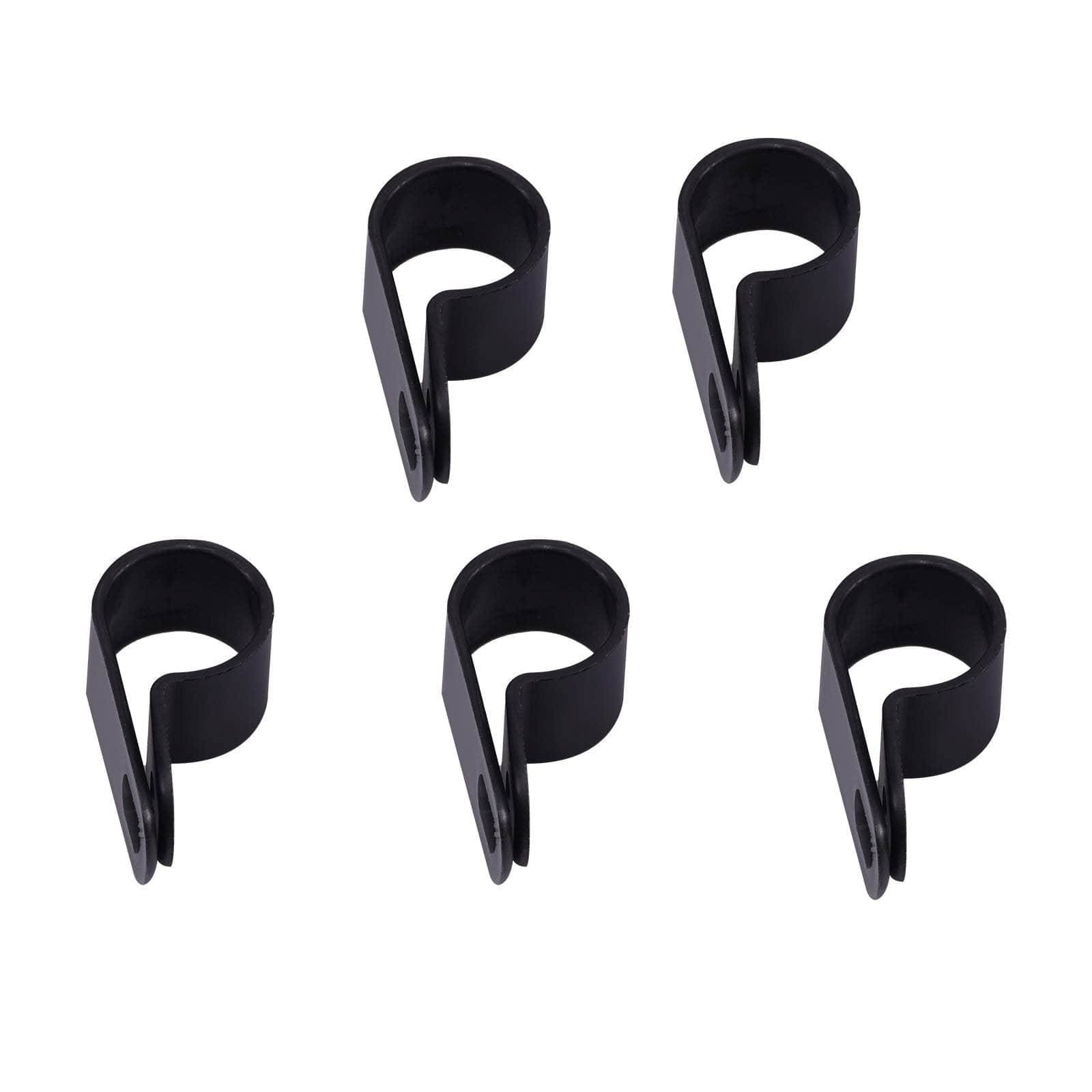

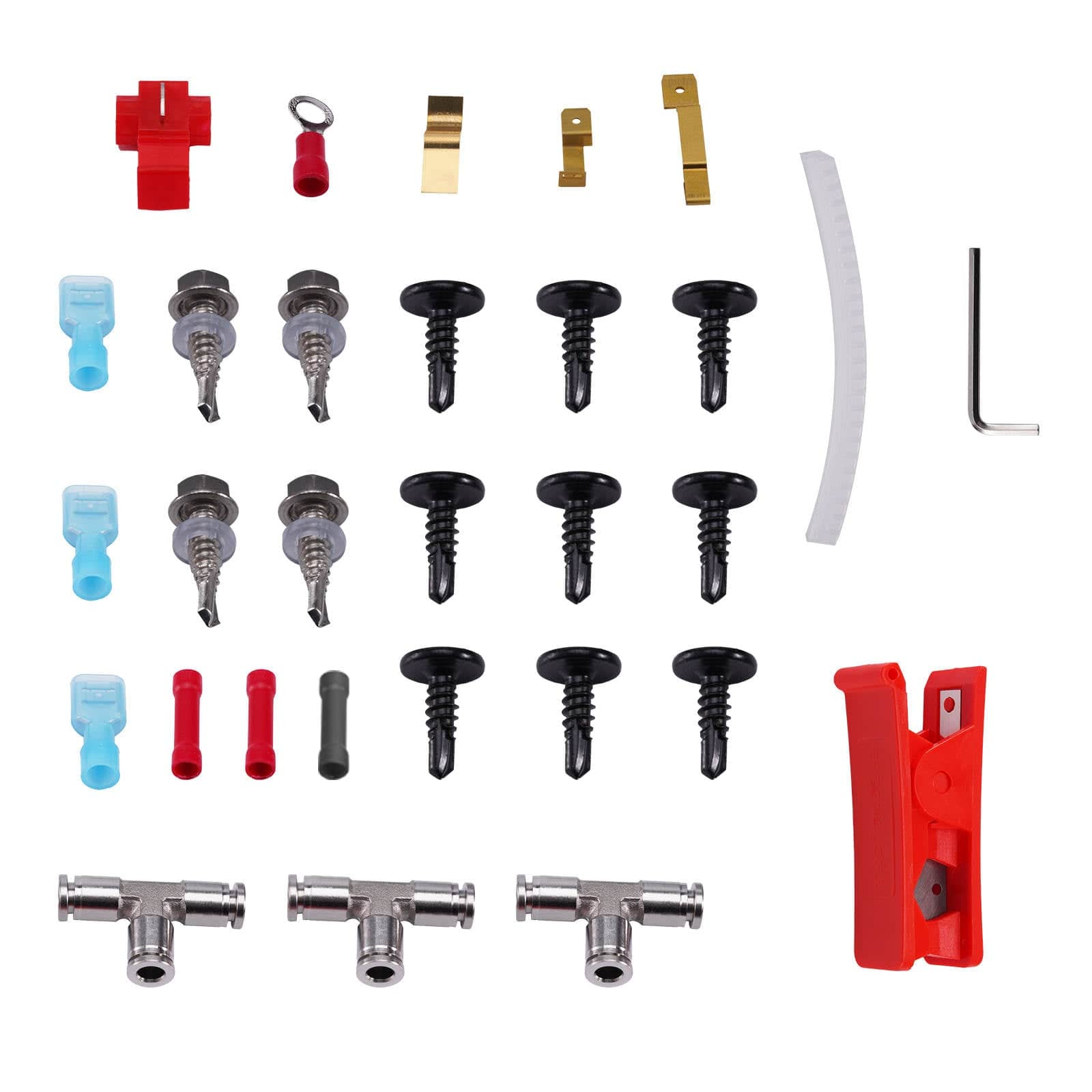

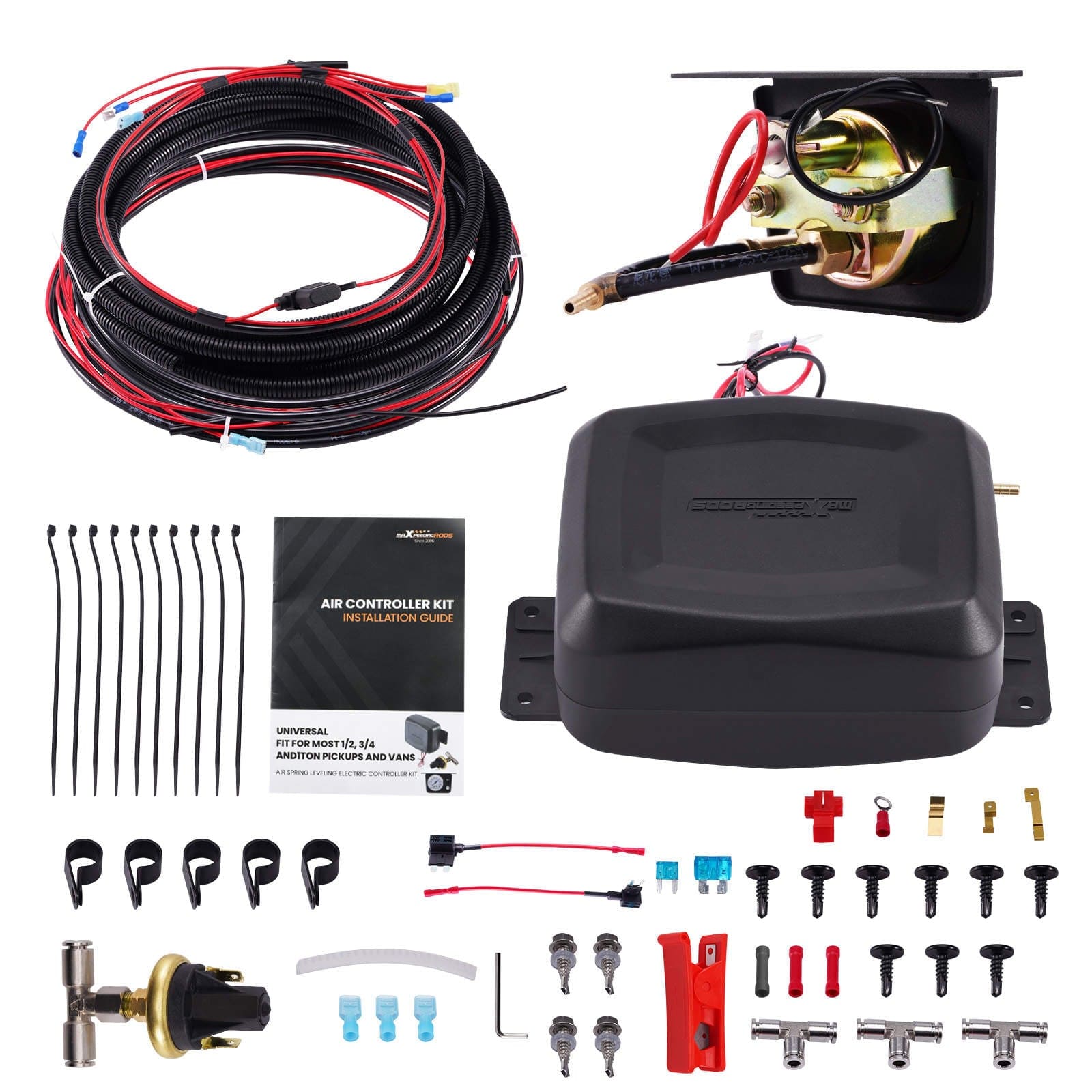

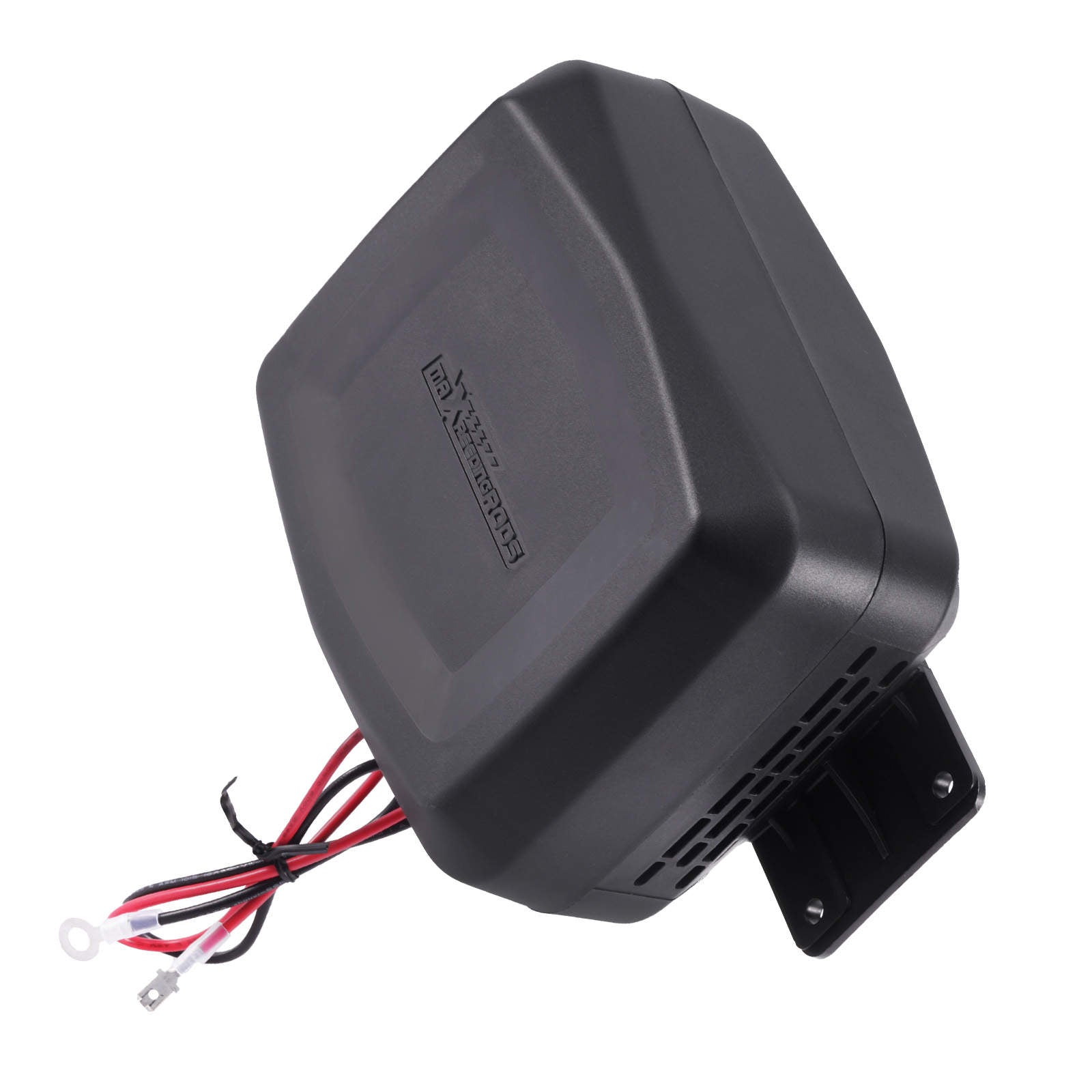

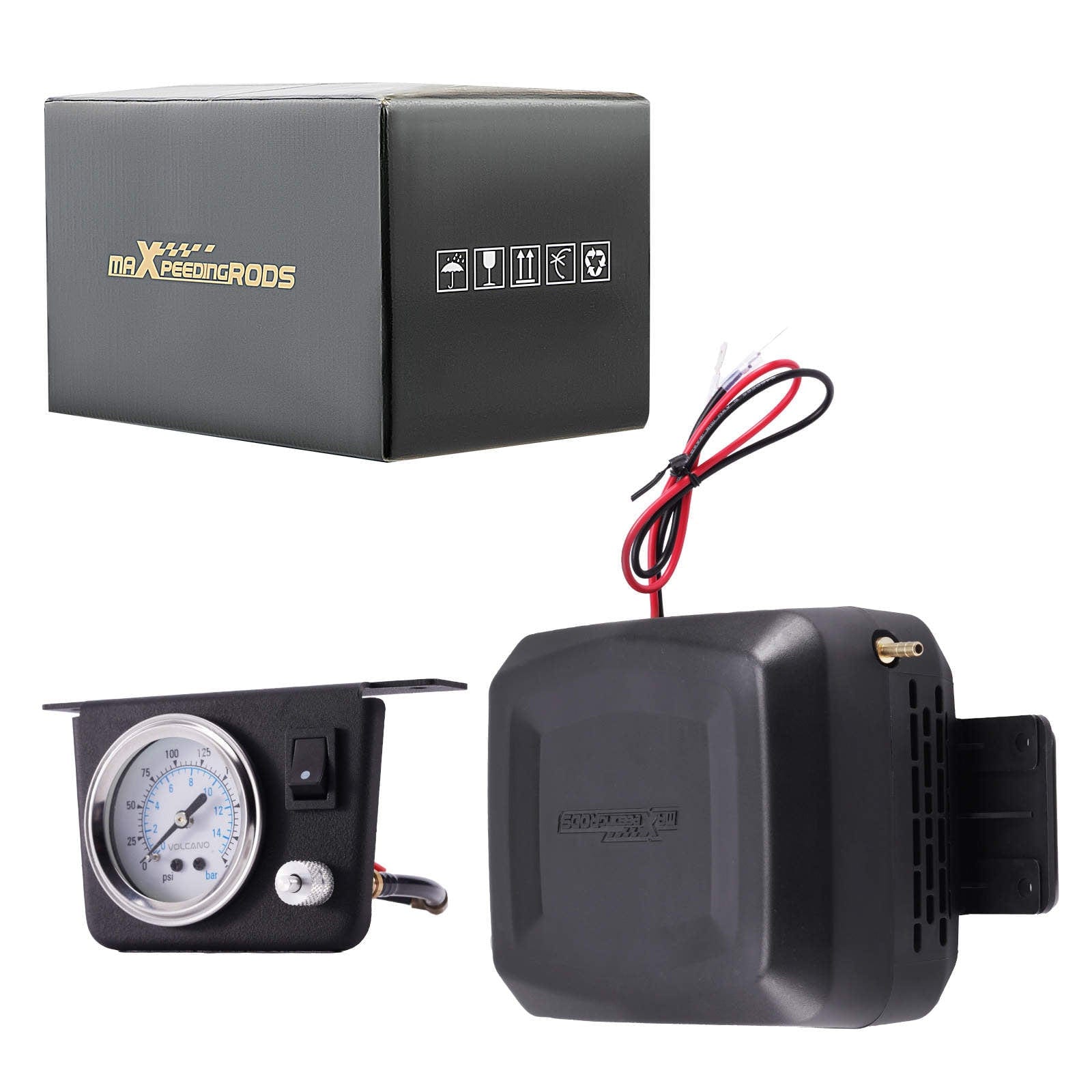

1x 12V air compressor (black), 1x pressure gauge panel (up/down pressure buttons), 1x low pressure sensor, 1x air line φ6x1 (4.1 m), 1x wiring harness #1, 1x wiring harness #2, 1x wiring harness #3, 1x Allen key, 3x T-connectors, some other accessories

Features

• Monitors and controls air pressure in the air spring bellows from the driver's seat
• Suitable for light and medium-duty applications and occasional towing
• Includes built-in air compressor, single dashboard panel, air lines, and mounting hardware
• With low pressure sensor: automatically detects and maintains air pressure
• Compatible with most air spring brands
• One-way operation for 1 pair of air springs
• Strict quality control for long-term use without damage
• Wiring harness with flame-retardant properties; compressor with waterproof housing

Please note: The air line can be cut with an air line cutter, as straight as possible. The line may be somewhat stiff; heat it with a hairdryer for 2-3 minutes before assembly.

Check Fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the trim level of your vehicle, as there may be differences per trim level. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchase.
