Air Suspension + Compressor + Two-Circuit System Kit suitable for Iveco Daily 35S 35L 2014-
Air Suspension + Compressor + Two-Circuit System Kit suitable for Iveco Daily 35S 35L 2014-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

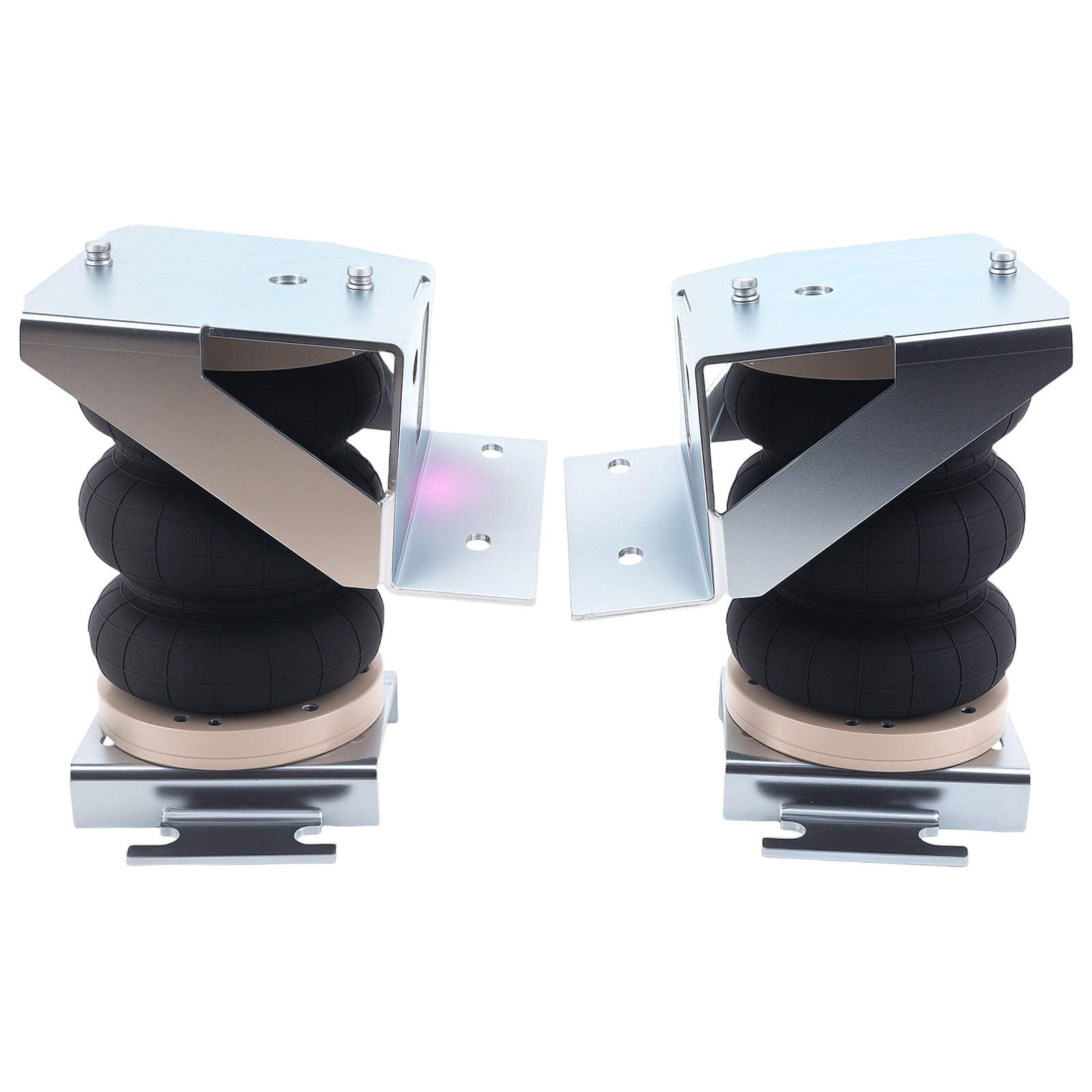

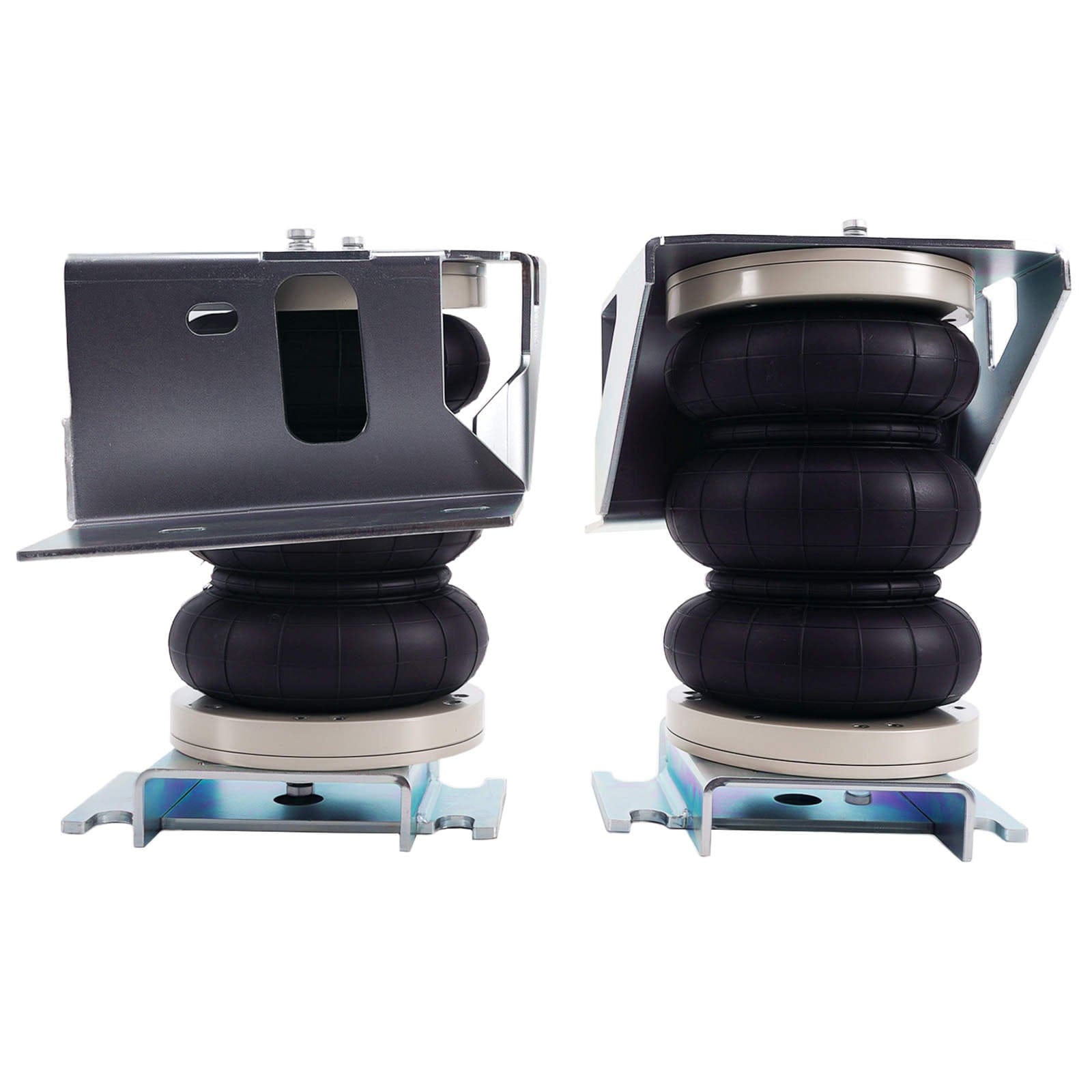

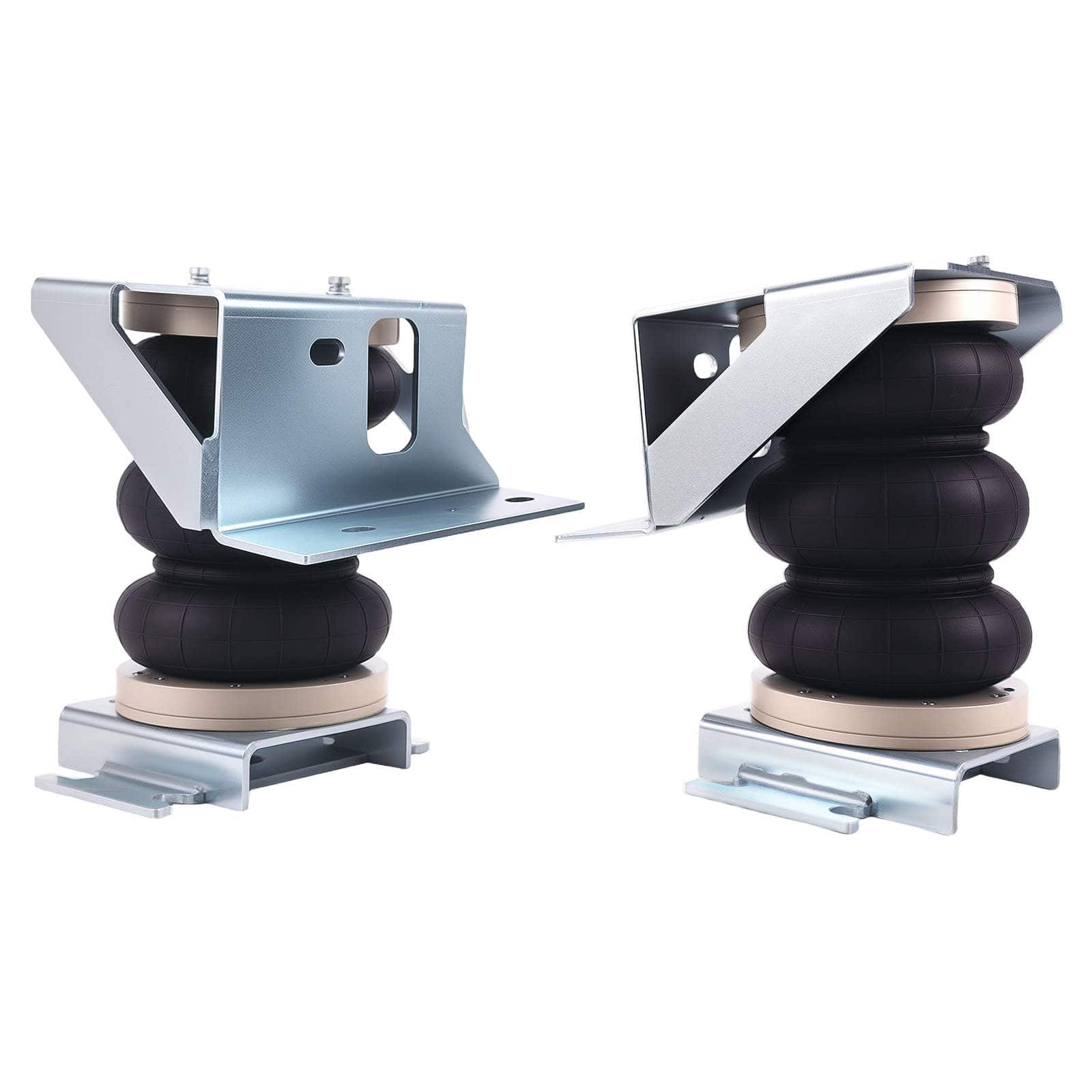

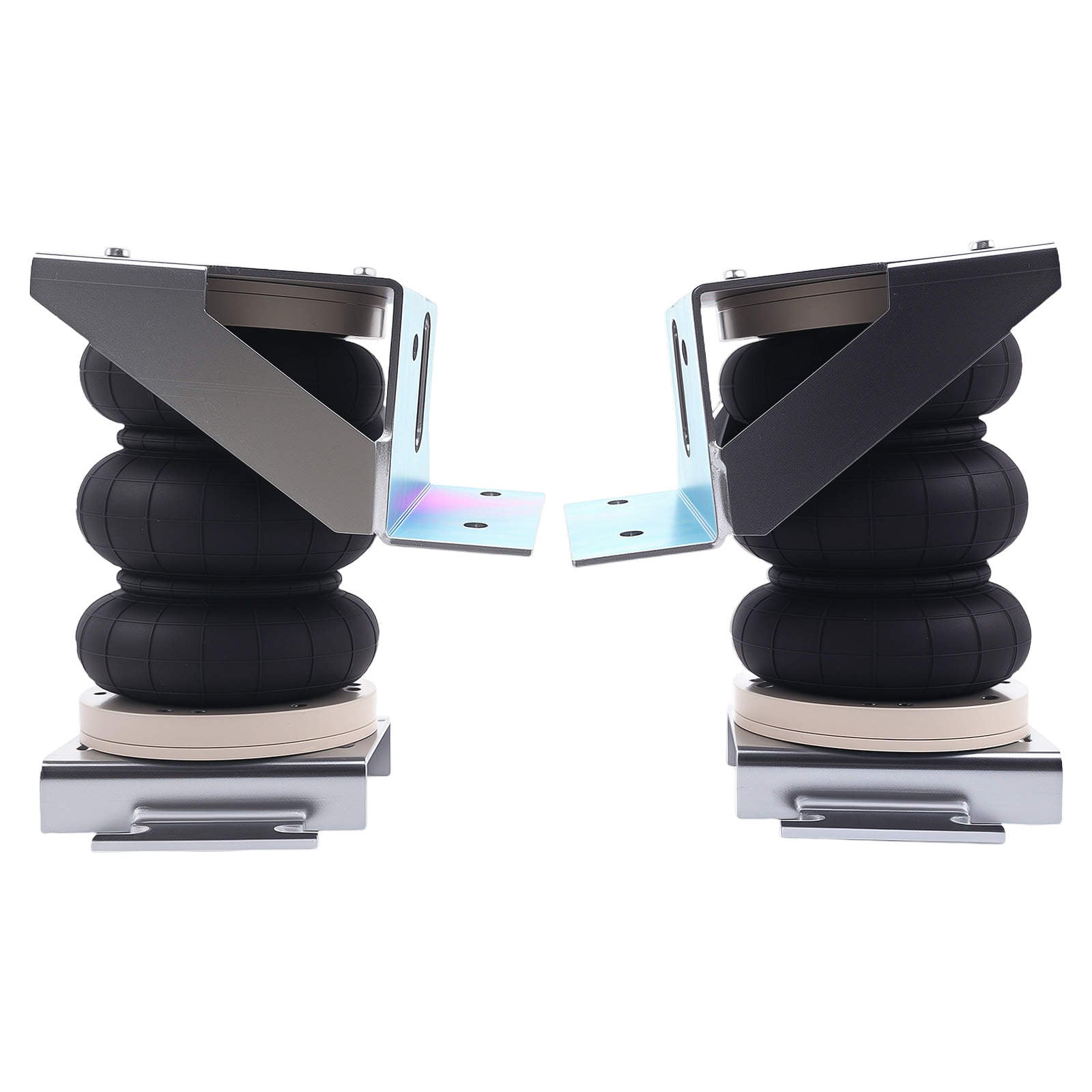

Air suspension kit with dual manometer, suitable for the Iveco Daily 35S/35L. This is an aftermarket air suspension that replaces the original rear air suspension.
Suitable for:
- Iveco Daily 35S & 35L rear-wheel drive with single wheels, from 2014 onwards
Specifications
- Drive: single rear-wheel drive
- Chassis type: standard chassis for all models
- Condition: brand new
- Max. load: 5280 kg
- Installation position: rear right and left, with dual-circuit system
- Design height air spring: 220 mm
- Stroke air spring: 155 mm
- Min. compressed: 105 mm
- Air spring material: natural rubber and high-quality steel
- Air pump power: 150 W
- Air pump output voltage: 12V
- Max. air pump current: 10A
Scope of delivery

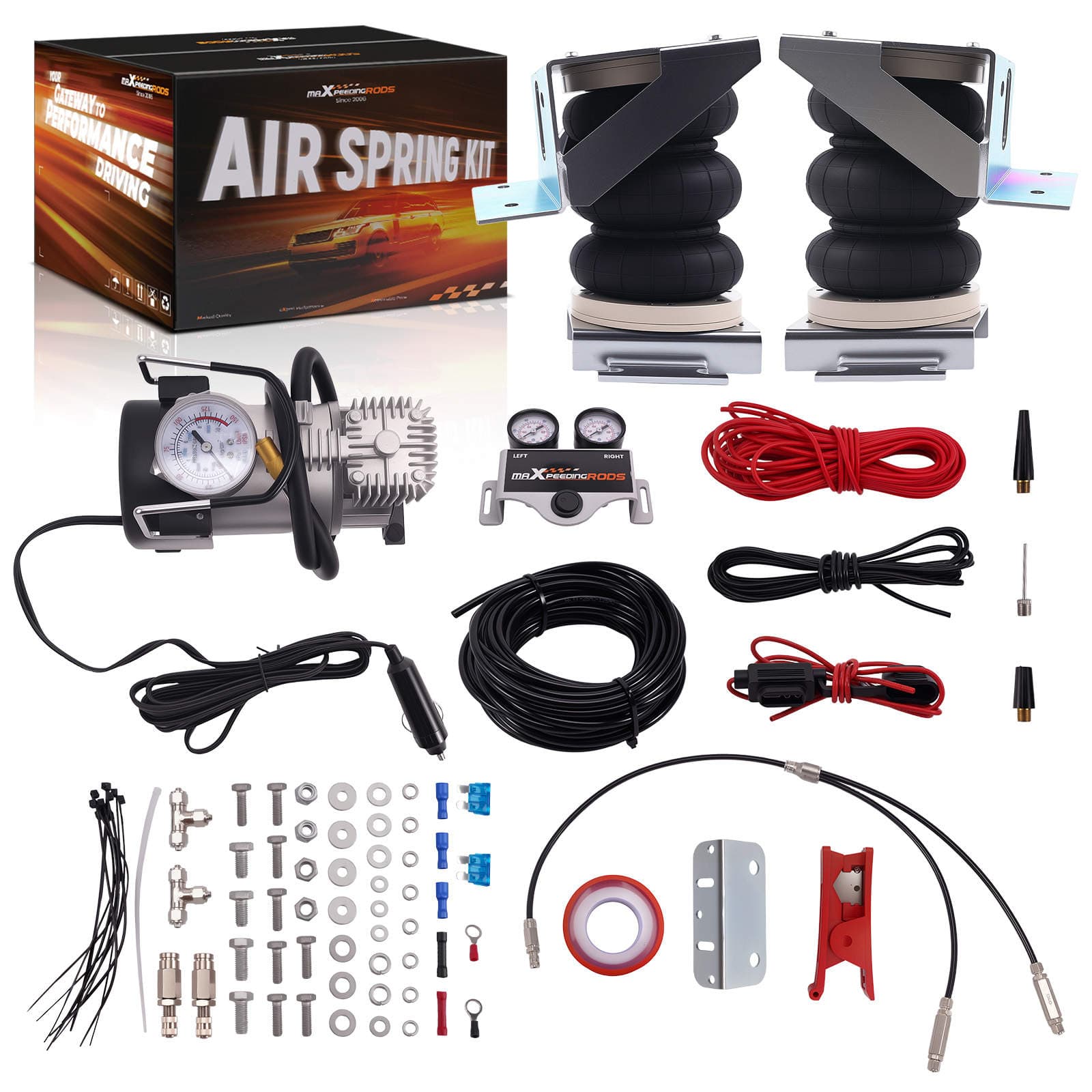

2x triple-bellows air suspension, 4x mounting bracket, 1x 11m air line, 1x compressor, 1x dual manometer, 1x fuse wiring, 1x Y-shaped air line connector, mounting bolts and air fittings.
Features
- Stress tested over 5,000,000 times: durable and safe
- Burst pressure ≥2.0 MPa: high pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥-40°C/≤70°C: high-quality natural rubber material
- 4-layer reinforced construction: improves load support of the air suspension
- High-quality steel with high load capacity and long service life
- Excellent and practical bolt-on installation
- Safe load capacity and stability
- Restores original ride height and improves ride comfort
- Reduces tire wear
- Dacromet surface treatment offers excellent corrosion resistance compared to traditional galvanizing processes
Please note
This air suspension kit is an aftermarket part and replaces the original. Professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle trim before ordering, as there may be differences depending on the trim. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
