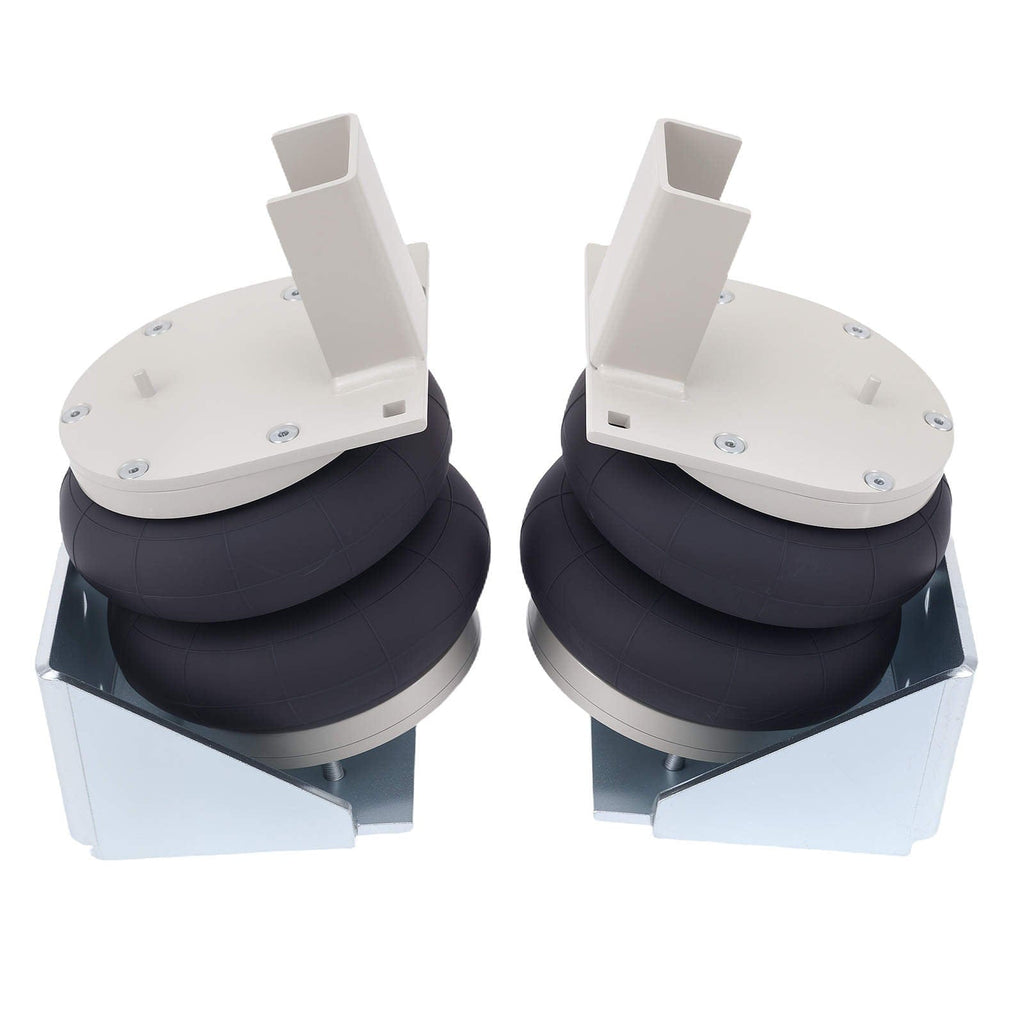

Air Suspension + Compressor Kit Two-Circuit System suitable for Iveco Daily 35S 35L 2006-2014
Air Suspension + Compressor Kit Two-Circuit System suitable for Iveco Daily 35S 35L 2006-2014
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

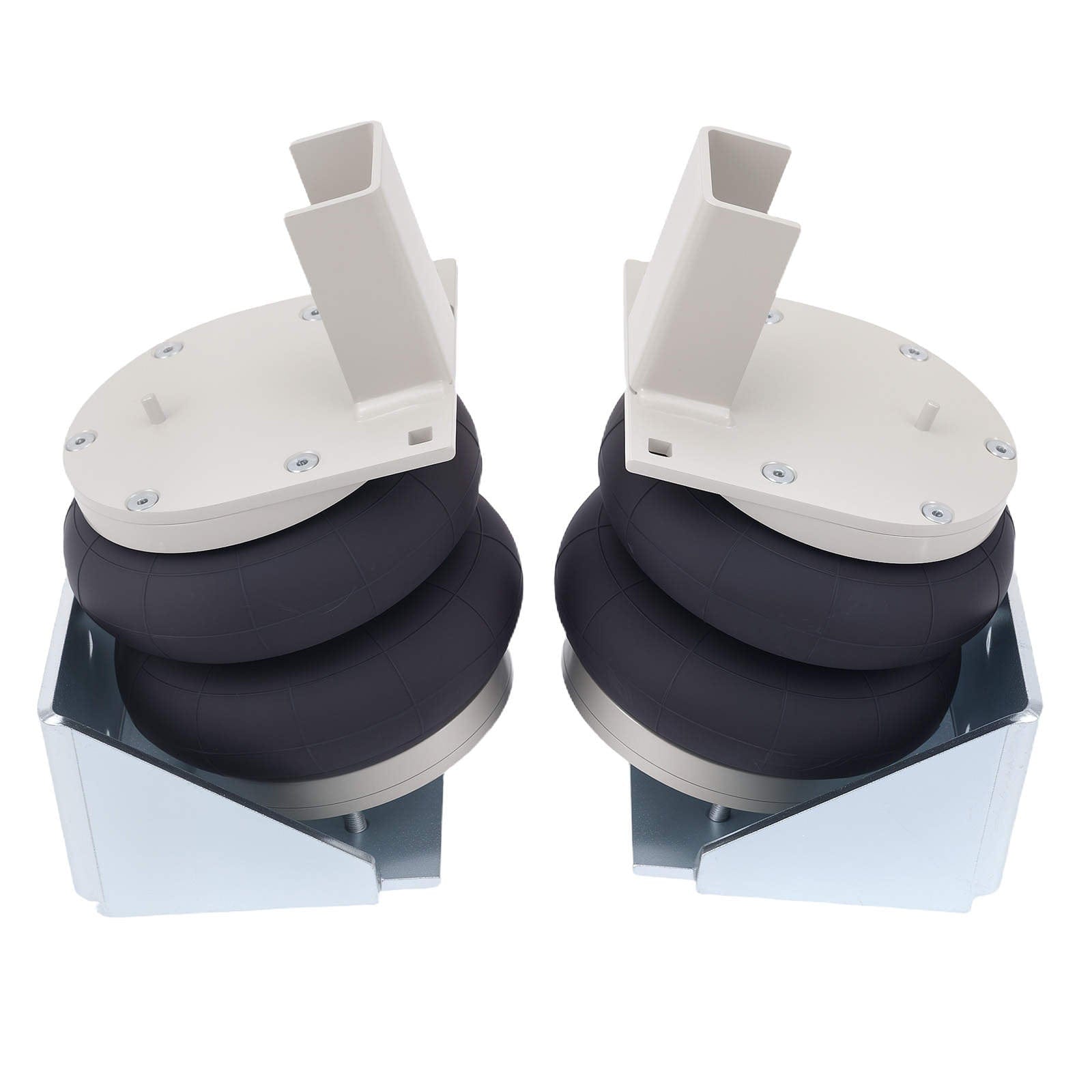

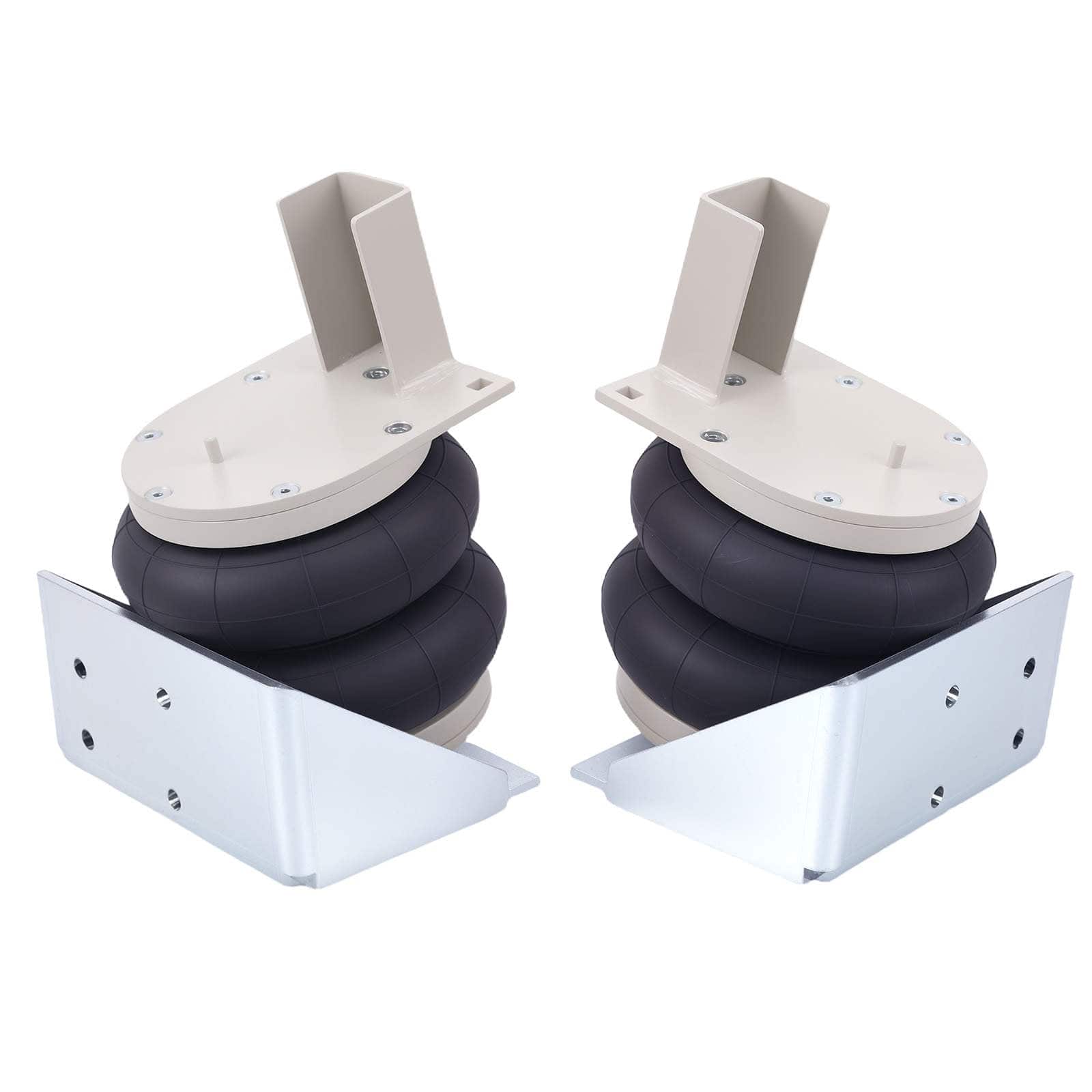

Air suspension + compressor kit with twin-circuit system for the Iveco Daily 35S/35L.
Suitable for:
- Iveco Daily 35S, 2006-2014, rear-wheel drive (RWD), also suitable for front-wheel drive (FWD)
- Iveco Daily 35L, 2006-2014, rear-wheel drive (RWD), also suitable for front-wheel drive (FWD)
Rear axle layout: single rear wheels only.
Specifications
- Condition: Brand new
- Material: Galvanized high-quality steel S355, rubber
- Maximum load capacity: 8800 lbs / 4000 kg
- Rear axle arrangement: single rear wheels
- Placement on vehicle: rear, left and right
- System: twin-circuit system (dual-circuit)
- Air spring bellows - stroke: 140 mm
- Air spring bellows - max. extended: 230 mm
- Air spring bellows - min. compressed: 90 mm
- Minimum height full kit: 284 mm
- Maximum height full kit: 424 mm
- Working pressure: ≤2.0 MPa
- Temperature range: ≤+70°C, ≥-40°C

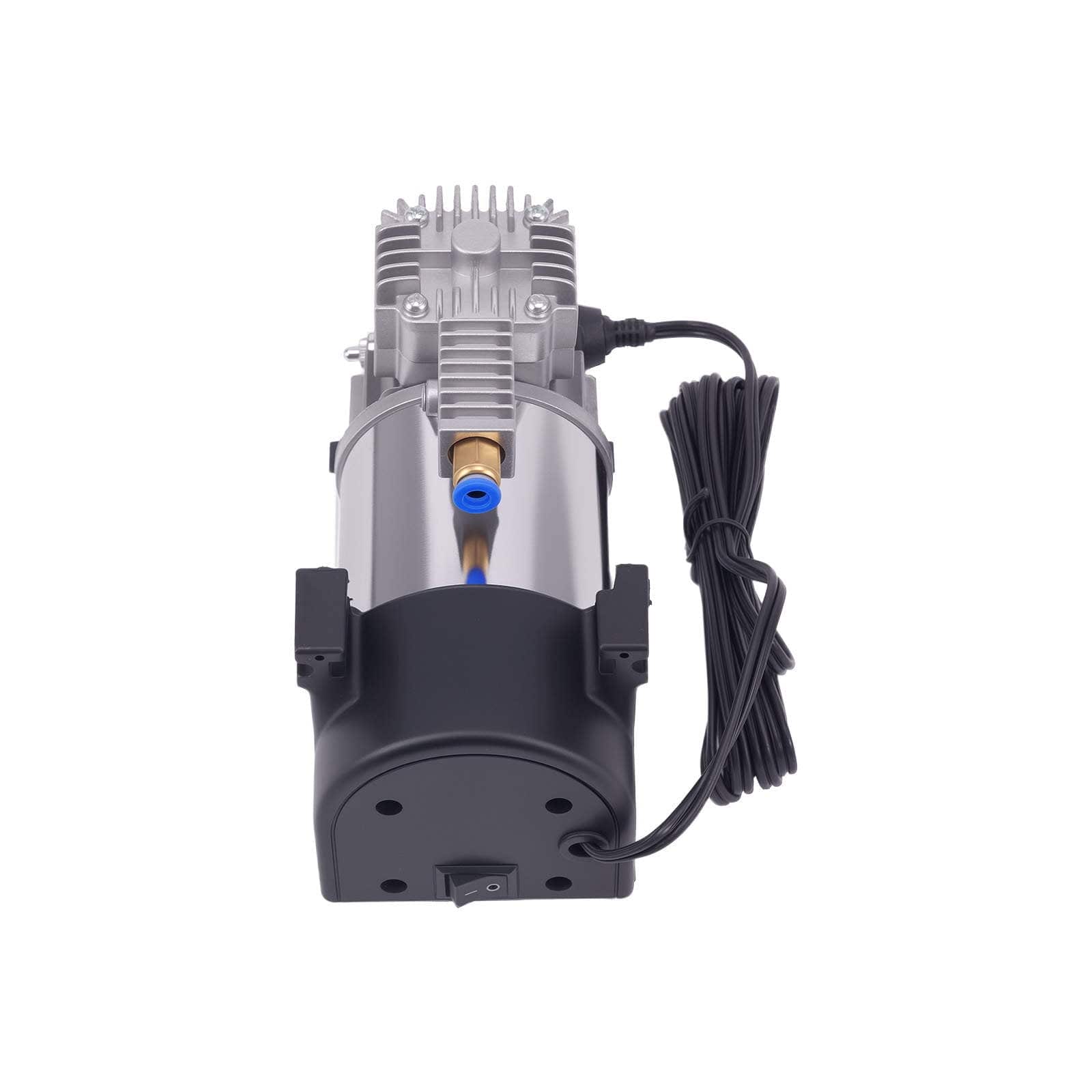

- Compressor - power: 150 W
- Compressor - output voltage: 12V
- Compressor - maximum current: 10A
- Compressor - maximum working pressure: 10 bar (1MPa)
Scope of delivery

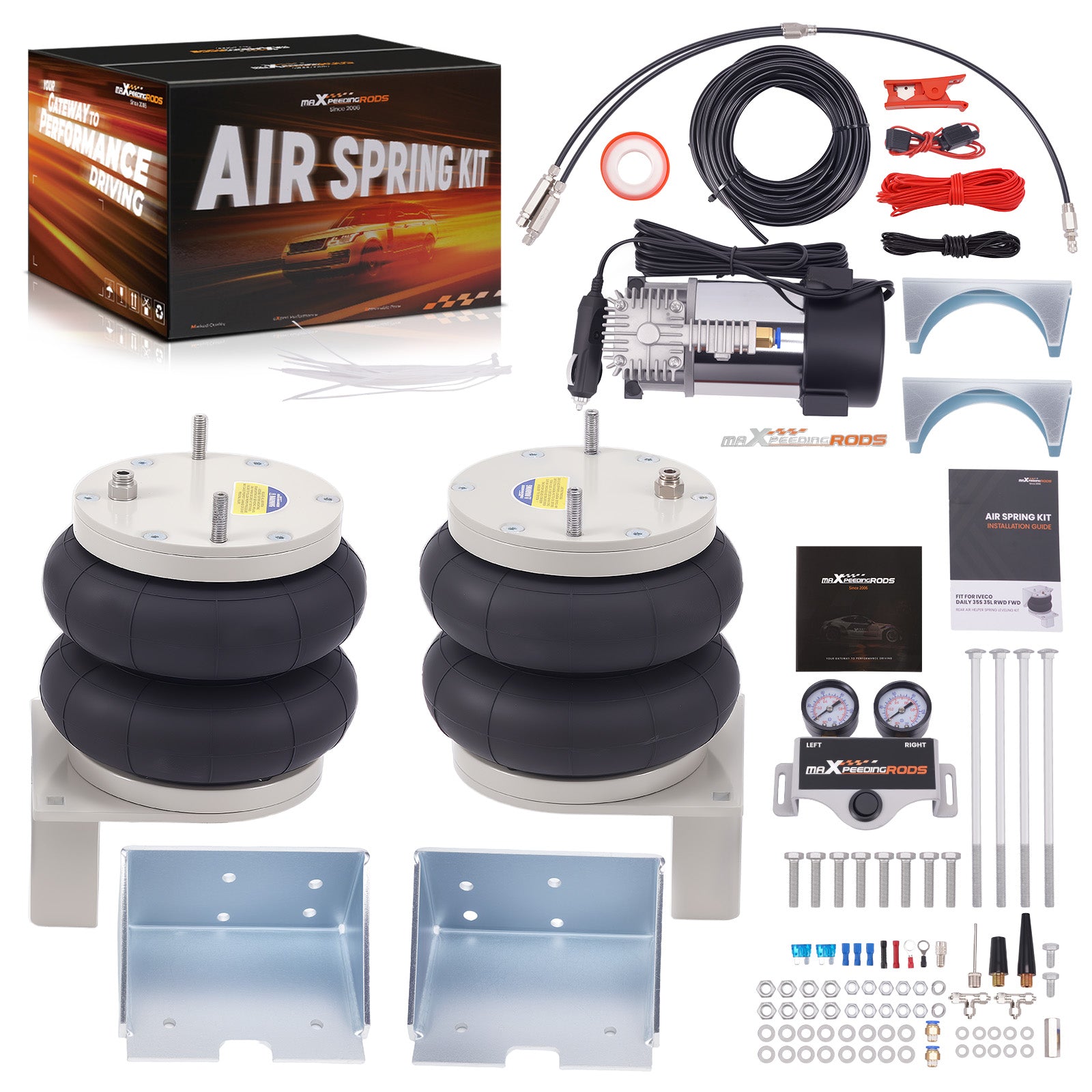

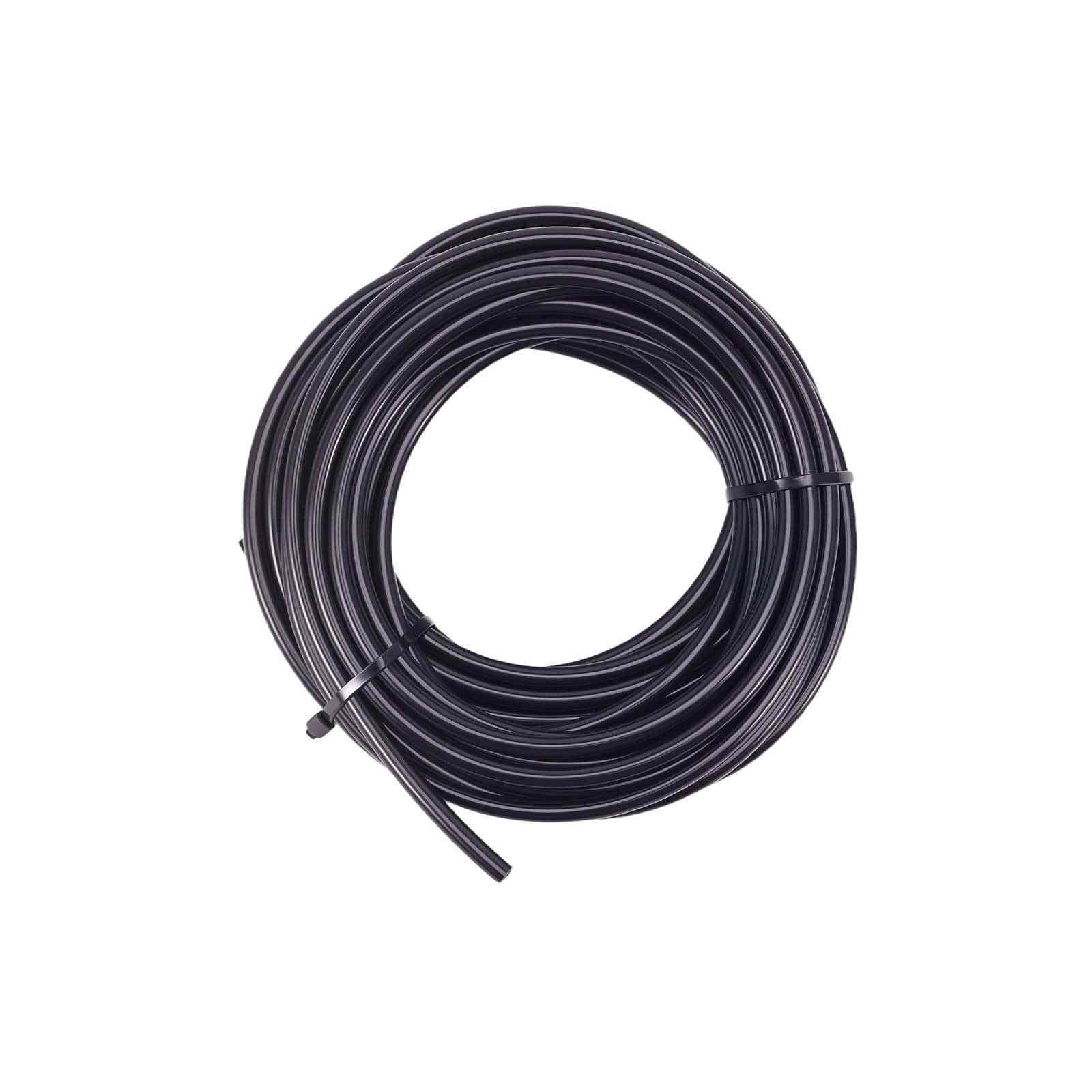

2x air spring bellows, 1x air compressor, 1x dual switch panel with display, 4x mounting bracket, 4x air connection, 1x air line 13 m, mounting screws and seals.
Features
- More than 5,000,000 load cycles tested: durable and safe
- Burst pressure ≥2.0 MPa: high pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥-40°C/≤70°C: high-quality natural rubber
- 4-layer reinforced construction for better load support of the air suspension
- High-quality steel with high load capacity and long service life
- Practical bolt-on installation
- Safe load capacity and stability
- Restores original ride height and improves driving comfort, reduces tire wear
- Dacromet surface treatment for excellent corrosion resistance
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
