2600LBS Universal Air Bag + Wireless Compressor Controller Kit for Heavy Duty
2600LBS Universal Air Bag + Wireless Compressor Controller Kit for Heavy Duty
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
Universal air suspension (2600 LBS) with wireless compressor-controller kit, suitable for heavy-duty vehicles such as most pick-ups, trucks, trailers, SUVs, and vans with 1/2" NPT connection.
Specifications
- Installation position: left, right, front, rear
- Port connection size: 1/2" NPT
- Suspension clip: 2 pieces
- Mounting height: 211 mm
- Minimum height: 71 mm
- Maximum height: 318 mm
- Working stroke: 247 mm
- Installation drill size: 3/8-16UNC
- Top plate diameter: 139 mm
- Air spring diameter (bellows): 181 mm
- Air spring capacity: 2600 LBS
- Packaging dimensions: 46.5 x 20.5 x 20.5 cm
- Maximum air pressure (compressor): 120 psi
- Recommended working pressure: 50-70 PSI

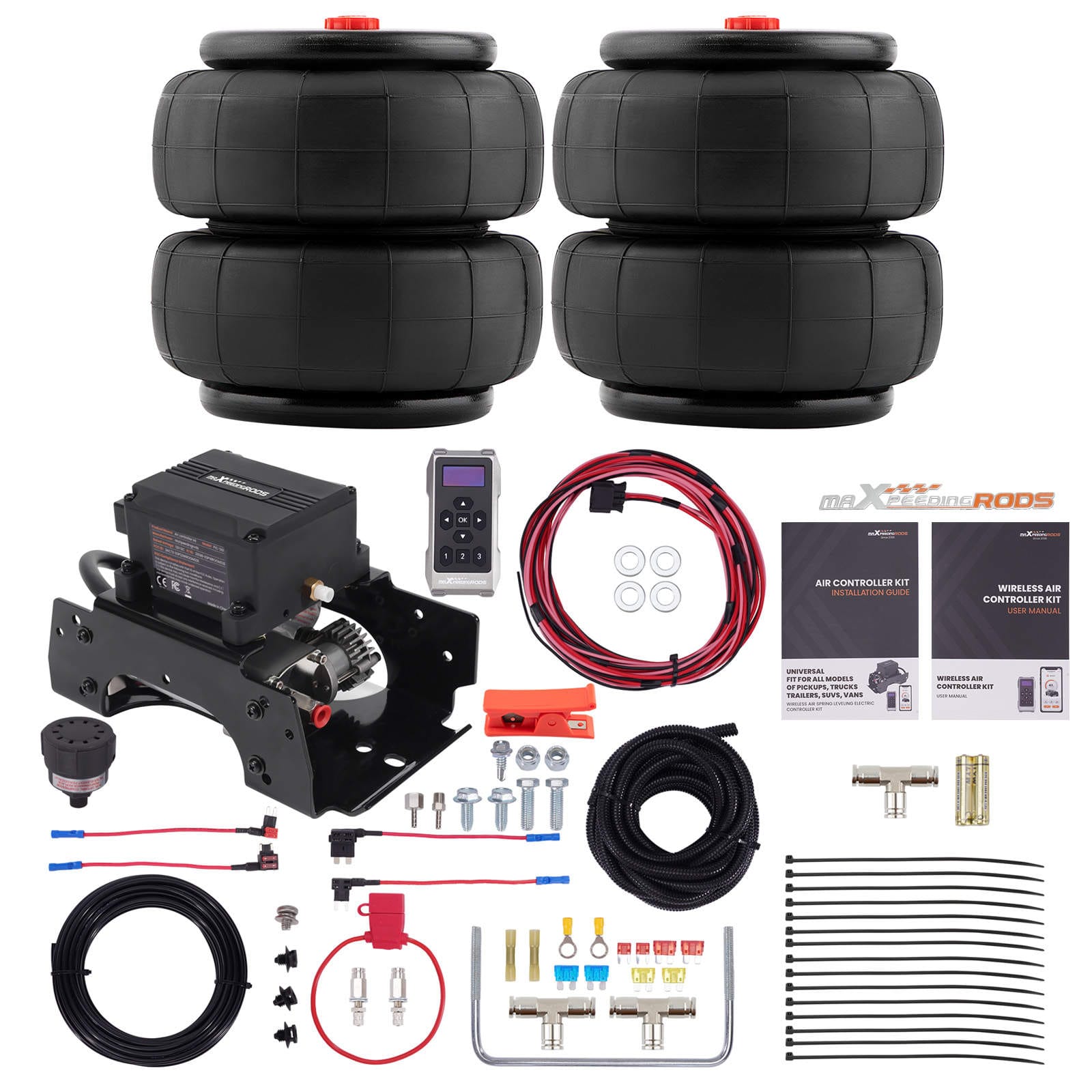

Scope of delivery
2x standard 2600 lbs air spring bellows; wireless Air Suspension Compressor Controller Kit consisting of: 1x compressor control system, 1x wireless remote control, 1x air line Ø6x1 (12 m), 1x air filter, 1x wiring harness (6 m), 1x relay wiring harness (1 m), 3x T-connector and other mounting parts.
Features
- Tested over 5,000,000 times: durable and safe
- 24-hour airtightness test ≤ 0.02 MPa: guaranteed airtight
- Temperature range ≥ -40°C / ≤ 70°C, high-quality natural rubber material
- With the wireless control, you can adjust 1 pair of air springs of any brand
- Heavy-duty industrial compressor, maximum air pressure 120 psi
- Integrated manifold; no air lines or wiring harnesses needed in the cabin
- Free app turns your smartphone into a full-fledged control
- Three presets adaptable to different situations
- 100% factory tested for airtightness
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
