2x Air Spring Bags Triple Bellow 2600 lbs 1/2-14NPT Single Port
2x Air Spring Bags Triple Bellow 2600 lbs 1/2-14NPT Single Port
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

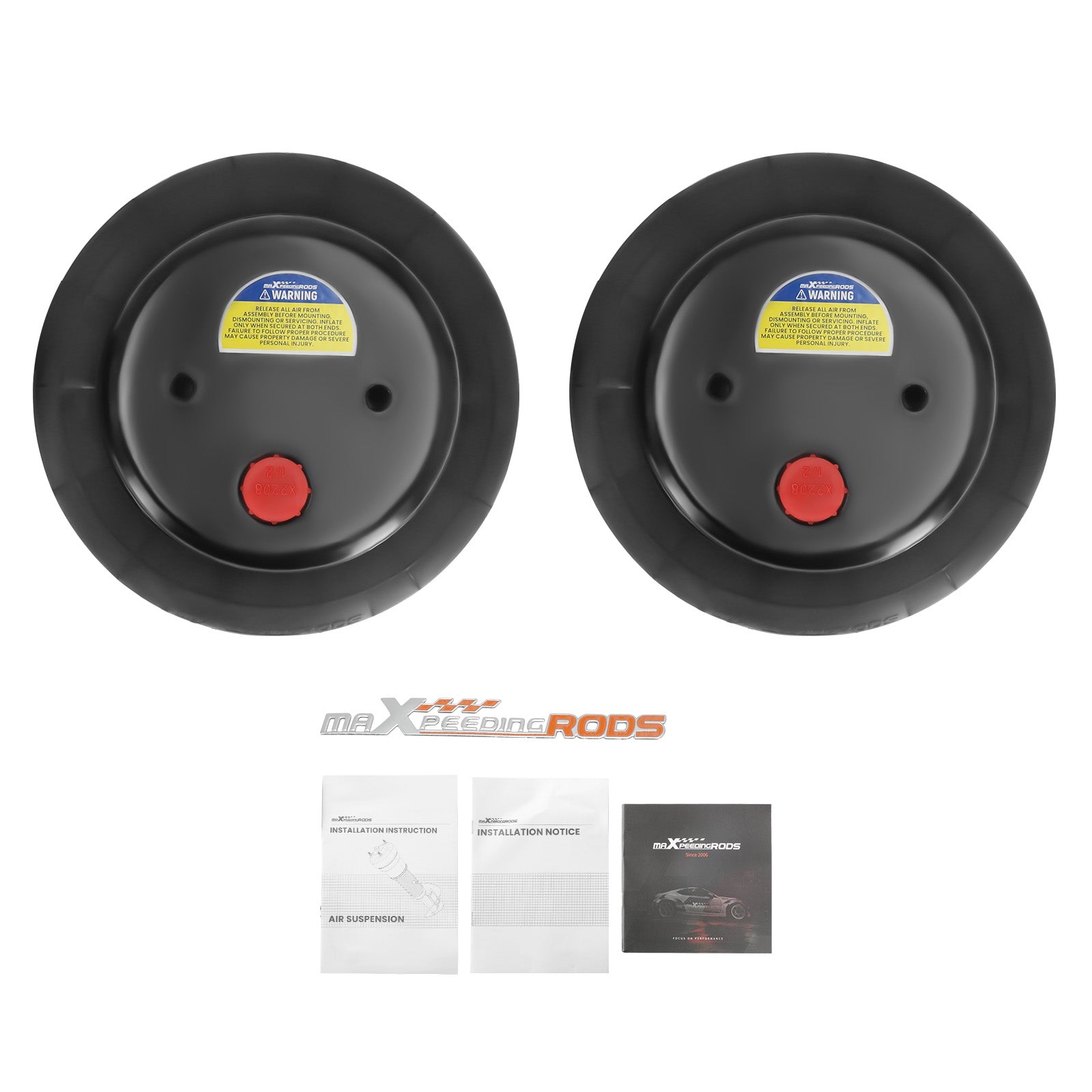

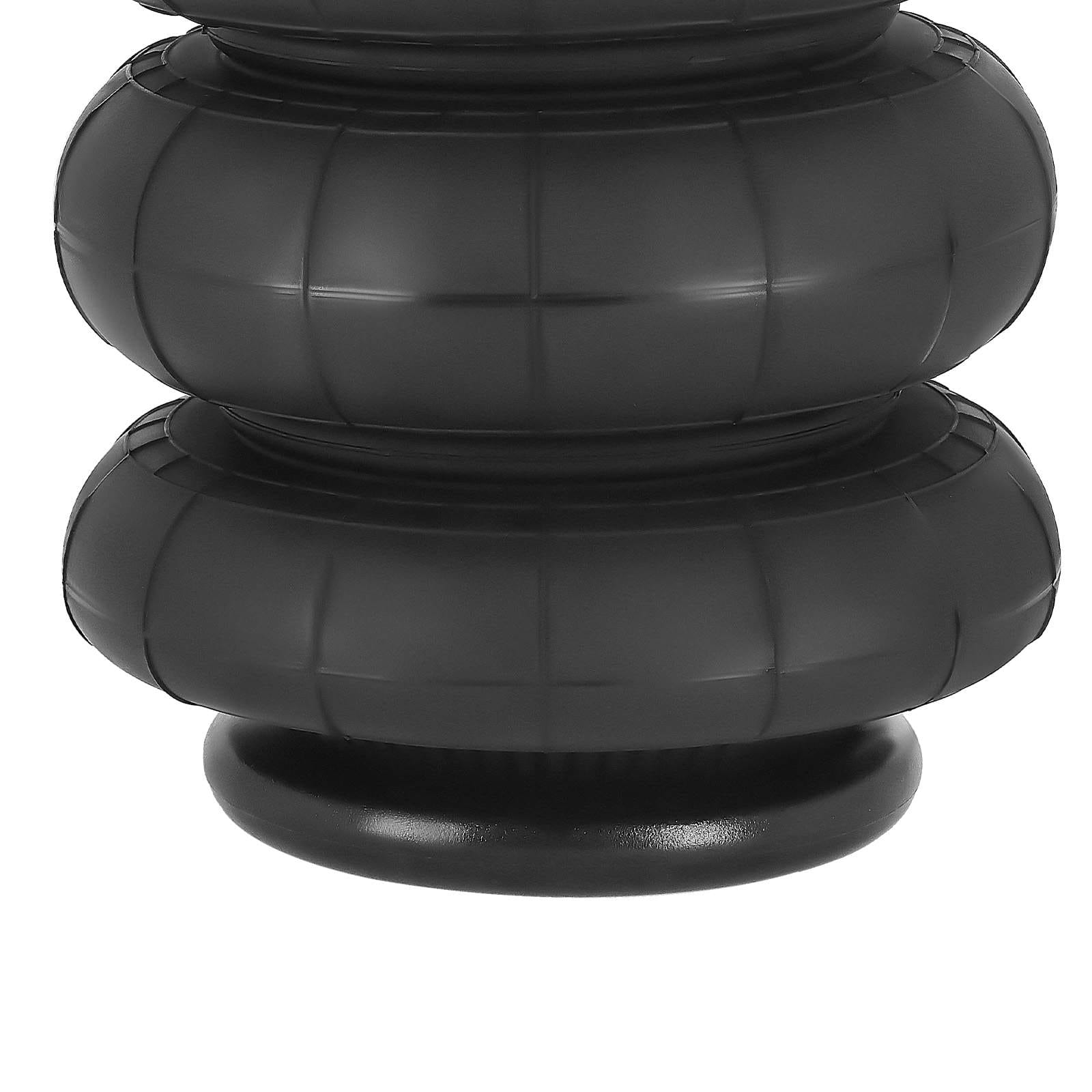

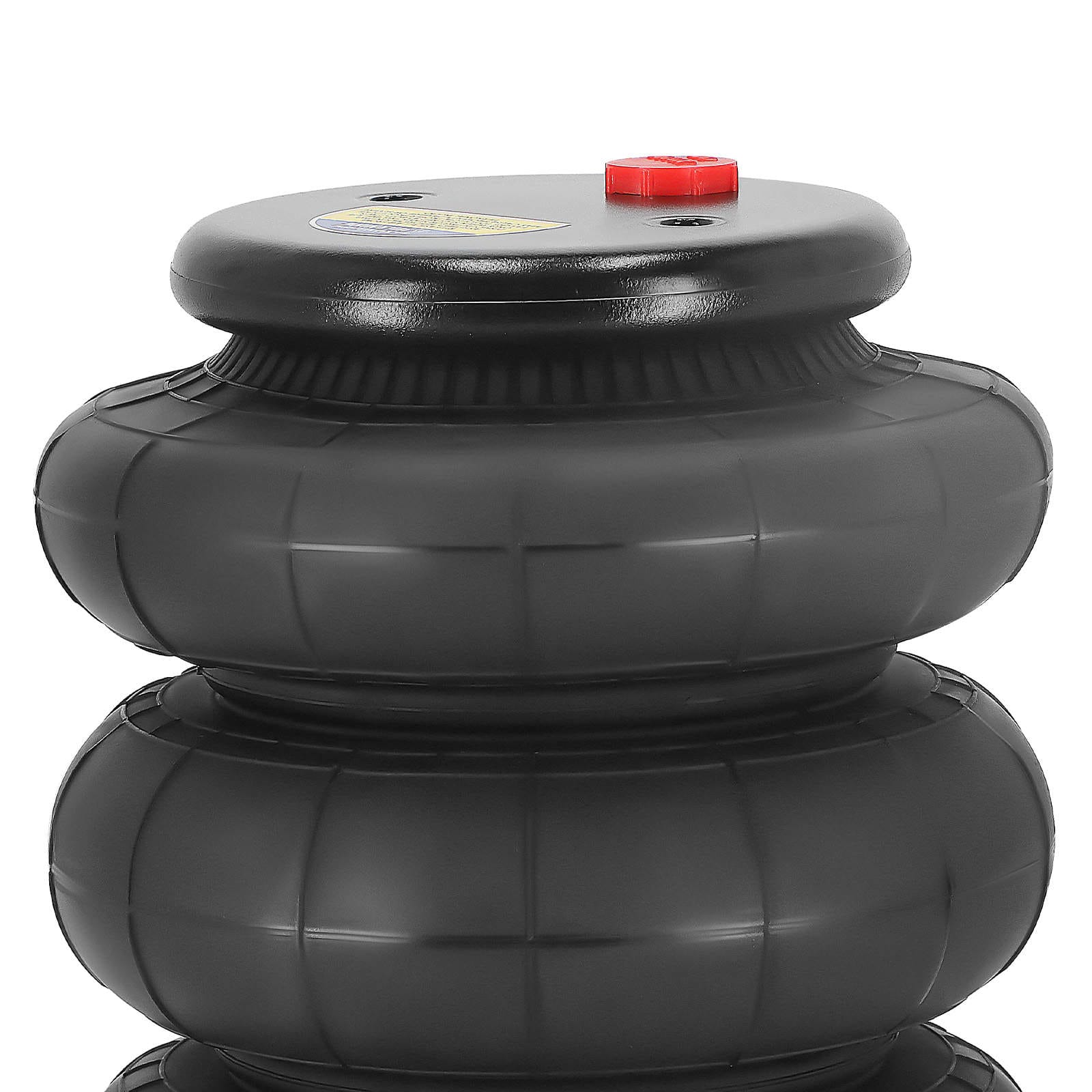

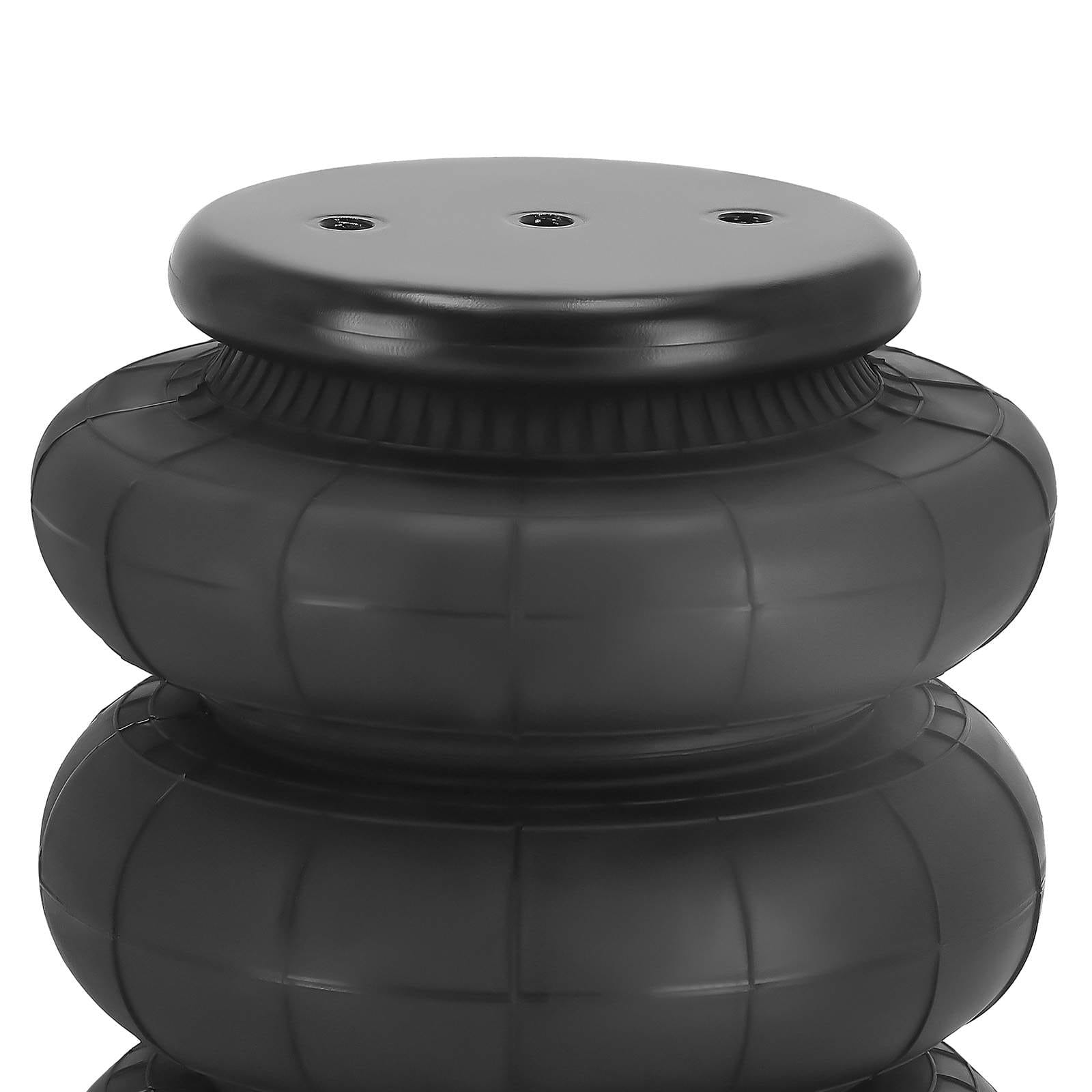

Set of 2 pneumatic air spring bags (triple bag), 2600 lbs, with 1/2-14NPT connection (single port).
Suitable for:
- Universally applicable for most vans, trucks, and trailers, suitable for mini-trucks, light vehicles, and under-chassis
Specifications
- Stroke (collapsed): 150 mm / 5.9"
- Maximum height: 330 mm
- Minimum height: 110 mm
- Design height: 250 mm / 9.8"
- Top plate diameter: 131 mm / 5.2"
- Connection: 1/2-14NPT single port
- Mounting hole size: 3/8-16UNC
- Independent test pressure: minimum 290 psi
- Recommended working range: 0-170 psi
- Capacity per air spring bag: 2600 lbs / side
- Type: pneumatic air suspension
- Installation position: rear
- Quantity: 2 pieces (rear left and right)
Features
- OEM product, easy to install
- Tested more than 5,000,000 times: durable and safe
- 24-hour airtightness test ≤ 0.02 MPa: guarantee of airtightness
- Temperature range ≥ -40℃ / ≤ 70℃: high-quality natural rubber material
- Allows for handling uneven or heavy loads
- Helps maintain control of the loaded vehicle
Please note
These air spring bags are aftermarket replacement parts for the original air spring bags. Please carefully check the image and drawing before purchase to ensure you have the correct parts. Professional installation is recommended.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
