2x Air Suspension Triple Bellow 2600LBS for Light Duty suitable for Mini-trucks
2x Air Suspension Triple Bellow 2600LBS for Light Duty suitable for Mini-trucks
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

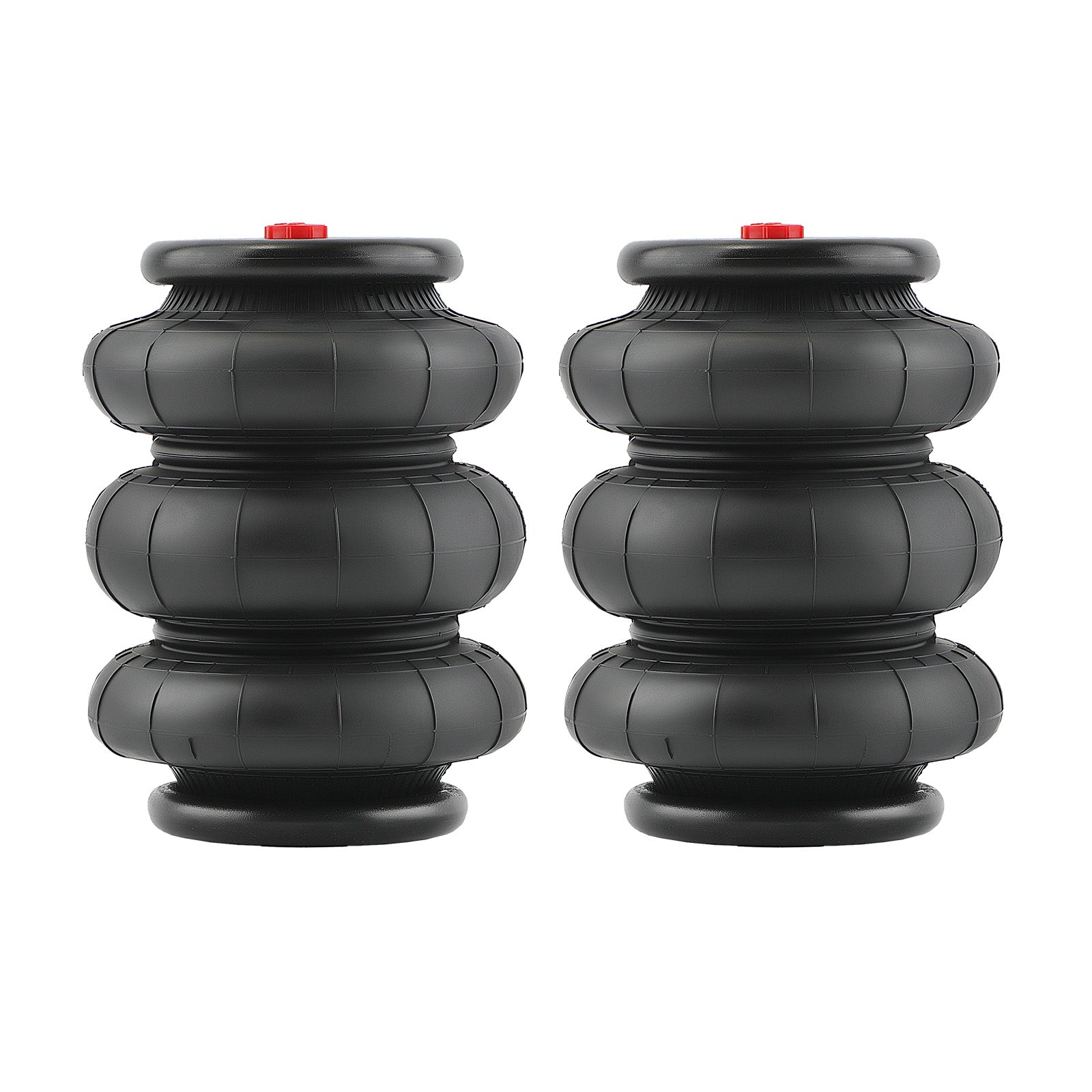

Set of 2 air spring bags (triple bellow, 2600 lbs, light duty), universally suitable for the rear suspension of most buses, trucks and trailers, mini trucks and subframes.
Specifications
- Stroke / Compressed: 220 mm / 8.6"
- Maximum Height: 330 mm / 13"
- Minimum Height: 110 mm
- Design Height: 250 mm / 9.8"
- Top Plate Diameter: 131 mm
- Air Inlet: 1/2-14NPT single port
- Mounting Holes: 3/8-16UNC
- Test Pressure: minimum 290 psi
- Recommended Operating Range: 0 psi - 170 psi
- Capacity per Bag: 2600 lbs per side
- Condition: brand new
- Package Size: 40 × 29 × 22 cm
- Weight: 5.8 kg
- Quantity: 2 air spring bags
Features
- Tested for over 5,000,000 cycles: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- 100% airtightness guarantee
- Temperature range ≥ -40 °C / ≤ 70 °C, high-quality natural rubber
- Helps the vehicle cope with uneven or heavy loads
- CE certified
Please note
Before purchasing, please check if the parameters (especially height, diameter, and bolt specifications) match ours. These air springs are aftermarket parts that replace the original rear air springs. No manual included; professional installation is strongly recommended.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
