Product Description

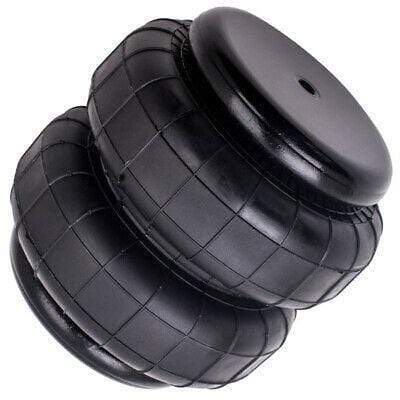

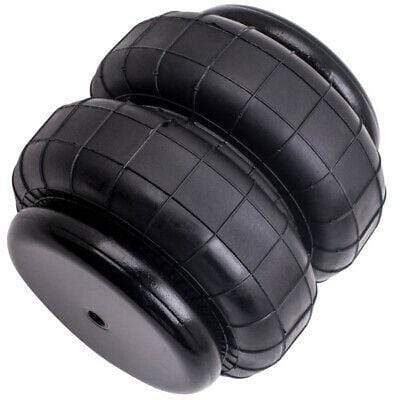

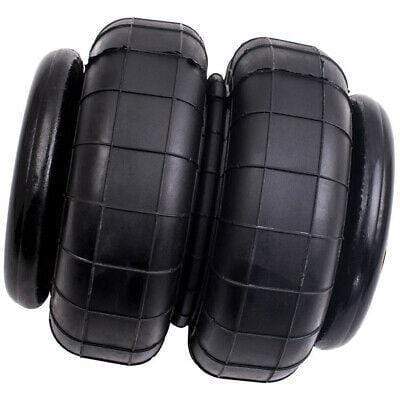

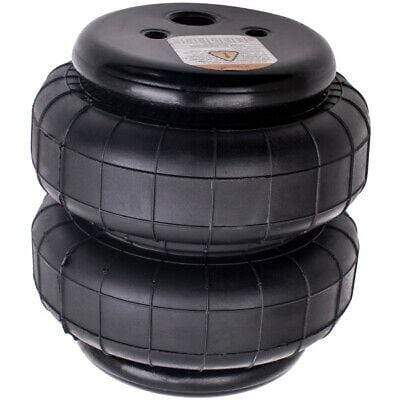

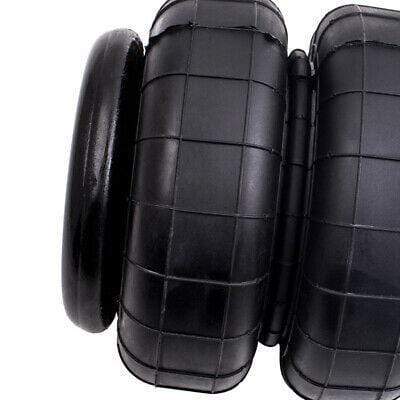

Universal air spring bag (standard, 2500 lbs) for air suspension, suitable for most trucks and pickups.

Suitable for:

• Universal air spring bags, suitable for Ford F150/F250, GMC Sierra, Chevrolet Silverado, Dodge Ram 1500 2500 3500 and most other pickups (check height, diameter, bolt specifications, and other parameters)

Specifications

• Condition: 100% brand new
• Load capacity at 3.0 bar: 2.88 kN
• Load limit at 7.0 bar: 7.25 kN
• Installation position: left, right, front, rear
• Air spring bag capacity: 2500 lbs each
• Minimum height: 72 mm ± 5 mm
• Maximum height: 218 mm ± 5 mm
• Working stroke: 146 mm ± 5 mm
• Air connection: 1/2 NPT (pitch 1.814 mm)
• Air coupling with elbow: G1/2-Ø6 (male)
• Mounting bore size: 3/8-16 UNC (pitch 1.587 mm)
• Top plate diameter: 113 mm
• Air spring bag diameter: 148 mm ± 2 mm
• Mounting type: direct replacement
• Adjustable: yes

Scope of delivery

1x standard air spring bag 2500 lbs

Features

• Suitable for air spring bag with 1/2" NPT single port; three mounting holes on the bottom
• Heavy-duty, double convoluted crimp design for safe loading up to 2500 lbs
• Holds up to 350 PSI; tested over 5 million times; 100% airtightness test
• Manufactured according to strict quality standards, robust and durable material
• Dampens driving vibrations without squeaking noises

Please note

Before purchasing, compare the technical data and all images to avoid incorrect purchases. Professional installation is recommended.

Check Fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
