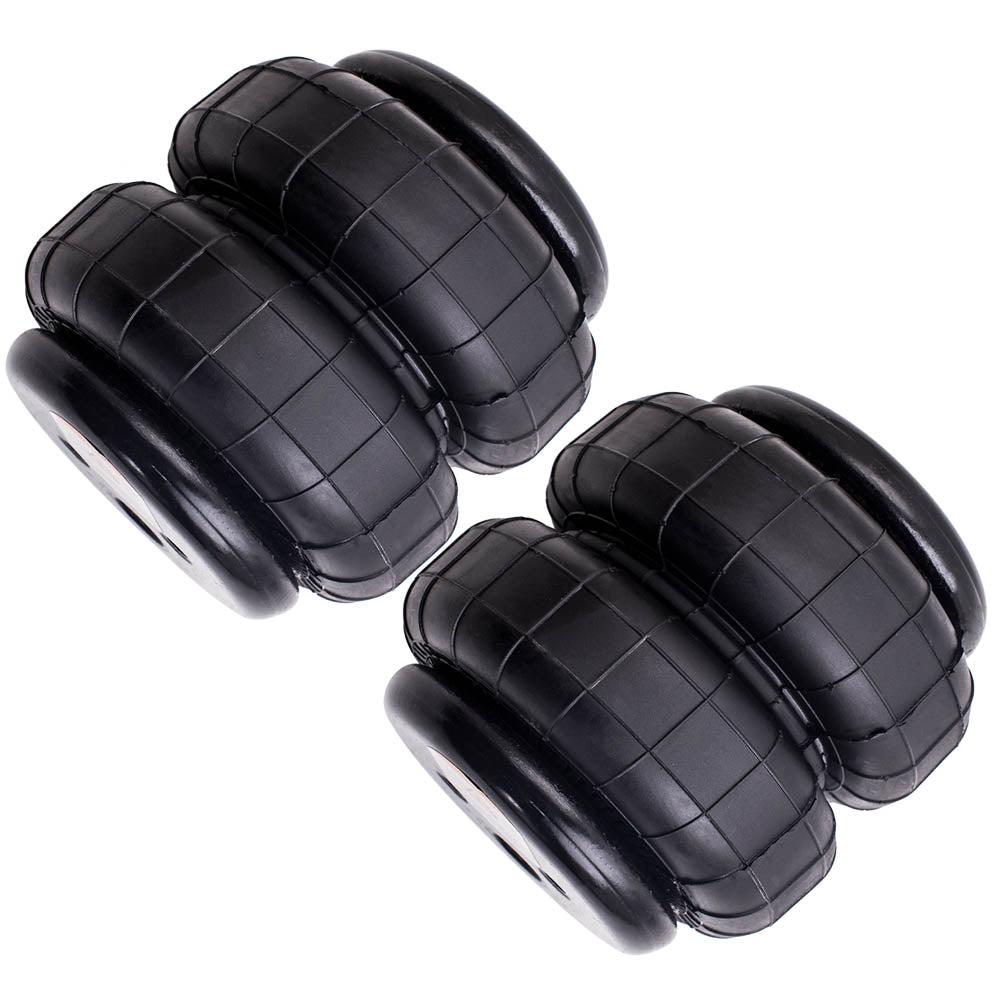

Pair 2500 lb 1/2" Standard Air Ride Suspension Air Bag
Product Description
Set of 2 universal air spring bags (2500 lbs) with 1/2 inch connection.
Suitable for:
- Ford F150 / F250
- GMC Sierra
- Chevrolet Silverado
- Dodge Ram 1500 / 2500 / 3500
Before purchasing, please check if the dimensions of your current air spring bag (especially height, diameter, and screw specifications) match these specifications.
Specifications
- Load capacity at 3.0 bar: 2.88 kN
- Load capacity at 7.0 bar: 7.25 kN
- Installation position: left, right, front, rear
- Airbag capacity: 2500 lbs
- Minimum height: 72 mm ±5 mm
- Maximum height: 218 mm ±5 mm
- Working stroke: 146 mm ±5 mm
- Air port connection: 1/2 NPT
- Connection coupling: G1/2-φ6 (male)
- Mounting hole: 3/8-16 UNC
- Top plate diameter: 113 mm
- Air bag diameter: 148 mm ±2 mm
- Type: direct replacement, Air Ride Spring Bag
- Warranty: 1 year
- Adjustable: yes
- Maintenance: sealed
- Condition: new, never used or installed
Scope of delivery
1 x set of 2 air spring bags.
Features
- Reinforced, double-rolled crimp connection for safe and comfortable load capacity up to 2500 lbs
- Resistant to up to 350 PSI
- Tested over 3 million times
- 100% airtightness test
- Gives the driver more control over ride quality
- Manufactured to strict quality standards
- Designed for comfortable suspension
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. Are you unsure if this part fits your vehicle? Please feel free to contact us before purchasing.
