Rear Air Suspension + Brackets Kit suitable for Iveco Daily 35S 35L RWD suitable for FWD 2006-2014
Rear Air Suspension + Brackets Kit suitable for Iveco Daily 35S 35L RWD suitable for FWD 2006-2014
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

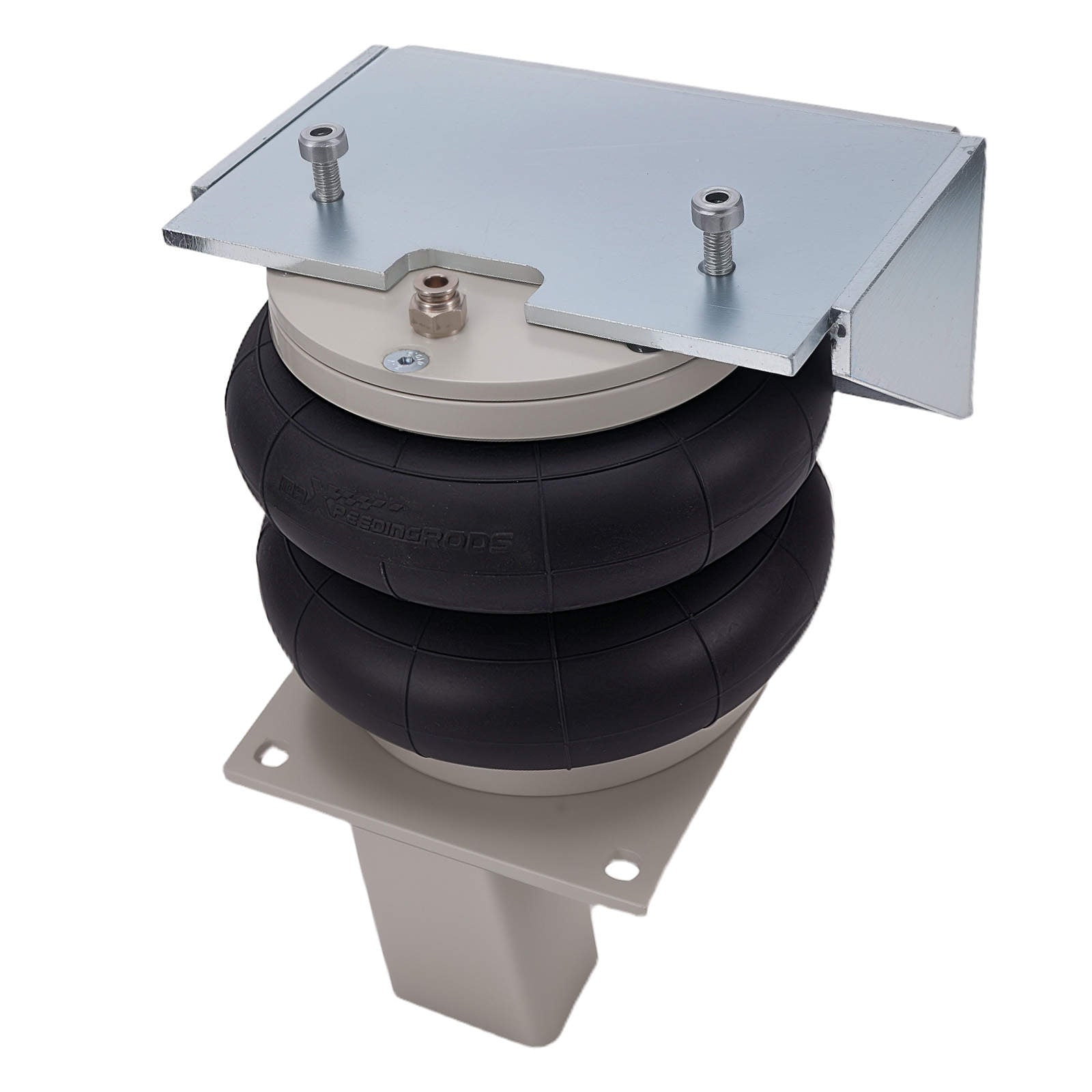

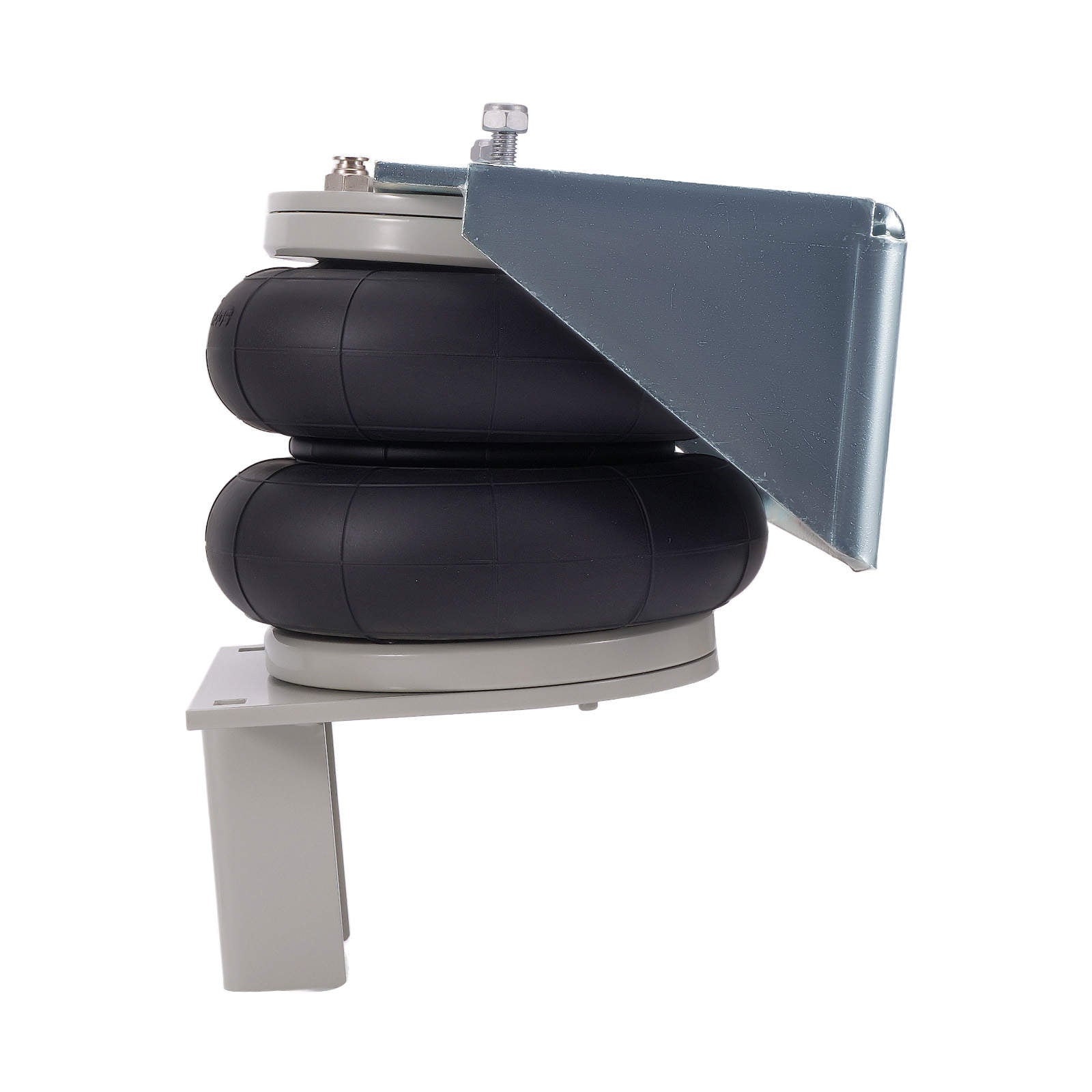

Rear air suspension with mounting brackets for the Iveco Daily.
Suitable for:
- Iveco Daily 35S, 2006-2014, RWD and FWD
- Iveco Daily 35L, 2006-2014, RWD and FWD
Only for single rear-wheel versions.
Specifications
- Condition: Brand new
- Material: Galvanized high-grade steel S355, rubber
- Maximum load: 8800 LBS / 4000 KG
- Drive: Rear-wheel drive and front-wheel drive
- Installation position: Rear, left and right
- Air spring stroke: 140 mm
- Max. extended: 230 mm
- Min. compressed: 90 mm
- Minimum overall kit height: 284 mm
- Maximum overall kit height: 424 mm
- Working pressure: ≤2.0 MPa
- Temperature range: ≤+70°C, ≥-40°C
Scope of delivery

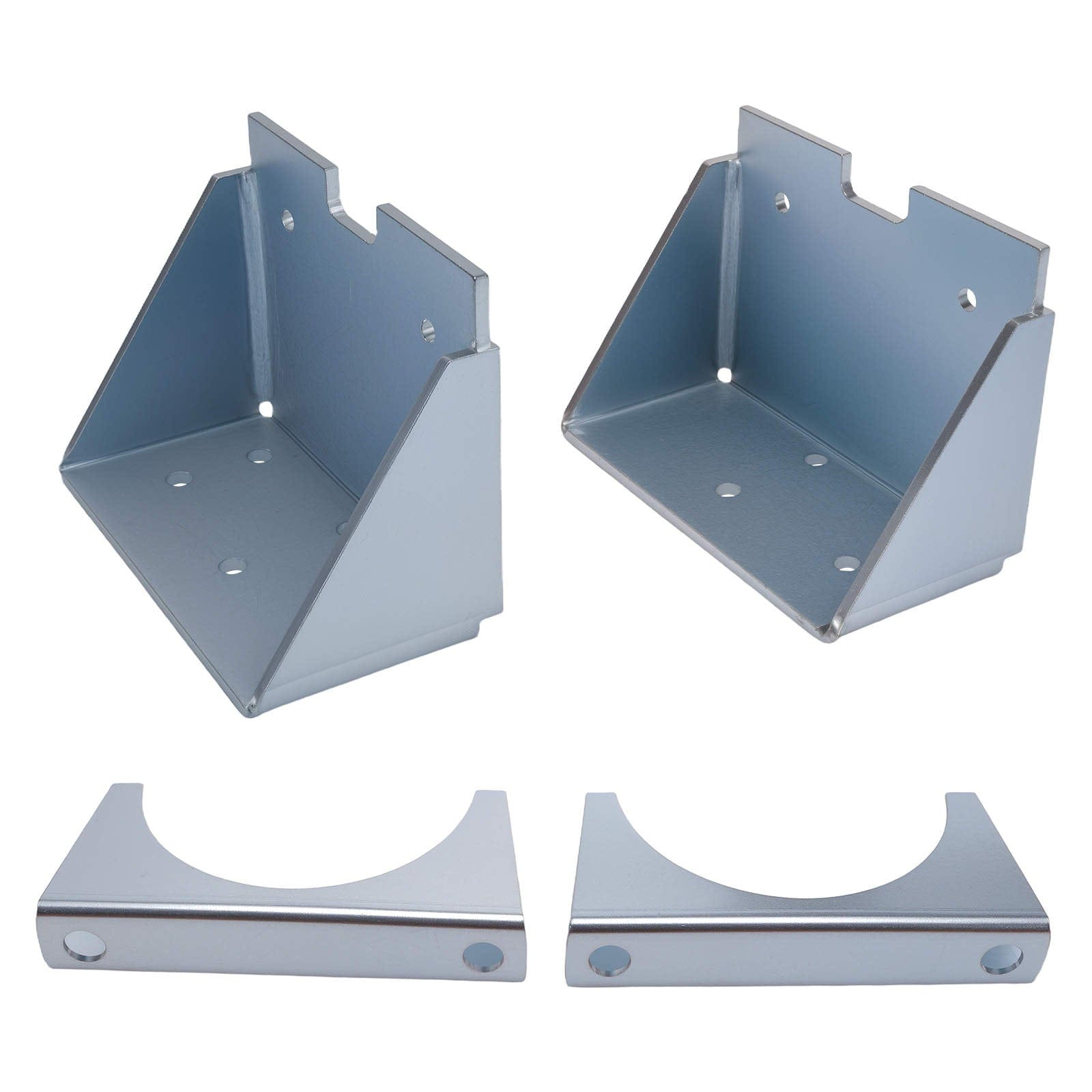

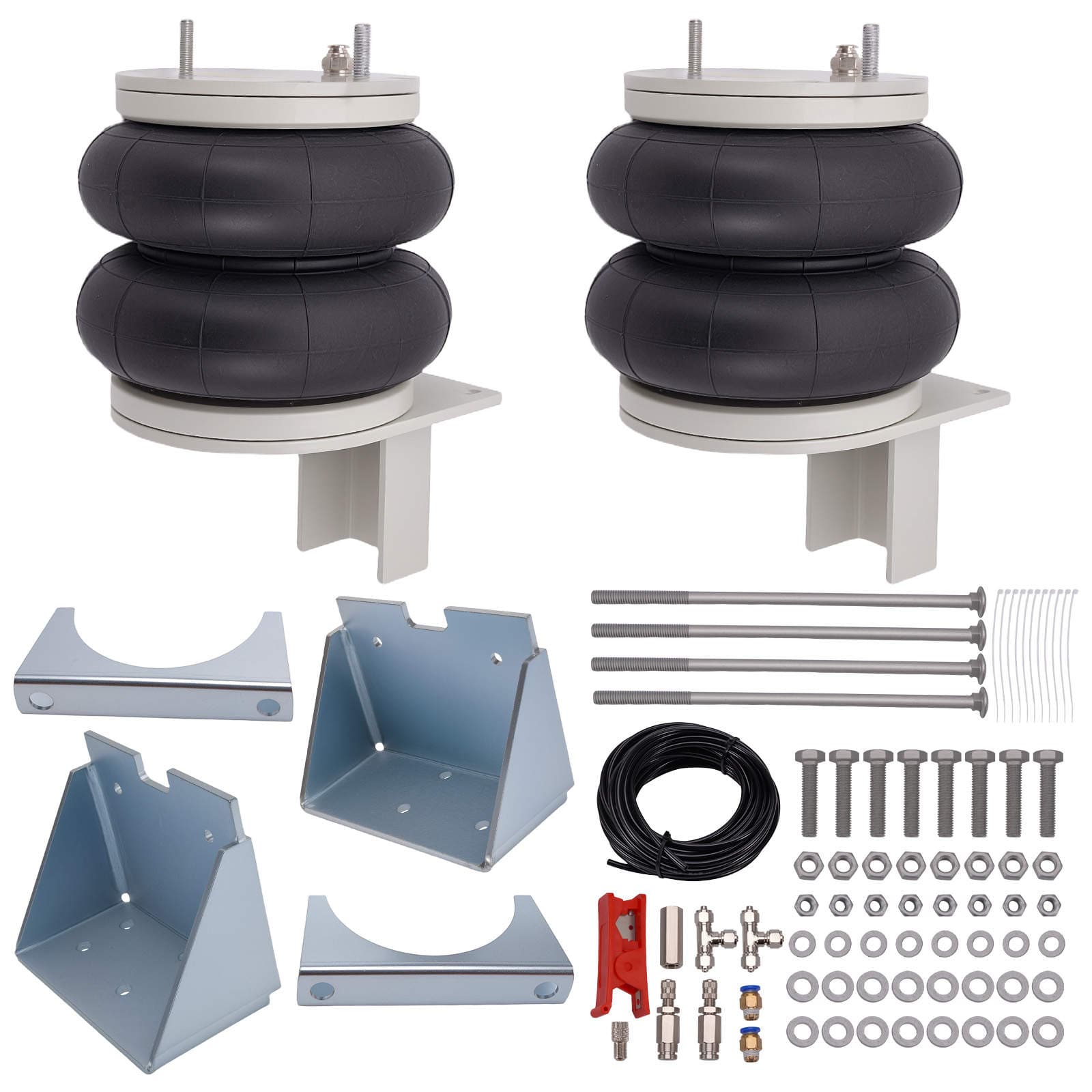

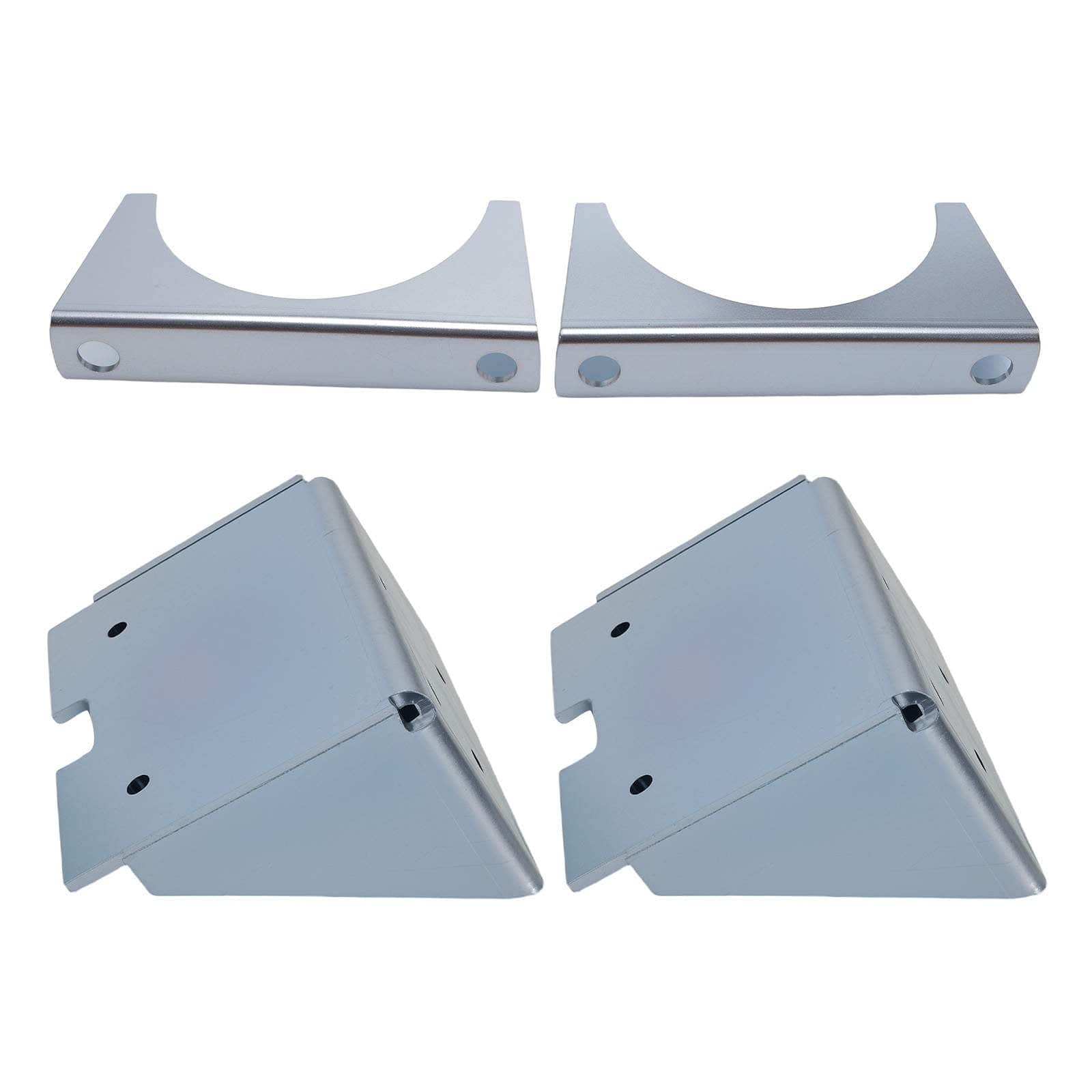

2x air spring, 4x mounting bracket, 4x air connection, 1x air line (12 m), mounting bolts and gaskets.
Features
- Load test of more than 5,000,000 times: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- 100% airtight guarantee
- 4-layer reinforced construction for better air spring load support
- High-quality steel with high load capacity and long service life
- Restores original ride height and improves ride comfort
- Dacromet surface treatment for excellent corrosion resistance
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
