Rear Air Suspension + Bracket Kit suitable for VW Crafter 4X2 Single Tire 1995-2021
Rear Air Suspension + Bracket Kit suitable for VW Crafter 4X2 Single Tire 1995-2021
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description
Rear axle air suspension kit, including mounting brackets, suitable as an aftermarket replacement. Suitable for a single rear wheel with a 3-inch axle tube.
Suitable for:
- VW Crafter 4X2 1995-2021
- Mercedes-Benz Sprinter 4X2 1995-2021
Specifications
- Condition: new
- Installation position: rear left and right
- Load capacity: max. 5600 lbs
- Design height: 152 mm
- Stroke: 110 mm
- Max. extended: 175 mm
- Min. compressed: 65 mm
- Top plate length: 135 mm
- Top plate height: 38 mm
- Bottom plate length: 135 mm
- Bottom plate height: 33.3 mm

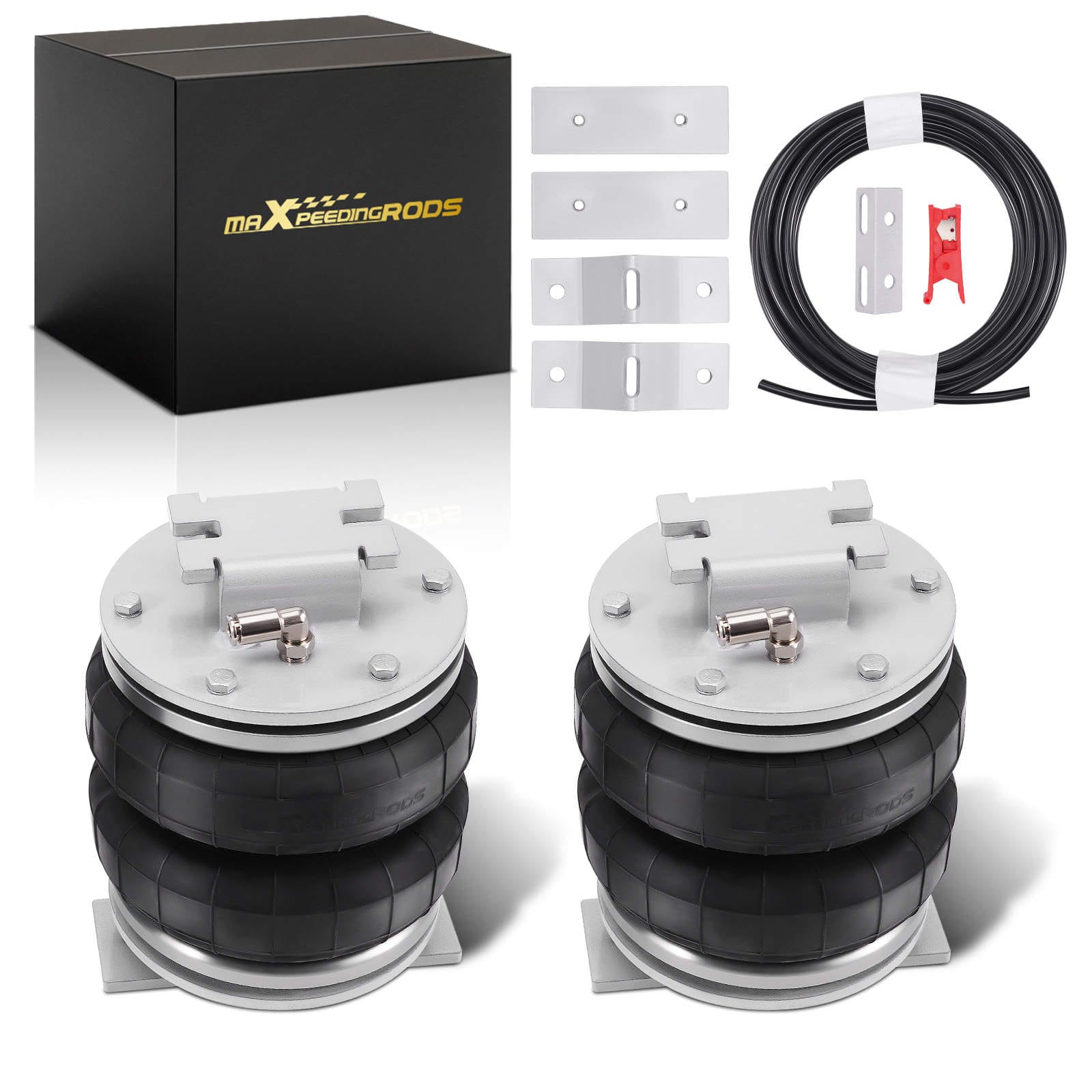

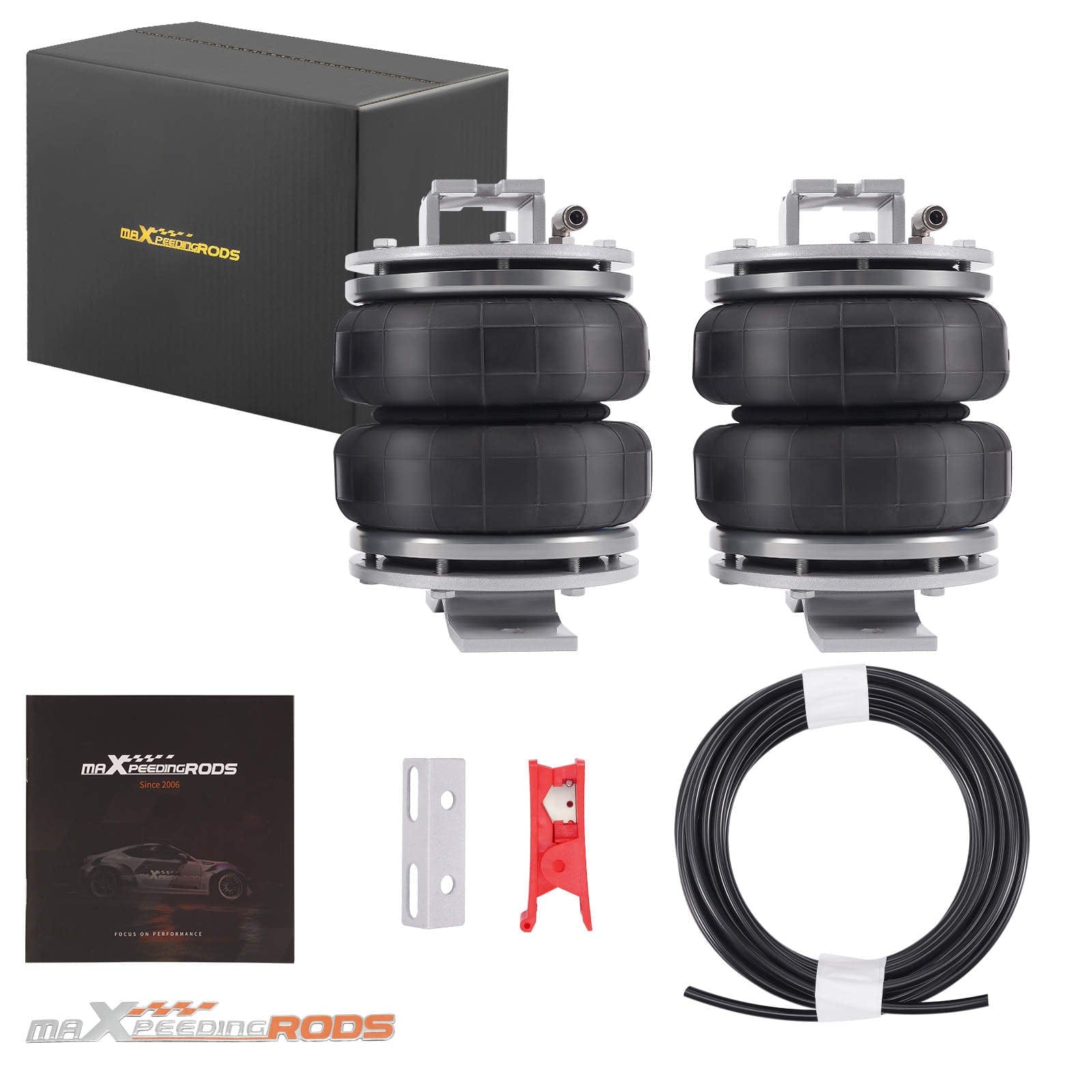

Scope of delivery
- 2x heavy-duty double-bellows air spring bag
- 4x upper and lower mounting brackets
- 1x air hose 8 m
- mounting material
Features

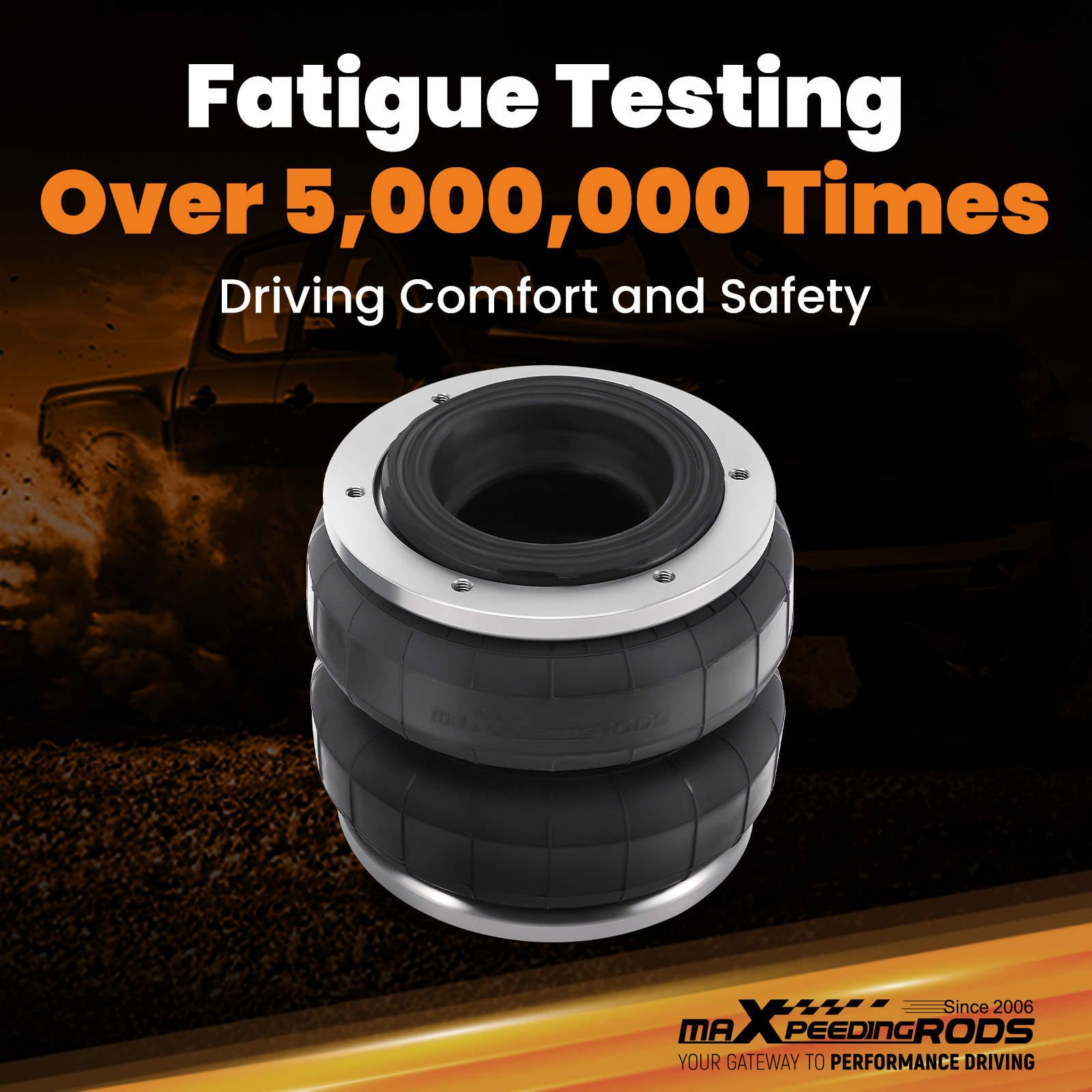

- Load tested over 5,000,000 times: durable and safe

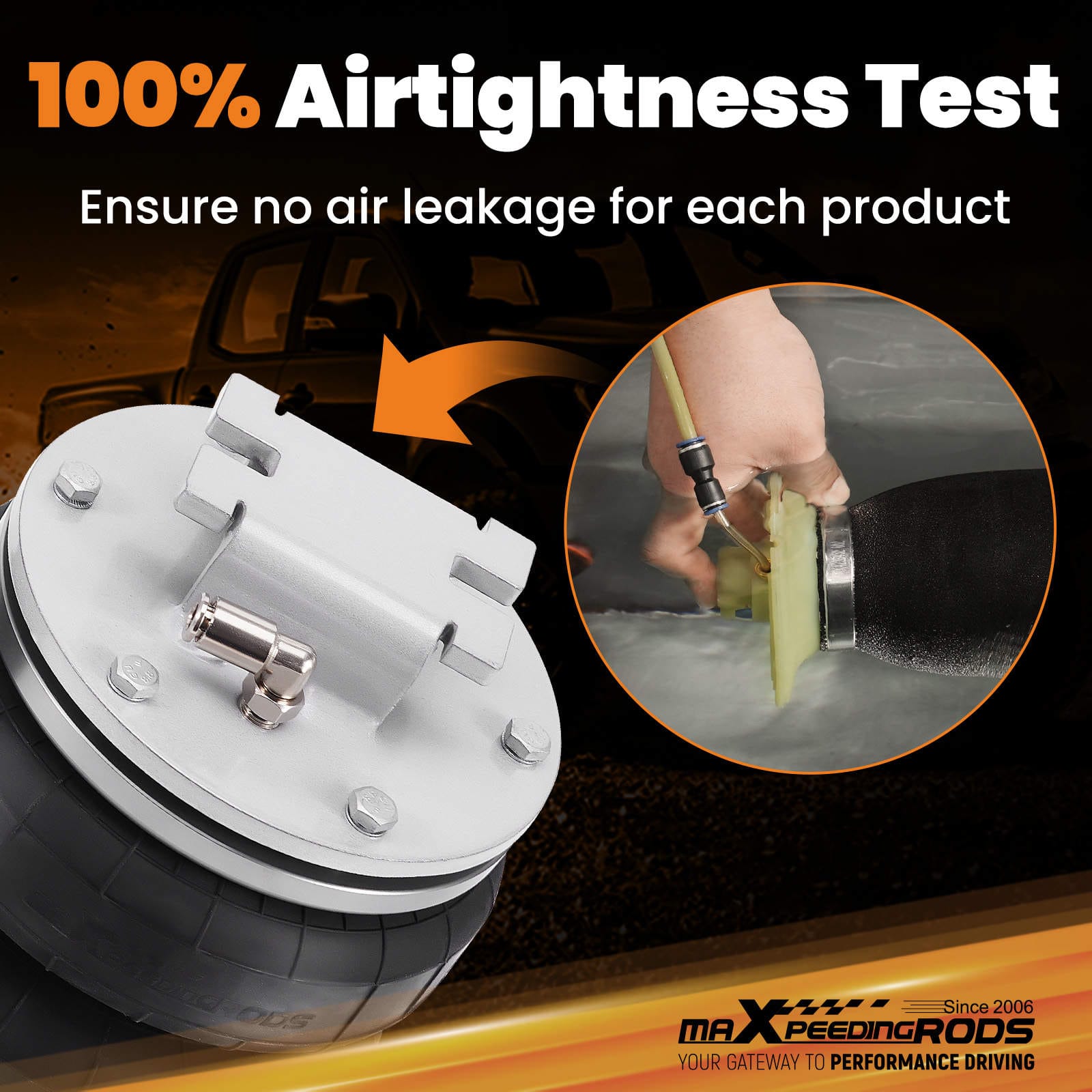

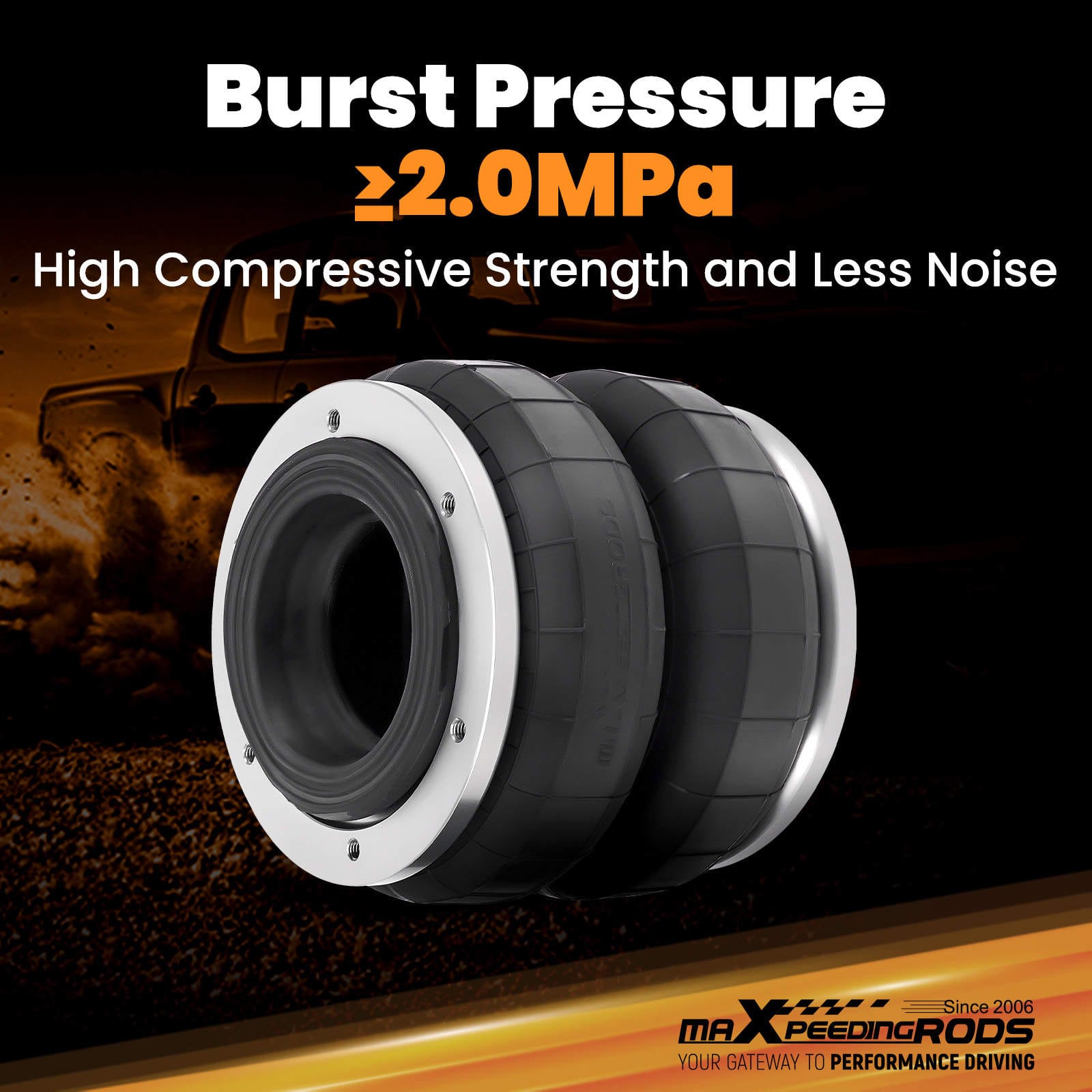

- Burst pressure ≥ 2.0 MPa and 100% airtightness guarantee
- Temperature range ≥ -40 °C / ≤ 70 °C, high-quality natural rubber
- 4-layer reinforced construction for higher load capacity
- Restores original ride height and reduces tire wear
Please note
This is an aftermarket air suspension kit that replaces the original. Professional installation is recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
