2x Air Suspension + Compressor Kit suitable for Volkswagen VW Crafter 2E 2F LT35 2006-2017
2x Air Suspension + Compressor Kit suitable for Volkswagen VW Crafter 2E 2F LT35 2006-2017
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

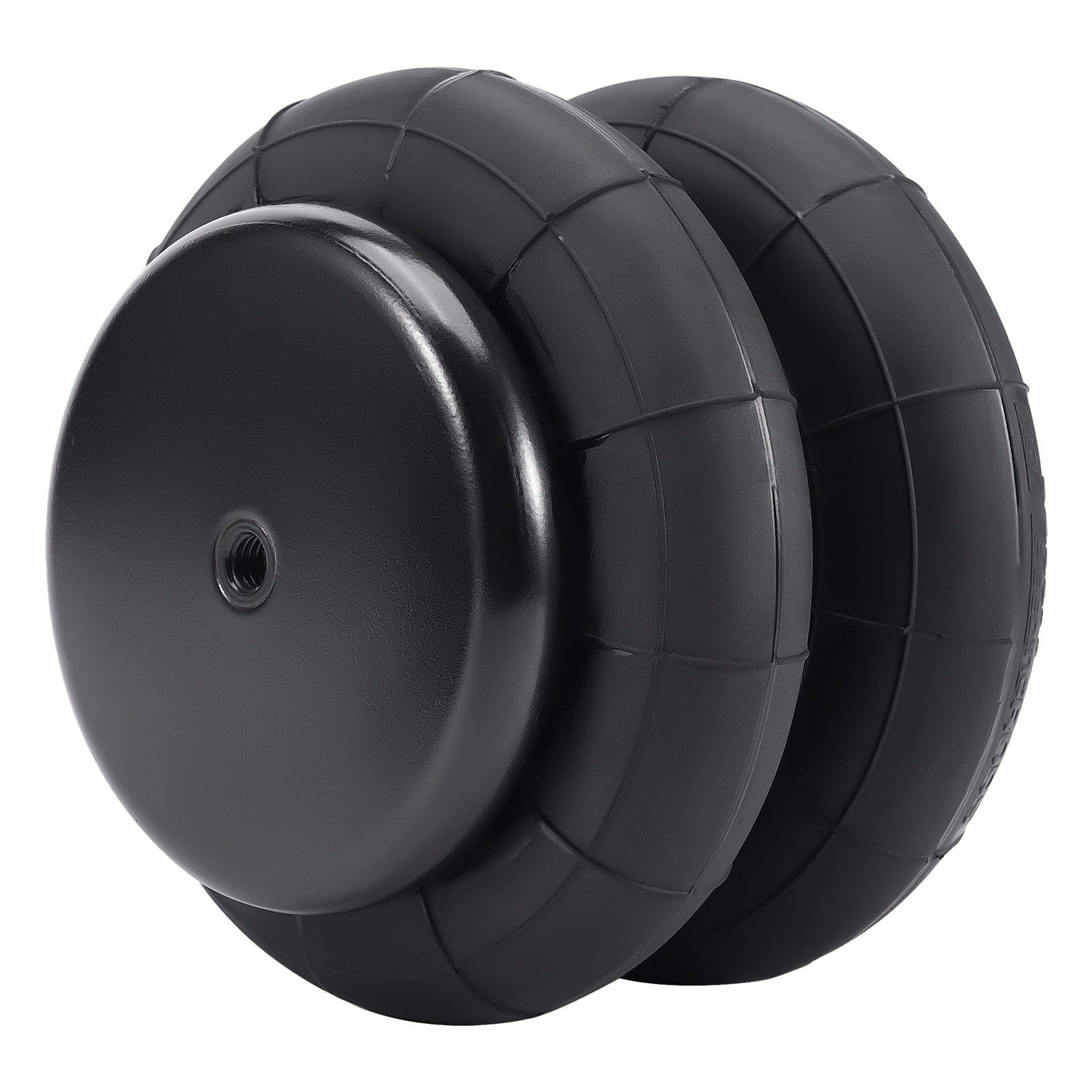

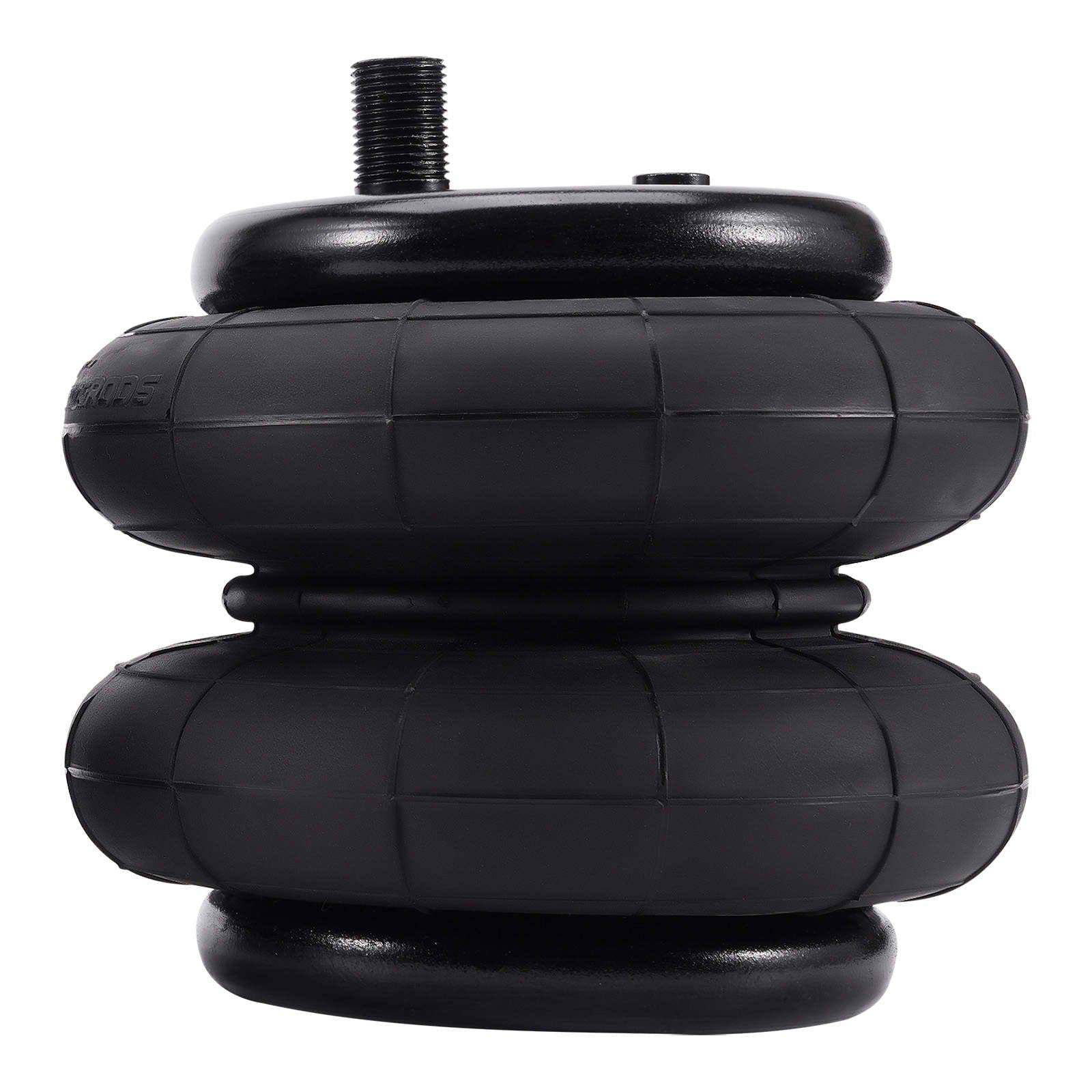

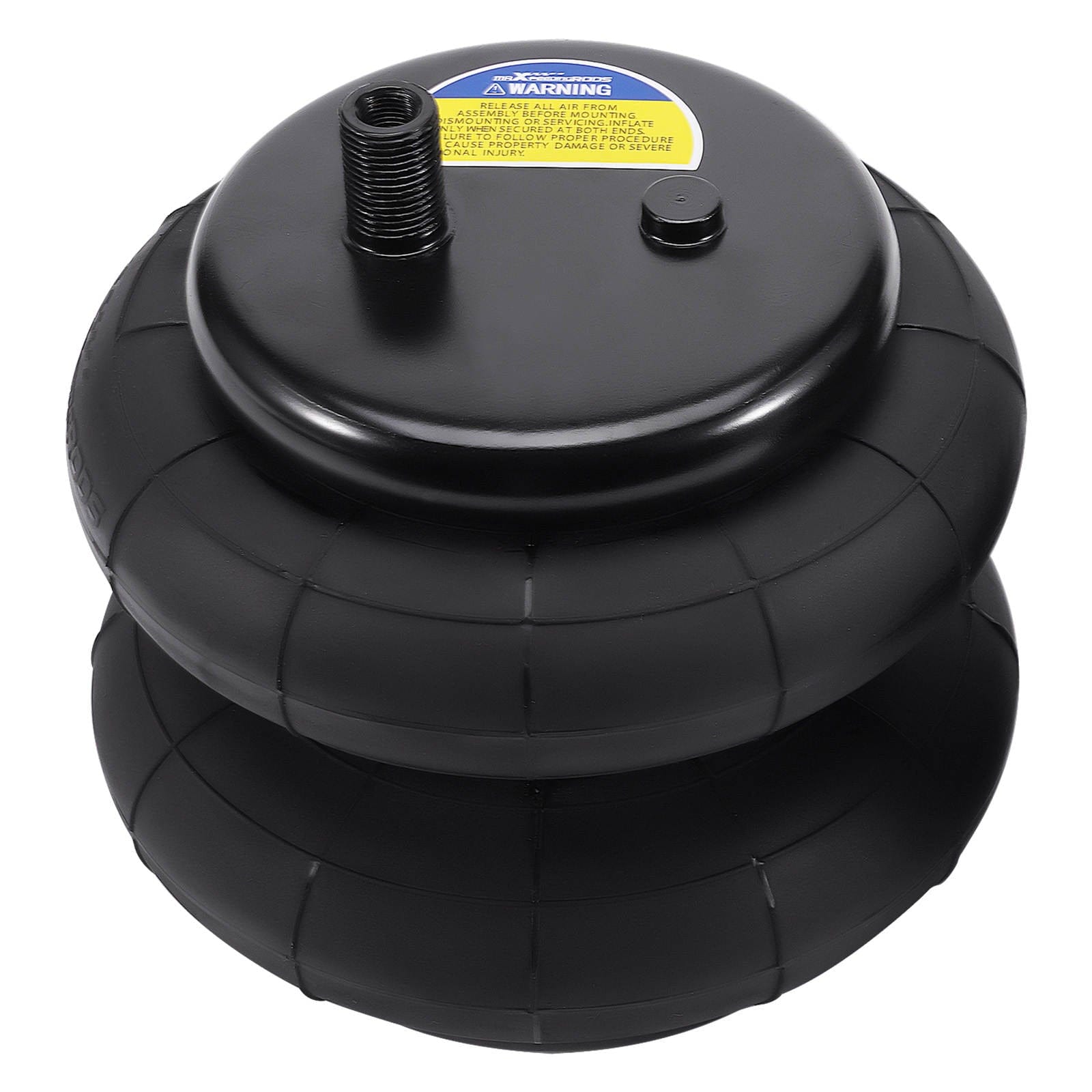

Air suspension set (air spring bellows) with compressor, for the rear axle.
Suitable for:
- Volkswagen VW Crafter 2E & 2F LT35, 2006-2017
- Mercedes-Benz Sprinter 3.5-t 300 & 400 VS30 907 RWD, 2018-2024
- Mercedes-Benz Sprinter 3.5-t 906 RWD 308-319, 2006-2018
Specifications
- Condition: Brand new
- PSI minimum: 5 PSI
- PSI maximum: 100 PSI
- Internal bump stop included: No
- Installation position: Rear, left and right
- Load capacity air springs: Max. 5000 LBS
- Stroke: 135 mm
- Maximum extended: 210 mm
- Minimum compressed: 75 mm
- Air pump power: 150 W
- Air pump output voltage: 12 V
Scope of delivery

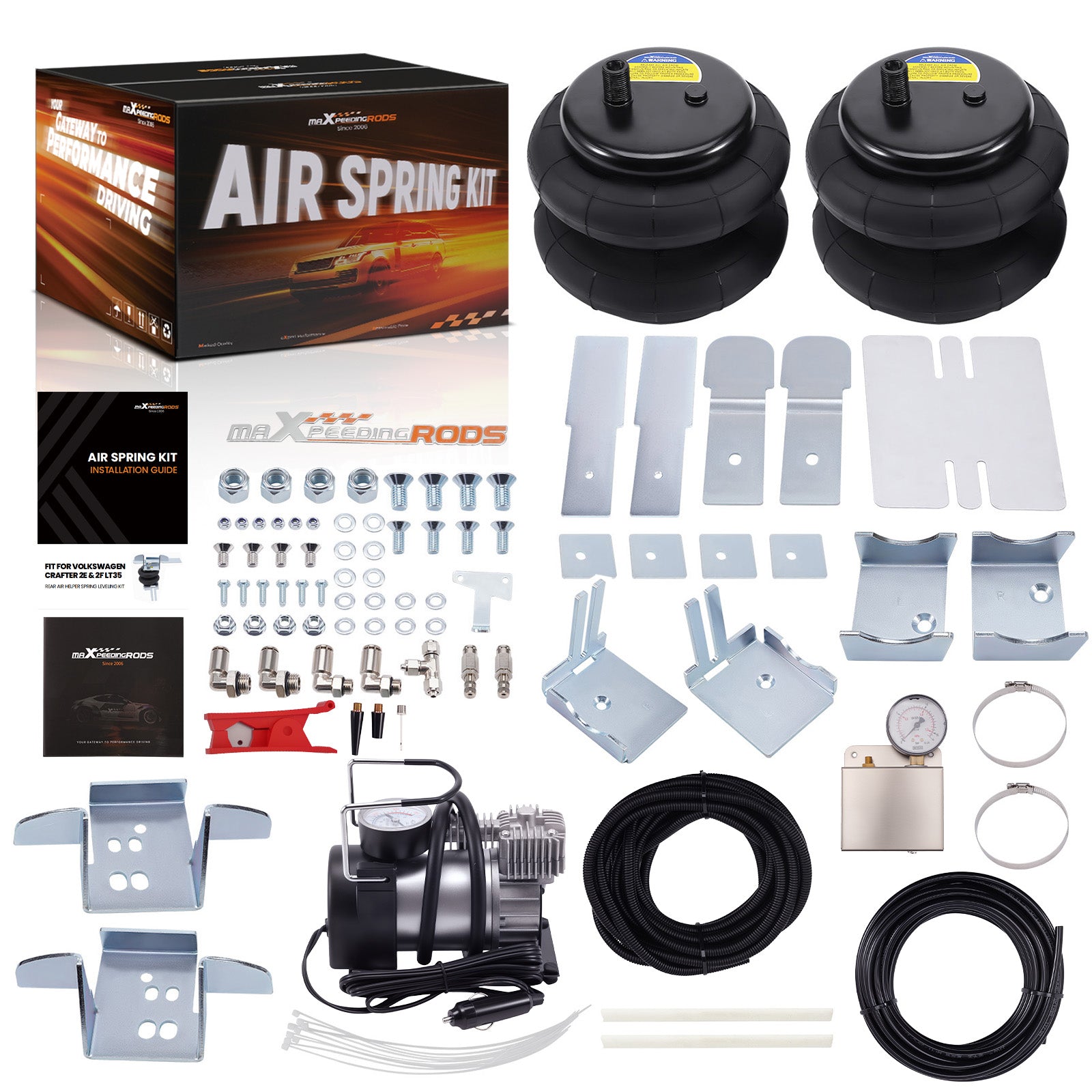

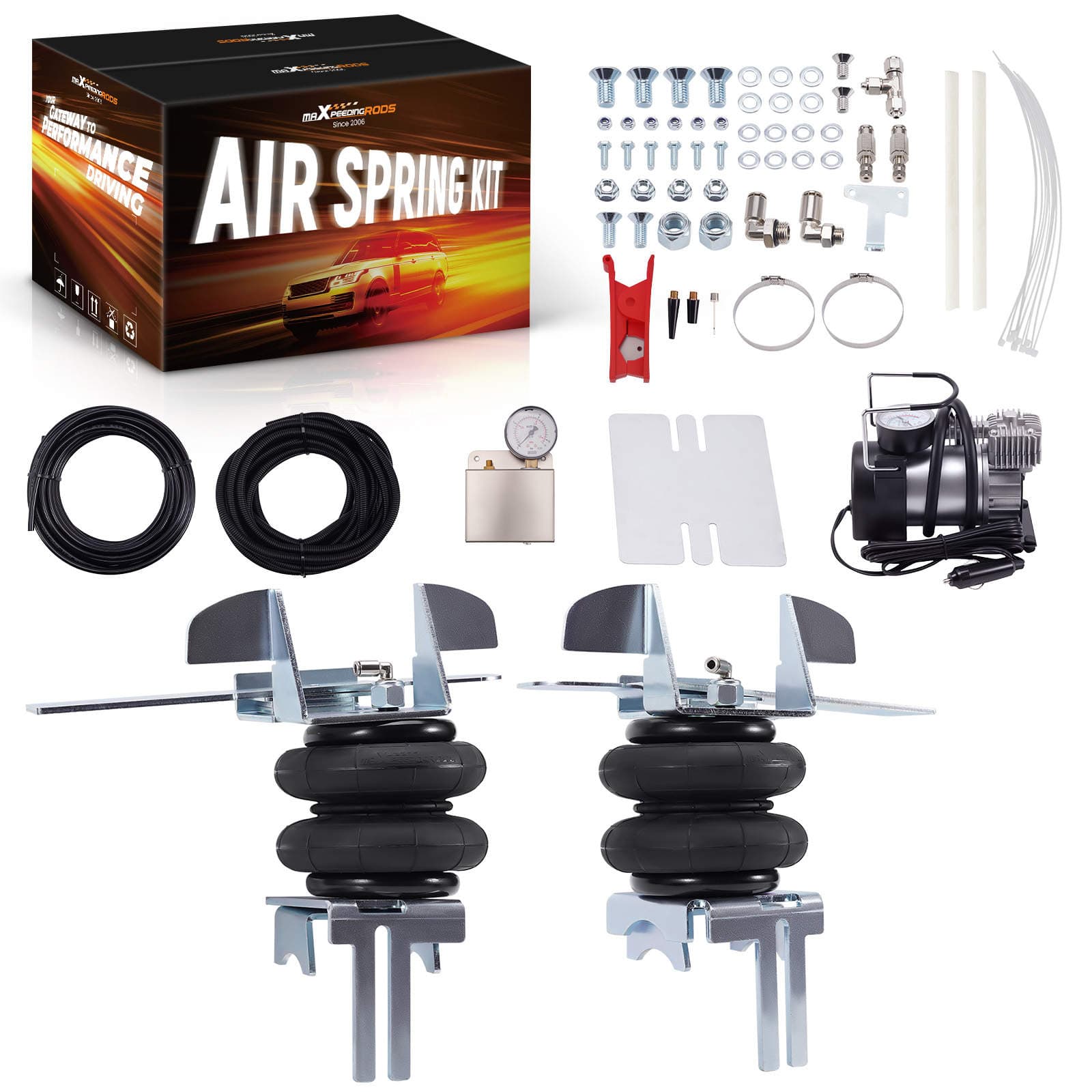

2x heavy-duty double convoluted air spring bellows, 6x top and bottom mounting brackets, 1x air suspension compressor, 1x panel gauge, 1x 8m air hose. All necessary brackets and mounting hardware for installation are included.
Features
- Durability test of over 5,000,000 cycles: strong and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and less noise
- 100% airtightness guaranteed
- Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber
- 4-layer reinforced construction for better load capacity
- High-quality steel with high load capacity and long service life
- Practical bolt-on installation
- Restores original ride height and improves ride comfort
- Dacromet surface treatment for excellent corrosion resistance
Please note: this is an aftermarket air suspension kit to replace the original. Professional installation is recommended; an installation manual is available.
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. Are you unsure if this part fits your vehicle? Feel free to contact us before purchasing.
