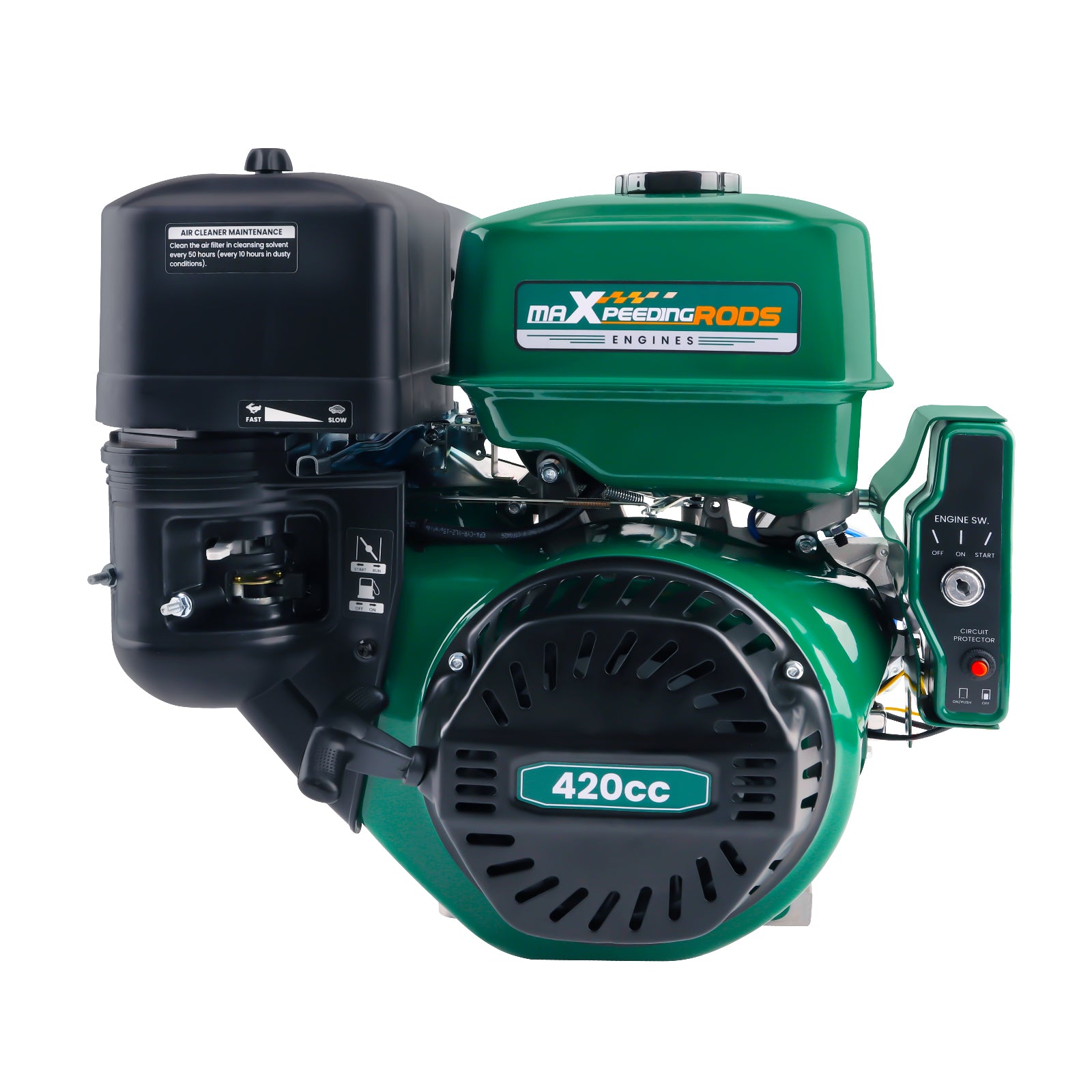

15HP/8KW petrol engine 4 Stroke OHV 420 cc horizontal gas engine electric start

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Specifications Model: MXR420E

Engine Type: Single Cylinder,4 Stroke,Forced Cooling,OHV

Rated Power(kW):8

Bore x Stroke(mm): 90x66

Displacement: 420cc

Compression: 8.0 : 1

Starting Method: Recoil/Electric(Battery not included)

Ignition Method: Transistorized ignition

Horse Power(HP):15

Fuel Type: Gasoline

Oil Type: SAE 10W-30

Fuel Tank Capacity(L): 6

Oil Capacity(L): 1.1

Dimensions L*W*H (mm): 500*445*500

Net Weight (kgs): 32.5

Gross Weight(kgs): 36

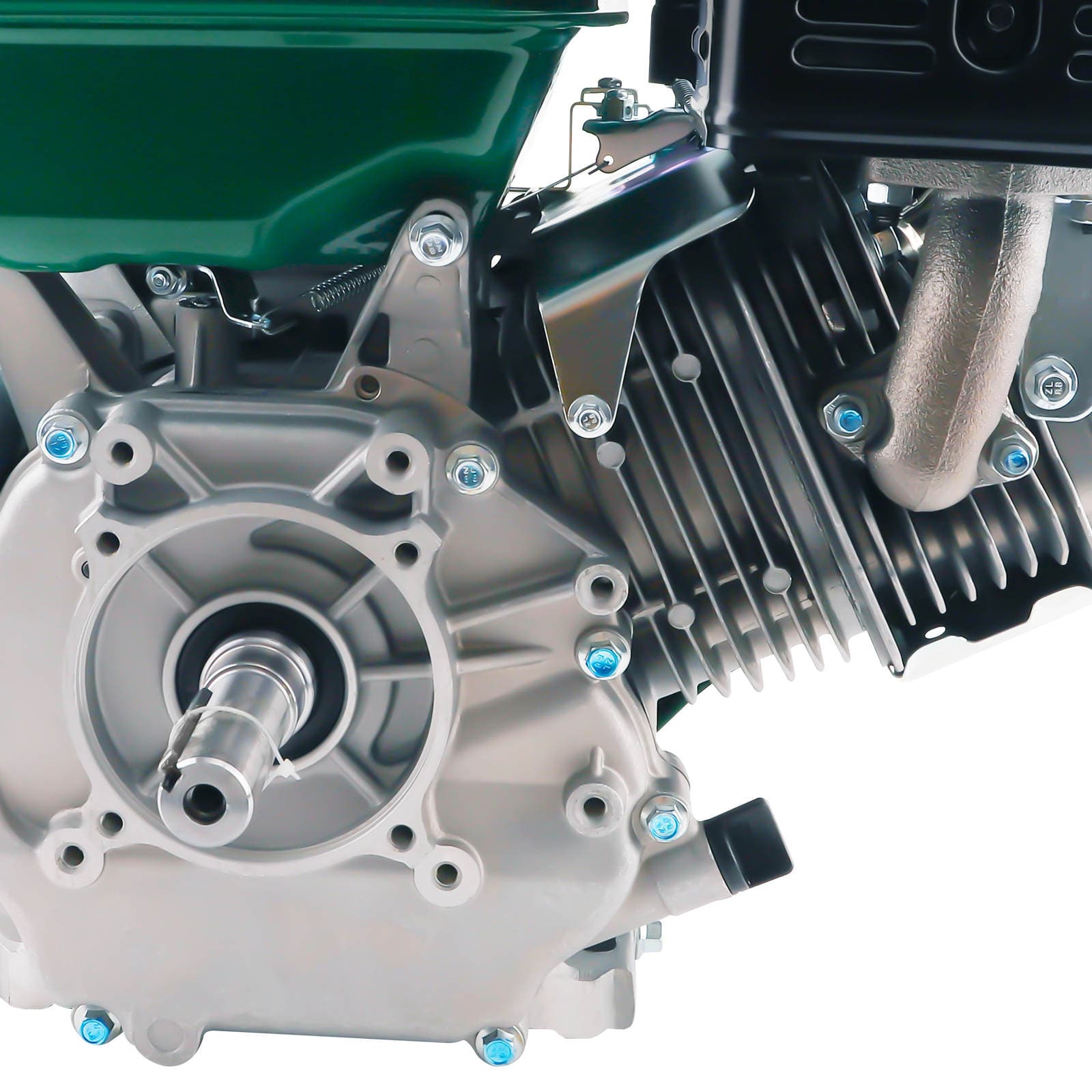

Shaft Orientation: Horizontal

Shaft Diameter(mm): 25.4

Shaft Keyway(mm): 6

Shaft length(mm): 88.5

Shaft End: 3/8" Size 24 UNF - Drilled and Tapped

CE Certified: Yes

Euro-V Certified: Yes

Warranty: one year Package included Gasoline Engine ( 1 )

Spark Plug Socket Wrench ( 1 )

Oil Funnel ( 1 )

Owner's Manual( 1 )

Start Key( 1 )Features Powerful Engine: Our gasoline engine is a 4-stroke 420cc OHV engine, which provides you with strong power and ensures that your work can be completed quickly and easily.

High Fuel Efficiency: OHV design for improved power output and fuel efficiency.

Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.

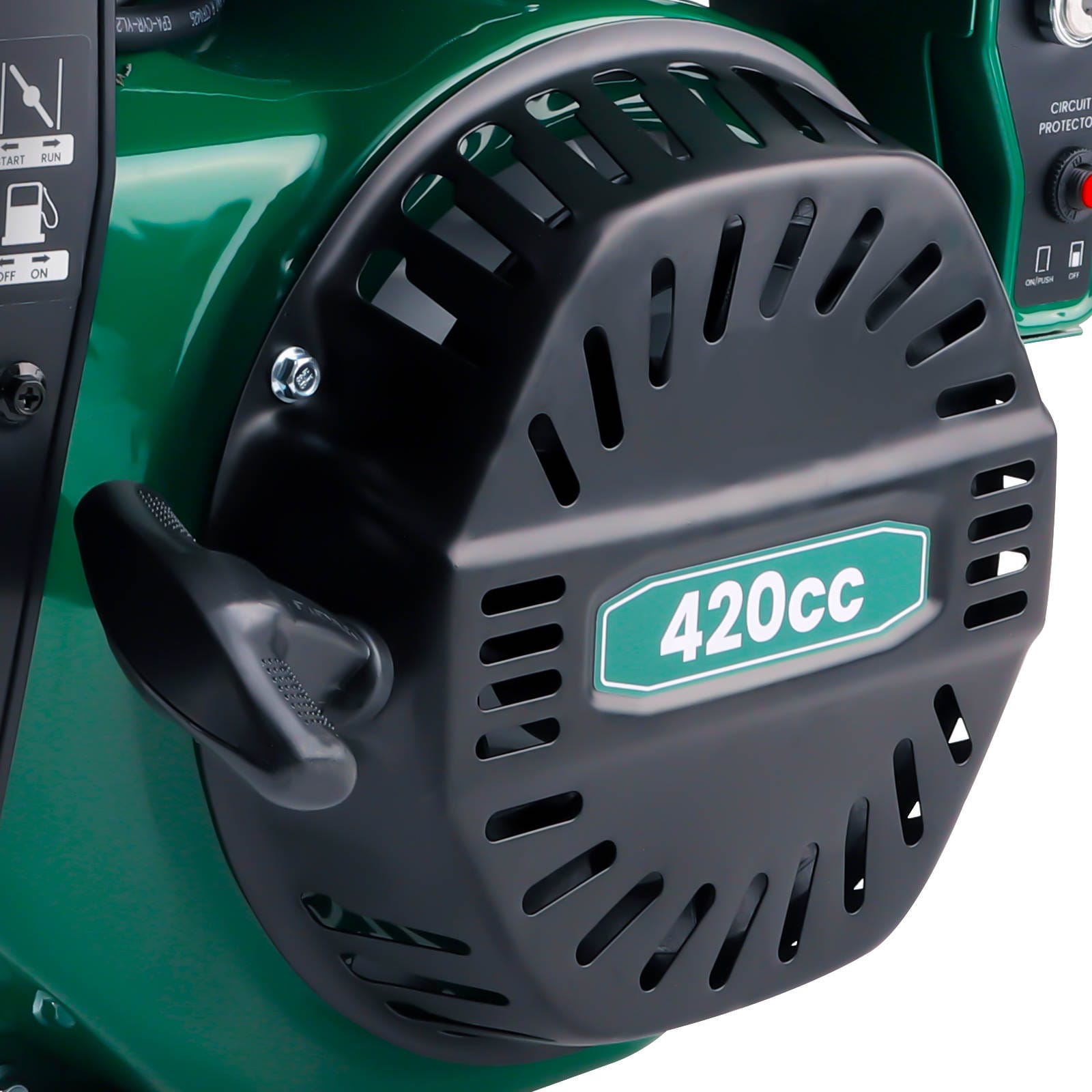

Easy to Use and Maintain: Ergonomic, easy to grip recoil rope design, simple throttle control, easily accessible spark plug.

Versatility: Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.

Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation.

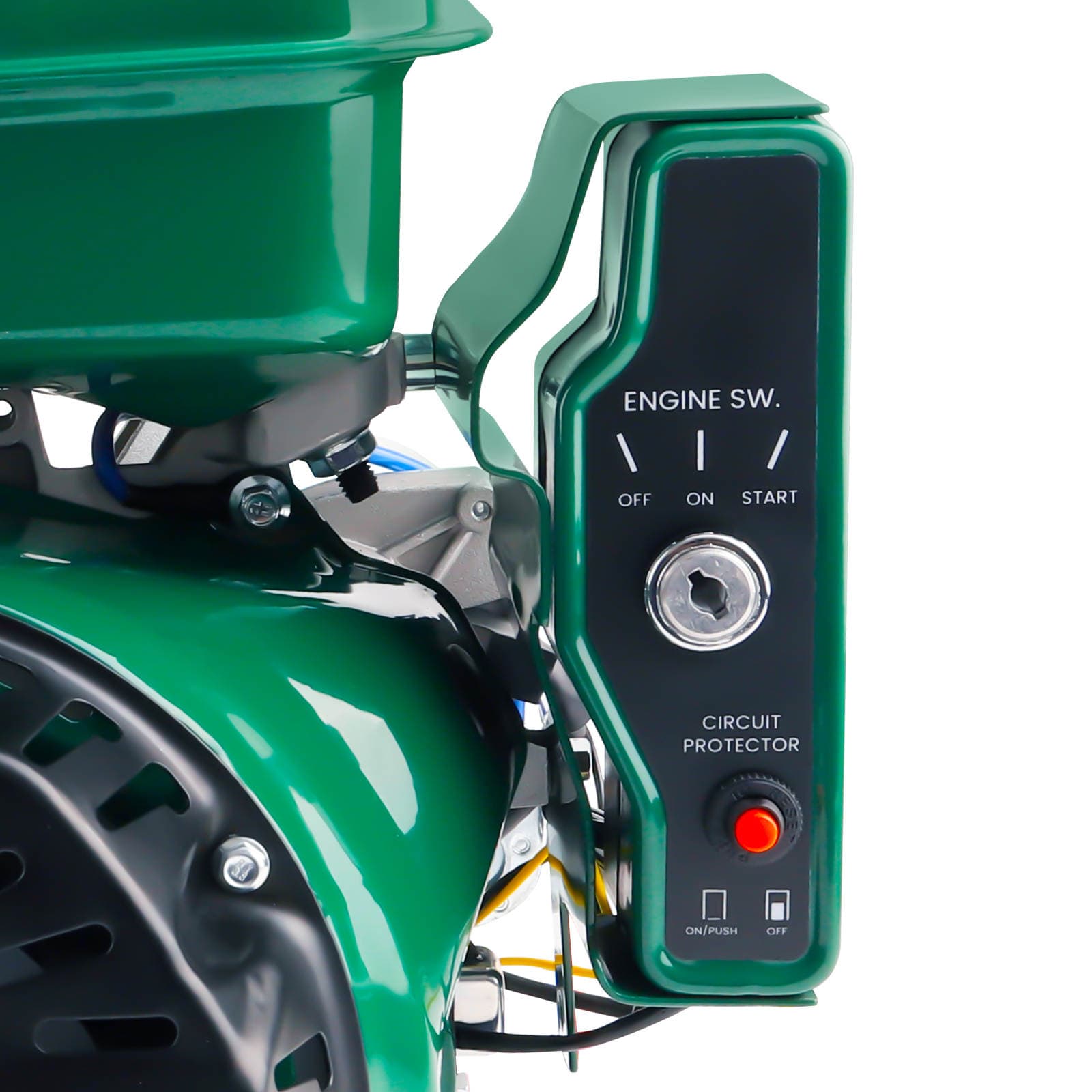

Double Start: Our engine is specially designed with Electric Start. Just turn the key, you could easily get the engine start; also with a recoil start, give you a double start secure.(Battery not included)Please note1. Do not pull the pull rope to start the machine without refilling oil. Starting the engine without refilling oil can cause permanent damage to the internal engine components.

2. All engine functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.

3. Installation Manual Is NOT Included; Professional Installation Is Highly Recommended.

4. Don't remove or modify the engine parts, otherwise the warranty will be void. (e.g. air filter, throttle assembly, muffler, etc.)Warning An engine's exhaust contains toxic carbon monoxide, which you cannot see or smell. Breathing carbon monoxide can KILL YOU IN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a engine.
