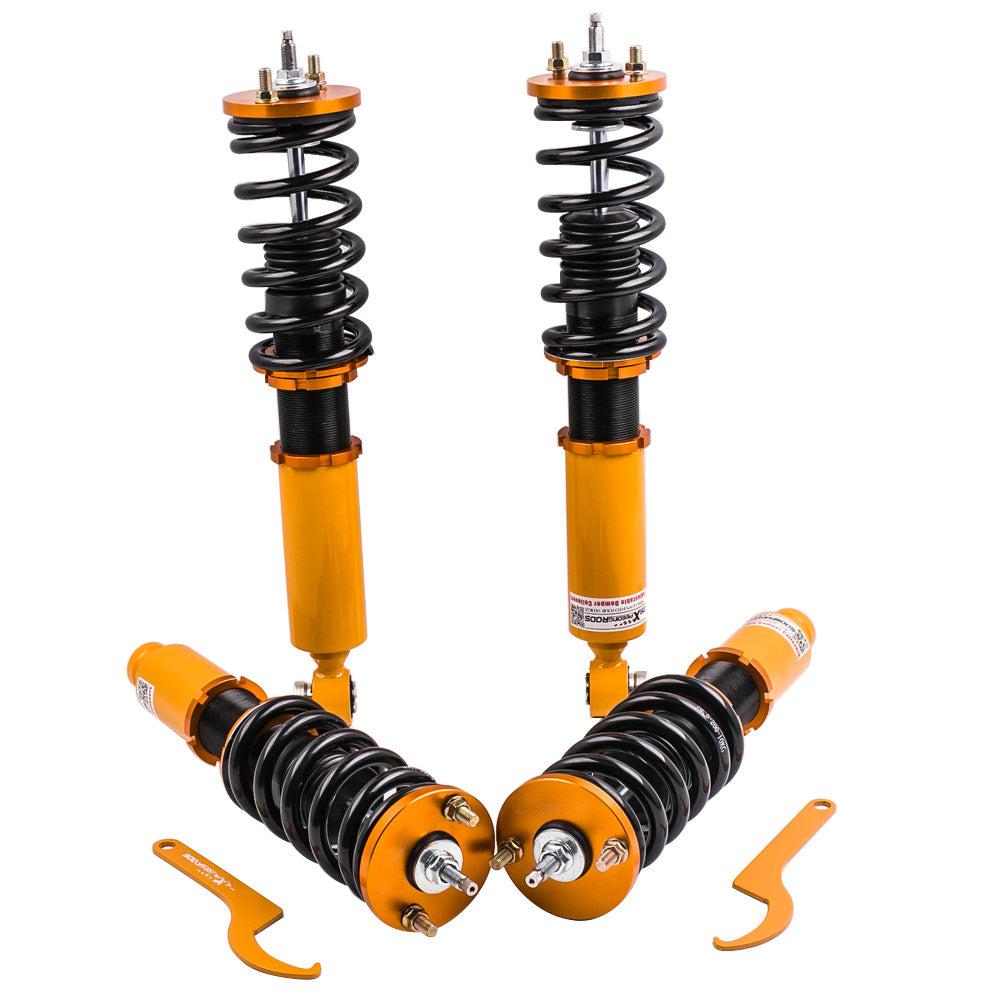

1996 - 2001 compatible for Honda CR-V Adjustable Damper Shock Absorber Racing Strut Coilovers Lowering Kit

This MaXpeedingRods part is suitable for Honda applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.Application Suitable for Honda CR-V 1996-2001 1st Gen. RD1-RD3 suitable for FWD & AWDSpecifications Front and Rear top mount: rubber

Damping: 24 levels rebound damping adjustable

Spring rate:

front 10kg/mm(560 lbs/in)

rear 7 kg/mm (392 lbs/in)

Adjustable height: Yes lowering 1" to 3"

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: gold body with black spring Package included Complete coilovers assembly 2 front and 2 rear

A pair wrench for height adjustment Dimension Package dimension : 62*50*19

Weight: 23000g Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

4. Twin-Tube structure allows sufficient stroke within the shock absorber.

5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

6. Separate height adjustment does not affect damper stroke.

7. Height can be adjusted with coilovers installed on the vehicle.

8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

9. Height Adjustment tools included.

10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

11. Steel shock bodies with special surface treatment to improve the durability.

12. Full rebuildable.Specifications 2 Spring Rate Front: 10kg/mm(560lbs/in)

Spring Rate Rear: 7kg/mm(392lbs/in)

Front spring inner diameter: 70.5mm

Rear spring inner diameter: 70.5mm

Spring length Front: 200mm

Spring length Rear: 200mm

Front length range: 450-490mm

Rear length range: 500-605mm Notice Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
