1x 2600lbs Standard 1/2npt Single Port Air Ride Springs Bags Suspension
Application
Compatible For General compatible for Silverado/Sierra 1500
Compatible For General Trail Boss/Compatible for Sierra AT4
Compatible For Dodge/Ram 1500/2500/3500
Compatible For Ford F-150/F-250/F-350/F-450 2 & 4WD
Compatible For Ford Super Duty
Compatible For Chevrolet Silverado HD and compatible for GMC Sierra HD
Compatible for most of Truck,Van,SUV,etc
Specification
Placement on Vehicle: Left,Right,Front,Rear
Suspension clip: 1 piece

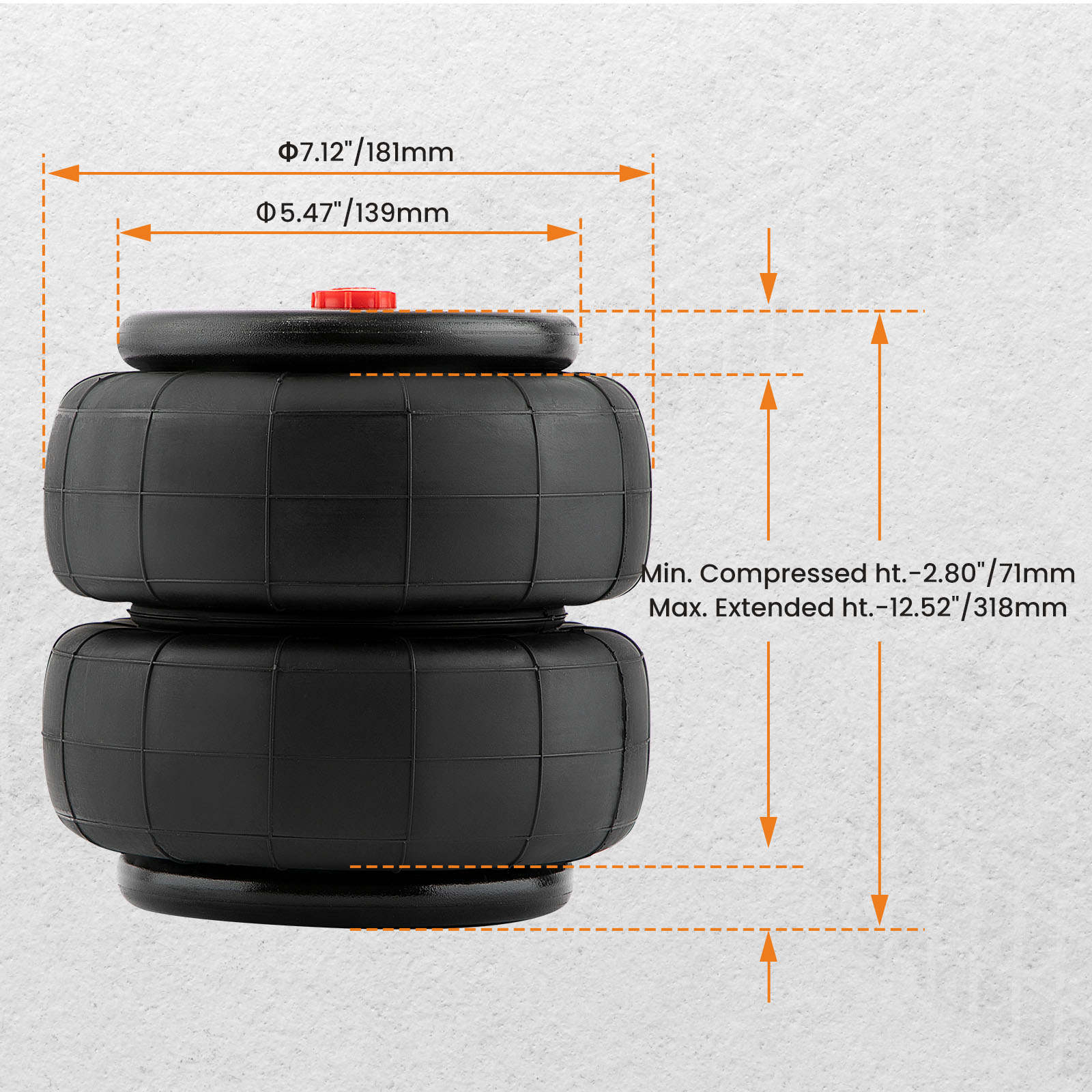

Design height: 211 mm
Min height: 71mm
Max height: 318mm

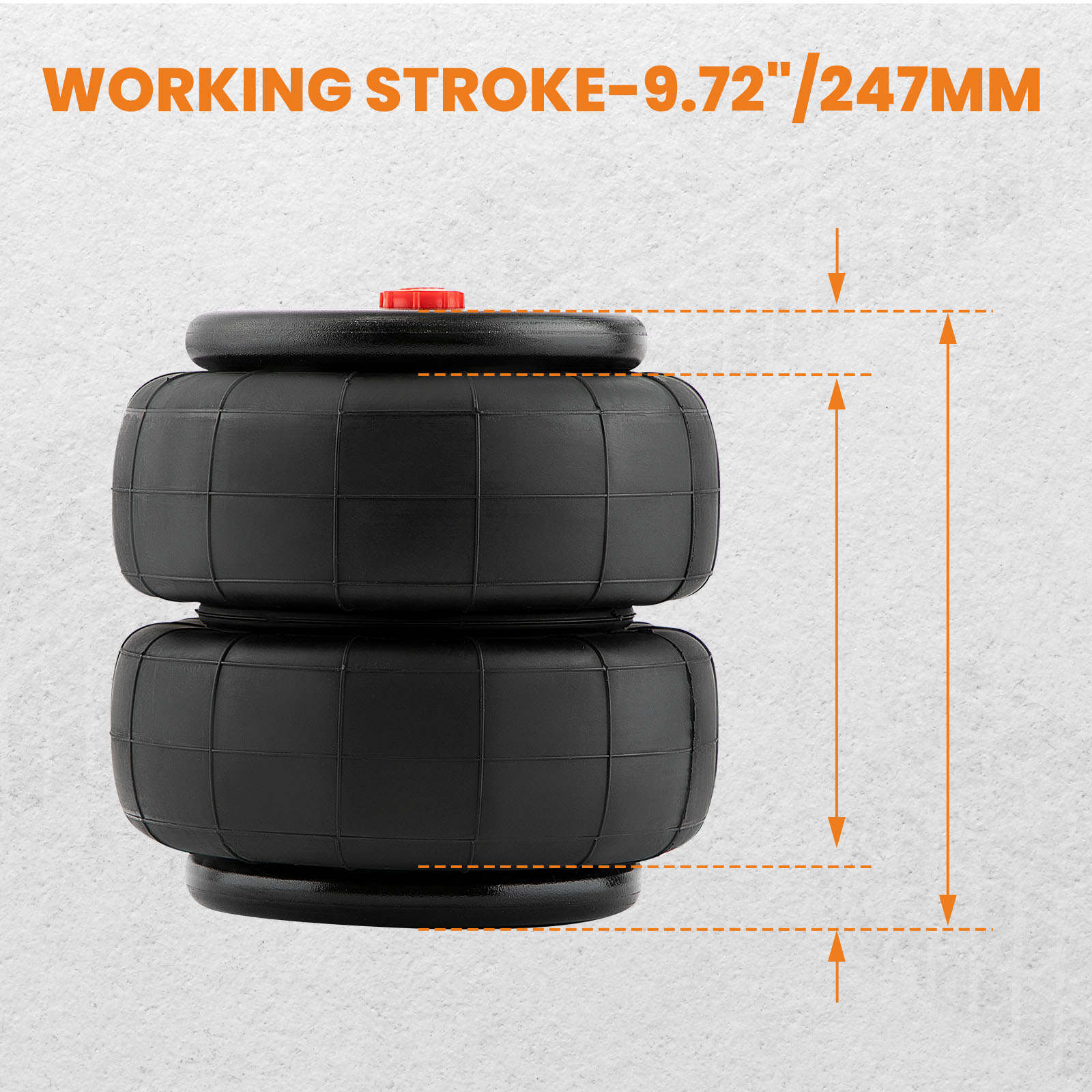

Working stroke: 247mm

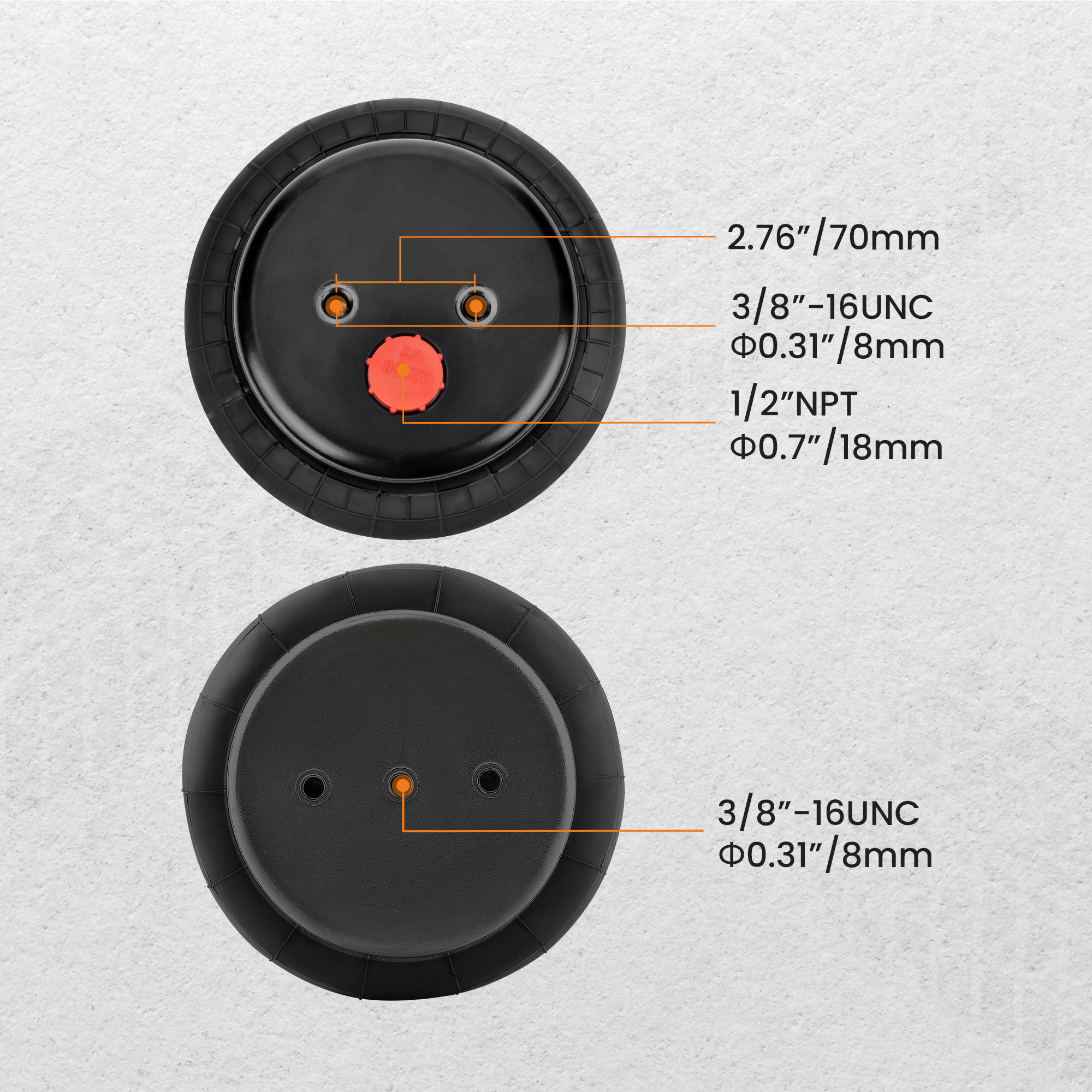

Single air port size: 1/2-14NPT
Install hole size：3/8-16UNC
Top plate diameter: 139 mm
Air spring bag body diameter: 181 mm
Air spring bag capacity: 2600LBS
Condition: 100% Brand New
Package Dimensions:18.5*18.3*18.3cm
Item Weight:2800g
Warranty: one year warranty for any manufacturing defect
Features
1. 100% Air Tightiness testing
2. 24 hours air tightness test ≤0.02MPa
3. Anti-corrosion and provide a more consistent wear surface
4. Built to strict quality control standards
5. CNC Machined Components
6. Designed for Comfort Suspension
7. Easy to install
8. Gives the driver more control of ride
9. Good heat dissipation
10. It has a high compressive strength and good sound insulation to ensure our driving comfort and safety
11. Test more than 5 million times
12. Sturdy & Durable Material
Note
- These air suspension bags are aftermarket ones. They will replace the original air spring bags.
- Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.
-Instruction is not included. Professional installation is recommended
-Contact us please for whatever we can help
