30 Row Universal Engine Oil Cooler Kit AN10 with Thermostatic Adapter Aluminium

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Universal-Suitable for most cars, may requires additional accessories to meet the needs of the particular application. Please ensure enough space for installation.Specifications Oil Cooler Type: 30-Row Oil Cooler Kit

Oil Cooler and Air Guide Material: Aluminum

Oil Cooler Style: English Style

Oil Cooler Inlet/Outlet Size: AN10

Corner Brace Material &Thickness : Stainless Steel 3mm

Hose Size:AN10

Hose Length: 1 Pc 1m & 1 Pc 1.2m

Hose Clamp Size: AN10

Oil Filter Sandwich Adapter Type: Angled Fittings & Thermostatic Adapter

Oil Filter Sandwich Adapter's Fitting Size: AN10

Oil Filter Sandwich Adapter's Center Adapter: 3/4-16 & M20*1.5

Oil Filter Sandwich Adapter's Ports Size: 1/8 NPT Ports

Thermostat Closing Temperature: 65±3℃

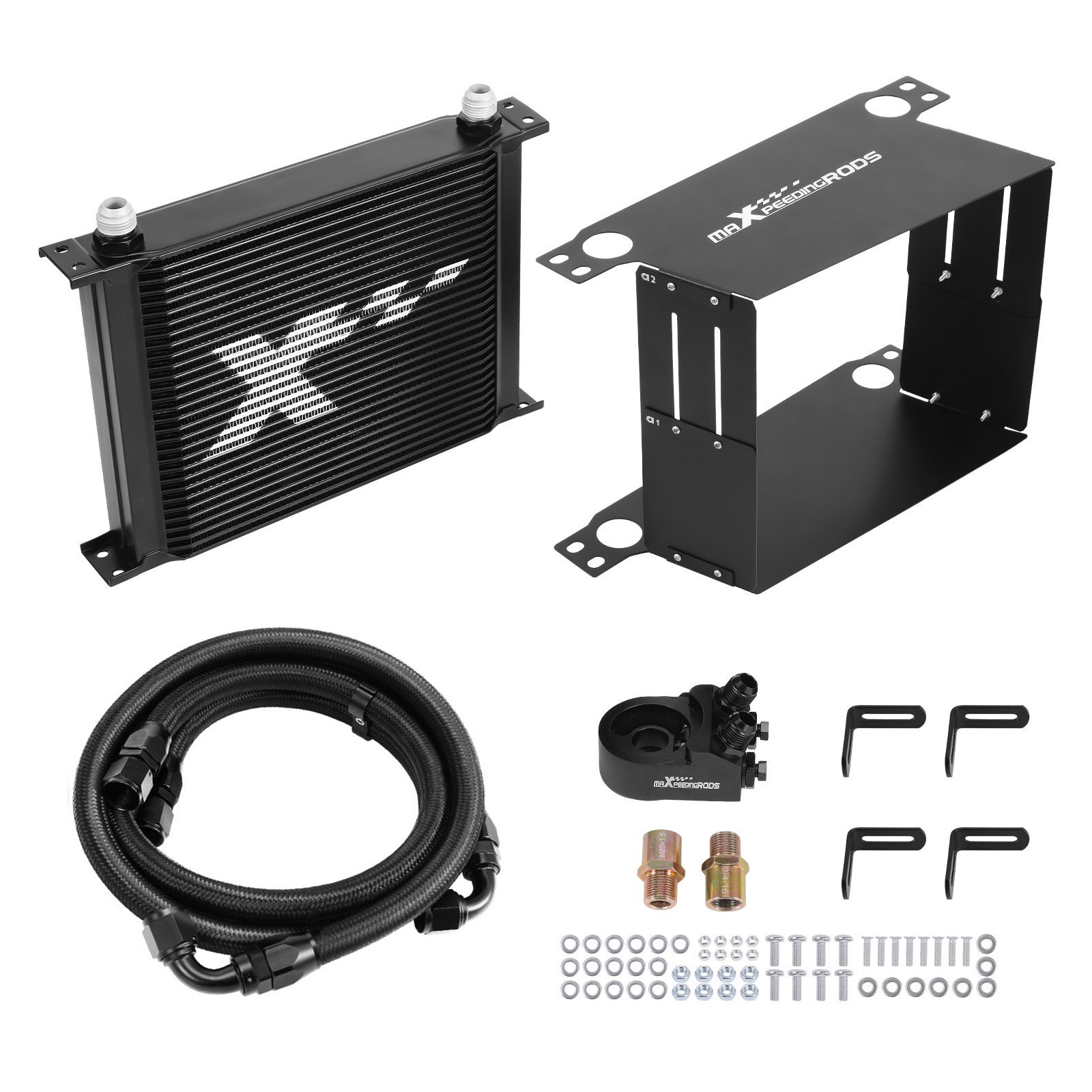

Thermostat Fully Open Temperature: 75±3℃Package included1* 30-Row Oil Cooler

1* Air Guide Kit

1* Angled Fiitings Oil Filter Sandwich Adapter

1* 10AN Braided Oil Cooler Hose(1m)

1* 10AN Braided Oil Cooler Hose(1.2m)

1* Corner Brace Kit

1* 3/4-16 Center Adapter

1* M20*1.5 Center Adapter

1*Hose Clamp

(As Shown in the Picture)Features1. The oil cooler is made of high quality aluminum, and it is powder-coated and oxidized which can protect the product and be more durable.

2. This oil cooler kit is efficient to cool the oil temperature, and it can keep the oil at a suitable operating temperature to improve engine performance. It can also help to prolong the life of oil and the internal engine components.

3. The oil cooler kit includes a air guide kit, which canmake the contact area between the air and the oil cooler greater. Thus it can reduce the oil temperature more effectively. The air guide kit’s top cover and base plate can be interchanged to achieve either a left-facing or right-facing air intake. You can choose the orientation based on the vehicle's installation position.

4. The angled fittings oil filter sandwich adapter has a thermostat. It can automatically adjust the oil entering the oil cooler according to the oil temperature. The upper fittings and lower fittings of the angled fittings oil filter sandwich adapter can be interchanged which can achieve a flat orientation installation or an angled orientation installation for the needs ofinstallation position.

5. This oil cooler kit also includes 4 corner braces and other accessories which make the installation more secure.Note1. Preparation Before Installation: ①Fill the oil cooler with oil. ②Completely fill until all air is evacuated. ③Attach the AN oil cooler hoses. ④Fill the AN oil cooler hoses with oil.

2. This is a universal oil cooler kit. Just measure the size of the space before buying to ensure that it can be installed, and then you can choose the right size according to your cooling efficiency needs.

3. The oil filter sandwich adapter's mounting threads are M20x1.5 and 3/4-16UNF. Please confirm compatibility before installation.

4. Professional Installation is Highly Recommended.

5. The item description was measured by hand, it could have 1-2 inches deviation.
