Product Description

Carburetor type 39 PICT-3, for air-cooled 1600cc Type 1 engines.

Suitable for:

• Volkswagen air-cooled 1600cc Type 1 engines (general)
• Volkswagen Beetle, 1971-1979
• Volkswagen Super Beetle, 1971-1979
• Volkswagen Thing, 1973-1974
• Volkswagen Karmann Ghia, 1971-1974
• Volkswagen Squareback, 1967-1973
• Volkswagen Transporter, 1969-1972

Specifications

• OEM / Part Number: 98-1289-B, 113129031K, 39 PICT-3
• Mounting stud spacing: 68 mm (center to center)
• Inlet connection size: 39 mm
• Air filter funnel inner diameter (choke): 47.3 mm
• Air filter funnel outer diameter: 51.7 mm
• Venturi diameter: 28 mm
• Type: automatic choke
• Installation position: in the intake manifold between air filter and engine
• Input voltage: 12 V
• Material: zinc alloy

Scope of delivery

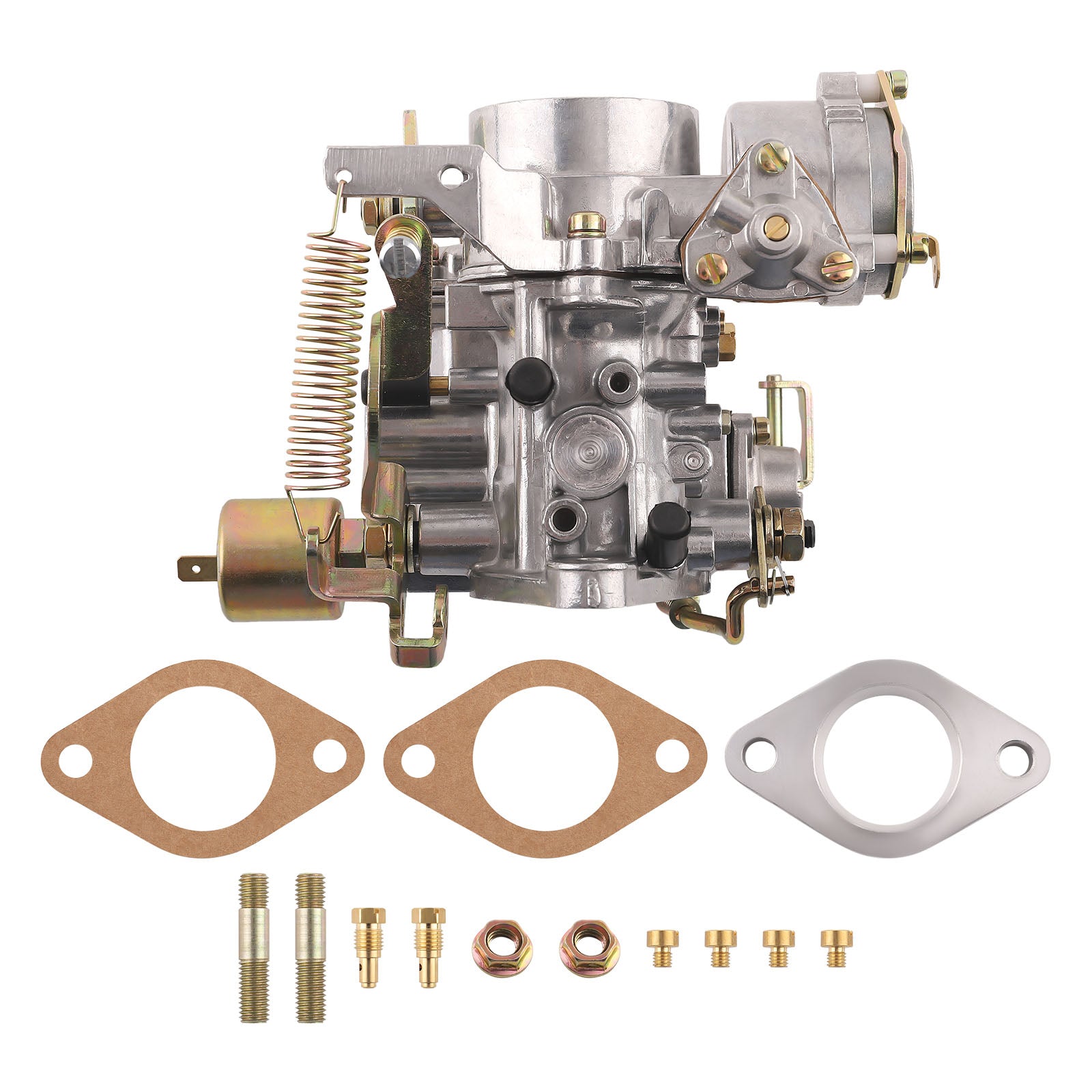

1x 39 PICT-3 carburetor, 1x gasket, 2x jet screws, 2x mounting screws, 2x screws

Features

• Made of high-quality zinc alloy, for more power with comparable fuel consumption

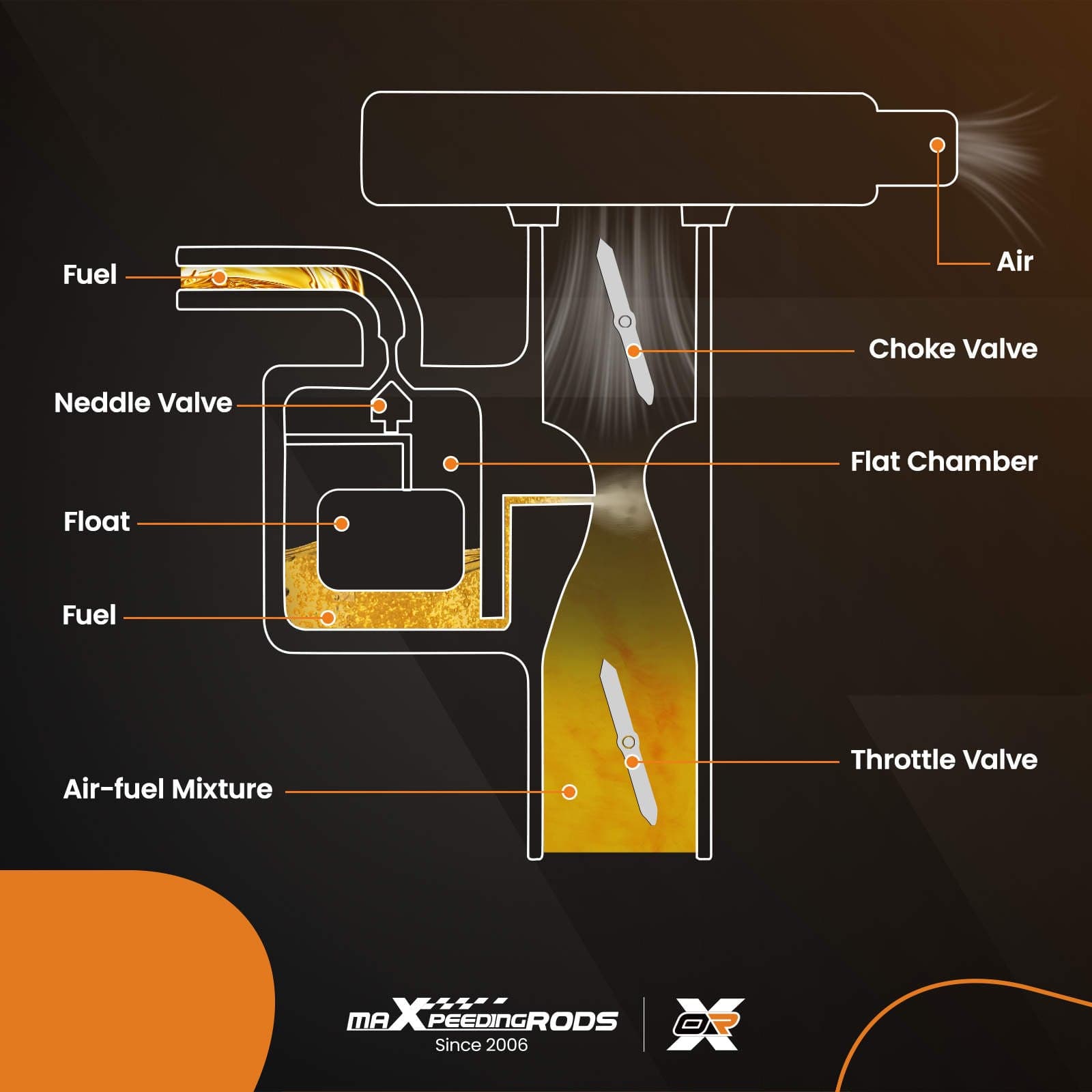

• Mixes air and fuel in the correct ratio for proper engine operation
• Resolves issues such as power loss, low fuel efficiency, backfire, overheating, and difficult starting
• Low consumption, quick starting, and stable idle speed
• 100% tested for reliability and performance

Please note

Clean the oil passages and air filter, and use clean fuel before installation, otherwise the oil passages will become clogged. Professional installation is recommended (no instructions included). Compare the carburetor with the image before purchase to ensure correct ordering.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences depending on the version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchasing.
