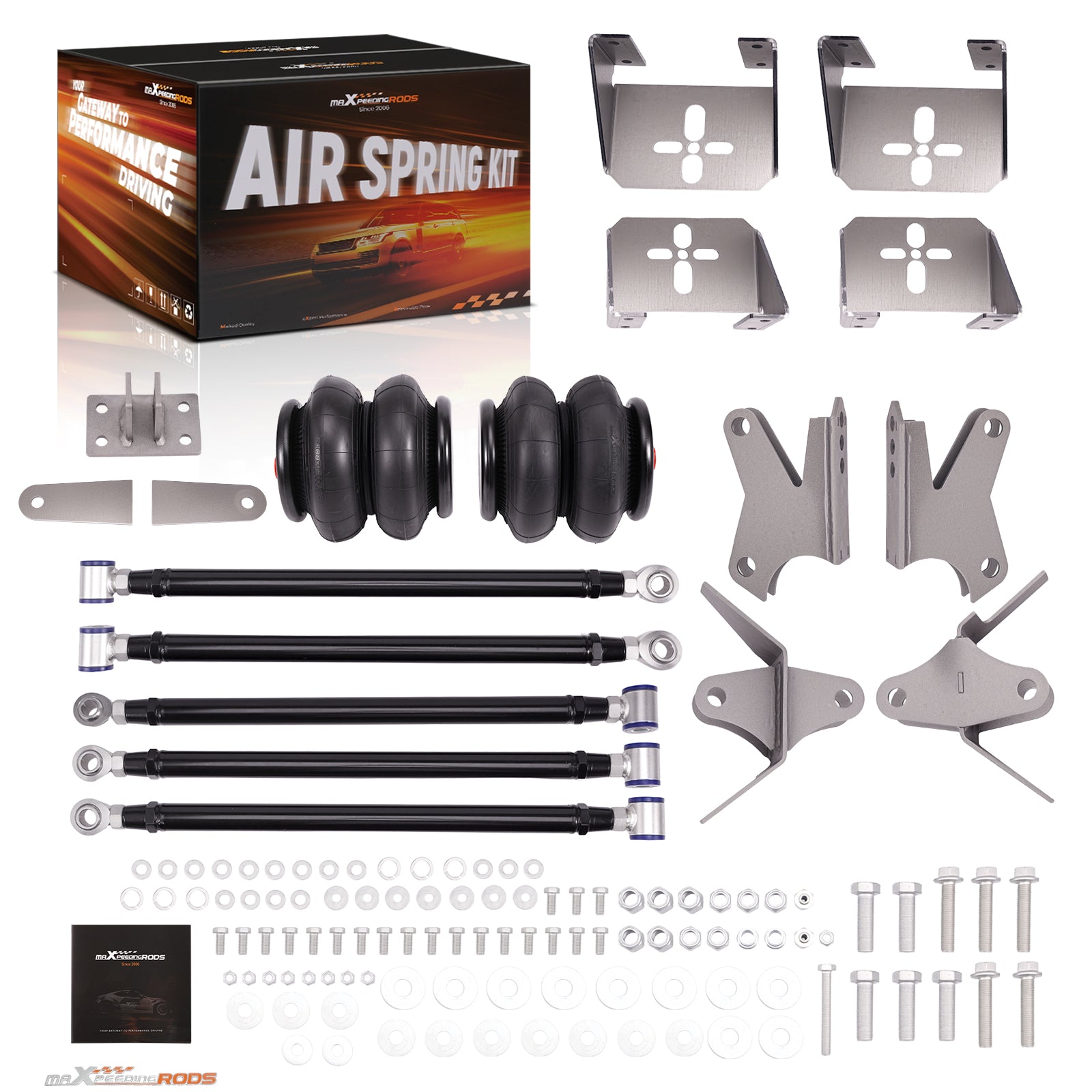

4 Link Air Spring Bag Kit for Pickup Trucks Hotrod Rear Axle Classic 2500LBS

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application for Most Pickup Trucks, Hotrod, Rat Rod, or Classic Cars with 3" Rear Axle Tube. Specifications Included:

1 set of Suspension 4 Link

Mounting hardware Included

5 Link Bar Dimensions:

Tubing Outside Diameter :1.259"

Tubing Thick Wall :0.157"

All Five Bars :21.29"

(Center To Center Adjusted All The Way In)

Specs of bag:

Diameter: 6.889"

Extended:9.645"

Closed:3.54"

Air spring bag capacity: 2500LBS

2 smaller bolt holes diameter: 0.375"

1 bigger bolt hole diameter: 1/2"-14NPT

Two Top Mounting Holes : Approx 2-3/4" from Eye to Eye

Bottom has One Mounting Hole in Center

All mounting holes are 3/8"-16 UNC Features 1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5、Use high-quality steel with high load-bearing capacity and long life.

6、Excellent and practical bolt-on installation.

7、Safe carrying capacity and stability

8、Restore the original ride height and improve ride quality

9、Ensure our driving comfort and reduce tire wear. Note Instructions Are Not Included

We Recommend Professional Installation

Please feel free to contact for whatever we can help!
