40 IDF 2-barrel carburettor with air horn compatible with VW Beetle, Porsche 912, 356, Fiat
40 IDF 2-barrel carburettor with air horn compatible with VW Beetle, Porsche 912, 356, Fiat
In stock
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Secure payment with
Out of stock
In stock
Product description

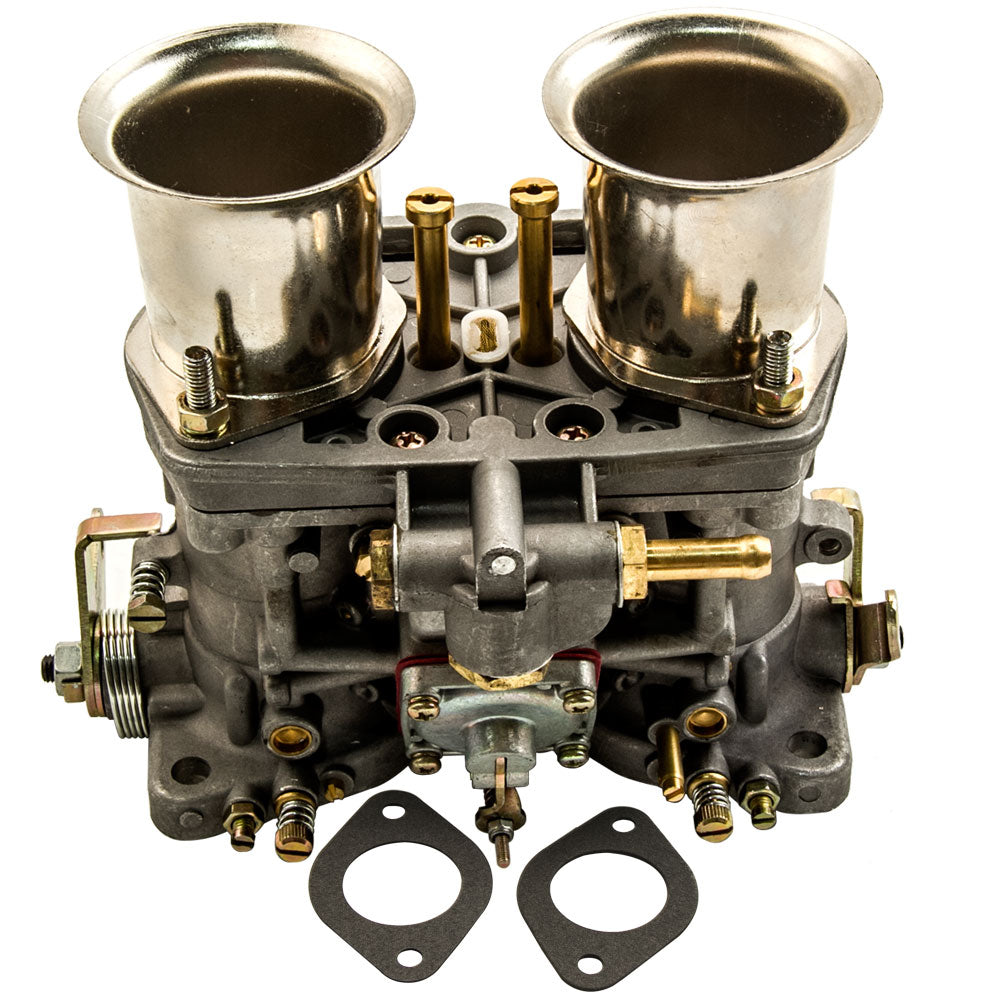

Twin 2-barrel 40 IDF carburettor with air horn, mixing air and fuel in the correct ratio for proper engine operation.
Fits:
- Volkswagen Beetle / Bug
- Porsche 912
- Porsche 356
- Fiat
Specifications
- Type: 40 IDF, twin 2-barrel carburettor
- Main jets: 115
- Emulsion tubes: F11
- Air correction jets: 200
- Idle jets: 52
- Needle and seat: 200
- Pump jet: 0.50
- Pump discharge jet: 550
- Venturi: 28 mm
- Auxiliary venturi: 4.50 mm
- Needle valve: 1.75 mm
- Bolt hole spacing (centre to centre): 134.5 x 64 mm (max.)
- Throttle bore: 40 mm
- Air horn: inner 46 mm, outer 65 mm
- Material: heavy-duty zinc alloy, nickel plated
- Weight: 2.2 kg
- Package dimensions: 23 x 21 x 15 cm
- Contents: 1x carburettor with air horn, 2x mounting gasket
- Quantity: 1 carburettor
- Condition: New
- Warranty: 1 year on manufacturing defects
Features
- Correct air/fuel ratio for proper engine operation
- Quick start and stable idle
- Nickel-plated surface for longer life
- Tested for reliability, easy installation
Check fitment
Always check the original OEM part number, model year, engine code and version of your vehicle before ordering, as there may be differences between versions. Not sure whether this part fits your vehicle? Feel free to contact us before purchasing.
