4340 Billet Crank CrankshaftConRods Set compatible for Fiat Punto GT 1.4 1.6L Turbo
4340 Billet Crank CrankshaftConRods Set compatible for Fiat Punto GT 1.4 1.6L Turbo
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Application
Compatible for Fiat Punto GT 1993-1999 67.4mm Stroke Crankshaft
Compatible for Fiat Punto GT 1993-1999 67.4mm 1.4L I4
Compatible for Fiat Punto GT 1.4 1.6L Turbo
Crankshaft Specification
Material: 4340 EN24 Aircraft Chrome Moly Billet Steel
Flywheel / Flexplate bolts pattern: 6
Max HP: 1800 HP
Feature: Fully Balanced
Crankshaft Dimensions
Rods journal diameter: 45.52mm
Main journal diameter: 50.8mm
Stroke: 67.4mm

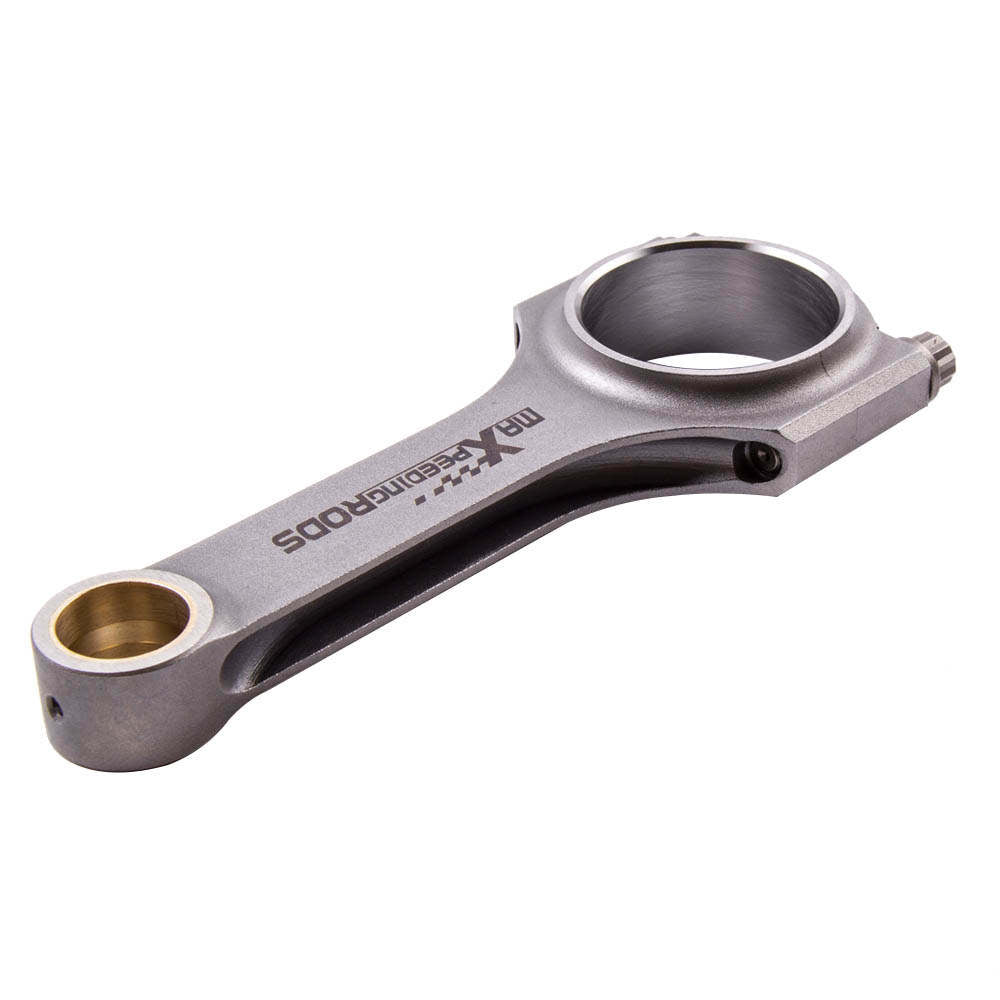

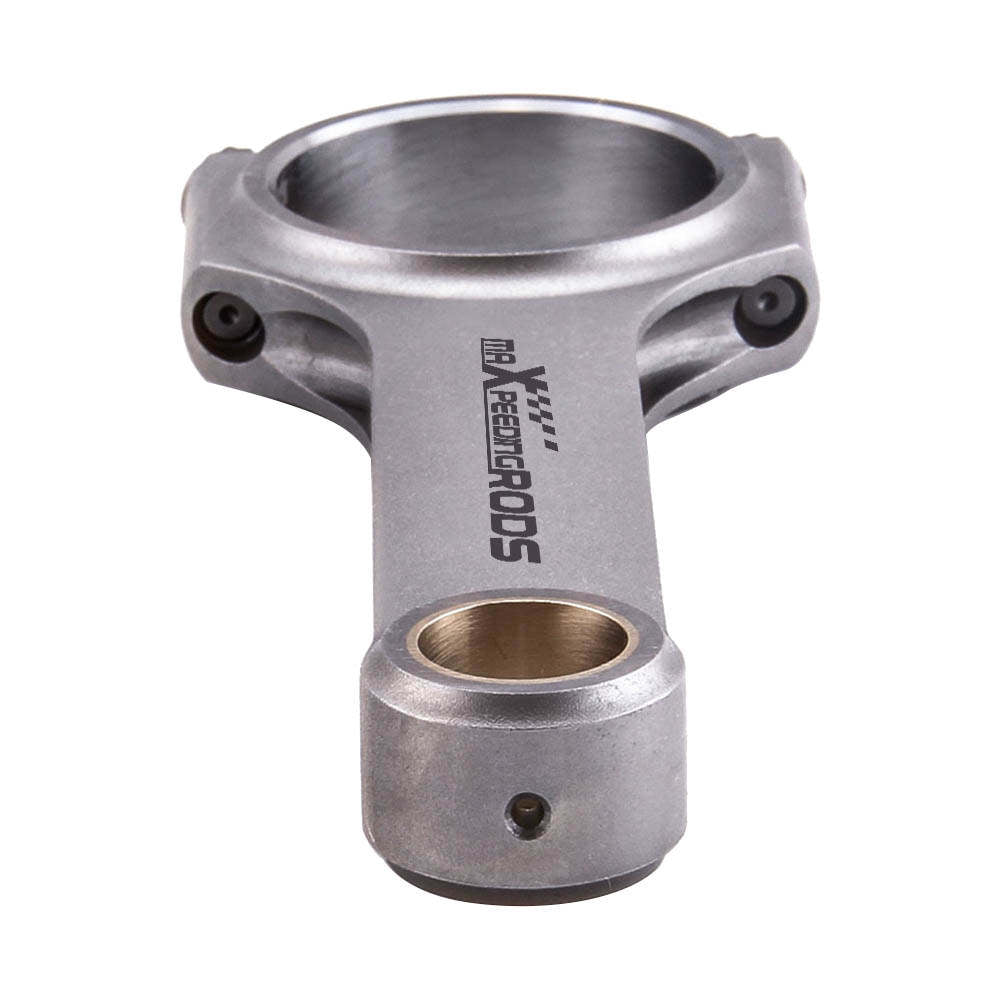

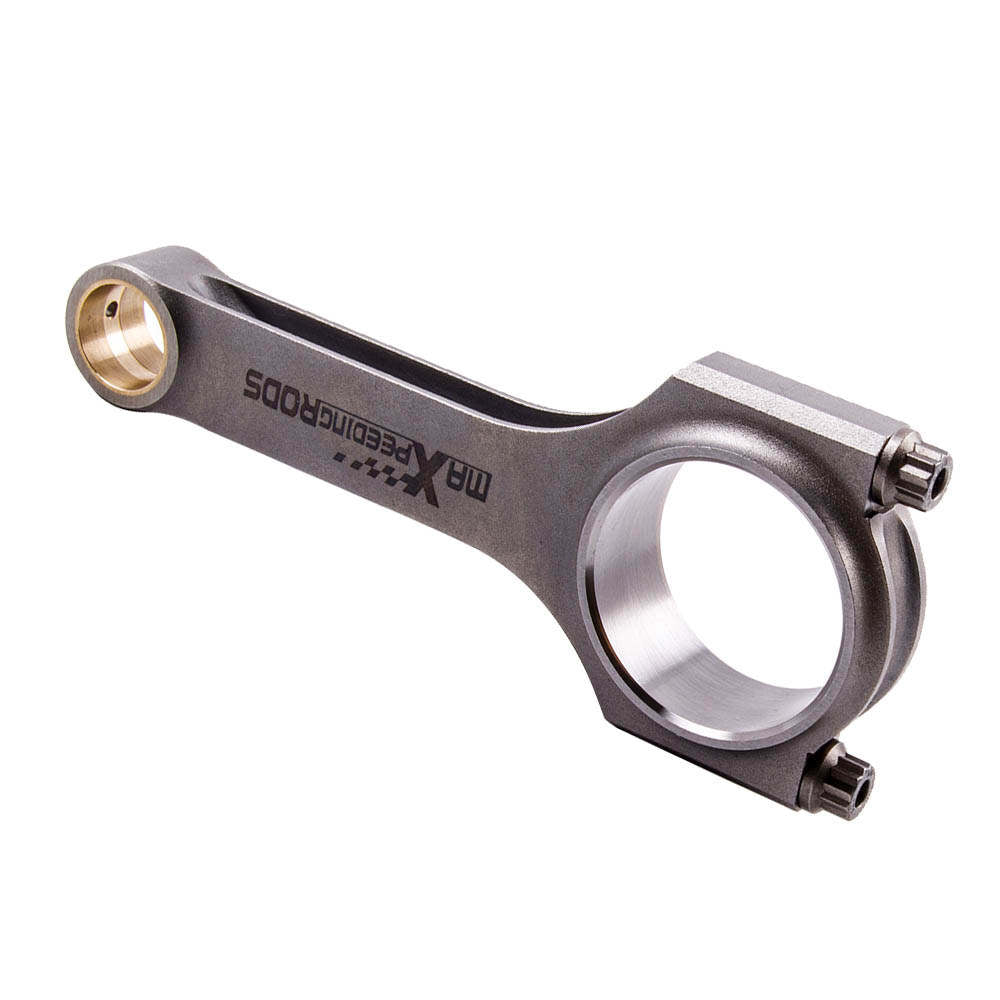

Connecting Rods Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Connecting Rods Dimension
Center to center length: 128.52mm/5.06"
Big end diameter: 48.63mm/1.9145"
Small end diameter: 22mm/0.866"
Big end width: 25.40mm/1.0"
Small end width: 25.40mm/1.0"
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
