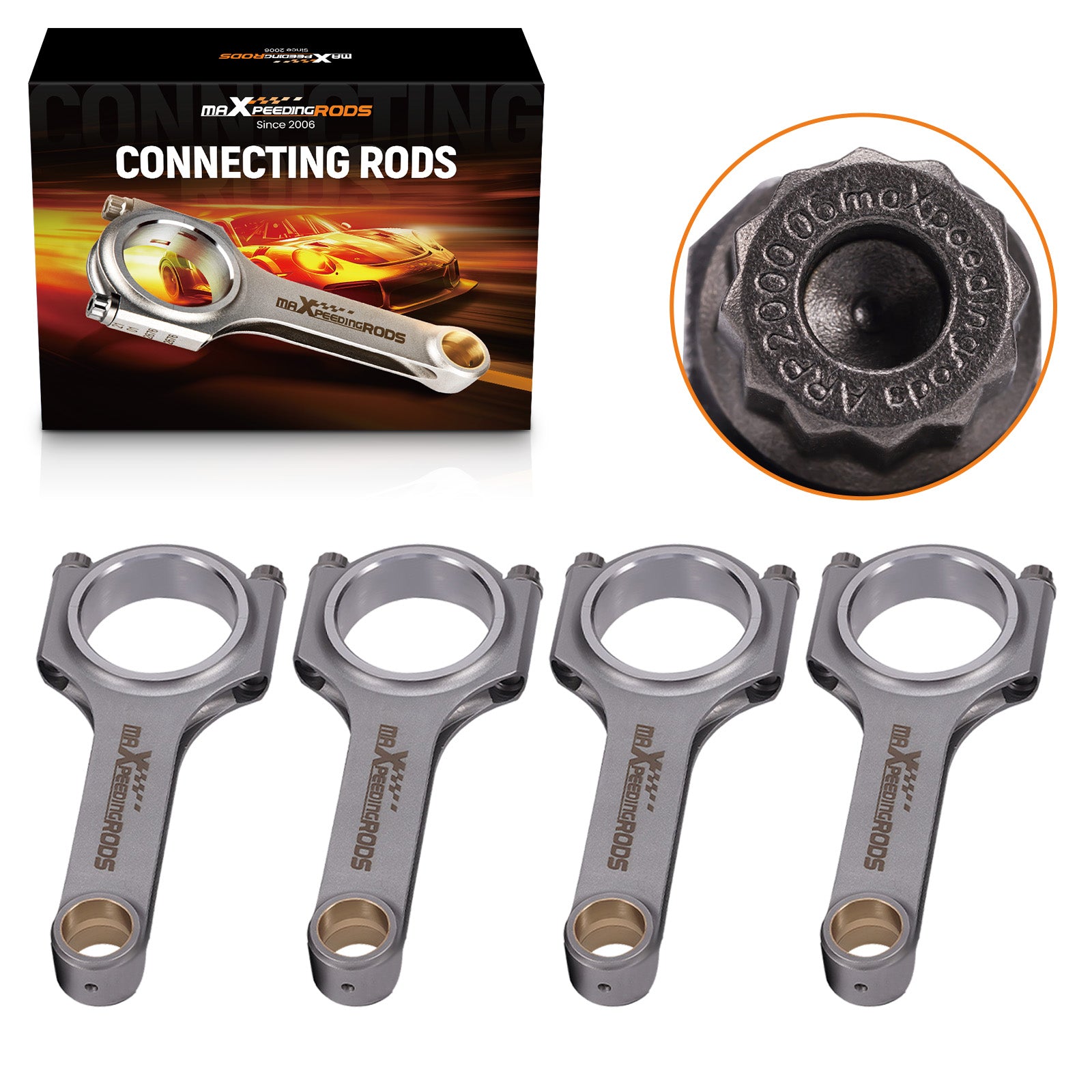

4x Forged 4340 EN24 Connecting Rods compatible for Audi S3 1.8T 20vT BAM 01–03 20mm

This MaXpeedingRods part is suitable for Audi applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Audi A3 1.8 20vT AGU/ARZ/ARX/AUM/AQA 1996–2003

suitable for Audi S3 1.8 20vT APY AMK 1999–2001

suitable for Audi S3 1.8 20vT BAM AEB 2001–2003

suitable for Seat Ibiza 1.8T (AYP AQX)

Suitable for Audi A4/A6 1.8 20vT (AEB ANB APU ARK)

Suitable for Audi TT Quattro 1.8T BAM AEB

suitable for VW Golf 1.8T (GTi AGU ARZ)

Suitable for VW Jetta, suitable for VW New Beetle 2001–present

suitable for VW Passat 1.8T (AEB ANB ATW)

Suitable for VW Beetle 1.8T (AVC)

Suitable for VW Bora 1.8T (AGU)Specifications Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 3/8"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes Dimension Connecting Rod Length Center to Center: 144.00mm/5.669in

Approximate Connecting Rod Weight: 623g

Big End Bore Diameter: 50.60mm/1.992in

Pin End Bore Diameter: 20.00mm/0.787in

Big End Width: 24.90mm/0.980in

Small End Width: 24.90mm/0.980in Performance Ratings Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 9,000rpm Packaging Quantity: Sold as a set of 4

Package Size: 28CM*20CM*10CM
