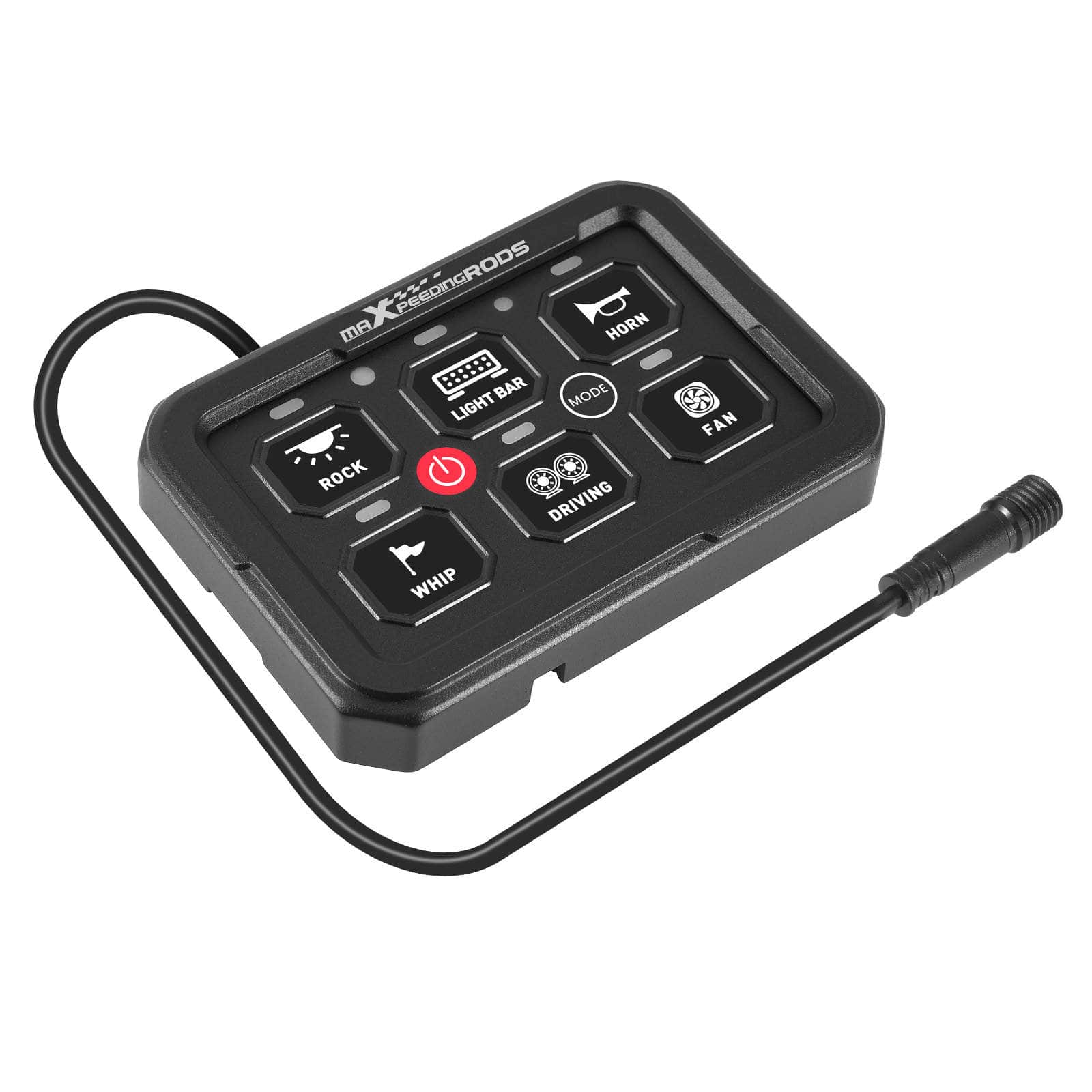

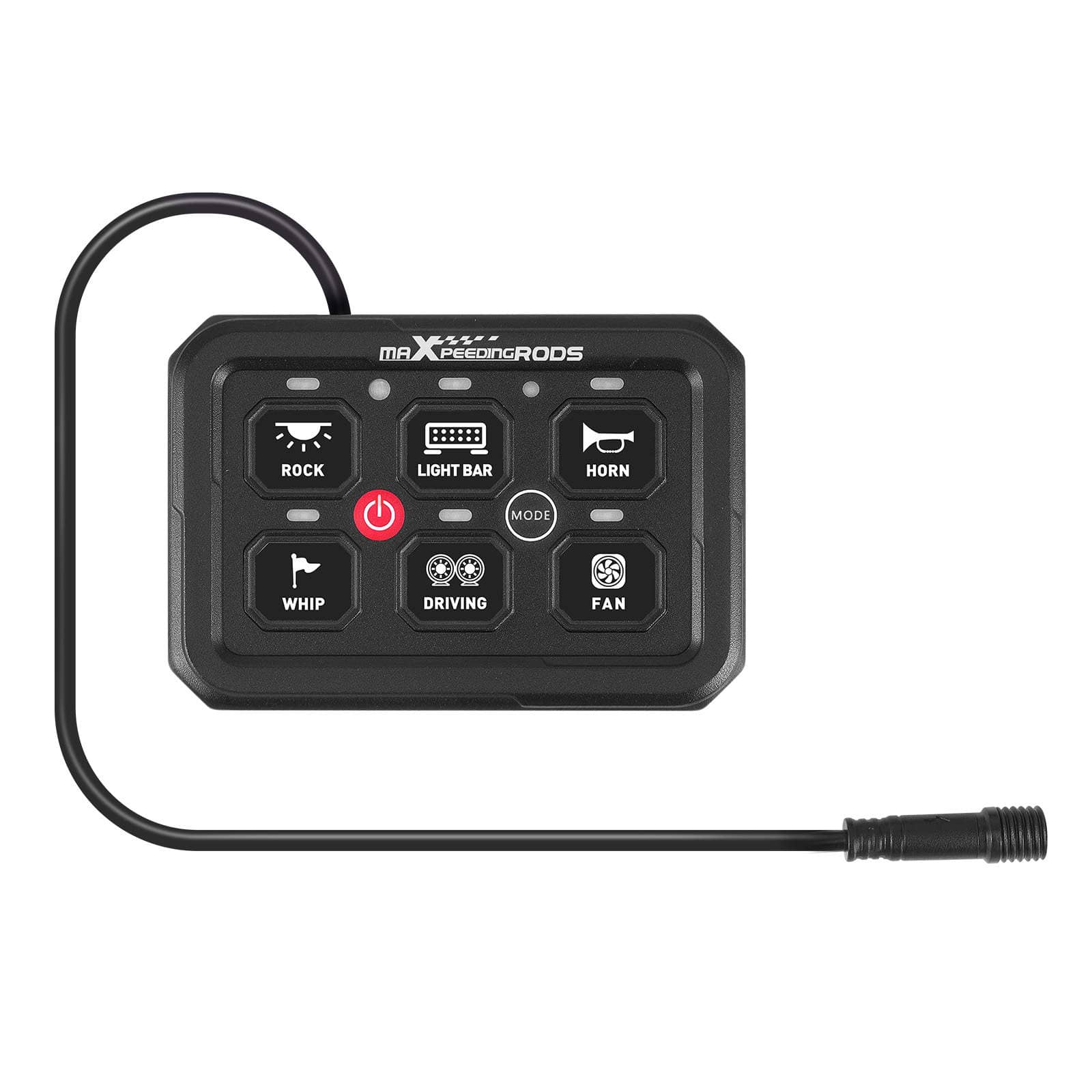

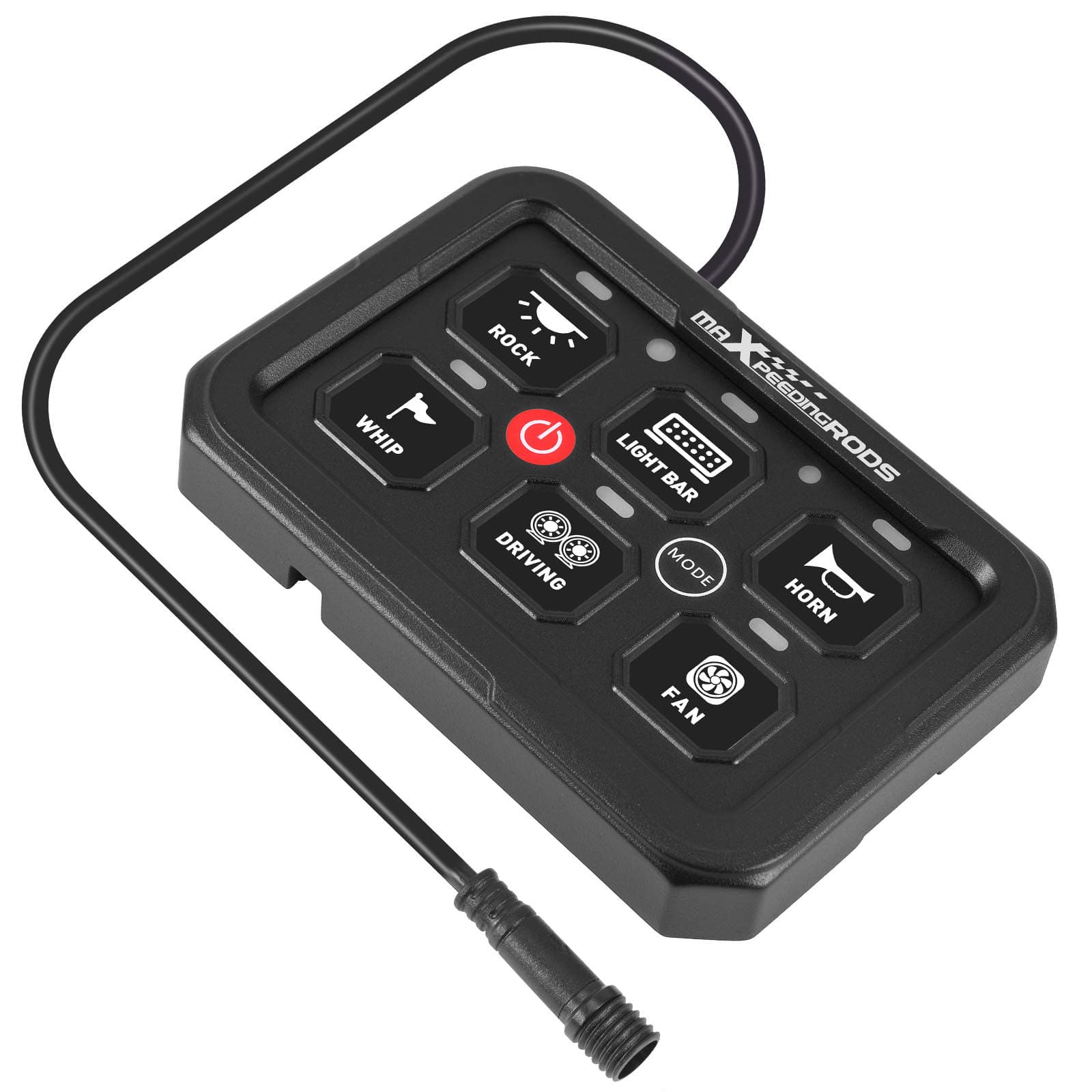

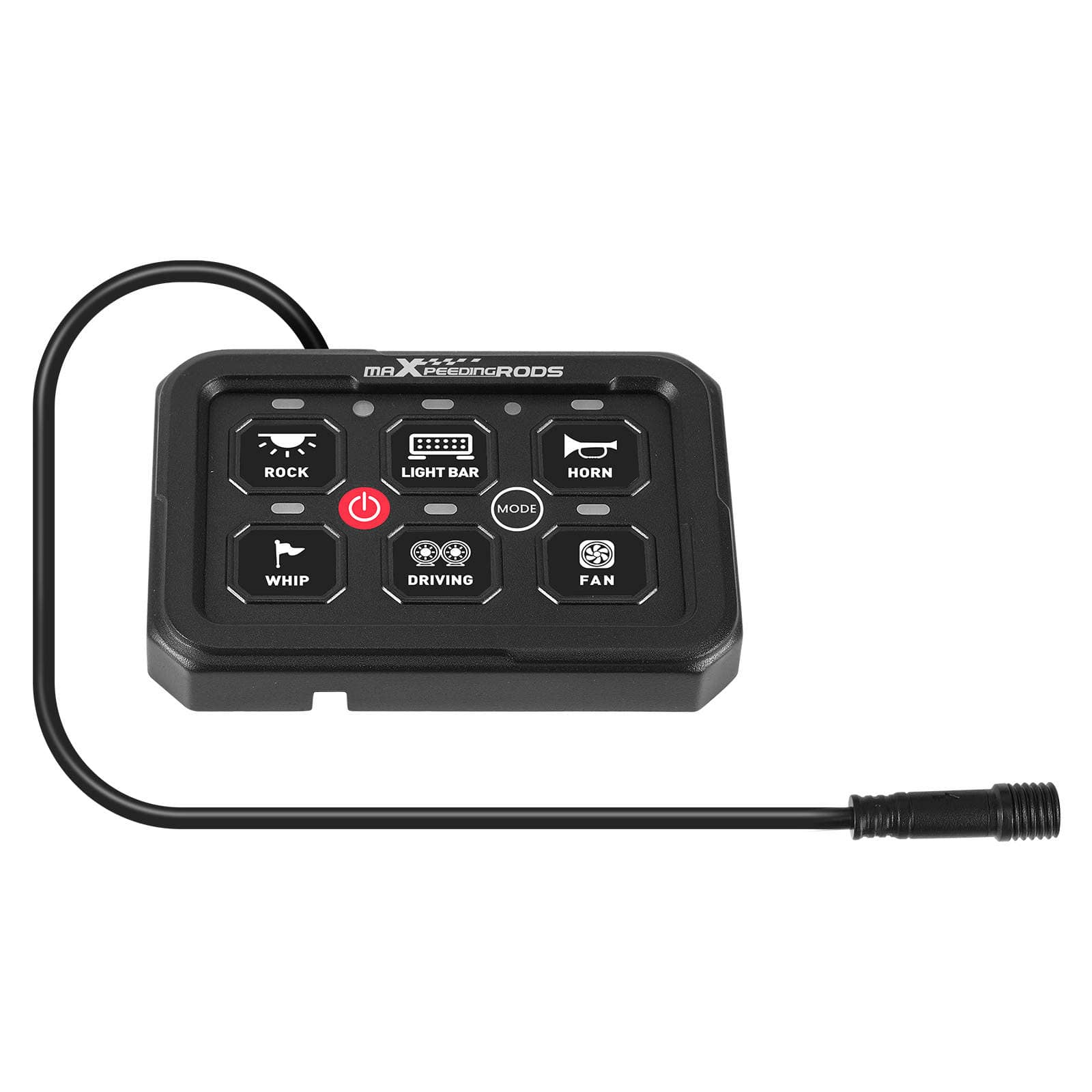

6 Gang Switch Panel RGB Automatic Dimmable Off Road LED Light Controller For ATV

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Universal for Car Pickup Truck offroad UTV ATV Boat Specifications Button quantity：6 Gang

Button type：Touch

Control Modes：4 types，Toggle (Red Light), Momentary (Blue Light), slow Strobe (Purple Light), and Fast strobe (Green Light).

Backlight color:RGB

Backlight adjustment：automatic

Max current：60A

Rated power：720W/12A,1440W/24V

Voltage:12-24V

Housing Material：aluminium

Housing color：black

panel Installation Method：bracket or adhesive tape

control box mounting bracket：2 ways

mounting bracket Material：carbon steel

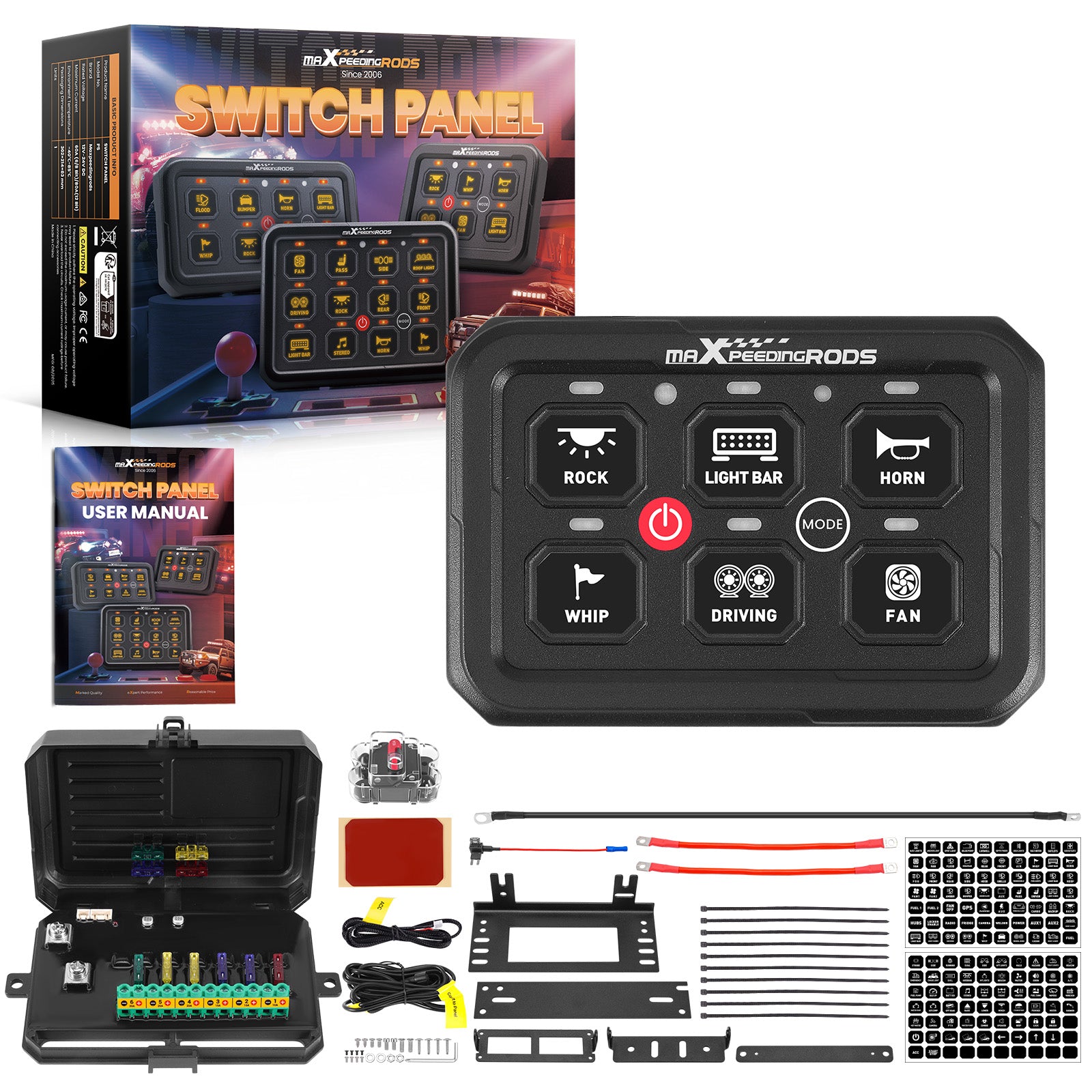

Pckage include：1*switch panel，1*switch control box，1* Breaker，4*Spare fuse，1*adhesive mounting tape，1*panel mounting bracket，2*control box mounting bracket，10*Zip Tie，1*Installation Instruction，2*70pcs Stickers，1*set of wiring harness，1* set of mounting accessories Features*4 Control Modes with Color Indicators - Master different devices with ease using the 4 distinct control modes, each with a corresponding color indicator: Toggle (Red Light), Momentary (Blue Light),slow Strobe(Purple Light), and fast strobe (Green Light). At the same time, the buttons have a memory function.

*Maxpeedingroads 6 gang RGB switch panelhas 8 backlight colors and 3 effects (gradient, jumping, breathing)，which can be freely selected according to your needs.it has automatic dimmable feature. When in a tunnel or dark place, the panel will dim to reduce the impact on the driver's vision. When on the road or in bright places, it will be brighter to make it easier for the driver to control. Of course, you can also close it at any time.

*Using high-quality aluminum and ABS heat-resistant materials, it has good heat resistance, corrosion resistance, and good heat dissipation. The metal material button can be pressed up to 200000 times or more. At the same time, it is equipped with dual overload protection and Positive and negative pole connection error protection, making it safe, reliable, sturdy and durable.

*Customize your own panel, with 140 switch panel stickers, you can customize your unique personal switch panel according to certain needs.

*It allows you to add integrated professional controls for the electronic devices needed in any vehicle, making the wiring inside the car neat and orderly. For example, installed on trucks, pickups UTV、 On vehicles such as sedans, ships, ATVs, UTVs, and RVs.Please note*This kit has everything you need for installation and use. No need to buy extra parts.
