7P 2AATS Automatic Transfer Switch generator rapid supply for power outage

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

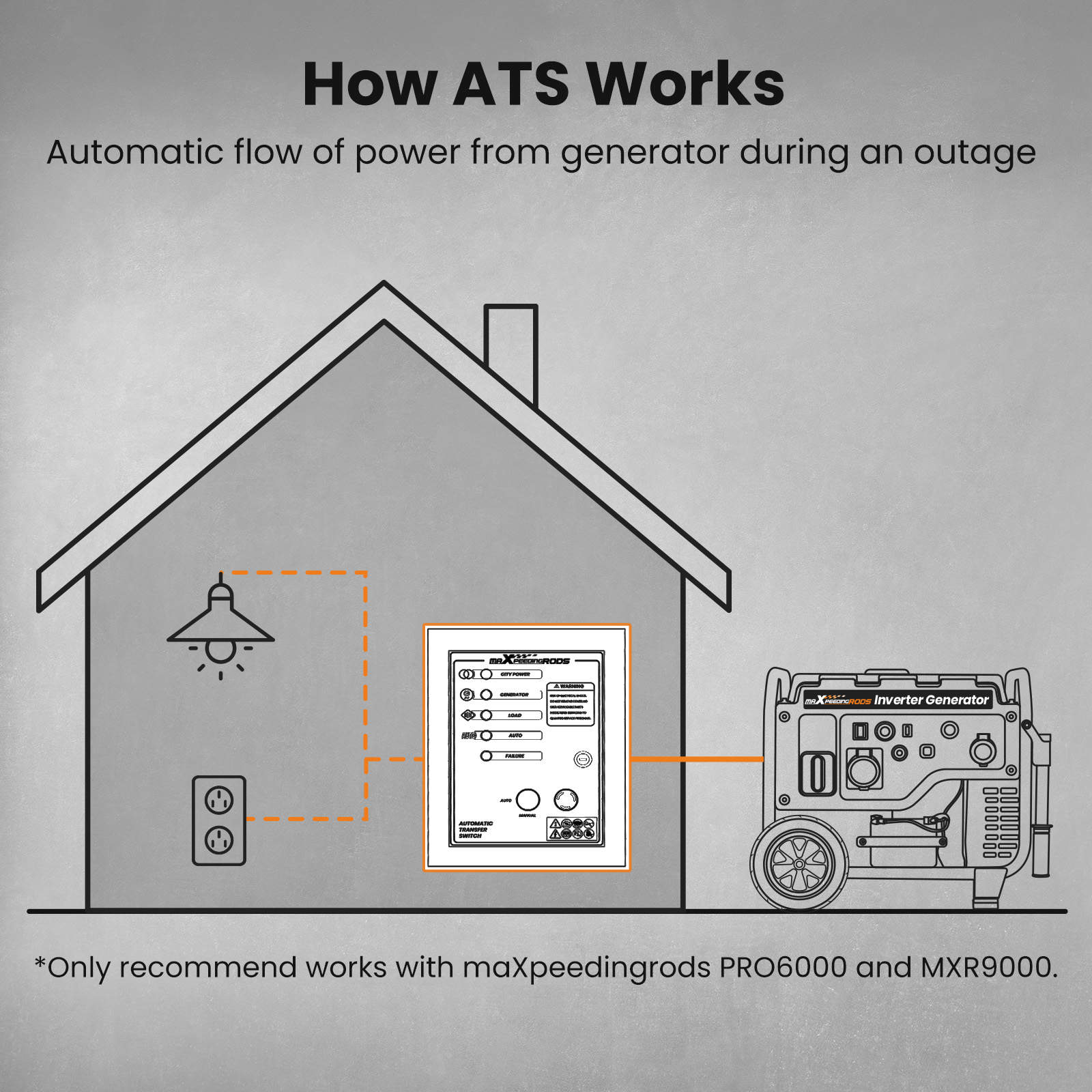

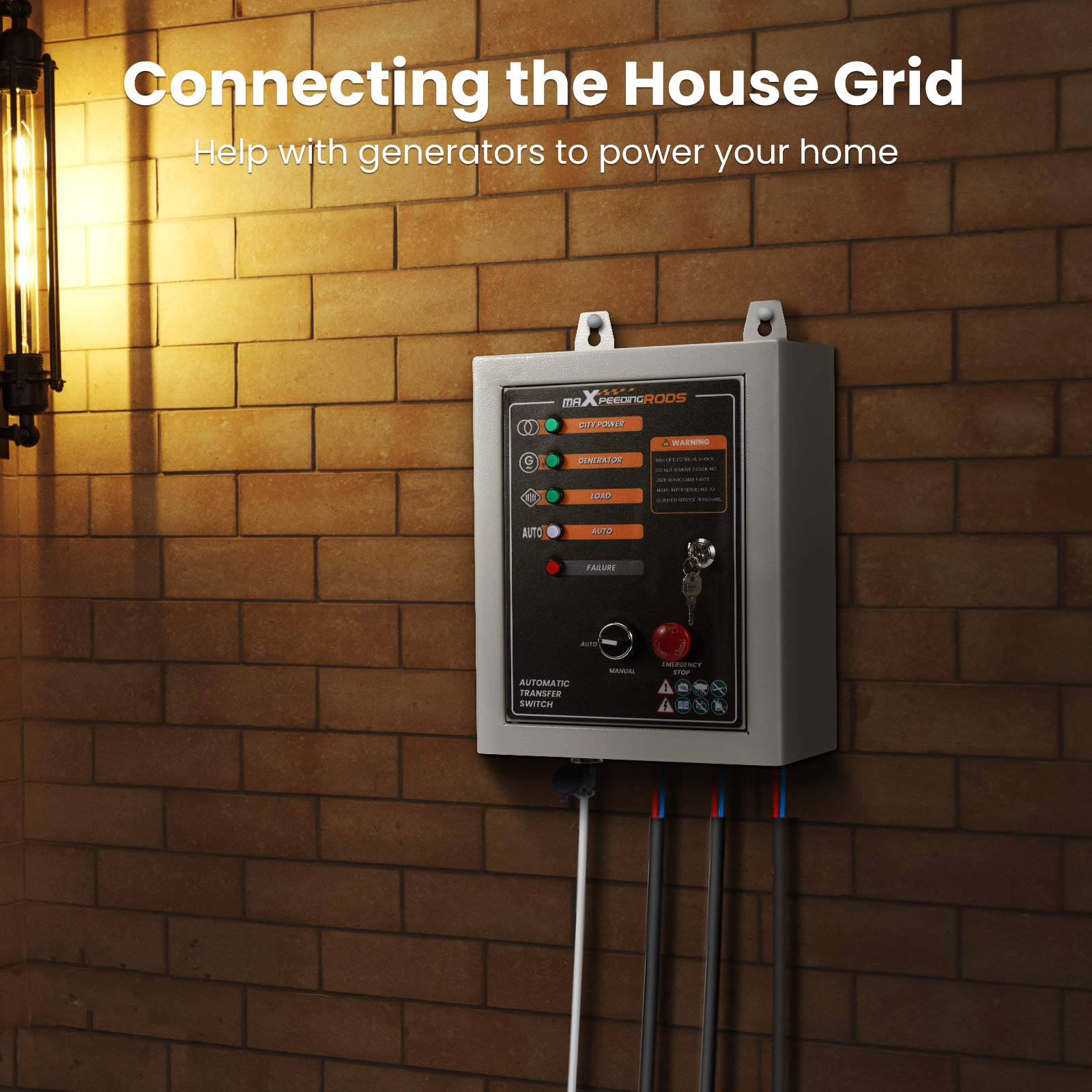

Introduction Ma Xpeedingrods ATS system is designed for mains power supply off and starts generator for emergency power supply on. When mains power supply off,the generator will start in 15-30 seconds,and then supply power to load.When mains power supply on,the ATS system will automatically transfer switch to main power supply,and then stop the generator in 30-60 seconds.Application1. The unit is mainly used in radar stations, outposts, barracks, post and telecommunications, finance, hospitals and after a power outage Users who need rapid power supply.

2. It is compatible with the MAXPEEDINGRODS MXR6000 PRO and MXR9000 inverter generator with integrated 7-pin ATS connector.Specifications Contactor rated current:

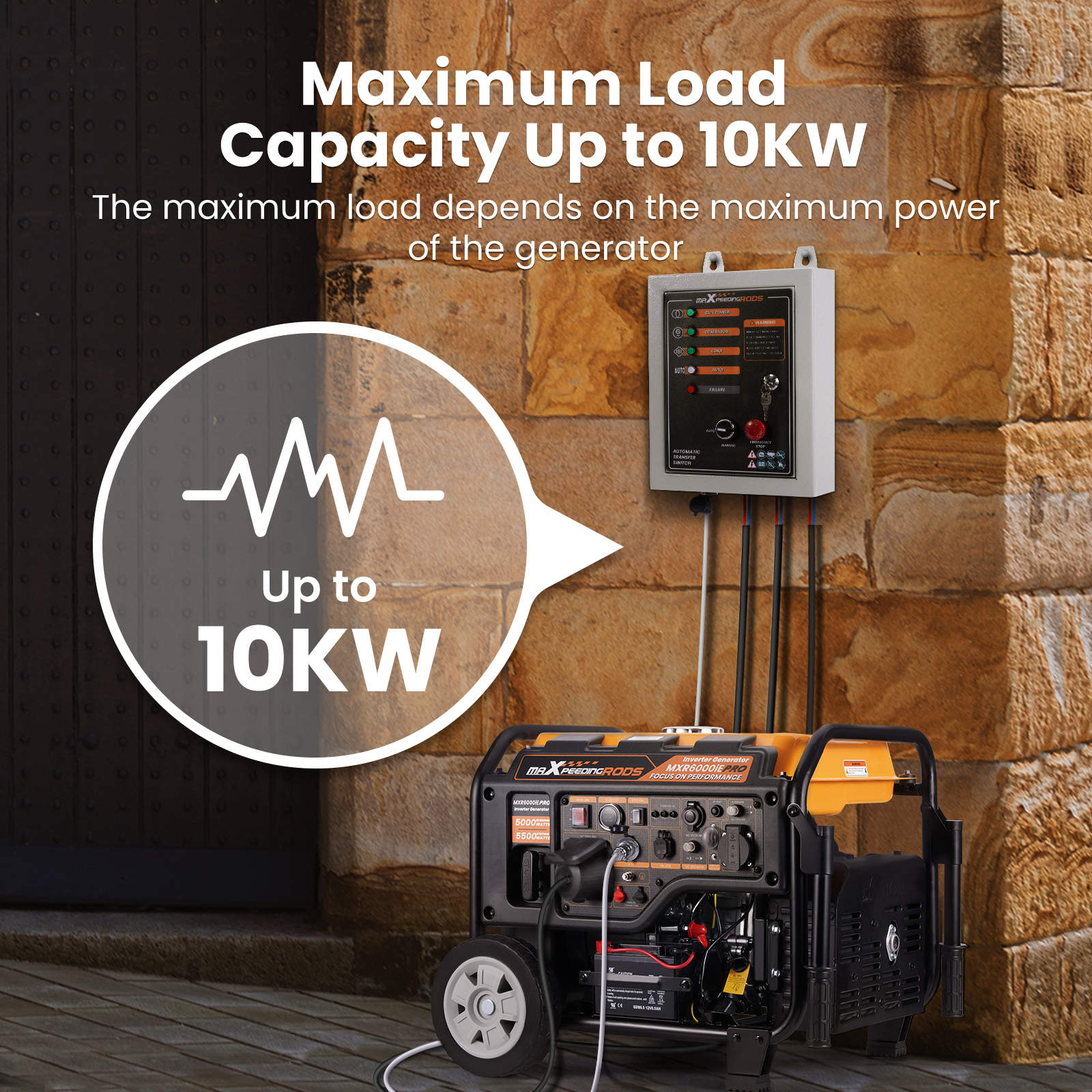

Single Phase: 230V/25A (5KW Generator)

Single Phase: 230V/50A (10KW Generator)

Inner suitable for Charger:

Input Voltage: Suitable for AC 90~250V

Output Voltage：DC 13.8V（±2%）

Charging Current：2A

Operating temperature: (-25～80)℃, humidity: ≤ 60%

Storage conditions: (-15～60)℃ , humidity: ≤ 60%

Connection cable: 7 pin Chrome plated

Cable length ( m ) : 5m

Dimensions( cm): 32*25*14

Packing size( cm ): 41*33.5 * 22

Net weight ( kg ): 4.8kg

Gross weight ( kg ): 6.5kg Package included1 X ATS Unit

1 X 5m Connection Cable

1 XUser Manual Features1. It is compatible with ma Xpeedingrods PRO6000iE and MXR9000 inverter generators.

2. The ATS unit has a controller that allows the generator's automatic start in suitable for case of main power failure.

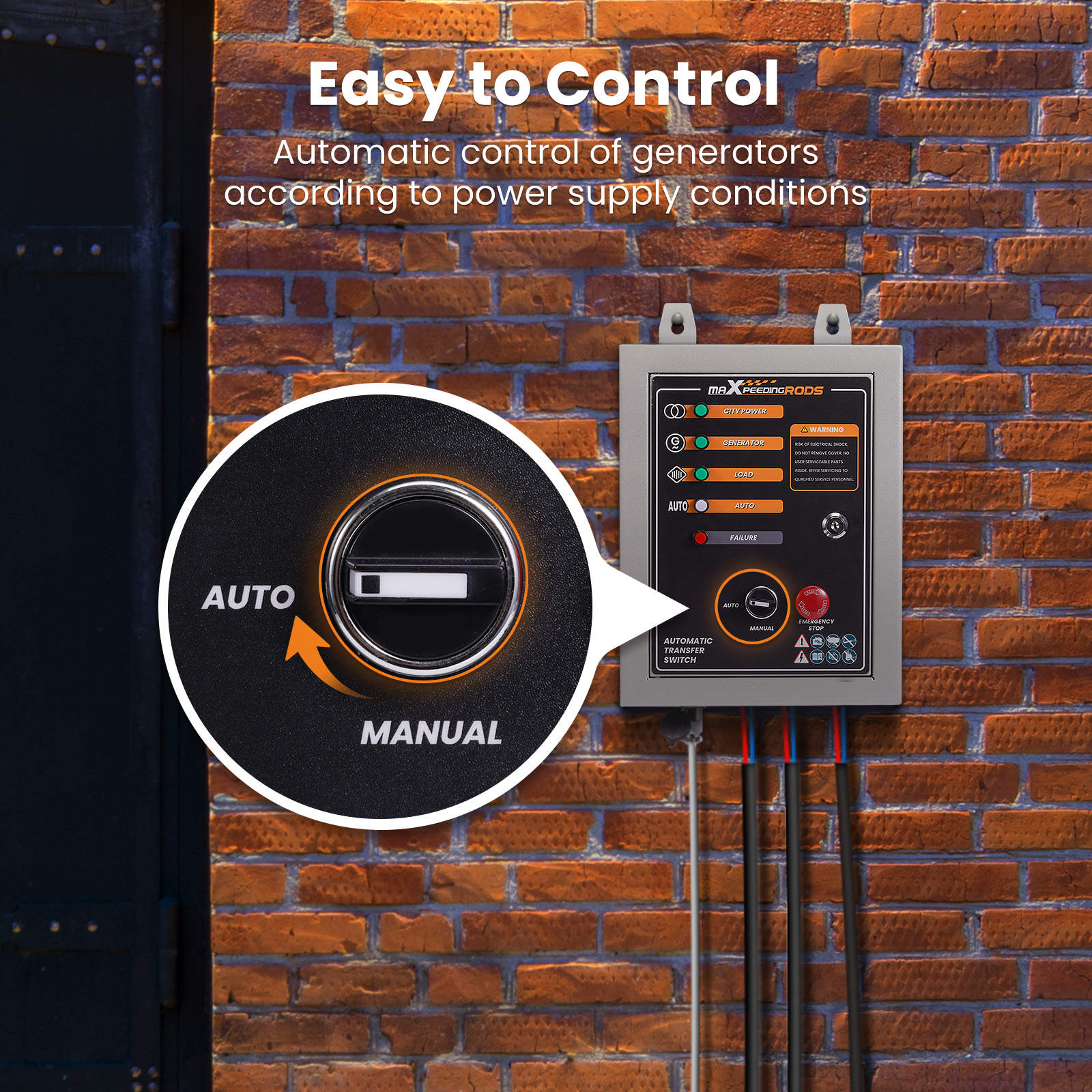

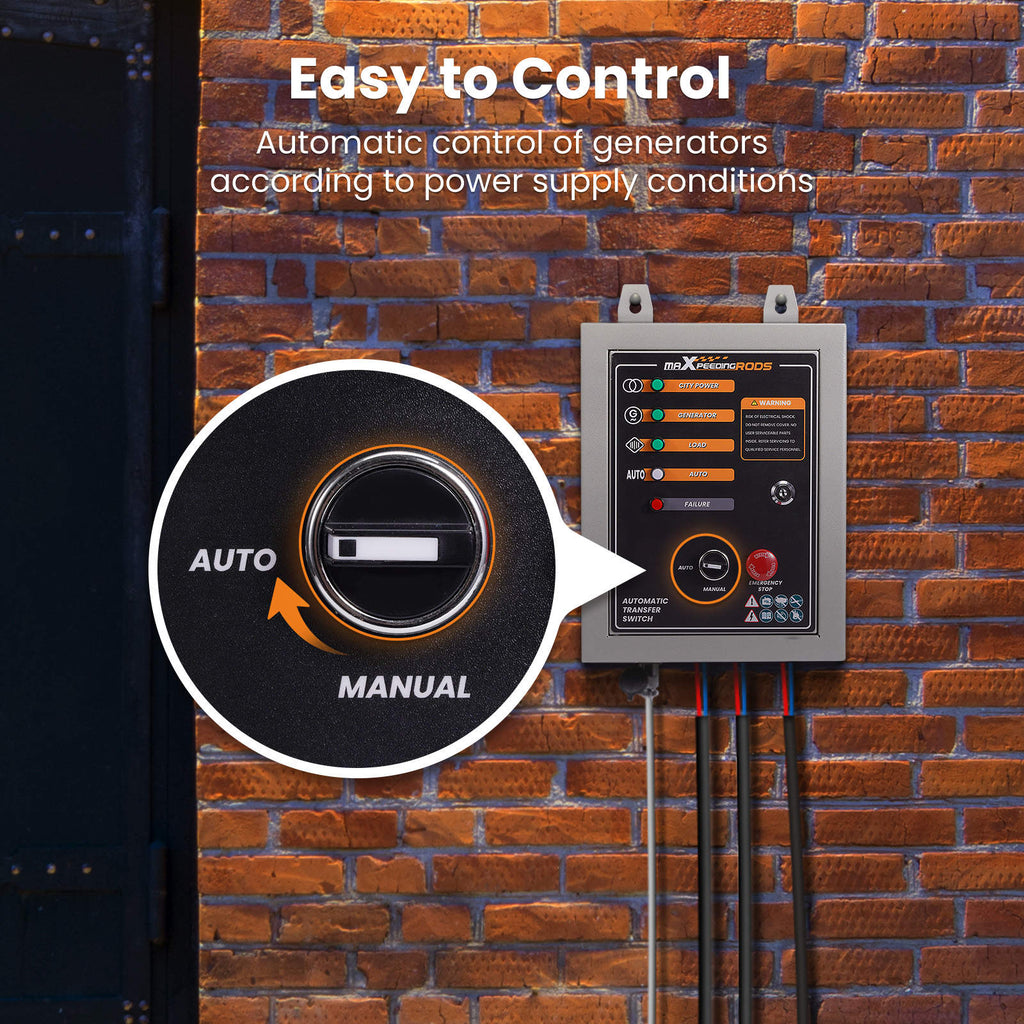

3. Automatic / manual operation.

4. 7-pin control cable connector.Please note1.Do not use the product near flammable gases, liquids or dust. Keep the work area clean and well lit to avoid injuries.

2.The product is energized. Observe safety precautions to avoid electric shock. Avoid operating the product in high-humidity environments.

3.The total power of power consumers connected to the ATS system must not exceed the maximum permissible power for this ATS unit model.

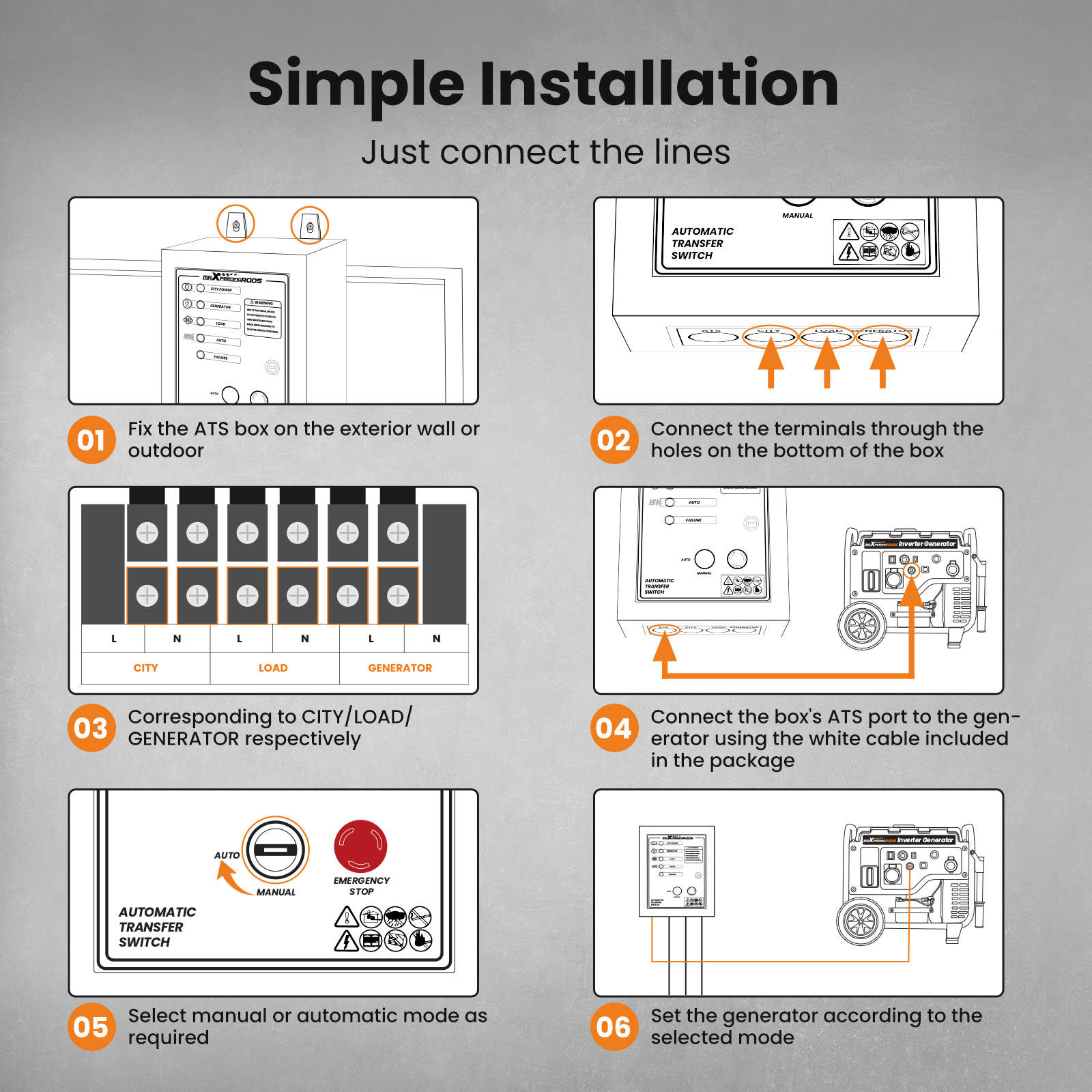

4.Opening of ATS unit and its connection to the mains must be carried out only by qualified specialist. Keep unauthorized persons, children and animals away from the running product.
