A/R 0.72 for GT35 Turbo 900HP Billet Compressor Wheel T4 V-Band 2.0-3.5L Engine

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application2.0L-3.5 Lengine displacements and capable of producing up to 900 horsepower Specifications Horsepower: 550HP-900HP

Displacement: 2.0L-3.5L

Compressor

Compressor Inducer: 61.75mm

Compressor Exducer: 76.6mm

Compressor Trim: 65

Compressor A/R: 0.72

Compressor Air Inlet : 4 Inch

Compressor Air Outlet: 2 Inch

Turbine

Turbine Inducer: 60mm

Turbine Exducer: 54.95mm

Turbine Trim: 84

Turbine A/R: 0.83

Turbine Inlet : 3 Inch O.D. V-Band

Turbine Outlet: 3.55 Inch (90mm)O.D. w/81mm centering ring V-Band

Cooling Type: Water+Oil Cooling

Bearing Type: Dual Ceramic Ball Bearing

Oil Restrictor Size: 1mm

Oil Inlet Size: 7/16-24

Oil Outlet Size: φ13.5-2*M8*1.25

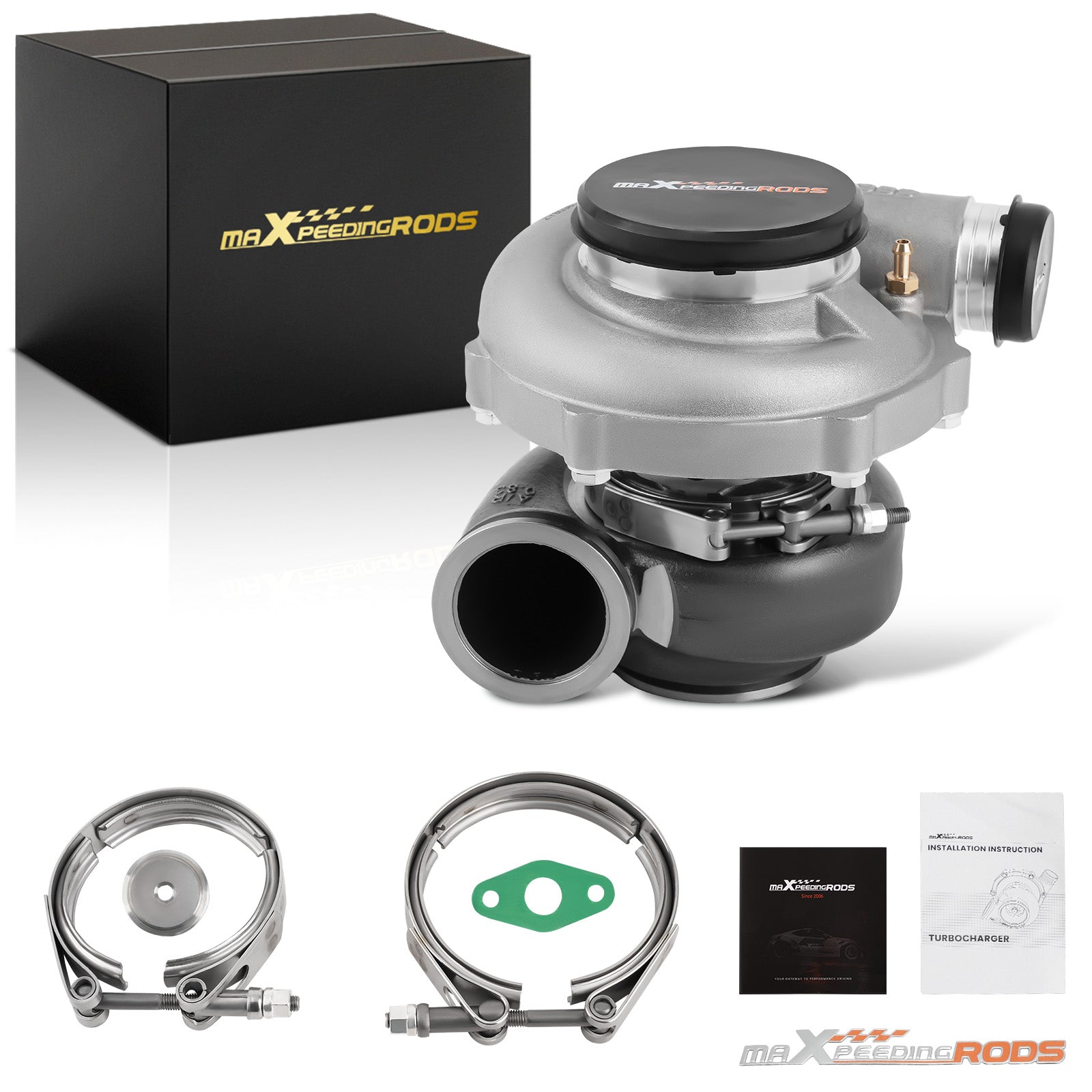

Water Thread Size: M14*1.5 Package included1x Turbocharger

1x Oil Gasket

2x V-bands

1x Restrictor

1x Manual

1x Brochure

1x Sticker Features*Product Material

1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistanceupto 1000℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

1. Excellent high temperature resistance，high efficiency and durability

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Please note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
