Adjustable Height Coilovers Suspension Kit compatible for BMW E39 1996-2003 Saloon Only

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Ma Xpeedingrods-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.Application Suitable for BMW 5 (E39) (1995-2003)RWD notchback

model:525 i，530 i，540 i， 520 d，520 i，523 i，525 td，525 tds，528 i 525 d，530 d，535 i

Please note: Not for Wagon or M5 Models

Will not fit Self Leveling/Air suspension model Specifications Top mounts: front - pillow ball top mounts with camber plate

rear - rubber top mounts

Damping: not available

Spring rate Front: 12 kg/mm (672 lbs/in)

Spring rate Rear: 9kg/mm (504 lbs/in)

Spring length Front: 190mm

Spring length Rear: 190mm

Adjustable height: lowering 1-3inch

Coilover overall length Front: 490mm-540mm

Coilover overall length Rear: 520mm-605mm

Shock type: Twin tube

Spring preload: 7-10 mm

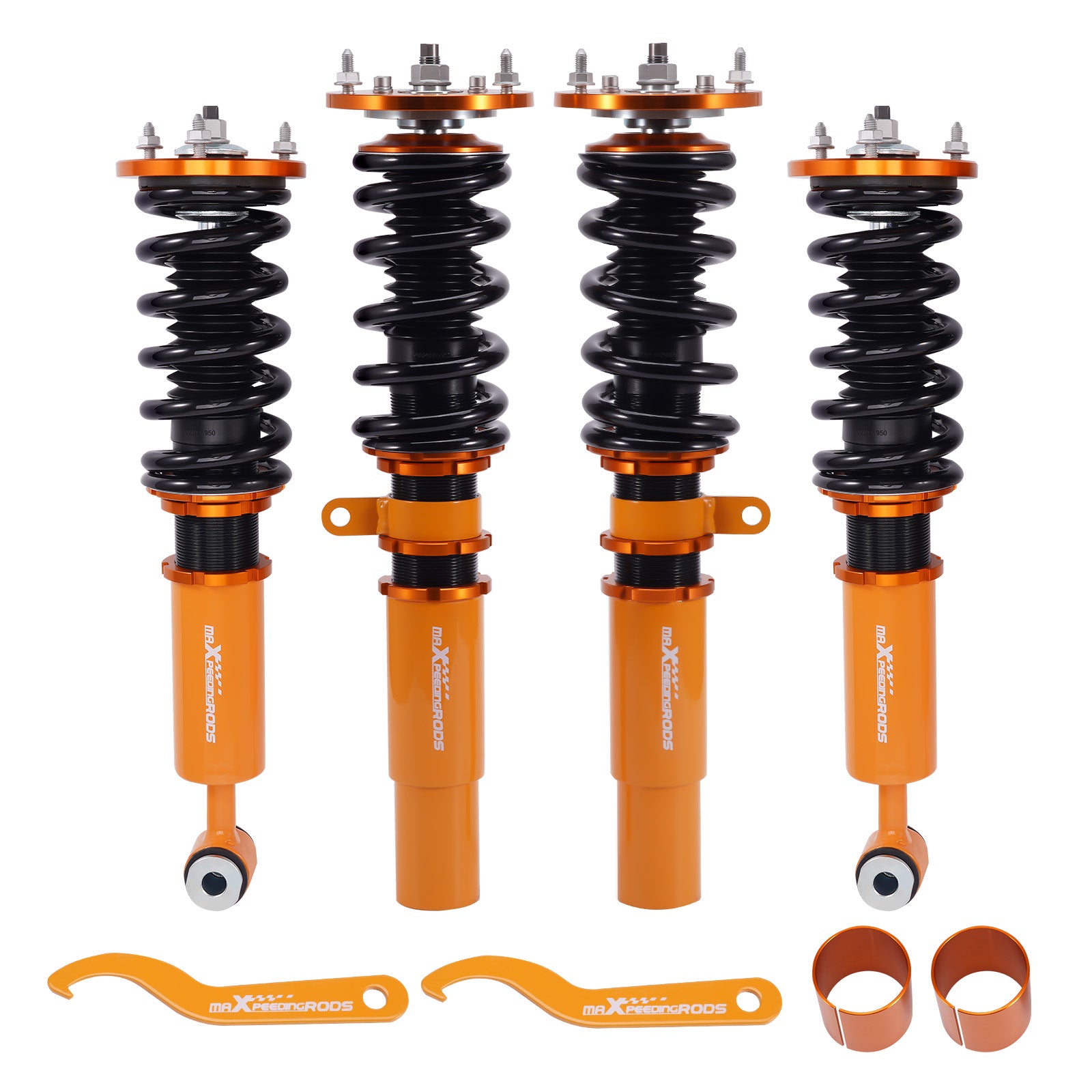

Color: gold Package includedcomplete coilovers for 2 front and 2 rear

a pair wrench for height adjustment Dimensionweight: 26520g

size: 71*51*21 cm Features1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. Twin-Tube structure allows sufficient stroke within the shock absorber

3. Separate height adjustment does not affect damper stroke

4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

5. Height Adjustment tools included

6. Camber plate top mounts help to eliminate the need for a separate camber kit

7. Pillow ball top mount - It improves the steering feel and response

8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

9. Full rebuildable Notice Notice:

1. Installation Requirement: Use spacers to prevent movement of rubber boots when installing eye-type coilovers.

2. Regular Inspection: Rubber boots typically last 1-3 years, depending on factors such as vehicle weight, road conditions, climate, and driving habits.Inspect them every six months or during routine maintenance, and replace them immediately if any damage or signs of aging are observed.

3. Warranty Coverage Notice: Normal wear and tear on rubber components is not covered by warranty.
