Application

Compatible for CHEVROLET C10 PICKUP 1973-1977, 1981-1986
compatible for CHEVROLET C20 PICKUP 1973-1986
compatible for CHEVROLET C30 PICKUP 1973-1986
compatible for CHEVROLET C10 PICKUP BASE MODEL 1978-1980
compatible for CHEVROLET C10 PICKUP BIG TEN 1978-1980
compatible for CHEVROLET R10 PICKUP 1987
compatible for CHEVROLET R20 PICKUP 1987
compatible for CHEVROLET R30 PICKUP 1987
compatible for DODGE W100 PICKUP 1969-1977, 1986-1989
compatible for DODGE D200 PICKUP 1969-1980
compatible for DODGE D300 PICKUP 1969-1980
compatible for DODGE W200 PICKUP 1969-1980
compatible for DODGE W300 PICKUP 1969-1980
compatible for DODGE D150 PICKUP 1977-1989, 1992-1993
compatible for DODGE W150 PICKUP 1977-1989, 1992-1993
compatible for DODGE RD200 PICKUP 1978, 1980
compatible for DODGE D250 PICKUP 1981-1993
compatible for DODGE D350 PICKUP 1981-1993
compatible for DODGE W250 PICKUP 1981-1993
compatible for DODGE W350 PICKUP 1981-1993
compatible for DODGE D150 PICKUP BASE MODEL 1990-1991
compatible for DODGE D150 PICKUP S 1990-1991
compatible for DODGE W150 PICKUP BASE MODEL 1990-1991
compatible for DODGE W150 PICKUP S 1990-1991
compatible for DODGE RAM 1500 PICKUP RWD 1994-1996
compatible for DODGE RAM 2500 PICKUP 4WD/RWD 1994-2002
compatible for DODGE RAM 3500 PICKUP 4WD/RWD 1994-2002
compatible for DODGE RAM 1500 PICKUP BASE MODEL 1997-2001
compatible for DODGE RAM 1500 PICKUP LARAMIE 4WD/RWD 1997-2001
compatible for DODGE RAM 1500 PICKUP SPORT 4WD/RWD 1997-2001
compatible for DODGE RAM 1500 PICKUP ST 4WD/RWD 1997-2001
compatible for DODGE RAM 1500 PICKUP WS 4WD/RWD 1997-2001
compatible for FORD F-100 PICKUP 1965-1976, 1980-1983
compatible for FORD F-250 PICKUP 1969-1976
compatible for FORD F-350 PICKUP RWD 1970-1978, 1981-1987
compatible for FORD F-150 PICKUP 1975-1976
compatible for FORD F-100 PICKUP BASE MODEL 1977-1979
compatible for FORD F-100 PICKUP SUPER CAB 1977-1979
compatible for FORD F-250 PICKUP SUPER CAB RWD WITH HEAVY DUTY SUSPENSION 1977-1979
compatible for FORD F-250 PICKUP SUPER CAB 4WD/RWD WITH STANDARD SUSPENSION 1977-1979, 1998
compatible for FORD F-150 PICKUP BASE MODEL 1977-1996
compatible for FORD F-150 PICKUP SUPER CAB 4WD/RWD 1977-1996
compatible for FORD F-250 PICKUP BASE MODEL 1977-1996, 1998-1999
compatible for FORD F-350 PICKUP BASE MODEL RWD 1979-1980, 1988-1997
compatible for FORD F-350 PICKUP SUPER CAB 4WD/RWD 1979-1980, 1988-1997
compatible for FORD F-250 PICKUP SUPER CAB 4WD/RWD 1980-1996, 1999
compatible for FORD F-250 PICKUP NEW BODY 4WD/RWD WITH HEAVY DUTY SUSPENSION 1997
compatible for FORD F-250 PICKUP NEW BODY 4WD/RWD WITH STANDARD SUSPENSION 1997
compatible for FORD F-250 PICKUP NEW BODY SUPER CAB 4WD/RWD WITH HEAVY DUTY SUSPENSION 1997
compatible for FORD F-250 PICKUP NEW BODY SUPER CAB 4WD/RWD WITH STANDARD SUSPENSION 1997
compatible for FORD F-250 PICKUP OLD BODY 4WD/RWD 7000 LBS. GVWR 1997
compatible for FORD F-250 PICKUP OLD BODY 4WD/RWD 8600 LBS. GVWR 1997
compatible for FORD F-250 PICKUP OLD BODY SUPER CAB 4WD/RWD 7000 LBS. GVWR 1997
compatible for FORD F-250 PICKUP OLD BODY SUPER CAB 4WD/RWD 8600 LBS. GVWR 1997
compatible for FORD F-250 SUPER DUTY PICKUP 4WD/RWD NO IN-BED HITCH 1999-2004
compatible for FORD F-350 SUPER DUTY PICKUP 4WD/RWD NO IN-BED HITCH 1999-2004
compatible for GMC C35 OR C3500 PICKUP 1968-1974
compatible for GMC C15 OR C1500 PICKUP 1973-1974, 1981-1983
compatible for GMC C25 OR C2500 PICKUP 1973-1978
compatible for GMC C15 PICKUP 1975-1976
compatible for GMC C35 PICKUP 1975-1978
compatible for GMC C15 PICKUP BASE MODEL 1977-1978
compatible for GMC C15 PICKUP BIG TEN 1977-1978
compatible for GMC C1500 PICKUP 1979, 1984-1986
compatible for GMC C15 OR C1500 PICKUP BASE MODEL 1979-1980
compatible for GMC C15 OR C1500 PICKUP BIG TEN 1979-1980
compatible for GMC C2500 PICKUP 1979-1986
compatible for GMC C3500 PICKUP 1979-1986
compatible for GMC C1500 PICKUP BASE MODEL 1980
compatible for GMC C1500 PICKUP BIG TEN 1980
compatible for GMC R2500 PICKUP 1987

NOTE:
Require 8" Between Tire and Frame
Does NOT fit vehicles which have a 5th wheel hitch

Specification

Condition: Brand New
Minimum PSI: 5 PSI
Maximum PSI: 100PSI
Internal Jounce Bumper included: Yes
Placement on Vehicle: Rear left and right
Air spring---
Load capacity：Up to 5000 LBS
Design height: 180 mm
Stroke: 100 mm
Max. Extended: 200 mm
Min. Compressed: 100 mm

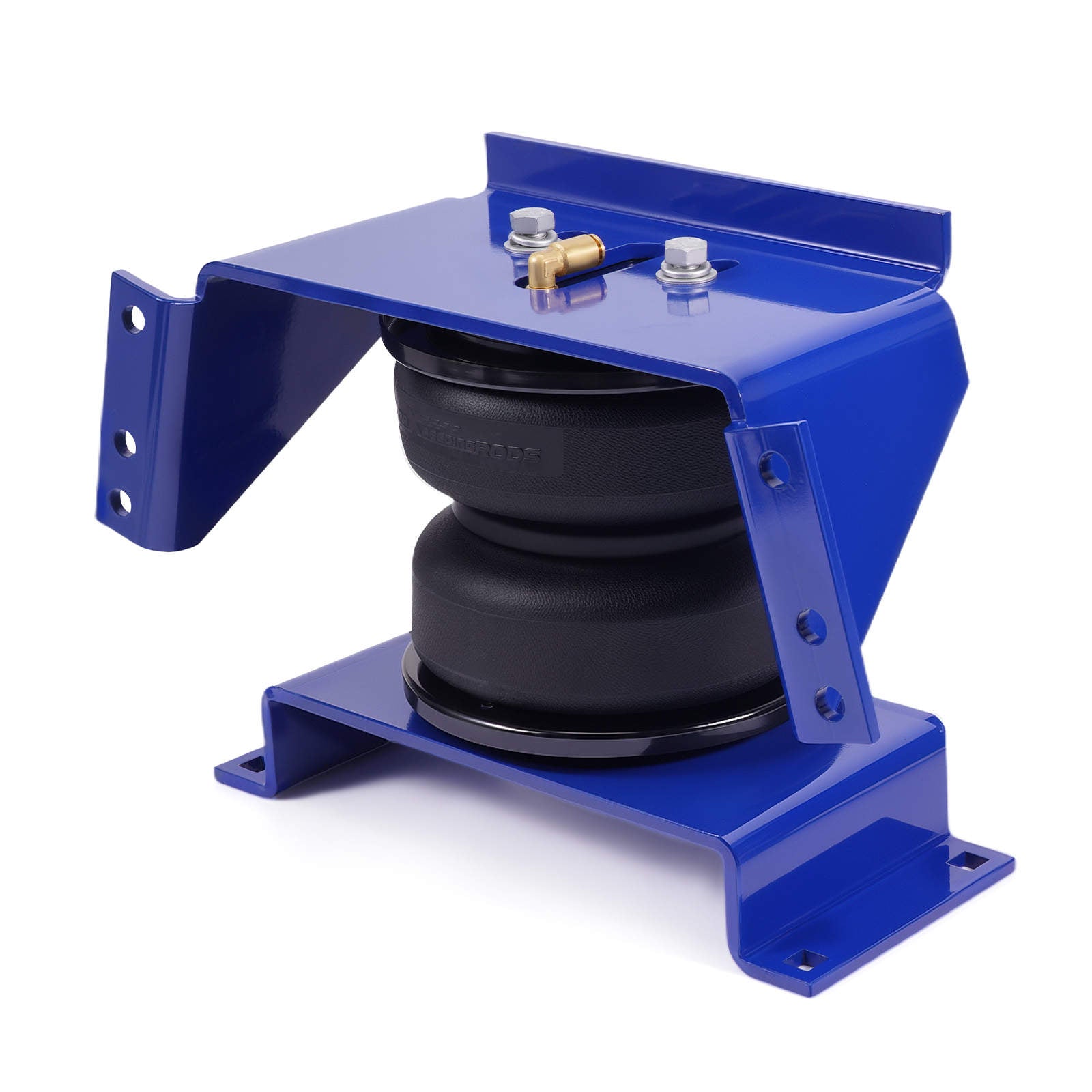

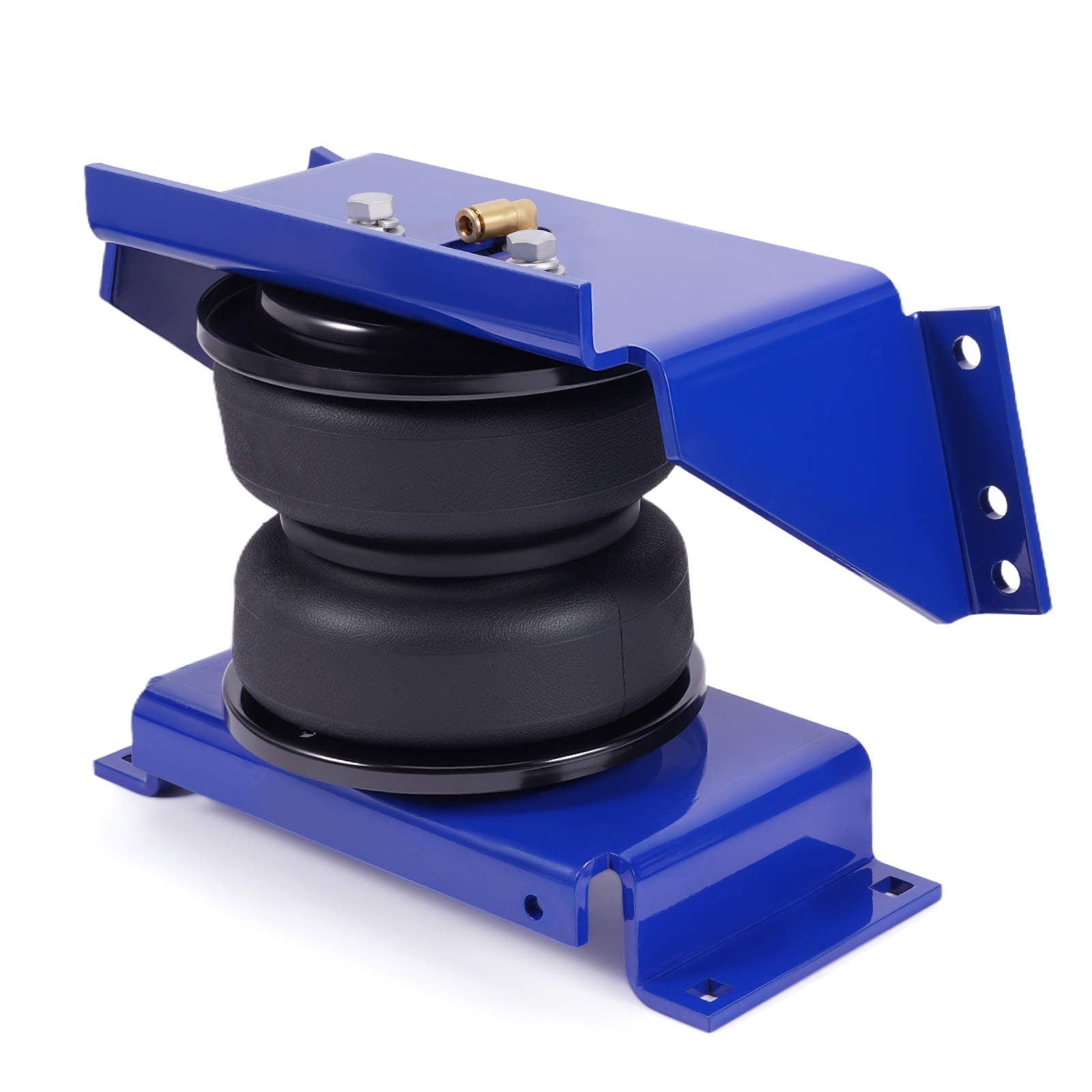

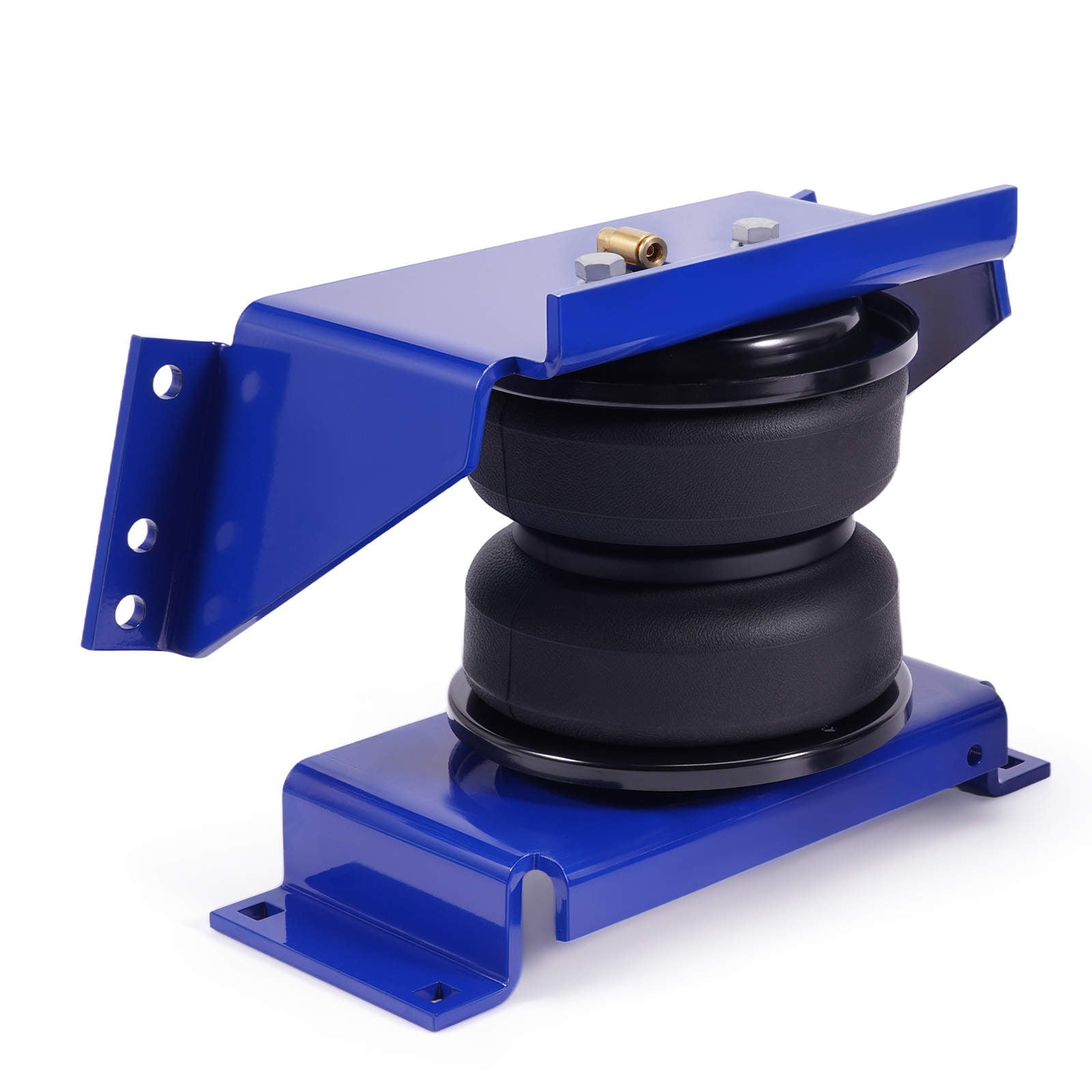

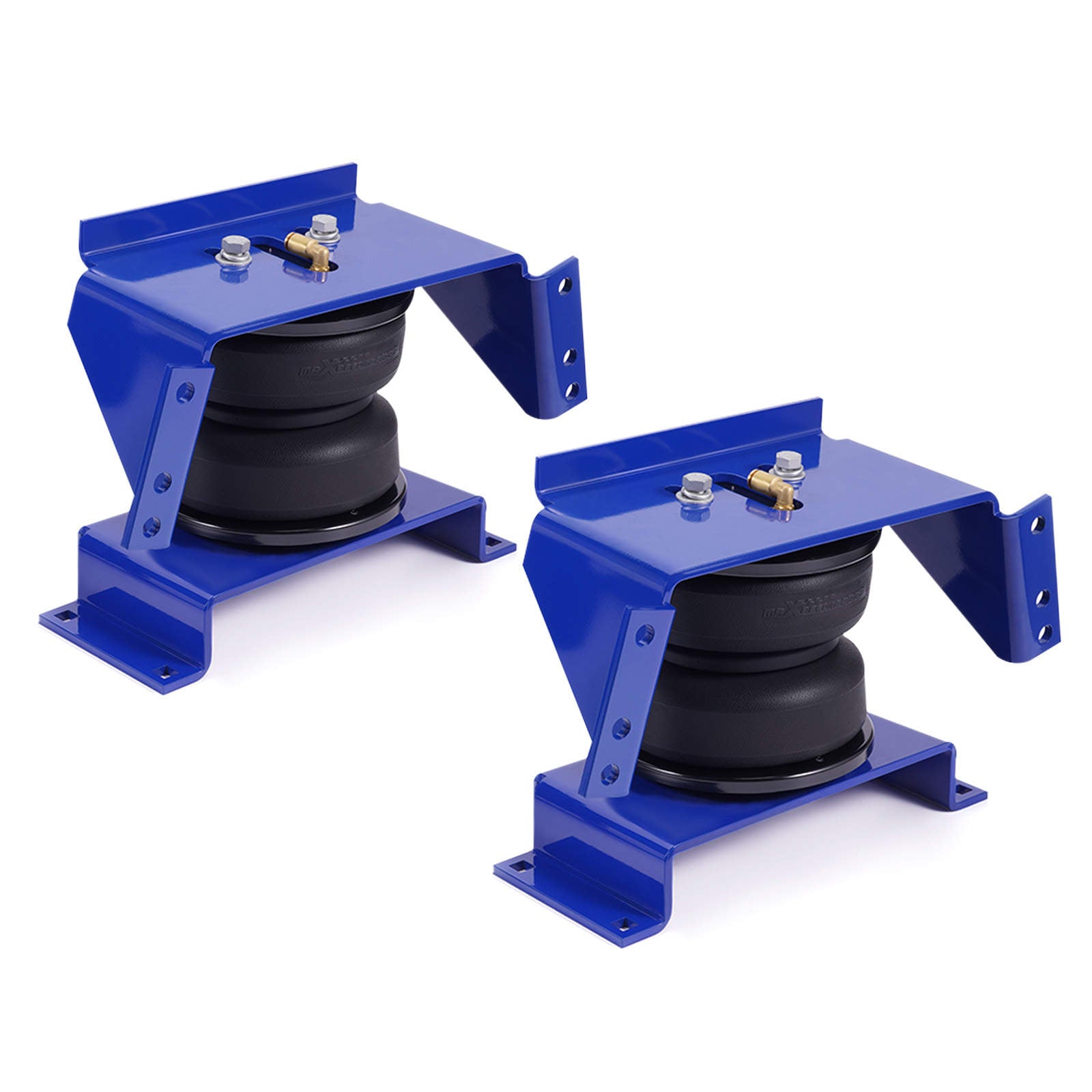

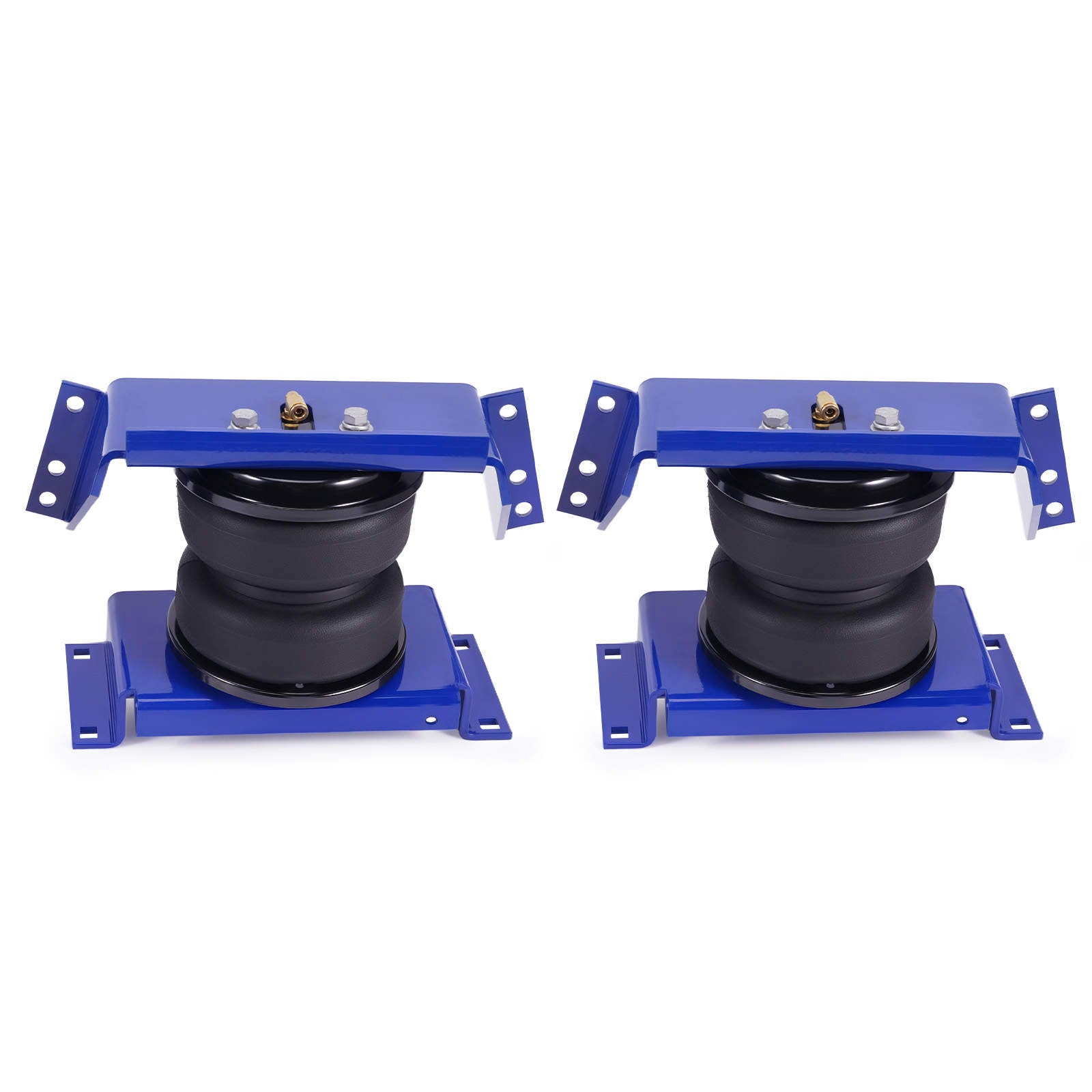

Package includes（as the picture shows）:
2x Heavy Duty Double Bellow Air Ride Suspension bags
4x Upper and lower mounting brackets
1 x Air line 5m (OD 1/4")
1 x Installation instruction
Includes All Brackets & Hardware Needed to Install

Feature

1. Tested over 5,000,000 compression cycles for reliable performance.

2. Burst pressure ≥ 290 PSI (2.0 MPa) ensures safe and stable load support.

3. 100% air-tightness tested to maintain consistent air pressure.

4. Supports up to 5,000 lbs, reduces squat, sway, and bottoming out.

5. Equipped with an internal jounce bumper, it prevents abrupt bottoming-out during full compression, ensuring a smoother and safer ride under heavy loads.

Load Support & Ride Quality Improvement

1. Designed to restore factory ride height when carrying heavy loads or towing.

2. Reduces vibration and noise for a smoother, quieter ride

3. Improves vehicle stability, ride comfort, and reduces tire and suspension wear.

4. Keeps the vehicle level under load, maintaining proper headlight aim for safer night driving.

5. Enhances towing and hauling performance, preventing sag and improving braking and steering control.

6. Improves lateral stability and weight distribution to minimize body roll during cornering.

Heavy-Duty Construction & Materials

1. 4-layer reinforced air spring construction enhances strength and load capacity.

2. UV-resistant rubber compound resists to cracking, fading, and environmental damage.

3. Premium natural rubber with an operating temperature range of -40°F to 158°F.

4. High-strength SPHC steel brackets with powder-coated finish.

5. Bolts, nuts, and washers feature a Dacromet corrosion-resistant coating and meet grade 8 or above strength standards.

Easy & Organized Installation

1.Bolt-on installation design, no cutting or welding required.

2. Every kit comes with clearly labeled parts in separate bags and comprehensive step-by-step instructions for easy installation.

3. Engineered for secure mounting and consistent fitment.

Compatible Components & Accessories

1. Designed to standard dimensions, ensuring easy installation and maintenance.

2. Standard-size fittings and hardware, compatible with other brands and aftermarket components.

3. Air lines and fittings with good interchangeability for easier replacement and maintenance.

4. Includes a no-drill inflation valve bracket, allowing secure valve installation without drilling or permanent vehicle modification.

5. Comes with a valve core tool for easier installation, adjustment, and maintenance.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
