AN10 Oil Adapter suitable for Toyota GT86 suitable for Subaru BRZ M20*1.5 Thermostatic
AN10 Oil Adapter suitable for Toyota GT86 suitable for Subaru BRZ M20*1.5 Thermostatic
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description

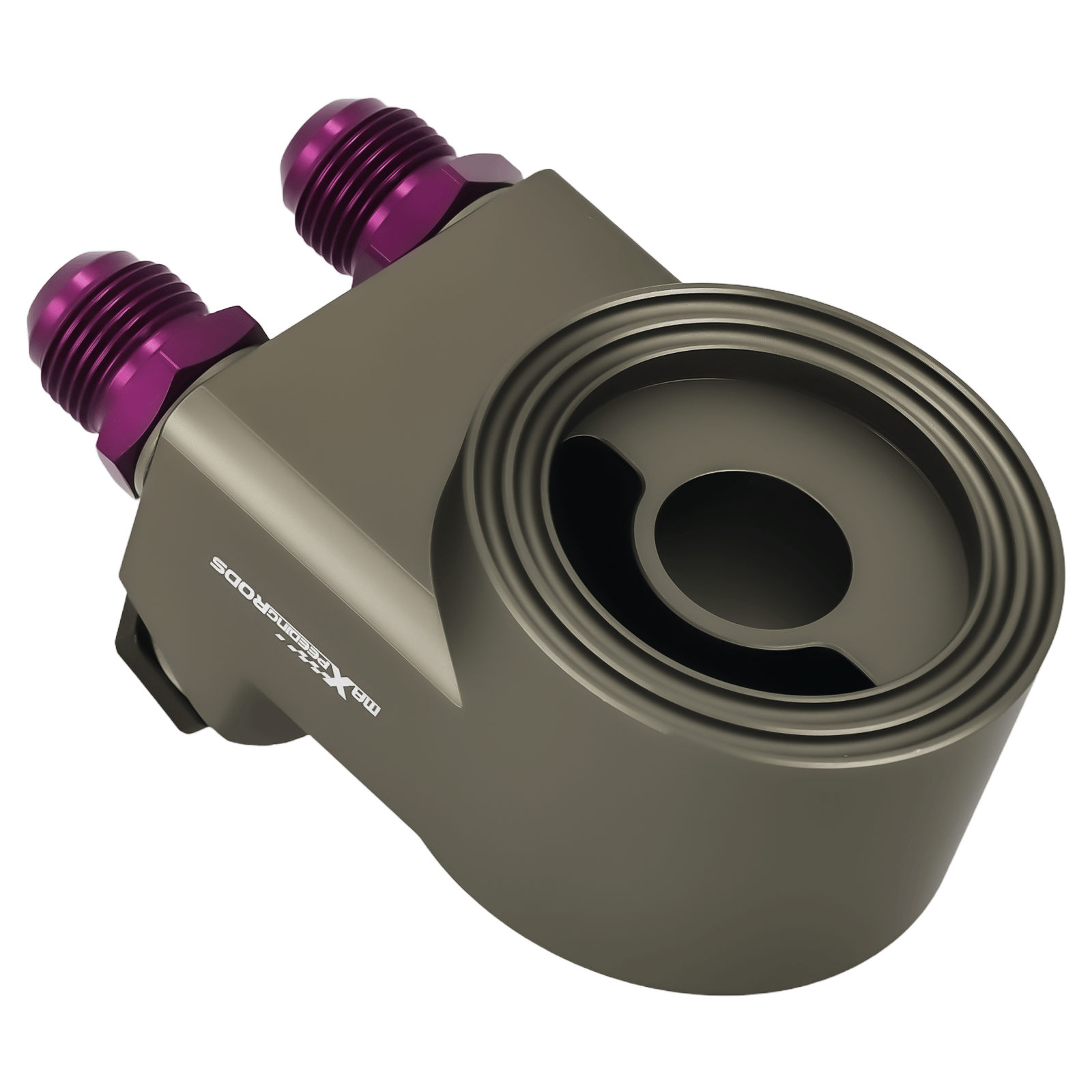

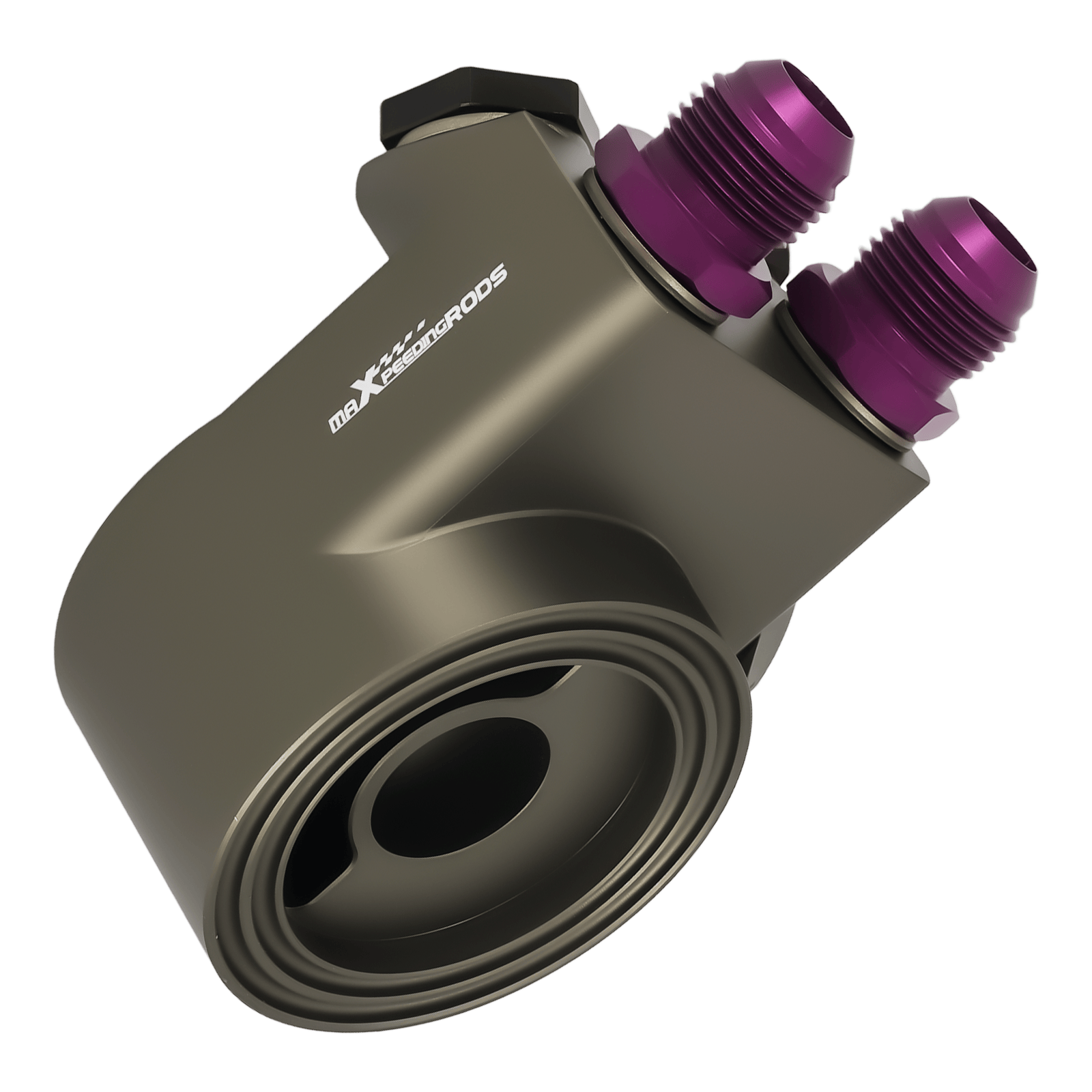

This sandwich adapter with thermostat valve (AN10) is designed to connect an oil cooler to your Subaru BRZ or Toyota GT86/GR86.
Suitable for:
- Subaru BRZ
- Toyota GT86, GR86 and other models
- Connection size AN10, compatible with AN10 hose fittings and oil coolers
Specifications
- Material: Aluminum alloy
- Input/output connection size: 10AN
- Working temperature: 73-83°C
- Central adapter: M20*1.5 and 3/4-16UNF
Scope of delivery

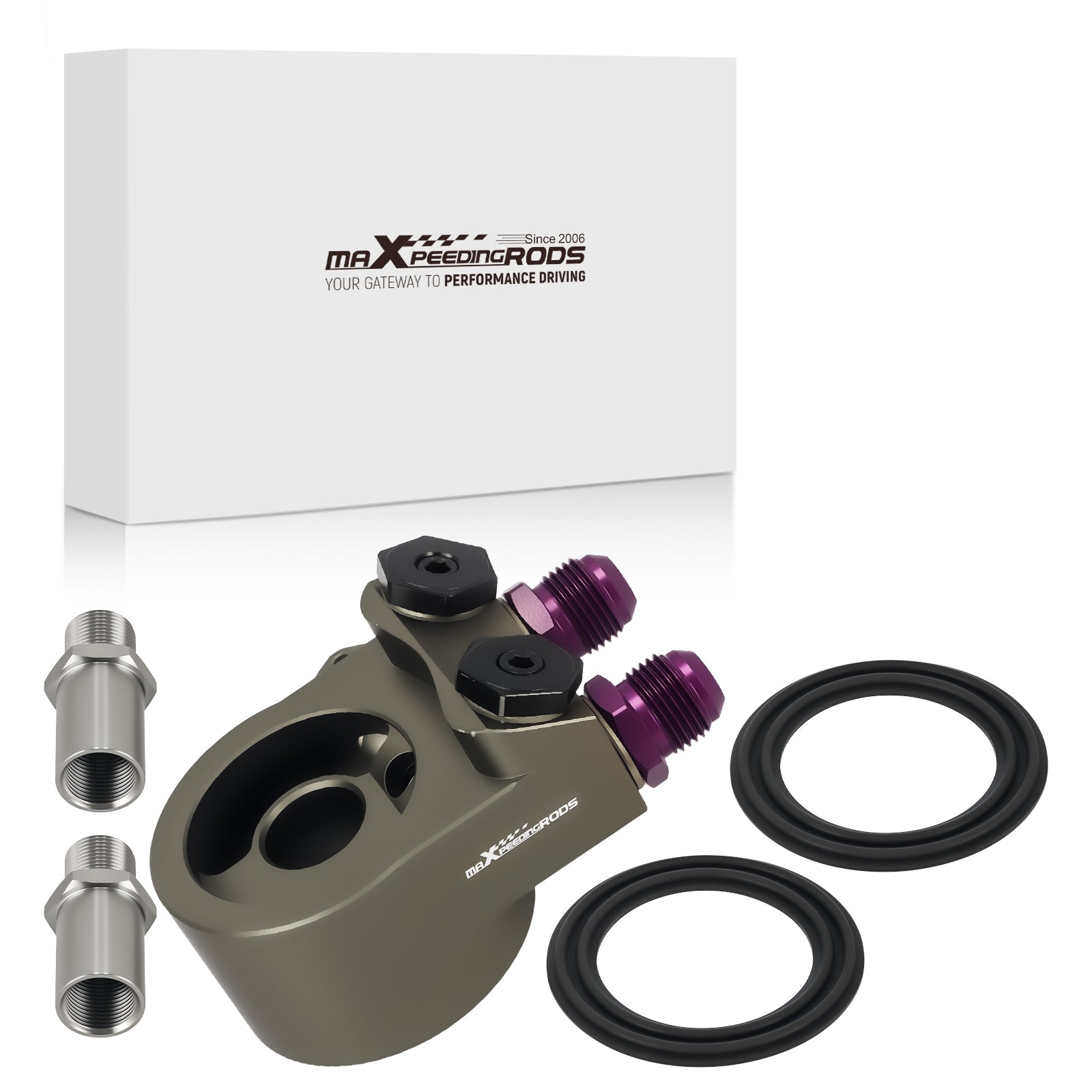

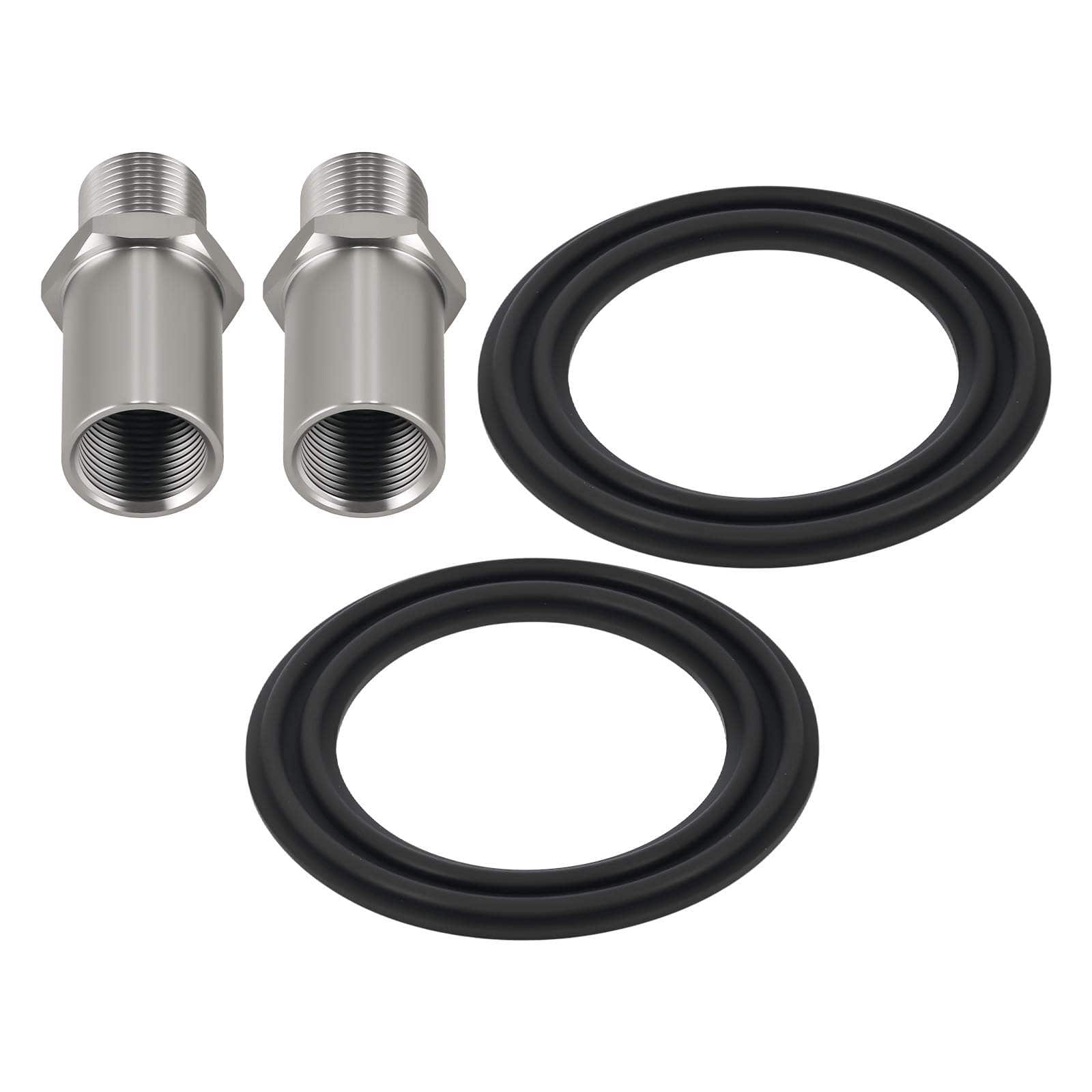

1x oil filter sandwich adapter kit (as shown in the image)
Features
- Optimized oil cooling performance: below 73°C the valve remains closed and oil flows directly through the main oil channel to the engine; above 73°C the valve gradually opens and a portion of the oil is routed through the oil cooler; at 83°C the valve is fully open

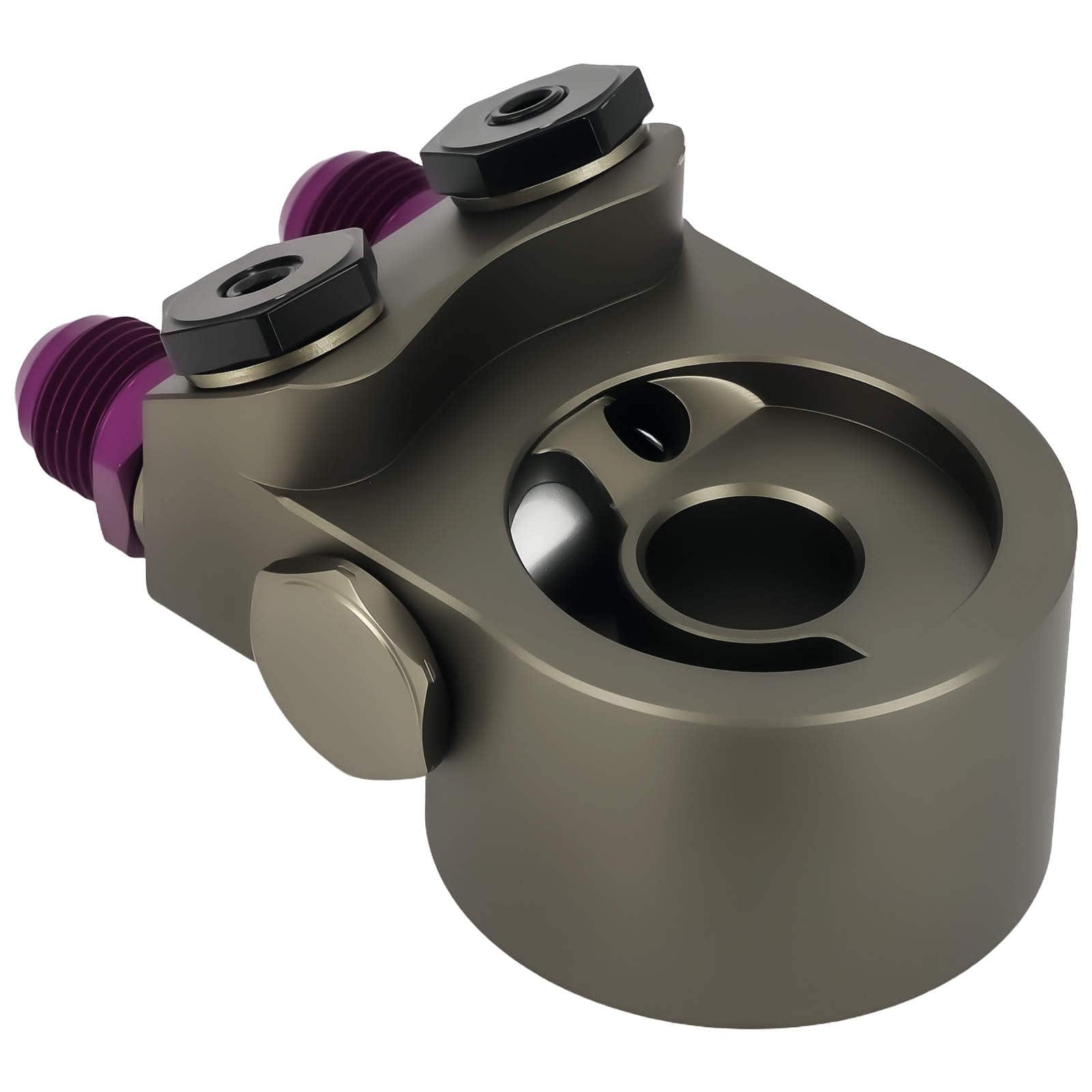

- Compact and lightweight design with two 1/8 NPT ports for optional oil temperature or oil pressure sensors; top and bottom connections are interchangeable for flat or angled mounting
- Increased dissipation surface for improved heat dissipation
- Made of aluminum alloy for durability
- Suitable for engine upgrades such as turbocharging and heavy-duty use
Please note
Connections are AN10 and must be compatible with AN10 oil cooler hoses. Professional installation is strongly recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
Product description
This sandwich adapter with thermostat valve (AN10) is designed to connect an oil cooler to your Subaru BRZ or Toyota GT86/GR86.
Suitable for:
- Subaru BRZ
- Toyota GT86, GR86 and other models
- Connection size AN10, compatible with AN10 hose fittings and oil coolers
Specifications
- Material: Aluminum alloy
- Input/output connection size: 10AN
- Working temperature: 73-83°C
- Central adapter: M20*1.5 and 3/4-16UNF
Scope of delivery
1x oil filter sandwich adapter kit (as shown in the image)
Features
- Optimized oil cooling performance: below 73°C the valve remains closed and oil flows directly through the main oil channel to the engine; above 73°C the valve gradually opens and a portion of the oil is routed through the oil cooler; at 83°C the valve is fully open
- Compact and lightweight design with two 1/8 NPT ports for optional oil temperature or oil pressure sensors; top and bottom connections are interchangeable for flat or angled mounting
- Increased dissipation surface for improved heat dissipation
- Made of aluminum alloy for durability
- Suitable for engine upgrades such as turbocharging and heavy-duty use
Please note
Connections are AN10 and must be compatible with AN10 oil cooler hoses. Professional installation is strongly recommended.
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
