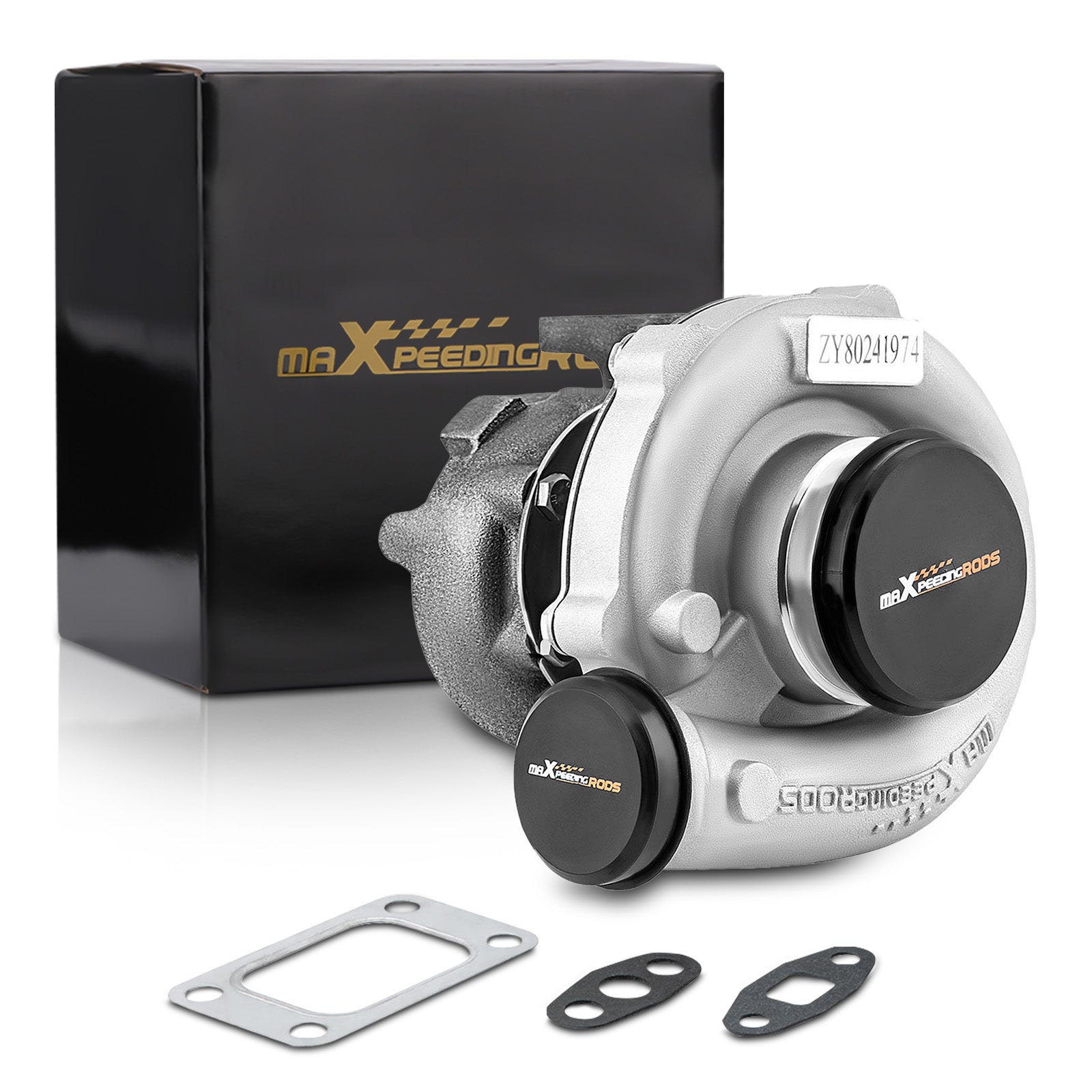

Billet Compressor Wheel T3 T04E Street Turbo Turbocharger Up to 400+HP .57 A.R Exhaust Turbine Universal

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application For 1.5L to 2.5L any 4/6 cylinder engine Specifications Turbine Intake Flange: T3 T4 4 bolt Flange Patterns Turbine Exhaust Flange: Standard T3 5 bolt flange pattern Wastegate：Without Wastegate Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Turbine Trim: 74.2 Turbine A/R: 0.57 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust inlet: 45mm/87mm Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)Oil Inlet: M12*1.25 Oil Outlet:2*M8*1.25 Cooling Type: Oil Cooled Bearing Type: Floating Bearing/Journal Bearing Trust Bearing: 270 degree Hosepower:Up to 400+HPTurbo Type:Individual Universal Fitment:Yes Finish:Matte Staat: 100% Brand New Package Size:26x 24x 23 cm Package Weight: 7250g Package included1x Turbocharger2x Oil port gaskets1x Flange gaskets1x Manual1x Brochure1x Sticker Features*Product Material1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistanceupto 1000℃3. Compressor housing：ZL104 aluminum with lightweight 4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response*Product Performance1. Increase 20-40% power for your car2. Excellent high temperature resistance，high efficiency and durability3. Rich experience in turbo production and own factory4. High-Speed oil seal ring and Precision clearance* Technology Advantage: 1. 100% balancing Test by TURBOTECHNICSVSR32. G3-min-Flow VNT Turbo testing3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Ensure exhaust outlet are well sealed by welding* Professional installation is highly recommended.* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
