Connecting Rods compatible for Volvo 850 T5 C70 V70 2.3L 4340 Forged Steel H-Beam 139.5mm
Connecting Rods compatible for Volvo 850 T5 C70 V70 2.3L 4340 Forged Steel H-Beam 139.5mm
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Application
Compatible for Volvo B5234T 2.3L T5 Turbo Engine – 850 / C70 / S70 / V70 / S60 T5 T5-R AWD Models
Specification

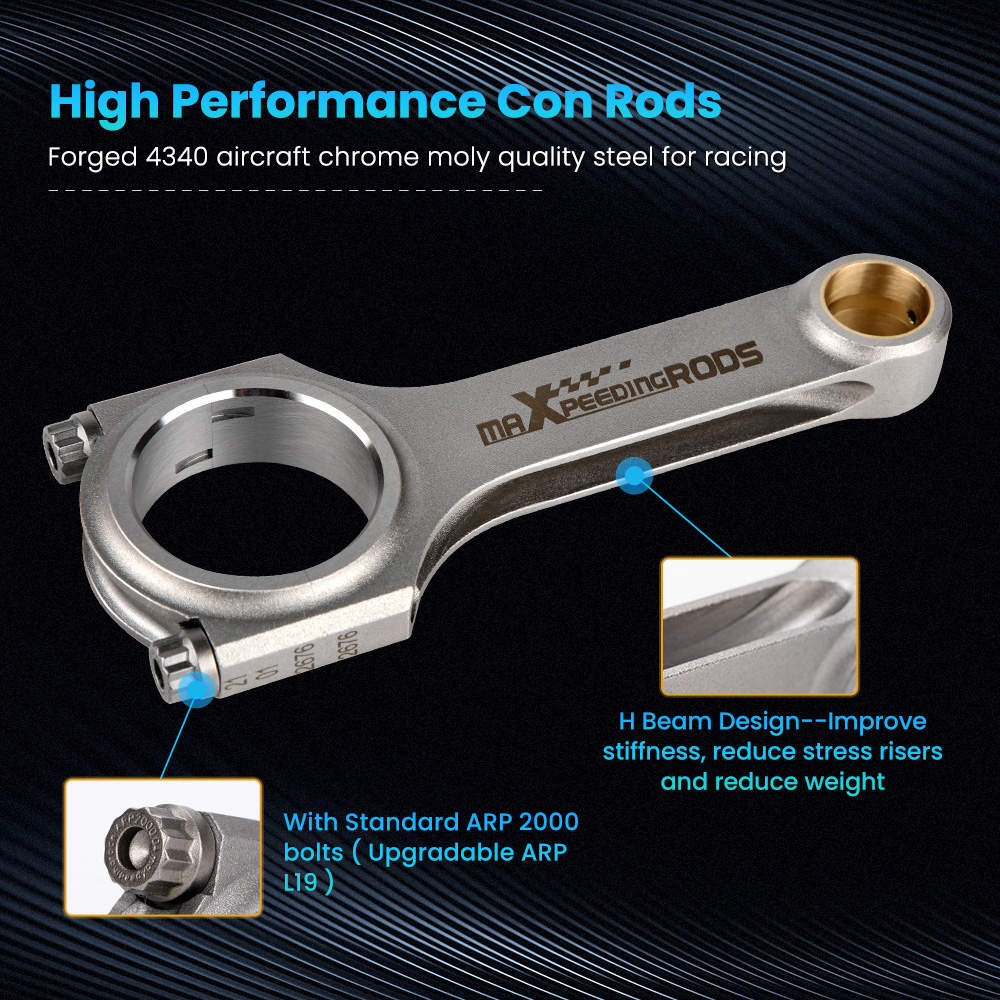

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

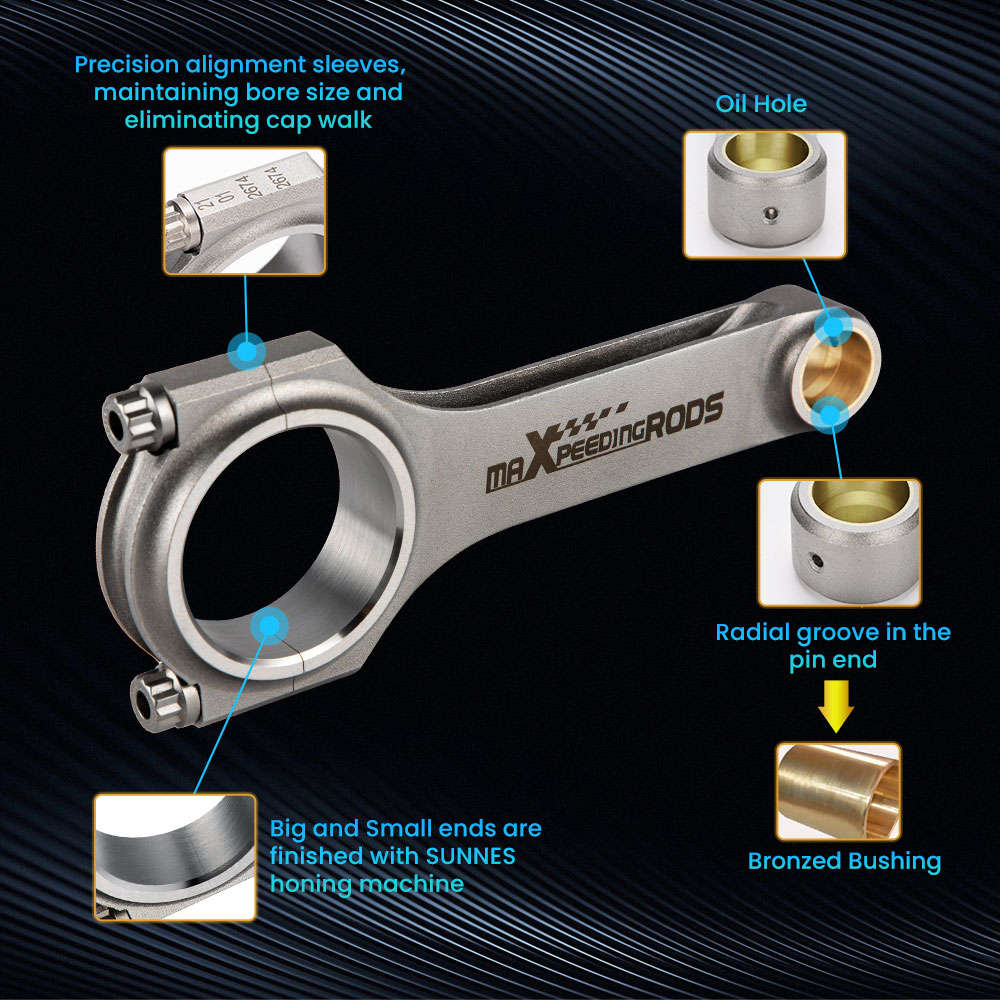

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No

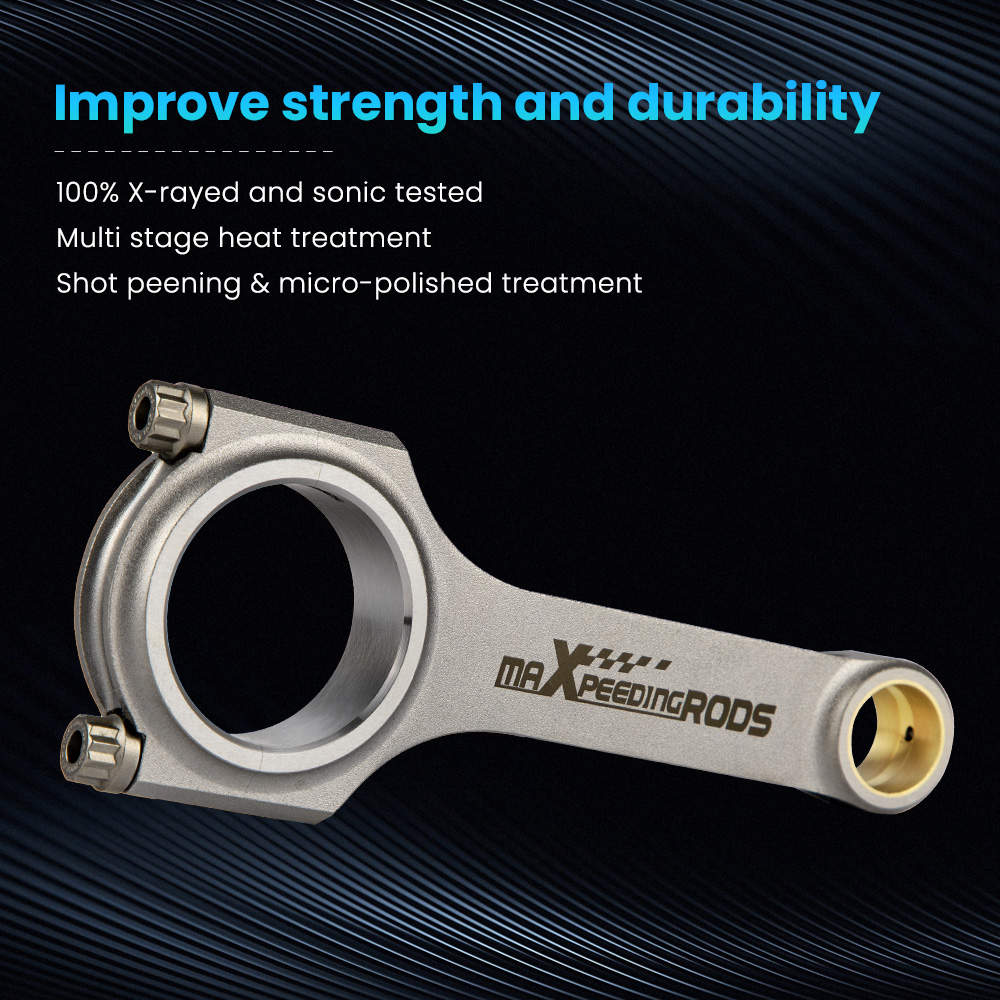

Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 139.50mm/5.492in
Approximate Connecting Rod Weight: 598g
Big End Bore Diameter: 53.00mm/2.087in
Pin End Bore Diameter: 23.00mm/0.906in
Big End Width: 25.70mm/1.012in
Small End Width: 25.70mm/1.012in
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
Packaging
Quantity: Sold as a set of 5
Package Size: 28CM*20CM*14CM
