Forged Connecting Rods ARP2000 Bolts compatible for Suzuki Swift Cultus Gti 1300 G13b
Forged Connecting Rods ARP2000 Bolts compatible for Suzuki Swift Cultus Gti 1300 G13b
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Application
Compatible for Suzuki 1.3L G13b Engine
Specification

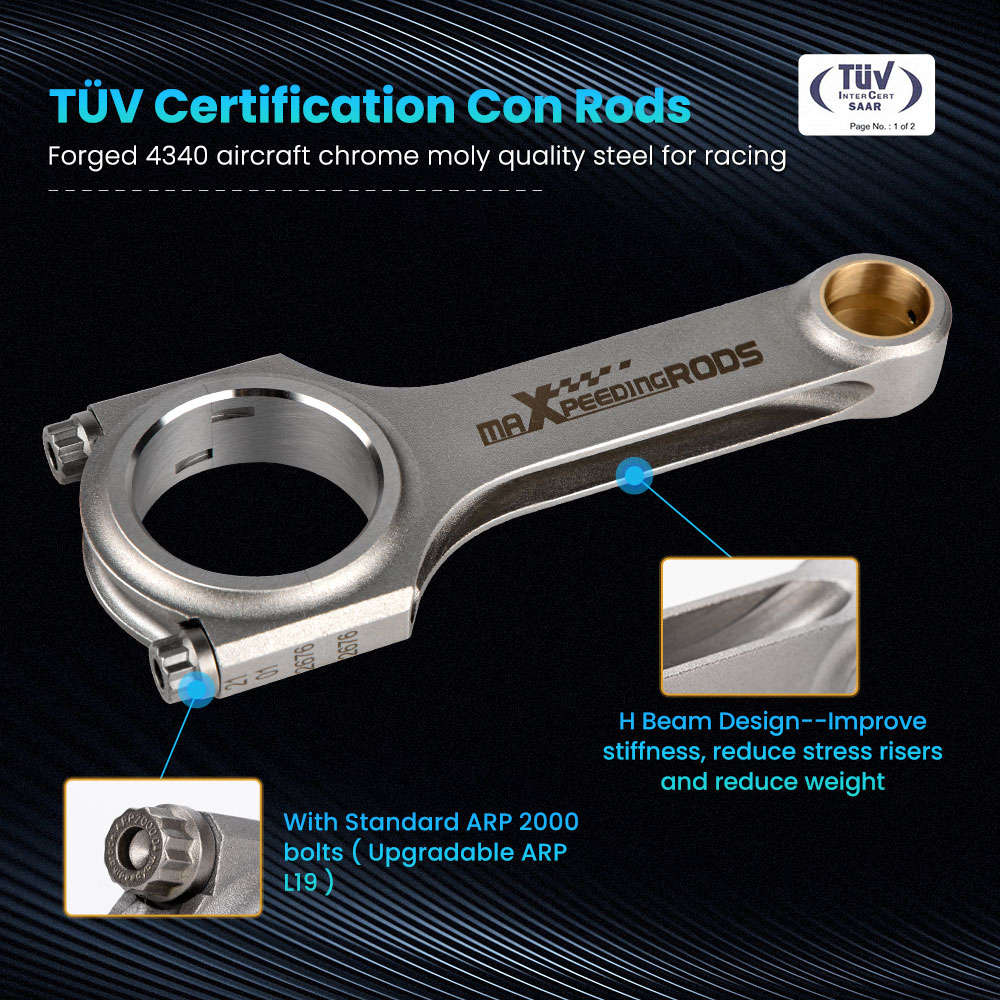

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

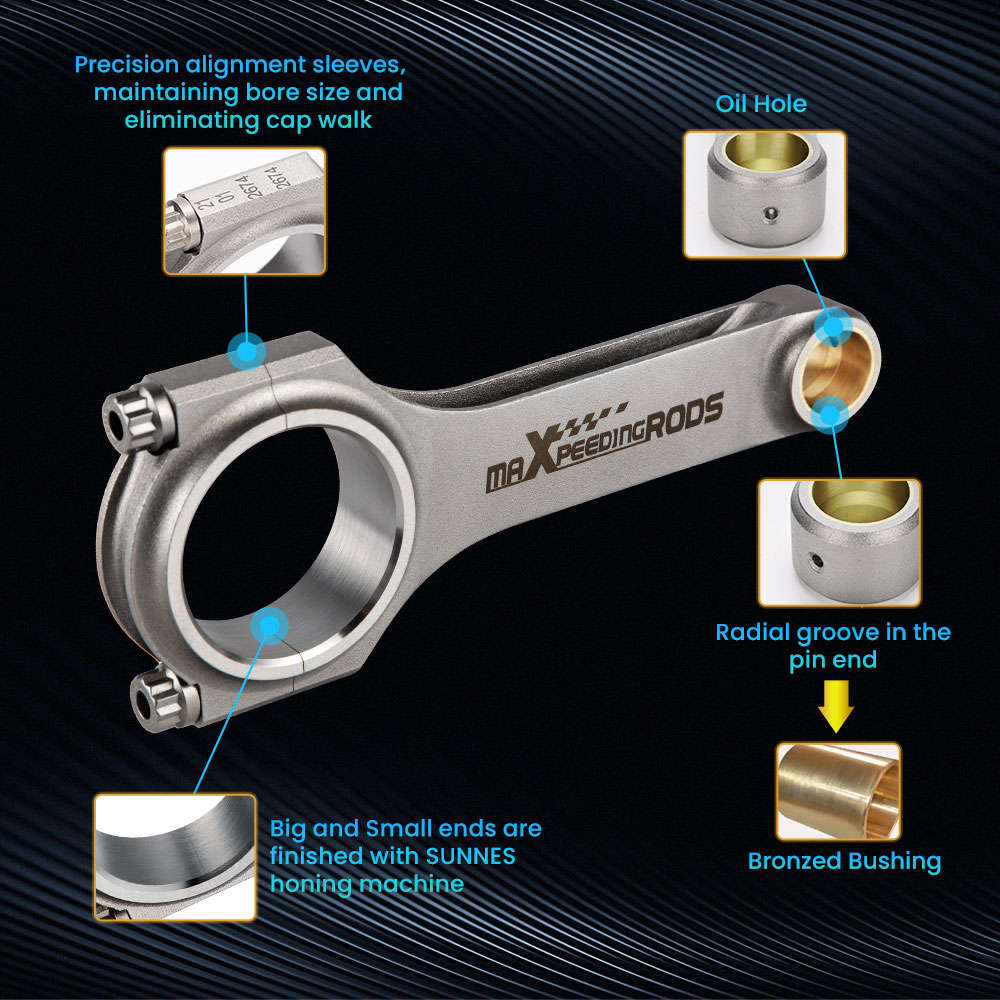

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 120.00mm/4.724in
Approximate Connecting Rod Weight: 428g
Big End Bore Diameter: 45.00mm/1.772in
Pin End Bore Diameter: 19.00mm/0.748in
Big End Width: 22.00mm/0.866in
Small End Width: 22.00mm/0.866in
Performance Ratings

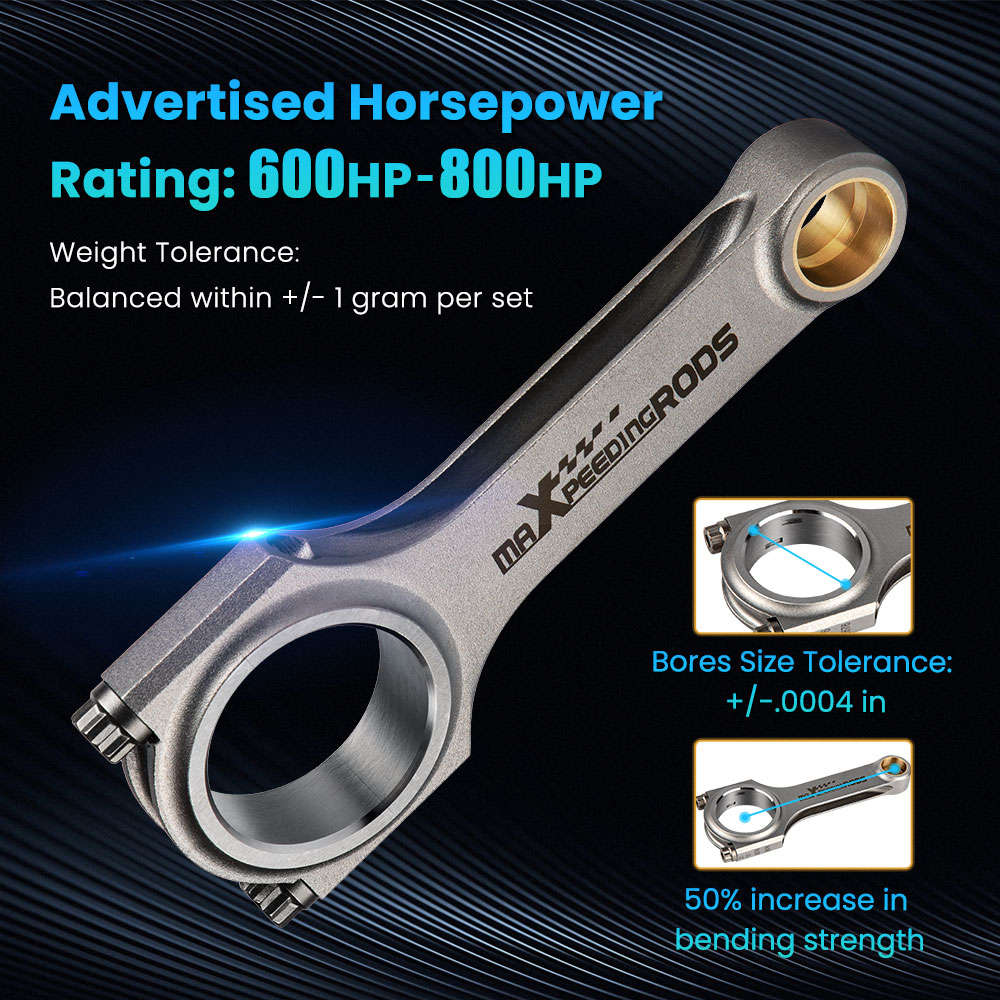

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7,000rpm
Packaging

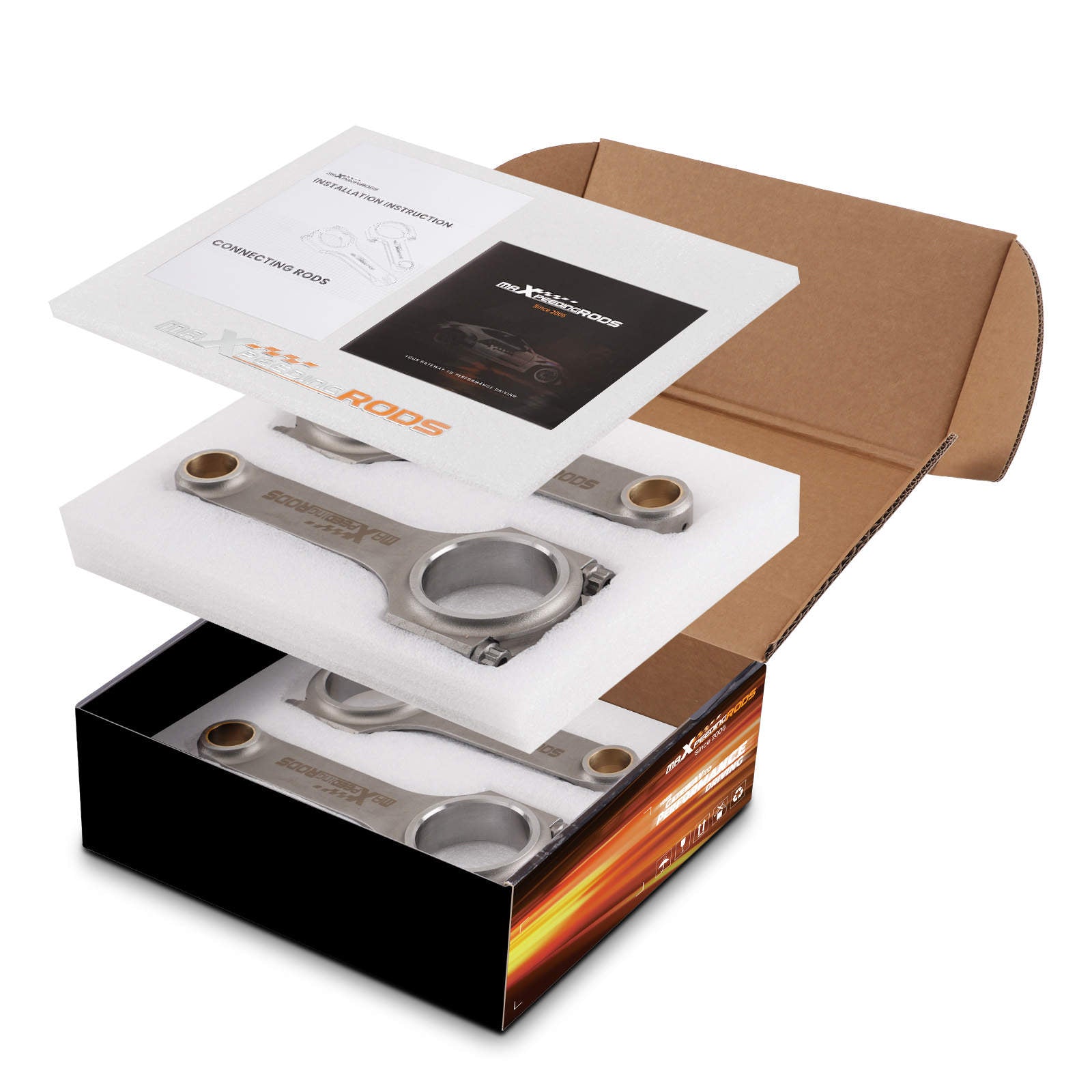

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
