Application

Compatible for Mercedes ML-Class 2005-2011 (W164 W/ Airmatic & W/O ADS)
Compatible for Mercedes GL-Class 2007-2012 (X164 W/ Airmatic & W/O ADS)

Compatible for Mercedes-Benz ML320 2007-2009
compatible for Mercedes-Benz ML350 2005-2011
compatible for Mercedes-Benz ML450 2010-2011
compatible for Mercedes-Benz ML500 2005-2007
compatible for Mercedes-Benz ML550 2008-2011
compatible for Mercedes-Benz GL320 2007-2009
compatible for Mercedes-Benz GL350 2010-2012
compatible for Mercedes-Benz GL450 2007-2012
compatible for Mercedes-Benz GL500 2008-2012
compatible for Mercedes-Benz GL550 2008-2012

Important Fitment Note: Fits only compatible for Mercedes-Benz GL-Class X164 models equipped with AIRMATIC and without ADS (Active Damping System). Does NOT fit vehicles equipped with ADS. Please verify the vehicle's suspension configuration and OE number before purchase.

OE/Part number

A1643204513, 1643204513 ,
A1643206113, 1643206113，
A164320611380, 164320611380,

Specification

Condition: New

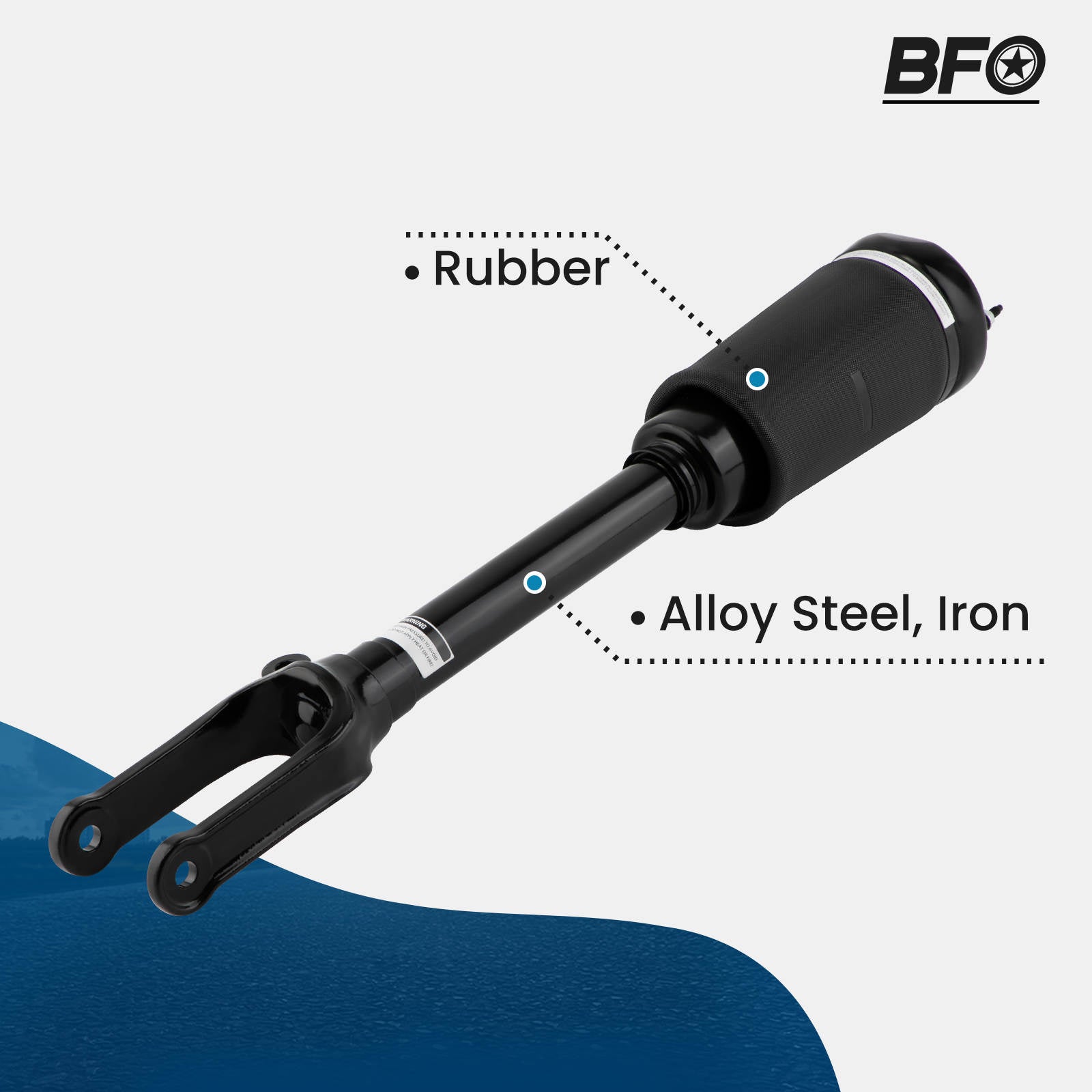

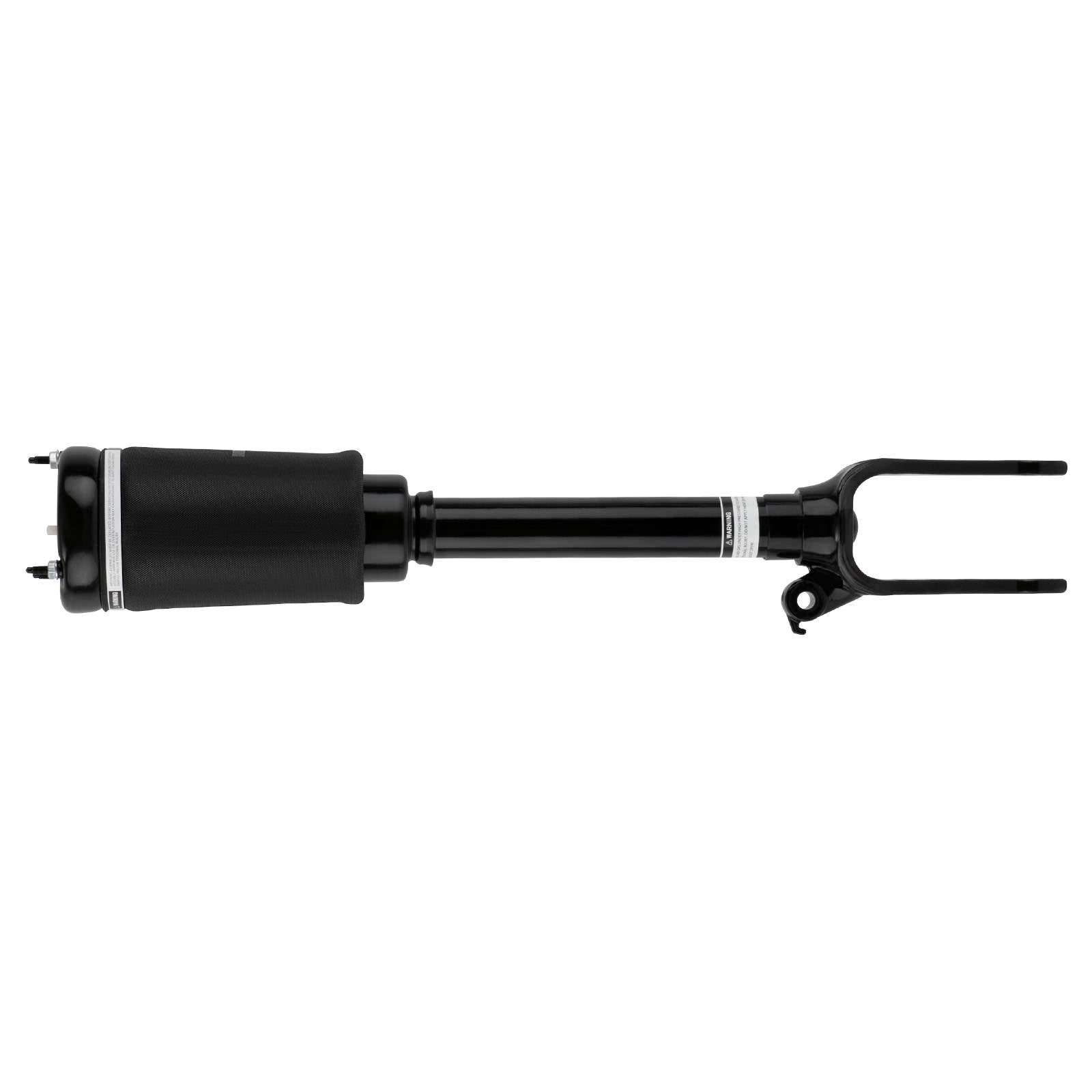

Part Type: Air Suspension Strut
Fitment Type: Direct Replacement
Quantity: 1 piece (for Front left or right side)
Internal Design: Monotube
Surface Finish: Rust Protected
Greasable or Sealed: Sealed
Gas Charged Shock: Yes
Bushings Included Yes
Adjustable: Yes
Length, width and height (cm): 86*22.5*22.5
Weight: 10.15Kg
Operating Pressure : ≤290 psi
Temperature range ≥-40℃ / ≤+70℃
Applicable Regions: Airmatic Suspension System

Feature

PREMIUM MATERIALS & TECHNOLOGY

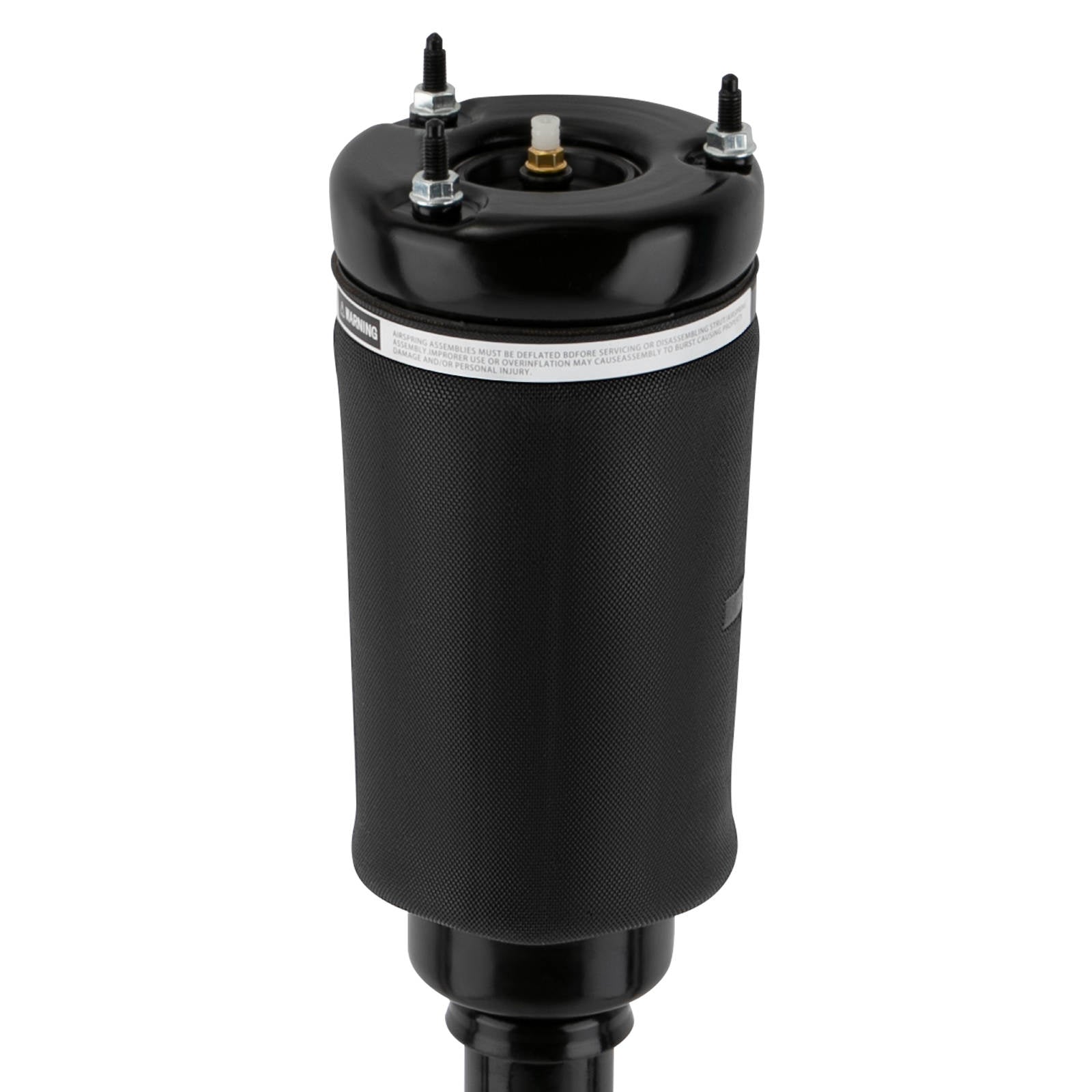

Multi-ply air spring sleeve reduces noise.
Heavy-duty crimping rubber and connection compatible for seat withstands 2 MPa+ pressure, no detachment.
TPV dust cover: better flexibility than TPE.

RIGOROUS TESTING
100% Air tightness testing.
Stress test over 4,500,000 times: durable and safe.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict quality control standards and compliant with ISO 9001.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Restores ride height and enhances ride quality.
High compressive strength and sound insulation for a smooth, quiet drive.
Efficient heat dissipation for reliability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
