Specification

Item One
Conditiion:New
Installation position:Front Dirver & Passenger Side
Material:Iron Alloy
Solid Or Vented Type Rotor:Vented
Rust Resistant Coating:Black Painting
Brake Surface:Non-Directional
ABS Tone Ring Included:No
Bearings Included:No
Mounting Bolt Hole Quantity:7
Mounting Bolt Hole Circle Diameter(mm):110
Outside Diameter(mm):279.7
Overall Height(mm):42.2
Nominal Thickness(mm):25
Packaging Type:Box
Fitment:Direct Replacement
Item Two
Conditiion:New
Installation position:Rear Passenger Side
Material:Iron Alloy
Solid Or Vented Type Rotor:Solid
Rust Resistant Coating:Black Painting
Brake Surface:Non-Directional
ABS Tone Ring Included:No
Bearings Included:No
Mounting Bolt Hole Quantity:5
Mounting Bolt Hole Circle Diameter(mm):110
Outside Diameter(mm):263.2
Overall Height(mm):42
Nominal Thickness(mm):10
Packaging Type:Box
Fitment:Direct Replacement

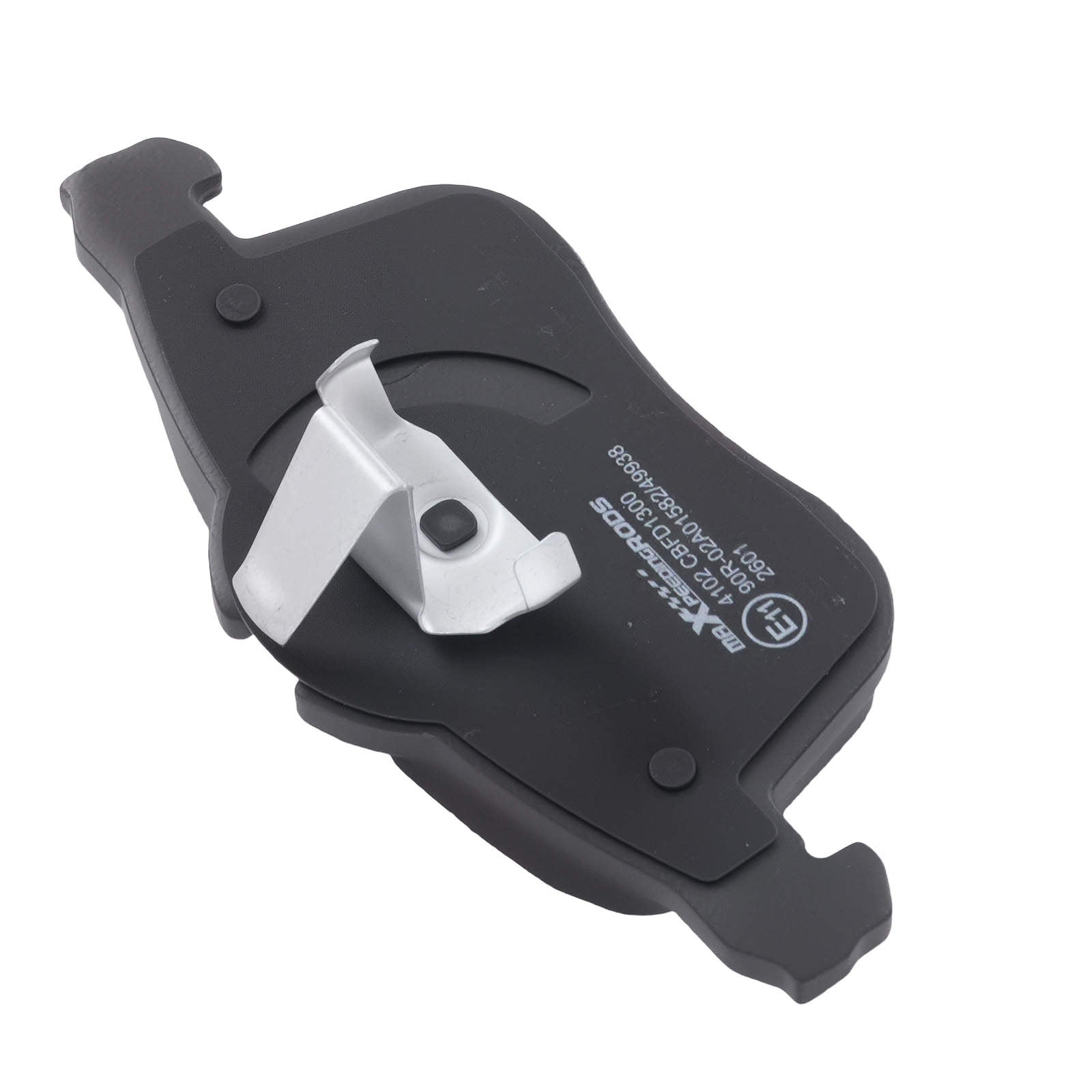

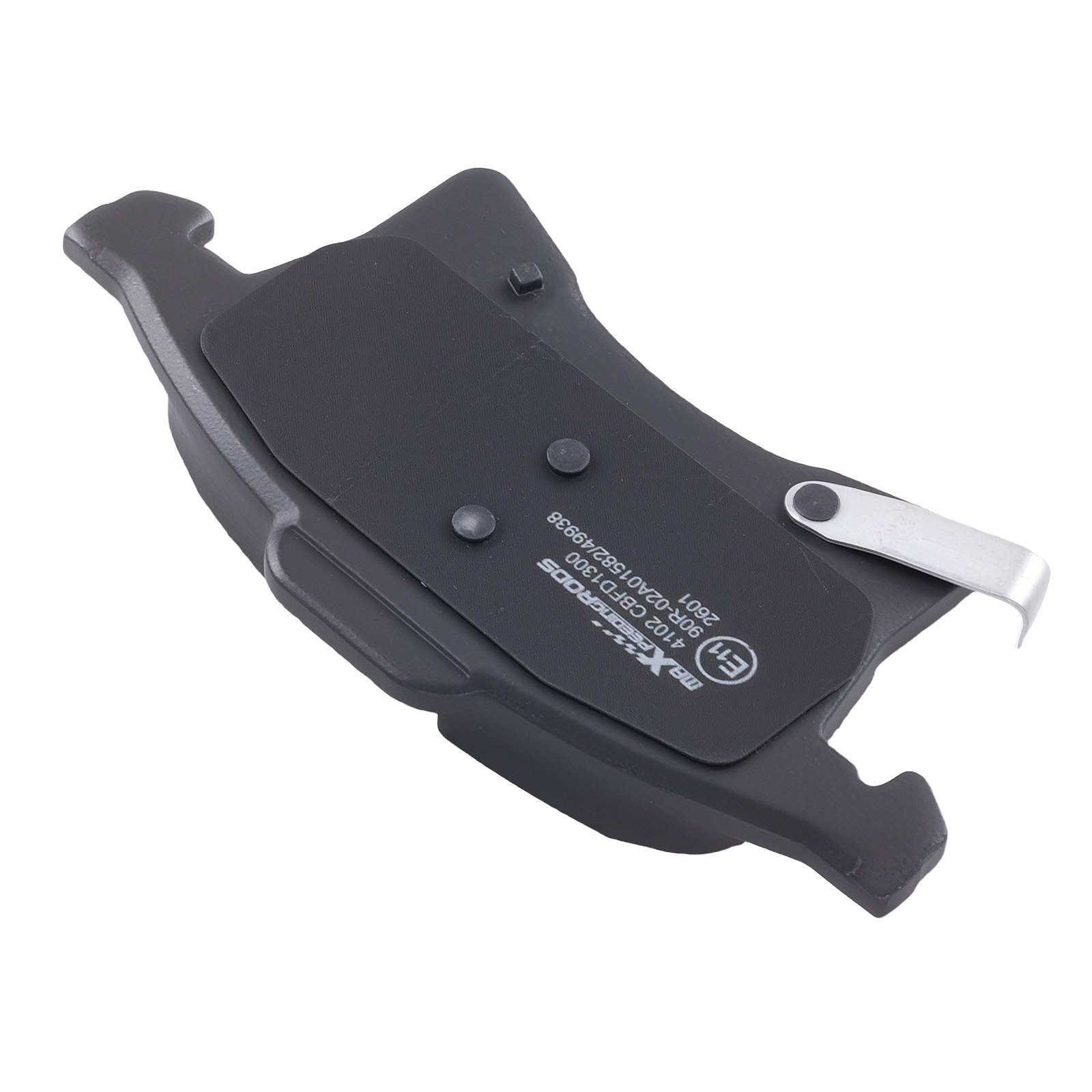

Item Three
Conditiion:New
Installation position:Front Dirver & Passenger Side
Backing Material:Steel
Pad Material:Low-metallic
Pad Shims Included:Yes
Mounting Hardware Included:Yes
Mounting bolt:No
Lubricant Included:Yes
Pad Wear Sensor Included:Yes
Pad Wear Sensor Type:Mechanical Wear Sensor
Inner Pad Width(mm):155.19
Inner Pad Height(mm):69.5
Inner Pad Thickness(mm):18.9
Outer Pad Width(mm):156.4
Outer Pad Height(mm):76
Outer Pad Thickness(mm):18.9
Packaging Type:Box
Fitment:Direct Replacement

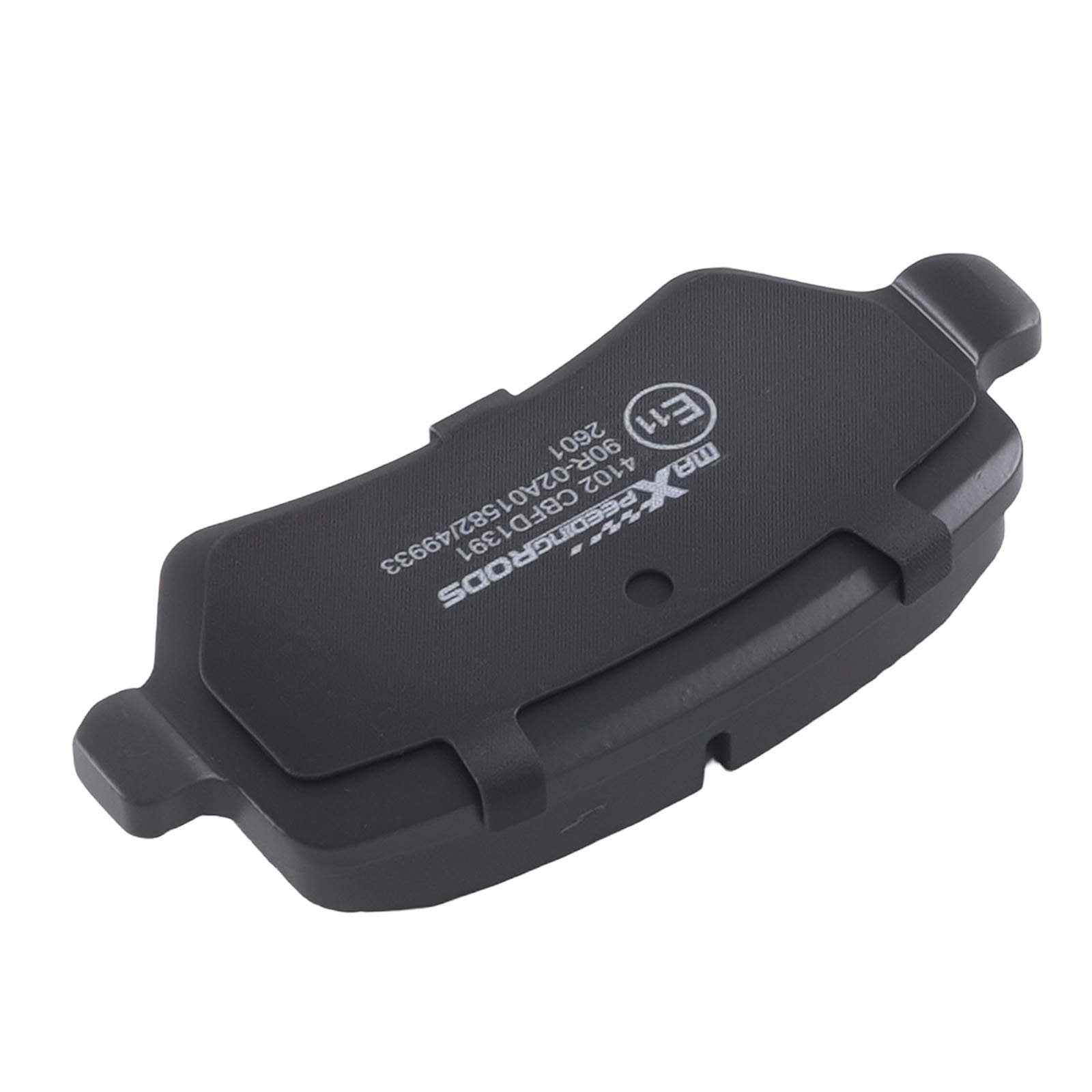

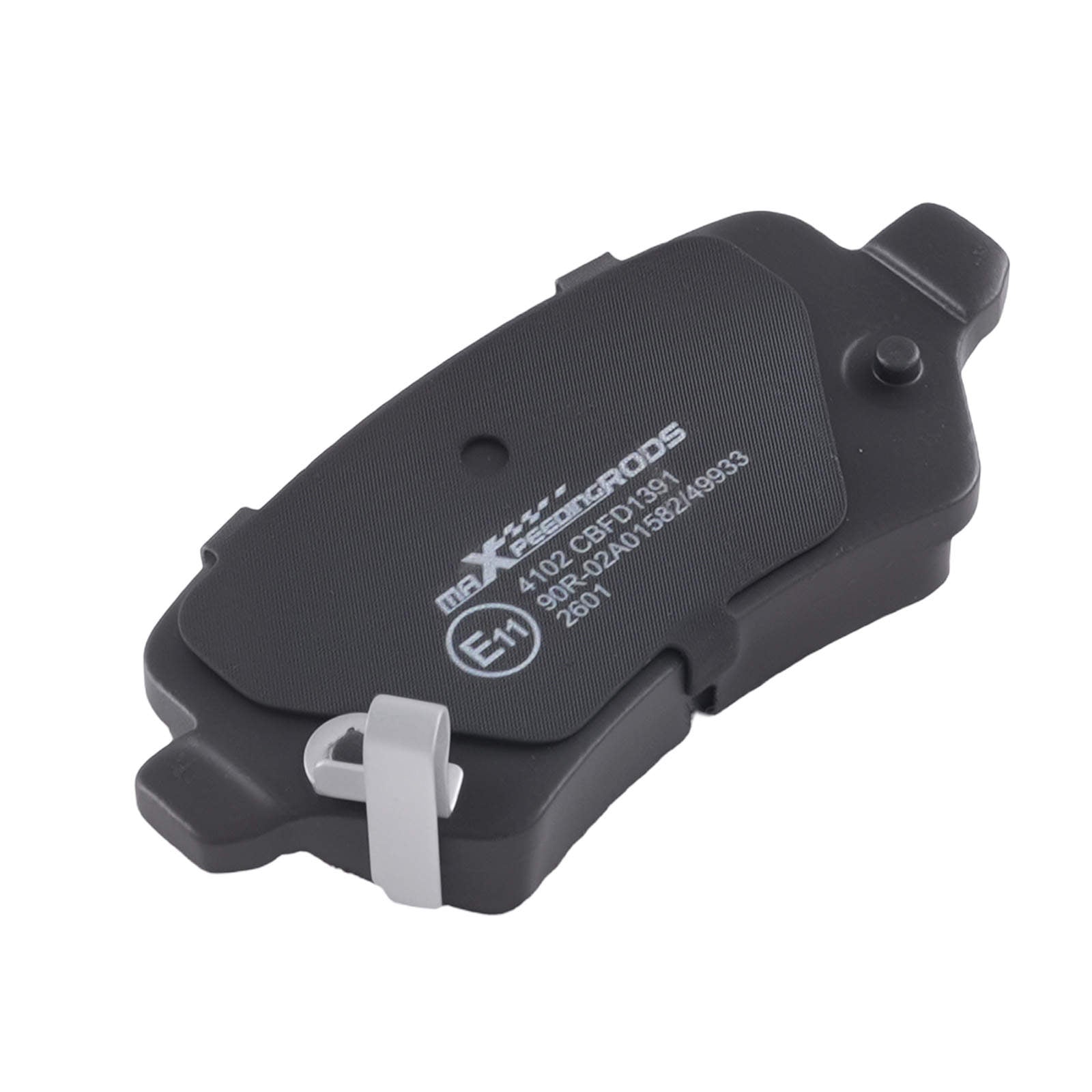

Item Four
Conditiion:New
Installation position:Rear Passenger Side
Backing Material:Steel
Pad Material:Low-metallic
Pad Shims Included:Yes
Mounting Hardware Included:Yes
Mounting bolt:Yes
Lubricant Included:Yes
Pad Wear Sensor Included:Yes
Pad Wear Sensor Type:Mechanical Wear Sensor
Inner Pad Width(mm):95.44
Inner Pad Height(mm):42.6
Inner Pad Thickness(mm):14.7
Outer Pad Width(mm):95.44
Outer Pad Height(mm):42.6
Outer Pad Thickness(mm):14.7
Packaging Type:Box
Fitment:Direct Replacement

Package included

4x Brake Discs
8x Brake Pads

Note

NOTE: ONLY compatible with 5-lug (5-hole) wheel configurations. It WILL NOT fit models with 4-lug (4-hole) wheel setups. Please verify your vehicle's wheel bolt pattern before purchasing to ensure a proper fit.

Application

Compatible for Opel Astra H A04 1.2L 5-Loch 2005/08-2010/10
compatible for Opel Astra H A04 1.4L 5-Loch 2004/03-2010/10
compatible for Opel Astra H A04 1.6L 5-Loch 2004/03-2010/11
compatible for Opel Astra H A04 1.7L 5-Loch 2004/03-2010/11
compatible for Opel Astra H A04 1.8L 5-Loch 2004/01-2010/10
compatible for Opel Astra H Caravan A04 1.2L 5-Loch 2005/08-2010/10
compatible for Opel Astra H Caravan A04 1.4L 5-Loch 2004/08-2010/10
compatible for Opel Astra H Caravan A04 1.6L 5-Loch 2004/08-2010/11
compatible for Opel Astra H Caravan A04 1.7L 5-Loch 2004/08-2010/11
compatible for Opel Astra H Caravan A04 1.8L 5-Loch 2004/09-2014/05
compatible for Opel Astra H GTC A04 1.2L 5-Loch 2005/08-2010/10
compatible for Opel Astra H GTC A04 1.4L 5-Loch 2005/03-2010/10
compatible for Opel Astra H GTC A04 1.6L 5-Loch 2005/03-2010/10
compatible for Opel Astra H GTC A04 1.7L 5-Loch 2005/03-2010/10
compatible for Opel Astra H GTC A04 1.8L 5-Loch 2005/03-2010/10
compatible for Opel Astra H Kasten/Kombi L70 1.2L 5-Loch 2005/08-2010/10
compatible for Opel Astra H Kasten/Kombi L70 1.4L 5-Loch 2004/12-2012/12
compatible for Opel Astra H Kasten/Kombi L70 1.6L 5-Loch 2006/10-2010/12
compatible for Opel Astra H Kasten/Kombi L70 1.7L 5-Loch 2004/08-2010/10
compatible for Opel Astra H Stufenheck A04 1.2L 5-Loch 2007/02-2010/10
compatible for Opel Astra H Stufenheck A04 1.4L 5-Loch 2007/02-2010/06
compatible for Opel Astra H Stufenheck A04 1.6L 5-Loch 2007/02-2010/11
compatible for Opel Astra H Stufenheck A04 1.7L 5-Loch 2007/02-2010/11
compatible for Opel Astra H Stufenheck A04 1.8L 5-Loch 2007/02-2012/09
compatible for Opel Astra H Twintop A04 1.6L 5-Loch 2006/03-2010/10
compatible for Opel Astra H Twintop A04 1.8L 5-Loch 2006/03-2010/10
compatible for Opel Astra Klasseic A04 1.2L 5-Loch 2009/01-2010/10
compatible for Opel Astra Klasseic A04 1.6L 5-Loch 2009/01-2010/11
compatible for Opel Astra Klasseic A04 1.7L 5-Loch 2009/01-2015/12
compatible for Opel Astra Klasseic Caravan A04 1.6L 5-Loch 2009/01-2010/11
compatible for Opel Astra Klasseic Caravan A04 1.7L 5-Loch 2009/01-2015/12
compatible for Opel Astra Klasseic Stufenheck A04 1.6L 5-Loch 2009/01-2014/05
compatible for Opel Astra Klasseic Stufenheck A04 1.7L 5-Loch 2009/01-2015/12
compatible for Opel Astra Klasseic Stufenheck A04 1.8L 5-Loch 2012/01-2012/09
compatible for Opel Combo Kasten/Großraumlimousine -- 1.7L 5-Loch 2004/12-2011/10
compatible for Opel Combo Tour -- 1.7L 5-Loch 2004/07-2011/10
compatible for Opel Meriva X03 1.2L 5-Loch 2003/09-2010/05
compatible for Opel Meriva X03 1.4L 5-Loch 2004/07-2010/05
compatible for Opel Meriva X03 1.6L 5-Loch 2003/05-2010/05
compatible for Opel Meriva X03 1.7L 5-Loch 2003/09-2010/05
compatible for Opel Meriva X03 1.8L 5-Loch 2003/05-2010/05
compatible for Opel Meriva B Großraumlimousine S10 1.2L 5-Loch 2010/06-2014/11
compatible for Opel Meriva B Großraumlimousine S10 1.4L 5-Loch 2010/06-2017/03
compatible for Opel Meriva B Großraumlimousine S10 1.7L 5-Loch 2010/06-2017/01
compatible for Opel Meriva B Van S10 1.2L 5-Loch 2013/01-2014/11
compatible for Opel Meriva B Van S10 1.4L 5-Loch 2013/01-2017/03
compatible for Opel Meriva B Van S10 1.7L 5-Loch 2013/01-2017/01
compatible for Opel Zafira B Kasten/Großraumlimousine A05 1.6L 5-Loch 2005/07-2015/04
compatible for Opel Zafira B Kasten/Großraumlimousine A05 1.7L 5-Loch 2008/01-2015/04
compatible for Opel Zafira B Kasten/Großraumlimousine A05 1.8L 5-Loch 2005/07-2015/04
compatible for Opel Zafira B Kasten/Großraumlimousine A05 1.9L 5-Loch 2005/07-2015/04
compatible for Opel Zafira B Kasten/Großraumlimousine A05 2.0L 5-Loch 2005/07-2010/12
compatible for Opel Zafira B Kasten/Großraumlimousine A05 2.2L 5-Loch 2005/07-2011/12
compatible for Opel Zafira/Zafira Family B A05 1.6L 5-Loch 2005/07-2015/04
compatible for Opel Zafira/Zafira Family B A05 1.7L 5-Loch 2008/01-2015/04
compatible for Opel Zafira/Zafira Family B A05 1.8L 5-Loch 2005/07-2015/04

NOTE: ONLY compatible with 5-lug (5-hole) wheel configurations. It WILL NOT fit models with 4-lug (4-hole) wheel setups. Please verify your vehicle's wheel bolt pattern before purchasing to ensure a proper fit.

OE/Part number

Front Brake Disc:
569060, 569066, 9117678, 93197592
Front Brake Pads:
1605080, 1605177, 1605252, 1605456, 1605992, 1605996, 1605997, 95514416, 1605998, 93176429, 93179707, 93179708, 93181189, 93186713, 93192578
Rear Brake Disc:
569109, 9117772, 90575113, 0569109
Rear Brake Pads:
1605086, 1605122, 1605128, 1605625, 1605967, 1605995, 93169143, 93170602, 93176118, 93179164, 93188727, 95507655
