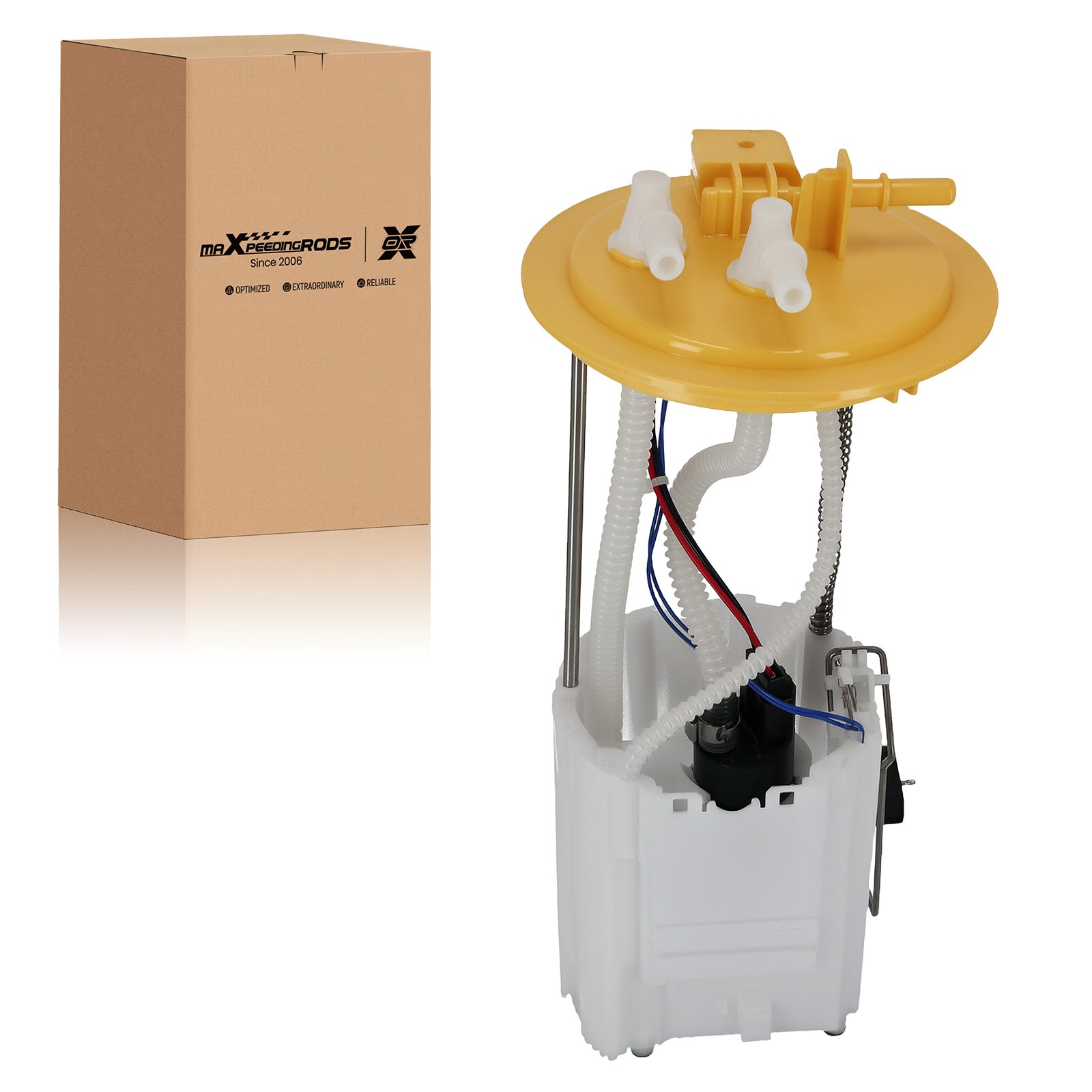

Fuel Pump Module Assembly compatible for Mercedes-Benz Sprinter 3.5-T B906 compatible for VW Crafter 30-50

This MaXpeedingRods part is suitable for Mercedes, Volkswagen applications where indicated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Mercedes-Benz Sprinter 3.5-T B906 309 CDI 2006-2009

suitable for Mercedes-Benz Sprinter 3.5-T B906 310 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 3.5-T B906 311 CDI 2006-2009

suitable for Mercedes-Benz Sprinter 3.5-T B906 313 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 3.5-T B906 314 CDI 2016-2018

suitable for Mercedes-Benz Sprinter 3.5-T B906 315 CDI 2006-2009

suitable for Mercedes-Benz Sprinter 3.5-T B906 316 CDI 2009-2018

suitable for Mercedes-Benz Sprinter 3.5-T B906 318 CDI 2006-2009

suitable for Mercedes-Benz Sprinter 3-T B906 210 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 3-T B906 213 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 4.6-T B906 413 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 5-T B906 513 CDI 2009-2016

suitable for Mercedes-Benz Sprinter 5-T B906 516 CDI 2009-2018

suitable for VW Crafter 30-50 2E_ 2.0 TDI 2011-2016

suitable for VW Crafter 30-50 2F_ 2.0 TDI2011-2016OE-/part number9064703194, 9064701994, A9064703194, A9064701994, A9067401994, 9067401994 Specifications Condition: Brand New Drive Type: Electrical Fuel Type: Petrol Voltage(V): 12 Flow Rate(Gallons/Hour): ≥47.55G/HPressure(MPa): 0.3 Weight(kg): 0.55-0.6 Inlet Type: SAE J2044 2009 Inlet Quantity: 1 Inlet Size：Φ9.49 Outlet Type: SAE J2044 2009 Outlet Quantity: 2 Outlet Size：Φ7.89/Φ9.49 Material: Plastic Housing Material: Plastic Fuel Sending Unit Included: Yes Fuel Pressure Sensor Included: No Fuel Level Sensor Included: Yes Float Included: Yes Fuel Reservoir Included: Yes Fuel Strainer Included: Yes Seal Ring Included : No Internal Or External Strainer: Internal Placement on Vehicle: Rear (Fuel Tank)Package included1X Fuel Pump Module Assembly(as shown in the pictures)Features Fuel Pump Assembly Product Characteristics:

1.High-precision automotive grade fuel tank pressure sensor

(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)

2.Dual-channel long-life level sensor

(Dual-channel dual-contact design, more stable and longer life.

HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level

display is more accurate.)

3.Low level design

(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)

4.High dust holding layer filter

(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.

Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)

5.Platform R&D

(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:

100% Fuel Level Sensor Testing

100% Fuel Pump Assembly Drop Test

100% Fuel Pump Assembly Noise Test

100% Durability Test of Fuel Ppump Assembly

100% Fuel Pump Assembly Air Tightness Test

Certifications:

CE

IATF16949

IOS14001 Let op Common problems and solutions of fuel pump assembly:

1) Gasoline pump aging: Over time, the internal components of the gasoline pump will gradually wear out, leading to a decrease in pump performance and ultimately resulting in the inability to start.

Solution: Replace the gasoline pump with a new one, ensure to choose a gasoline pump that matches the original vehicle model, and follow the correct installation steps.

2) Circuit malfunction: The operation of the gasoline pump relies on a stable voltage supply. If there are short circuits, open circuits, or poor contacts in the circuit, it may cause the gasoline pump to malfunction.

Solution: Check if the circuit connections are secure and reliable, repair or replace damaged circuit components.

3) Fuel quality issues: Using inferior fuel or fuel containing impurities may cause gasoline pump blockage or increased wear.

Solution: Use high-quality fuel, choose regular gas stations to purchase fuel, and avoid using inferior fuel or fuel containing impurities.

4) Oil level sensor malfunction: The sliding resistor of the oil level sensor is contaminated and corroded, resulting in poor contact between the resistor and the sliding elastic contact.

Solution: Replace the gasoline sensor component.

5) Gas blockage in the gasoline system pipeline: When the fuel tank is running low on fuel or when the temperature is too high in summer, the oil vapor in the pipeline forms a gas blockage. Solution: Wait for the car to cool down for a period of time before restarting, or go to a flat road for a test drive or refueling check.

6) Insufficient pressure: If it is difficult to start the car in the morning or after parking for 1 hour, it may require multiple ignitions to start, which may be due to insufficient pressure in the gasoline pump.

Solution: Check the pressure regulating valve of the gasoline pump. If
