Compatible for BMW E46 3 Series 1998-2006 320i 318i Height And Damper Adjustable Coilover Suspension Kit Lowering Kit

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Ma Xpeeding Rods-B3 series(also called Ma Xpeeding Rods-SLC) based on Ma Xpeeding Rods-B2 series(also called Ma Xpeeding Rods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.

Application Suitable for BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)

Compatible suitable for BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)

Suitable for BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)

Suitable for BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

Please note: not for Xi/xd 4 wheel drive, not for M3 model either

Specifications Top mounts: front pillow ball top mounts with camber plate

rear pillow ball top mount

Damping: 24 levels rebound damping adjustable

Spring rate: front8kg/mm

Spring rate: rear 7kg/mm

Adjustable height: Yes lowering 1'' to 3''

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: red

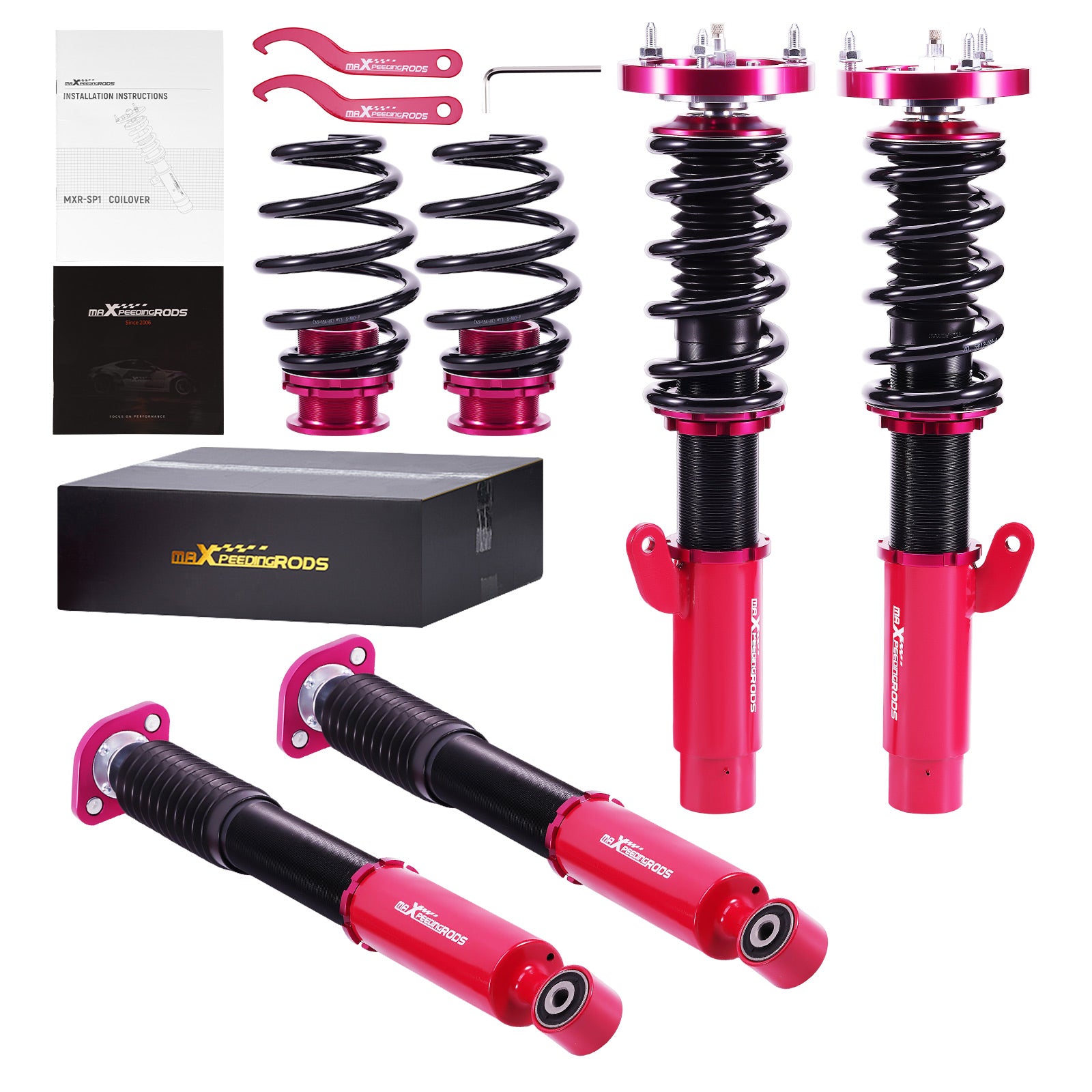

Package includedcoilovers for 2 front and 2 rear

a pair wrench for height adjustment

Dimensionweight: 25060g

size: 63*51*21 cm

Features1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Twin-Tube structure allows sufficient stroke within the shock absorber

4. Separate height adjustment does not affect damper stroke

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

6. Height Adjustment tools included

7. Camber plate top mounts help to eliminate the need for a separate camber kit

8. Pillow ball top mount - It improves the steering feel and response

9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

10. Full rebuildable Warranty: one year warranty for any manufacturing defect
