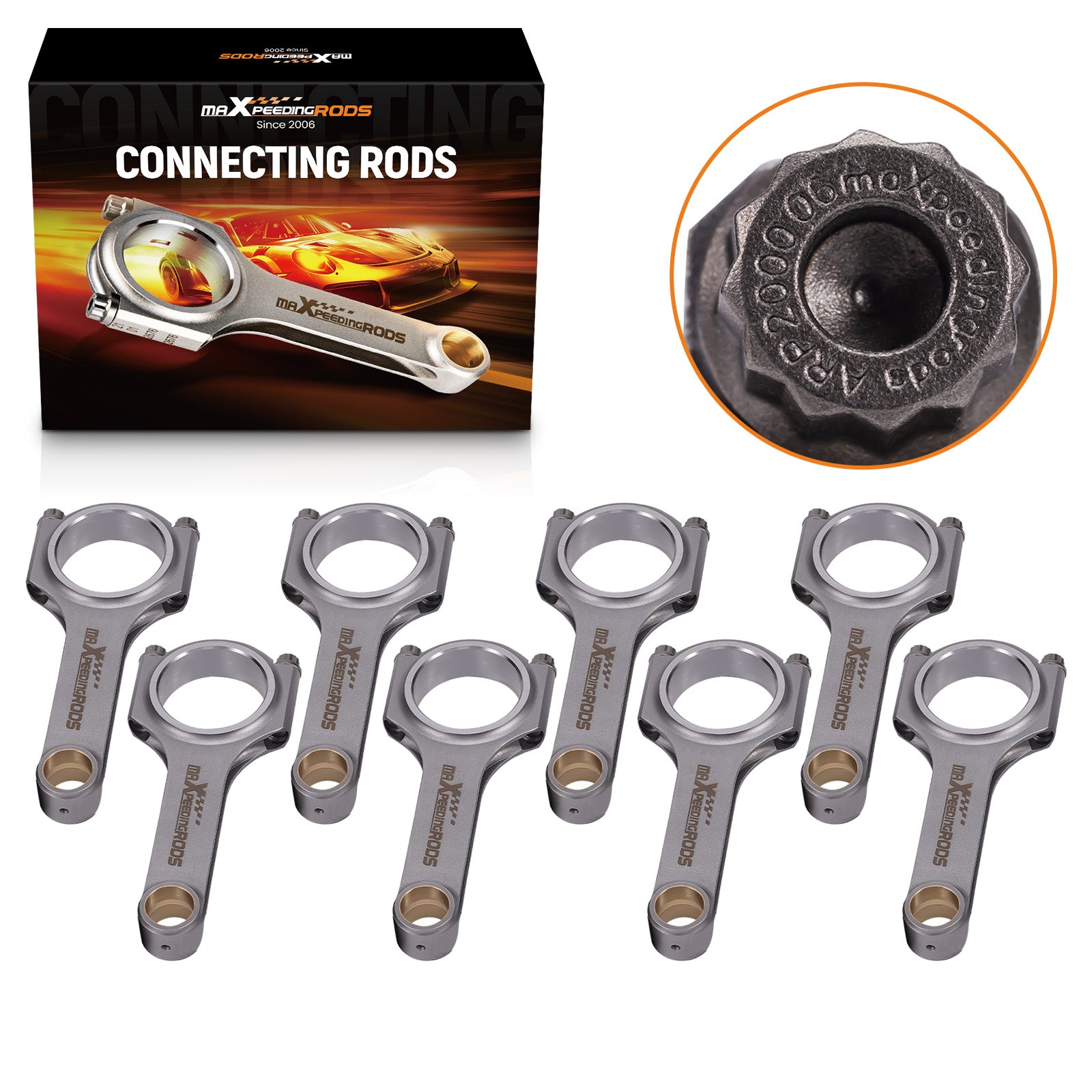

Compatible for BMW M60 M60B40 4.0L M62 4.4L Conrods Con Rod Connecting Rod Rods 143mm

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for BMW M60 M60B40 4.0L M62 4.4LSpecificationsTÜV Certification Con Rods Type: Forged 4340 aircraft chrome moly quality steel for racingH-beam Conrods Quantity: 8 Pieces a set Bolts: Including Genuine ARP 2000 bolts Note: Extra cost for upgrading to ARP L19 bolts Bolts Size: 3/8"Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600hp ~ 800hp per set Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM Top acceleration: 9000rpm warranty: one year warranty for any manufacturing defect Dimensions Center to center length: 143mm Big end diameter: 52mm Small end diameter: 22mm Big end width: 20.83mm Small end width: 20.83mm Features- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

100% X-rayed, sonic tested and magnafluxed

Multi-stage heat treated

Shot peened to relieve stress

Come with the bronzed bushing suitable for the floating piston pin Note Professional installation is highly recommended (No Instruction Included)
