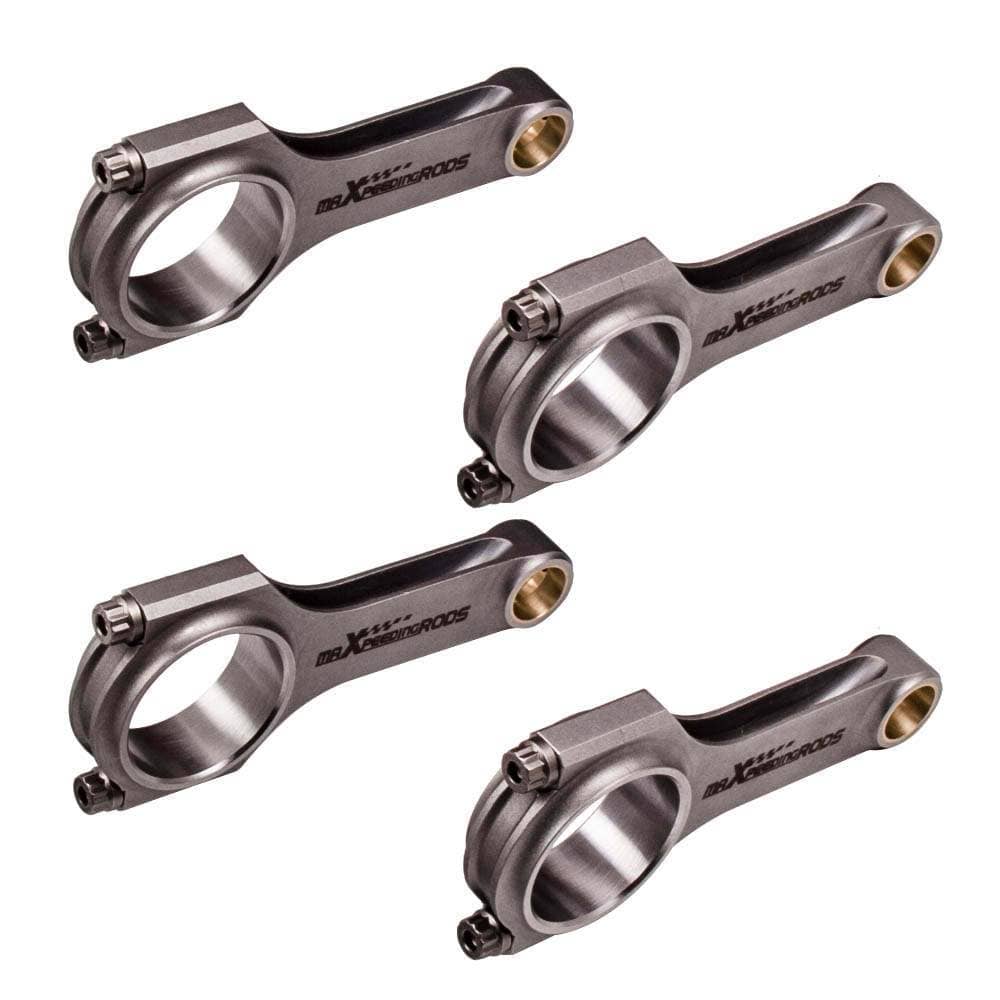

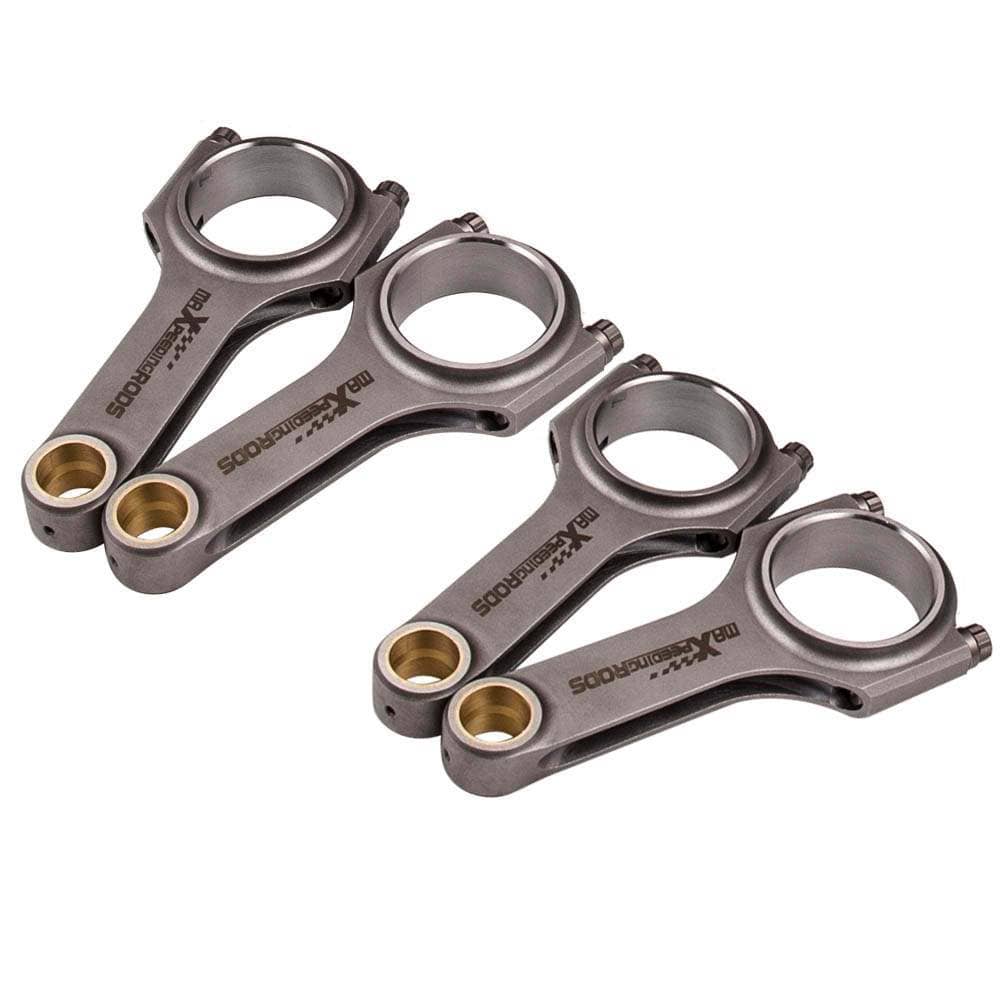

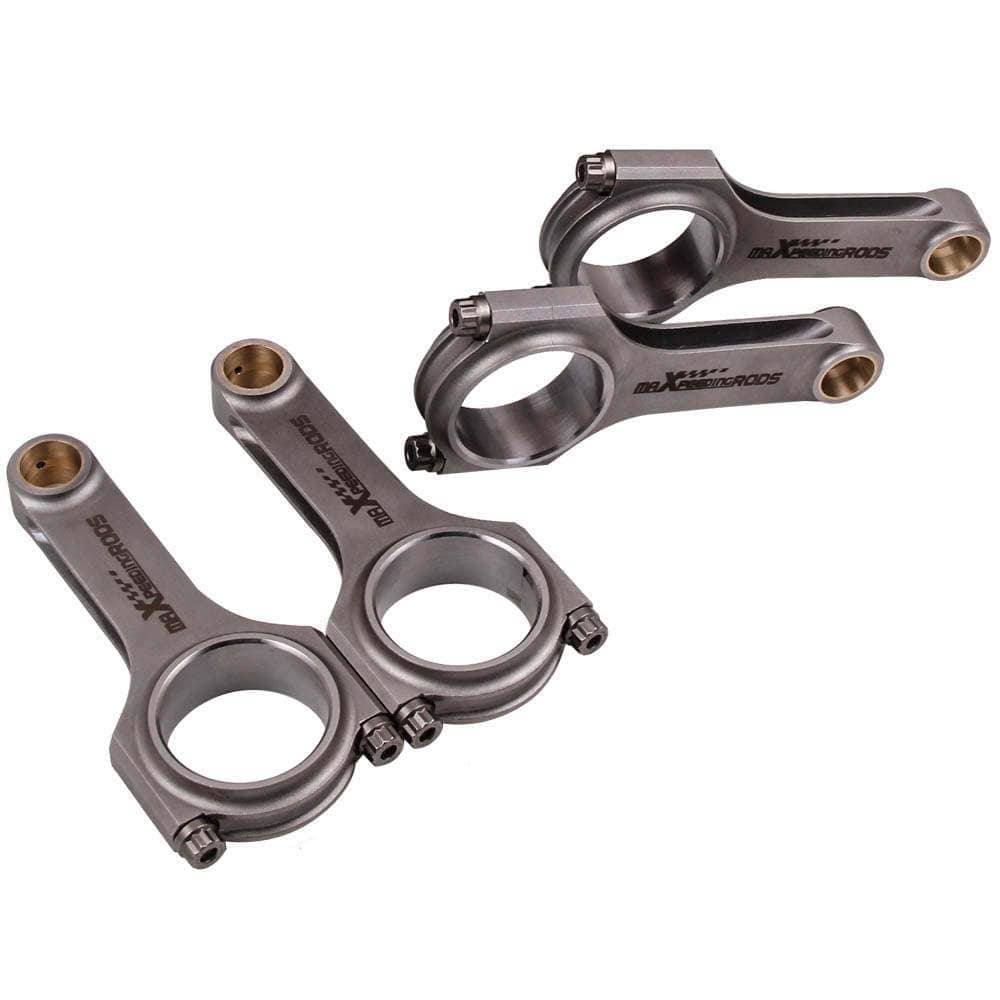

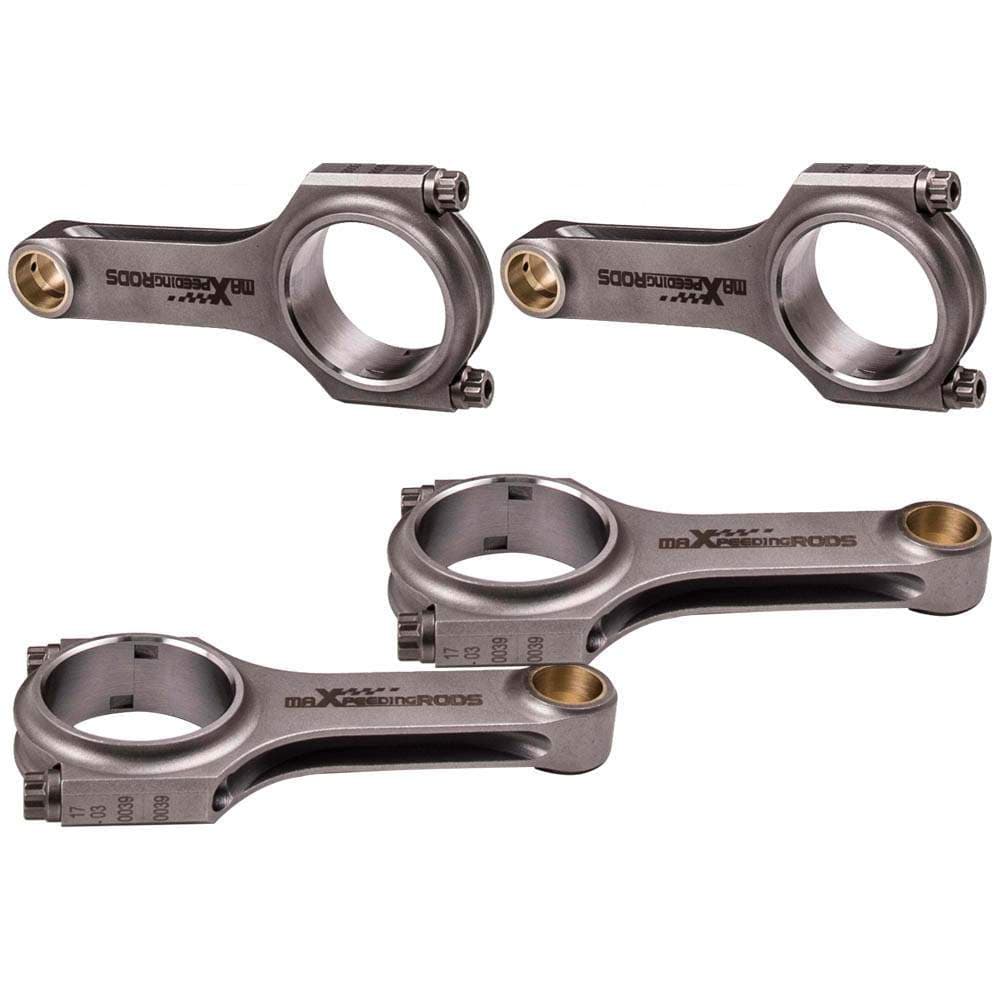

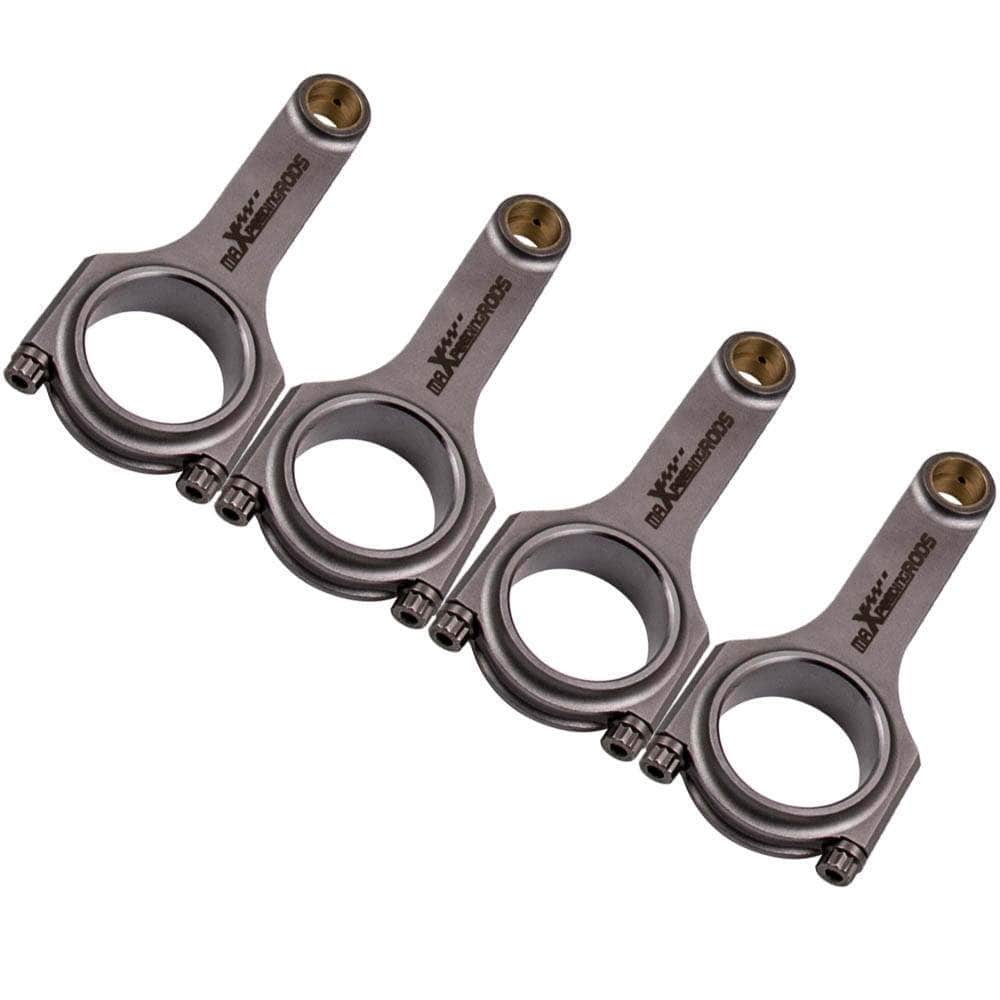

Compatible for Ford Lotus Twin Cam 1600 4.826 H Beam EN24 Connecting Rod Rods Conrods

This MaXpeedingRods part is suitable for Ford applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Lotus twin cam 1600 // Suitable for Lotus TC/ Suitable for Ford X-flow Specifications- Performance Con Rods- Type: Forged 4340 aircraft chrome moly quality steel for racing- H-beam Conrods Quantity: 4 Pieces a set- Bolts:Including Genuine ARP 2000 bolts- Let op: Extra cost for upgrading to ARP L19 bolts - Bolts Size: ARP 2000 3/8" bolts- Tolerance: Balanced to +/- 1 gram in set - Piston Bolt Hole: +-4/1000mm - Power: 600~800HP- Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM - Top acceleration: 7000-9000 rpm - Warranty: one year warranty for any manufacturing defect Dimensions Center to center length: 122.58mm（Wide journal）Big end diameter: 52.91mm Small end diameter: 20.62mm Big end width: 26.8mm Small end width: 24.1mm Features- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing- Designed and processed by CNC machine.- All big and small ends are finished with SUNNEN honing machine- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk- 100% X-rayed, sonic tested and magnafluxed- Multi-stage heat treated- Shot peened to relieve stress- Come with the bronzed bushing suitable for the floating piston pin Let op- Professional installation is highly recommended (No Instruction Included)- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
