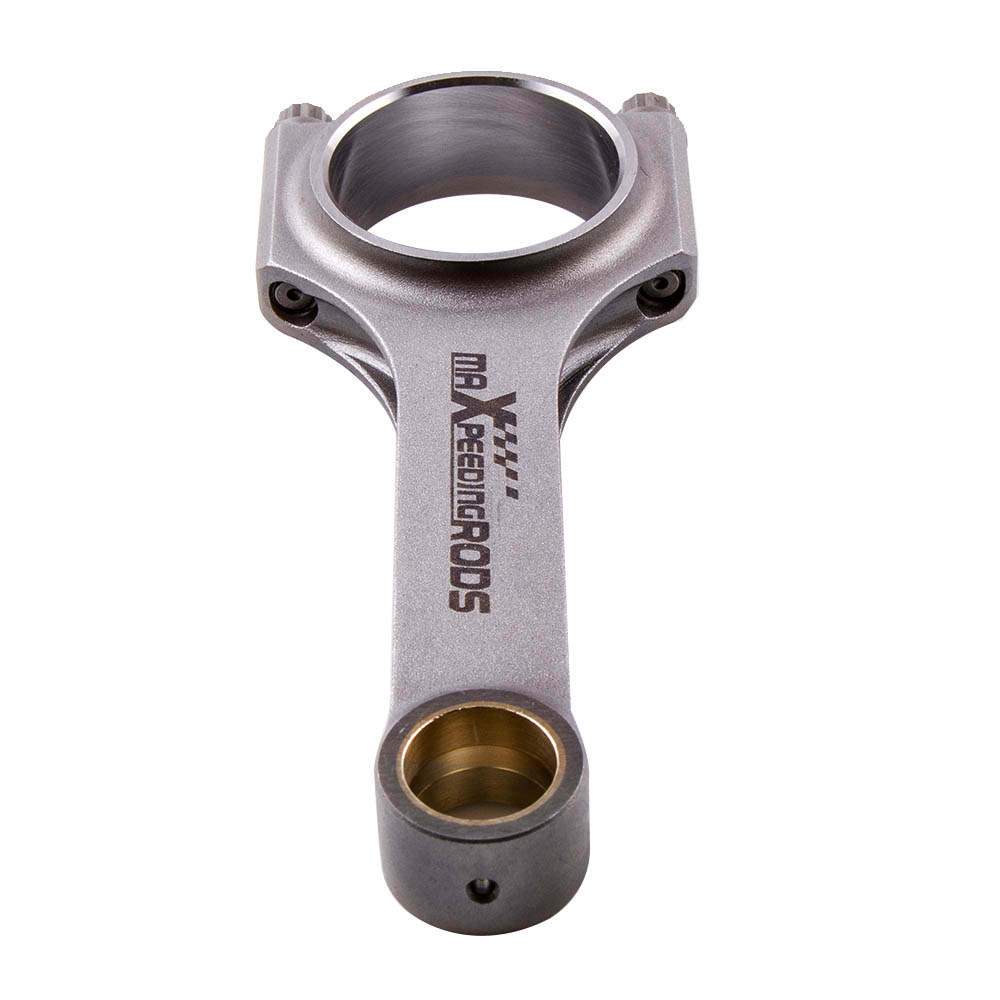

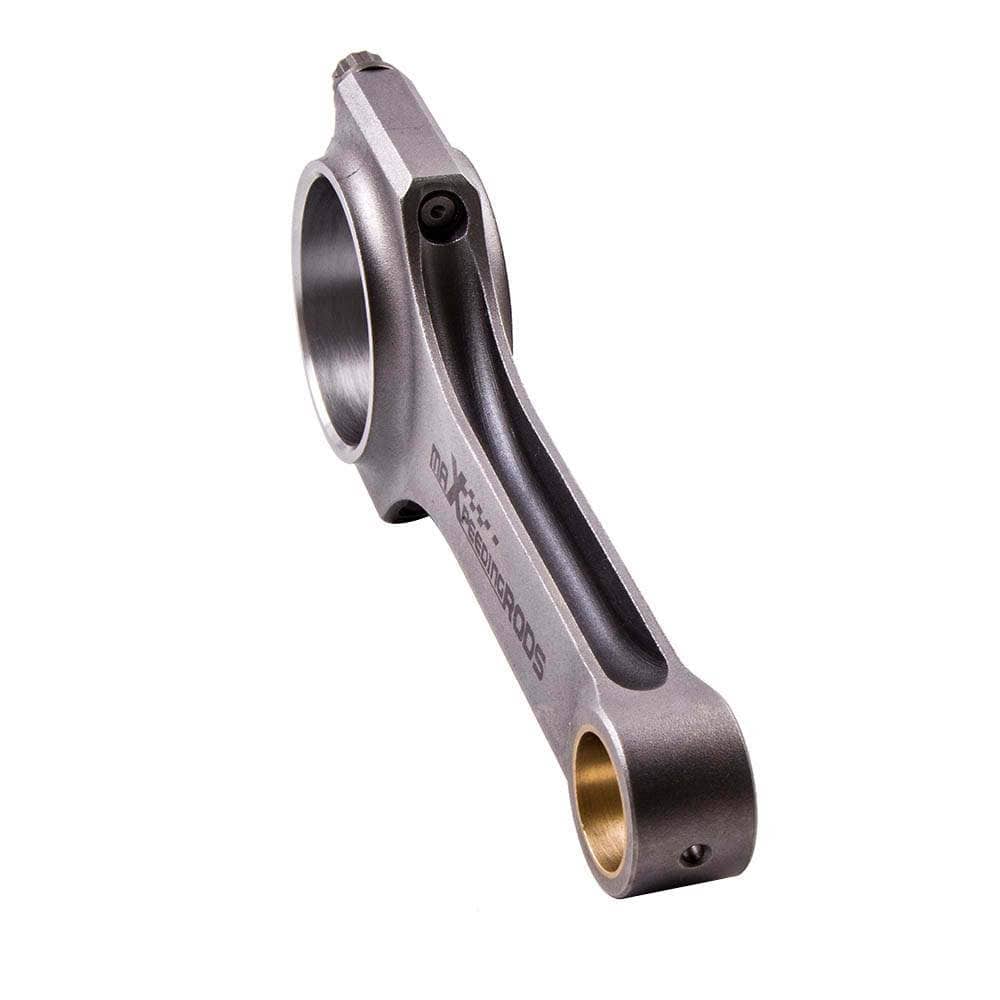

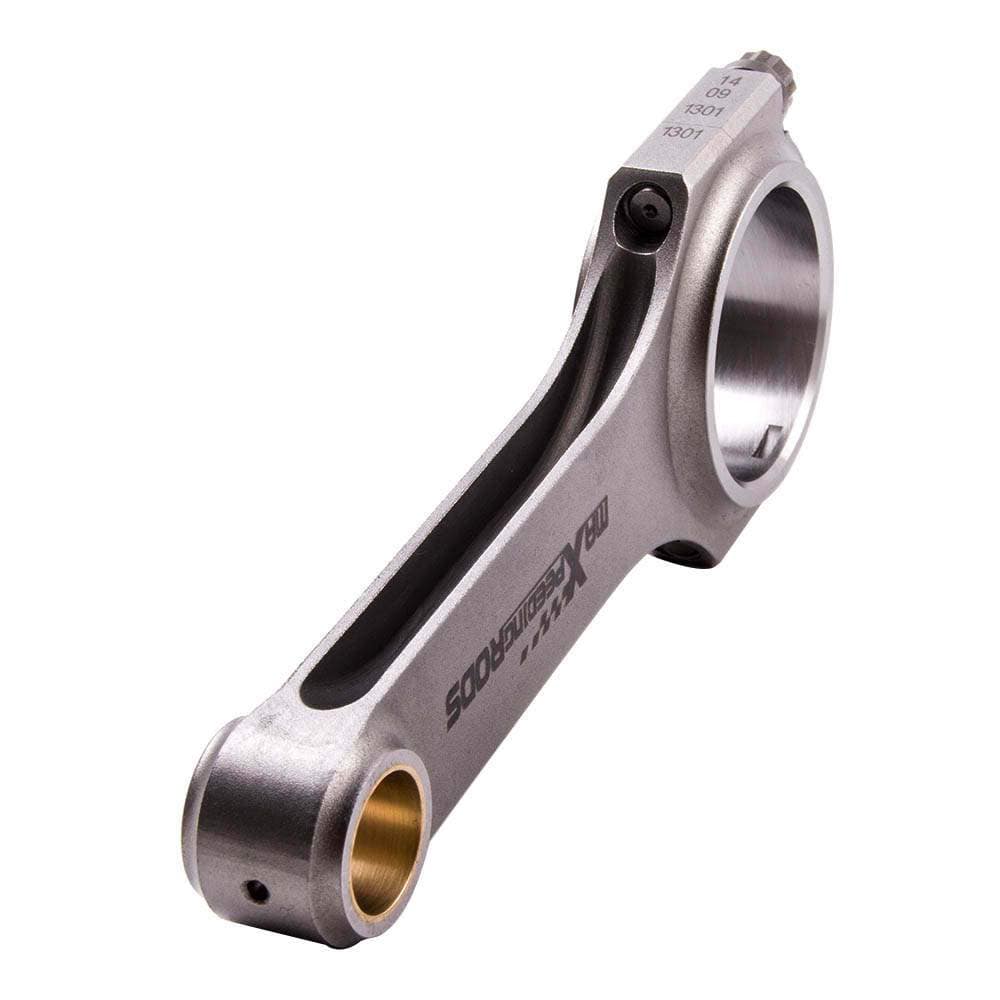

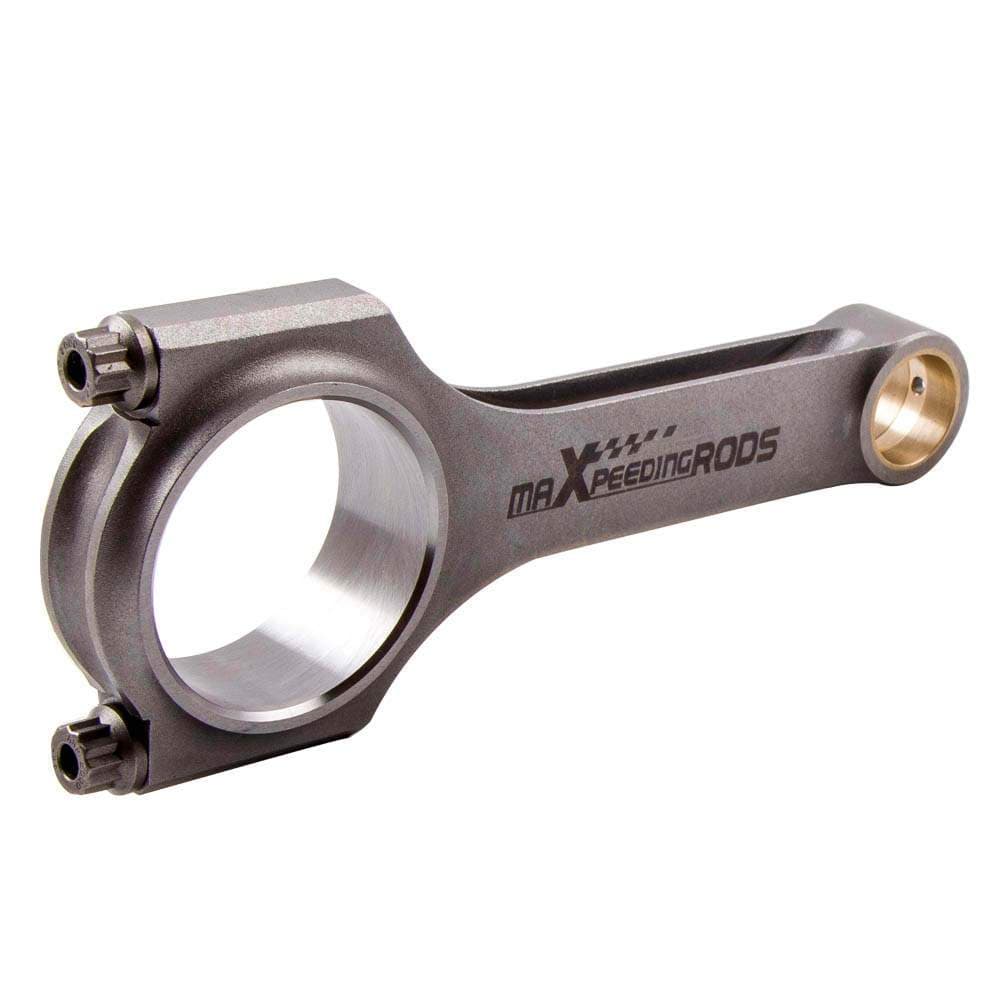

Forged connecting rods H-beam set of 4 for Ford Cosworth YB (Sierra, Escort RS Cosworth) | 133.58 mm, ARP 2000 bolts
Forged connecting rods H-beam set of 4 for Ford Cosworth YB (Sierra, Escort RS Cosworth) | 133.58 mm, ARP 2000 bolts
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description
Forged connecting rods (conrods) with ARP bolts, for racing use.
Suitable for:
- Ford Sierra / Escort RS Cosworth YB
Specifications
- Connecting Rod Length: 133.58 mm / ≈5.2591 in.
- Crankshaft Connecting Rod Eye: 55 mm / ≈2.165355 in.
- Piston Pin: 24 mm / ≈0.94488 in.
- Bottom Width: 25.9 mm / ≈1.01969 in.
- Top Width: 25.9 mm / ≈1.01969 in.

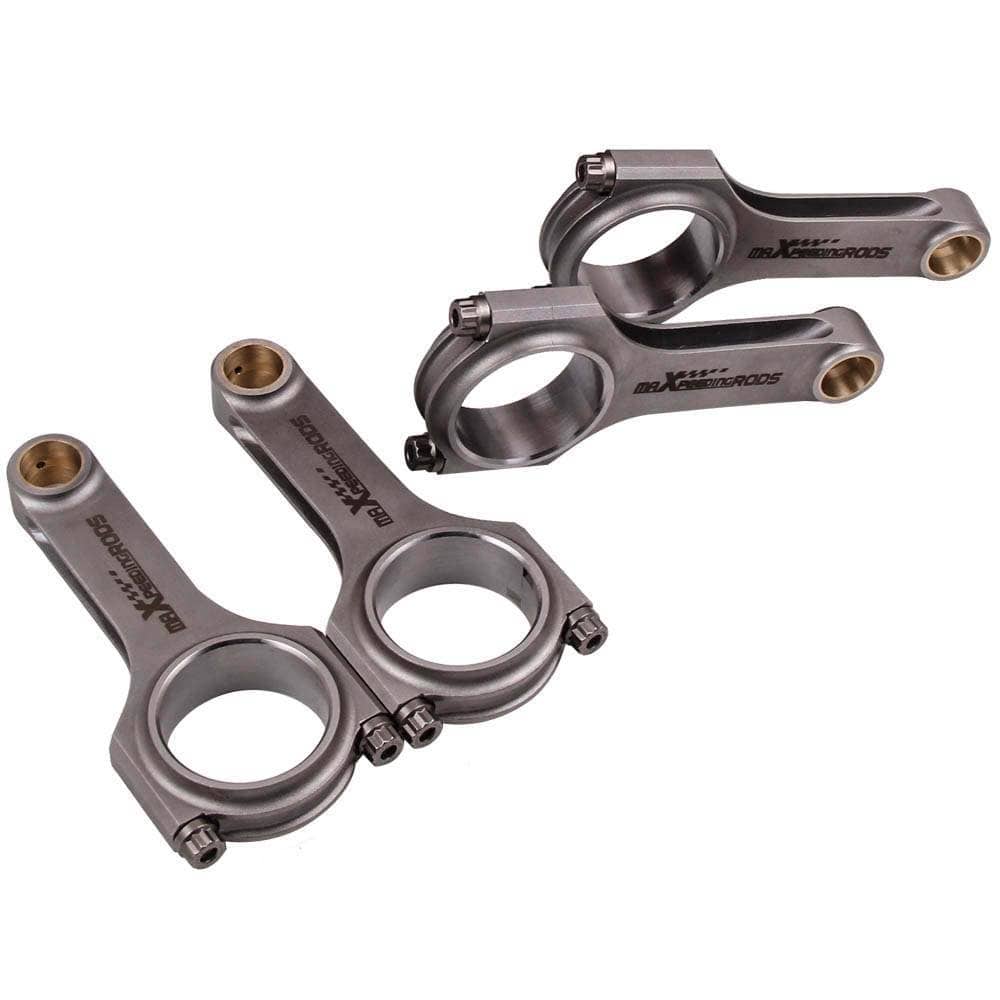

- Content: 4x steel H-Beam connecting rods, 1x set ARP 2000 3/8" bolts
- Material: Forged 4340 EN24 (40CrNiMo) chromium-molybdenum steel
- Weight Tolerance: +/- 1 gram
- Piston Pin Bore: +/- 4/1000 mm
- Power: 600-800 hp per set
- Fastener Tensile Strength: 220,000 / 230,000 psi
- Torque Setting: 48 ft ≈ 65 Nm
- Maximum RPM: 9000 rpm
Features
- New
- 100% tested and balanced
- TÜV certified
- Multiple heat treatment
- Bronze bushings for floating piston pin
- 100% checked with X-ray, ultrasonic, and Magnaflux inspection
- Designed and manufactured with advanced CNC machines
- All large and small connecting rod eyes are machined on a SUNNEN honing machine
- Shot-peened for long lifespan, even under load
- Precise alignment of the main bore for the connecting rod bearings to prevent shifting
Please note
Upgrading to ARP L19 bolts is possible, good for 220,000/230,000 to 260,000/270,000 psi (from 800 hp, additional cost 10 EUR/piece). Professional installation is highly recommended; no manual is included.
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code, and the version of your vehicle, as there may be differences per version. Unsure if this part fits your vehicle? Feel free to contact us before purchase.
