Forged connecting rods H-beam set of 4 for Ford Sierra, Escort Cosworth YB 2.0 16V Turbo | 128.55 mm, ARP 2000 bolts
Forged connecting rods H-beam set of 4 for Ford Sierra, Escort Cosworth YB 2.0 16V Turbo | 128.55 mm, ARP 2000 bolts
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description

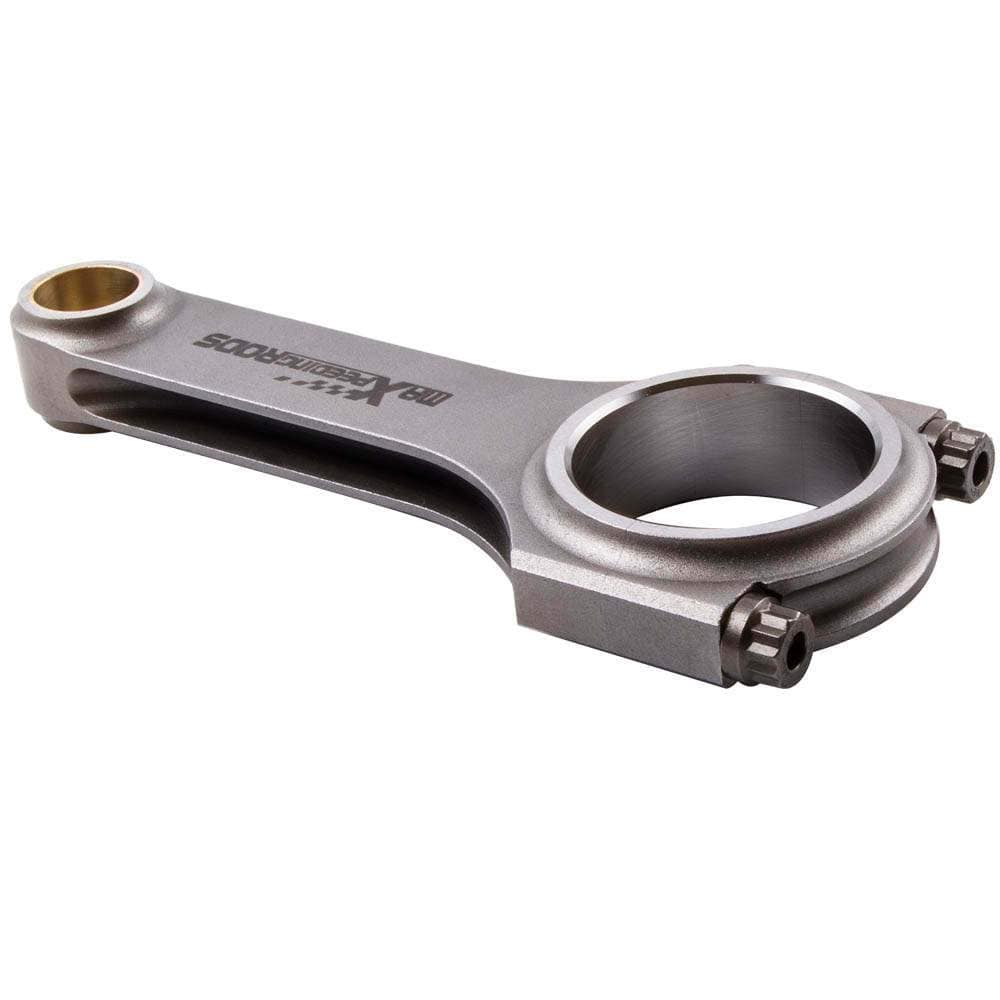

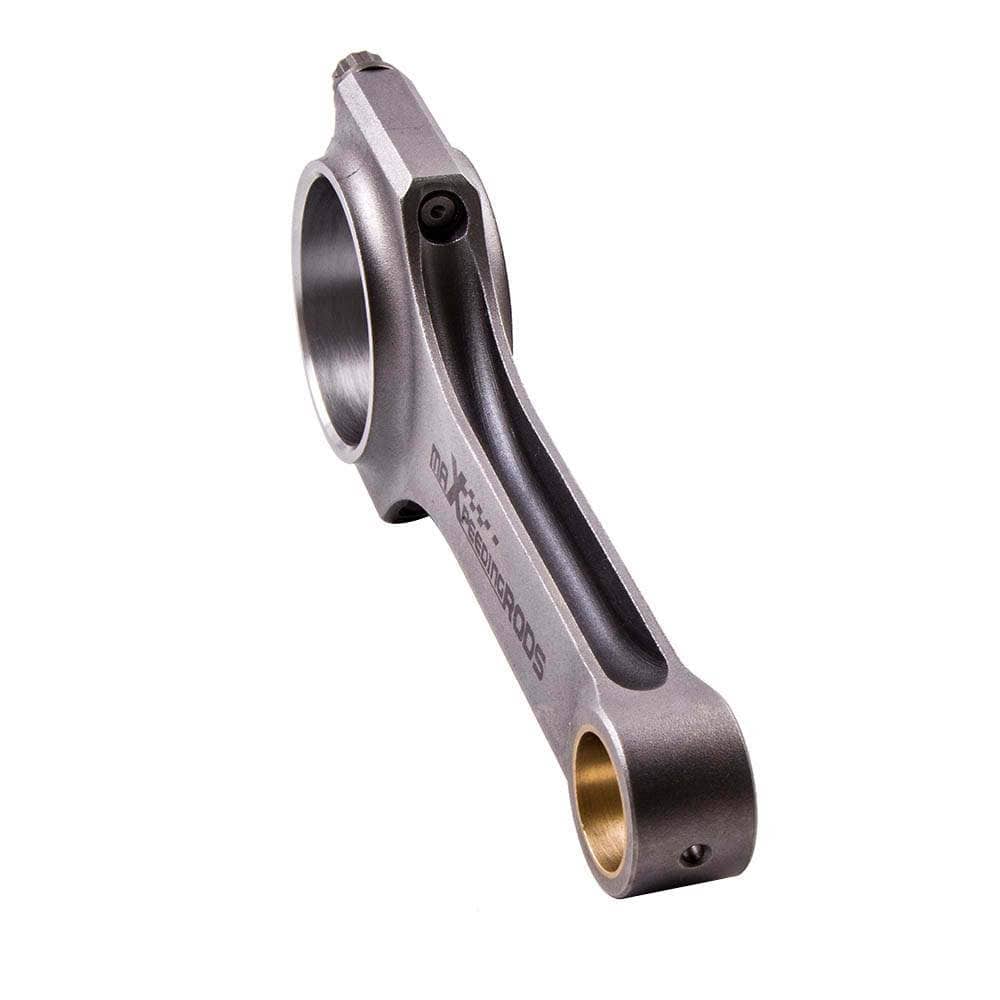

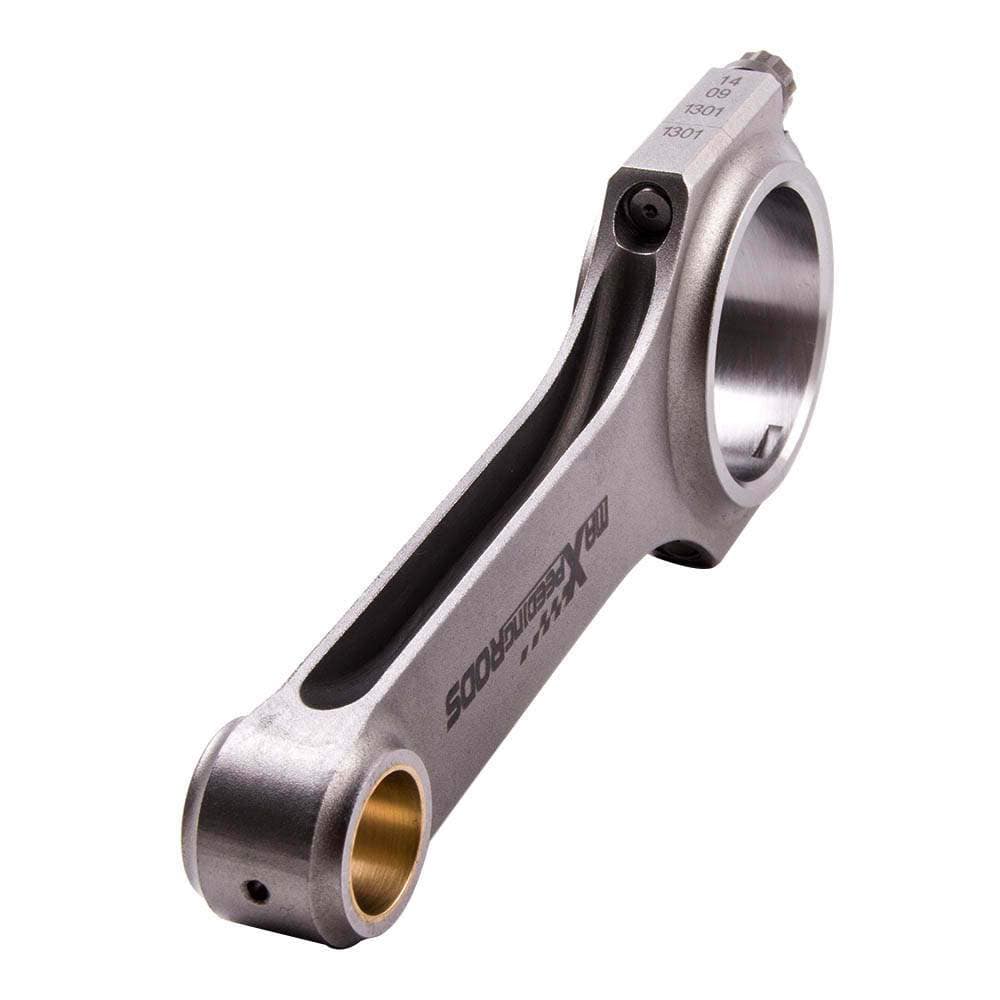

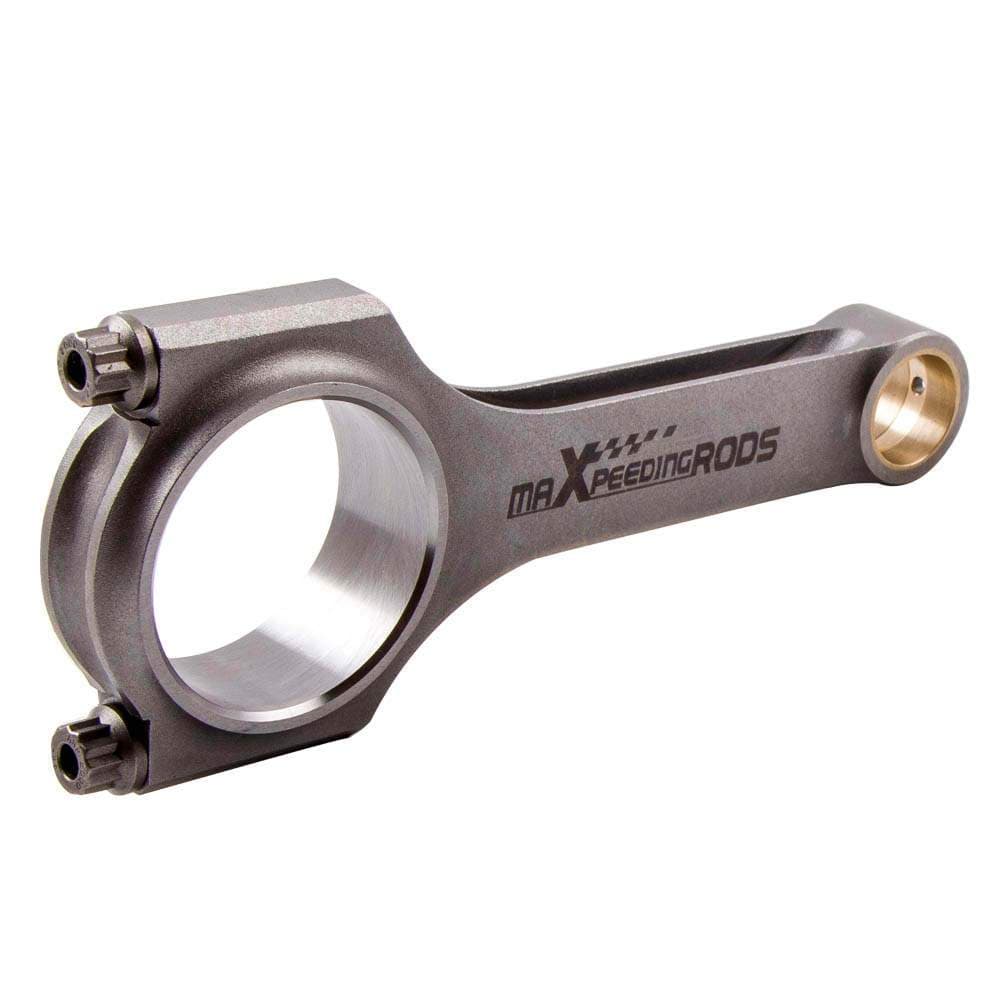

This H-beam connecting rod set (conrods) is designed for the Ford YB Cosworth engine in the Sierra and Escort.
Suitable for:
- Ford Cosworth engine (YB) in the Sierra and Escort Turbo
Specifications
- Rod Length: 128.55 mm / 5.0610 in.
- Crank Journal Diameter: 55 mm / 2.1653 in.
- Pin Diameter: 24 mm / 0.94488 in.
- Big End Width: 25.9 mm / 1.01968 in.
- Small End Width: 25.9 mm / 1.01968 in.
- Material: Forged 4340 EN24 (40CrNiMo) Chrome-Molybdenum Steel
- Weight Tolerance: +/- 1 gram
- Piston Pin Bore: +/- 4/1000 mm
- Power: 600hp-800hp per set
- Tensile Strength of Fasteners: 220,000 / 230,000 psi
- Torque: 48 ft-lb
- Max RPM: 9000 rpm
Scope of delivery

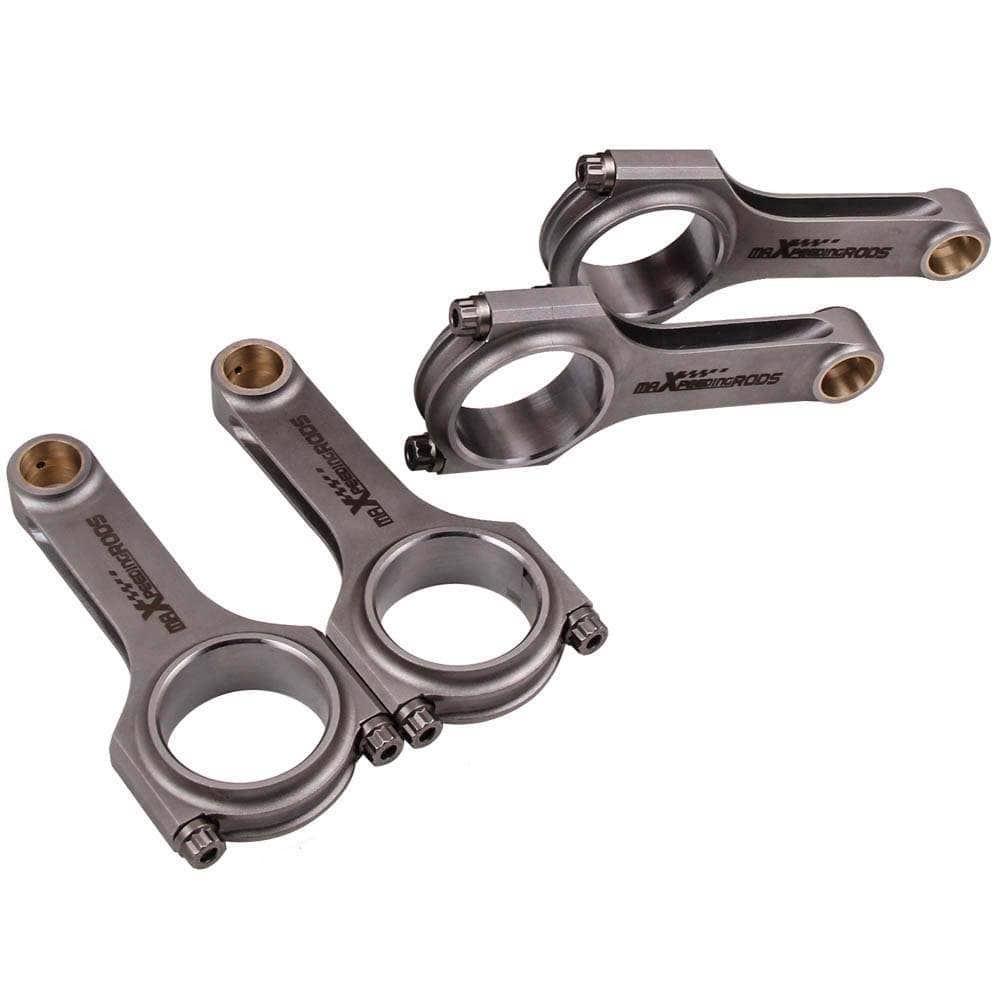

4x steel H-beam connecting rods, 1x set of ARP 2000 3/8 bolts.
Features
- 100% tested and balanced
- TÜV certified
- Multiple heat treatments
- Bronze bushings for floating piston pins
- 100% inspected with X-ray, ultrasound, and Magnaflux
- Manufactured with advanced CNC machines
- Big and small ends machined on a SUNNEN honing machine
- Shot-peened for long service life and function, even under load
- Precise alignment of the main bearing bore to prevent shifting
Check fitment
Always check the original OEM part number, year of manufacture, engine code, and vehicle version before ordering, as differences may exist depending on the version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
